Under-dash Fuse/Relay Box Connector End View

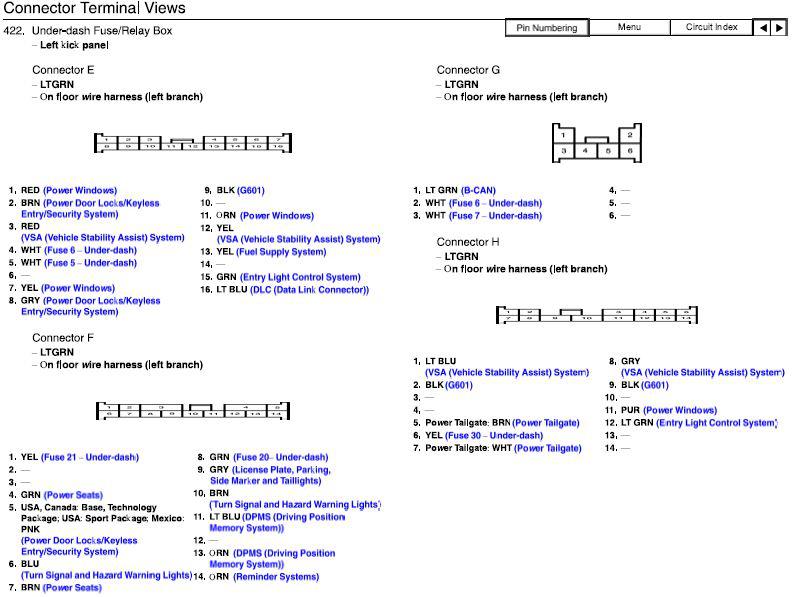

Fig 1: Under-dash Fuse/Relay Box Connector End View (1 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

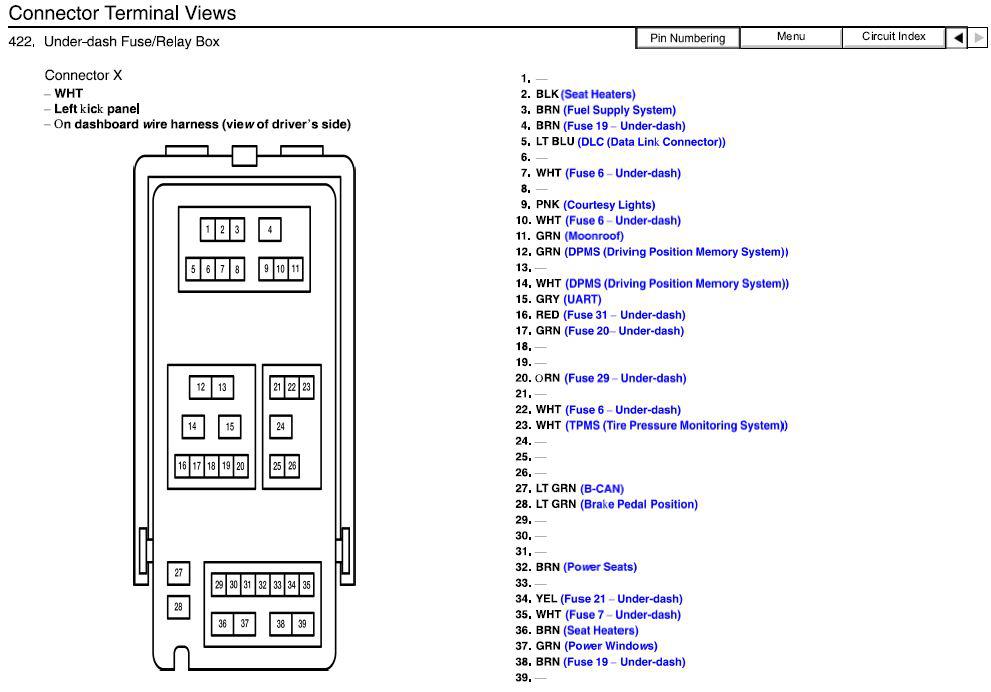

Fig 1: Under-dash Fuse/Relay Box Connector End View (2 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

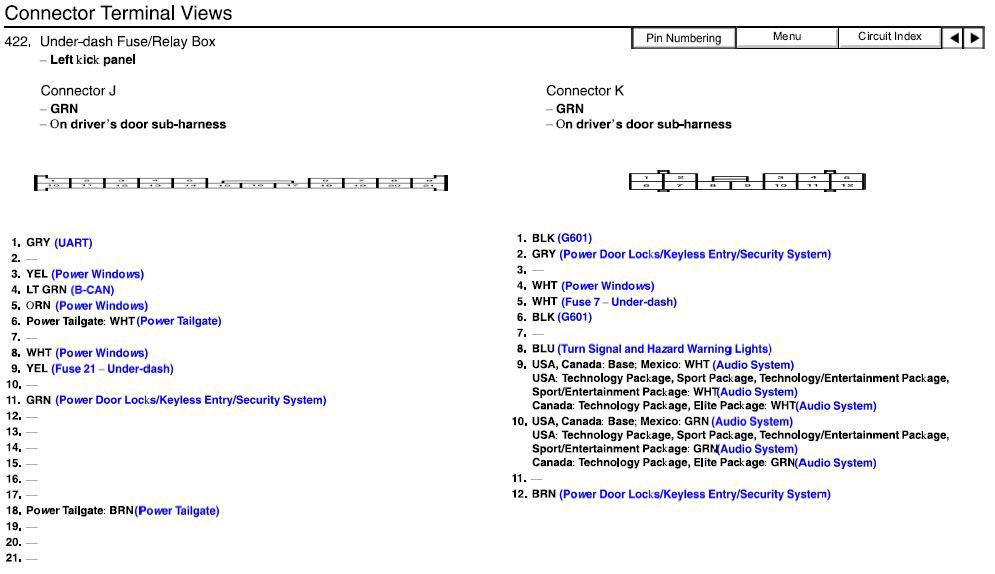

Fig 1: Under-dash Fuse/Relay Box Connector End View (3 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

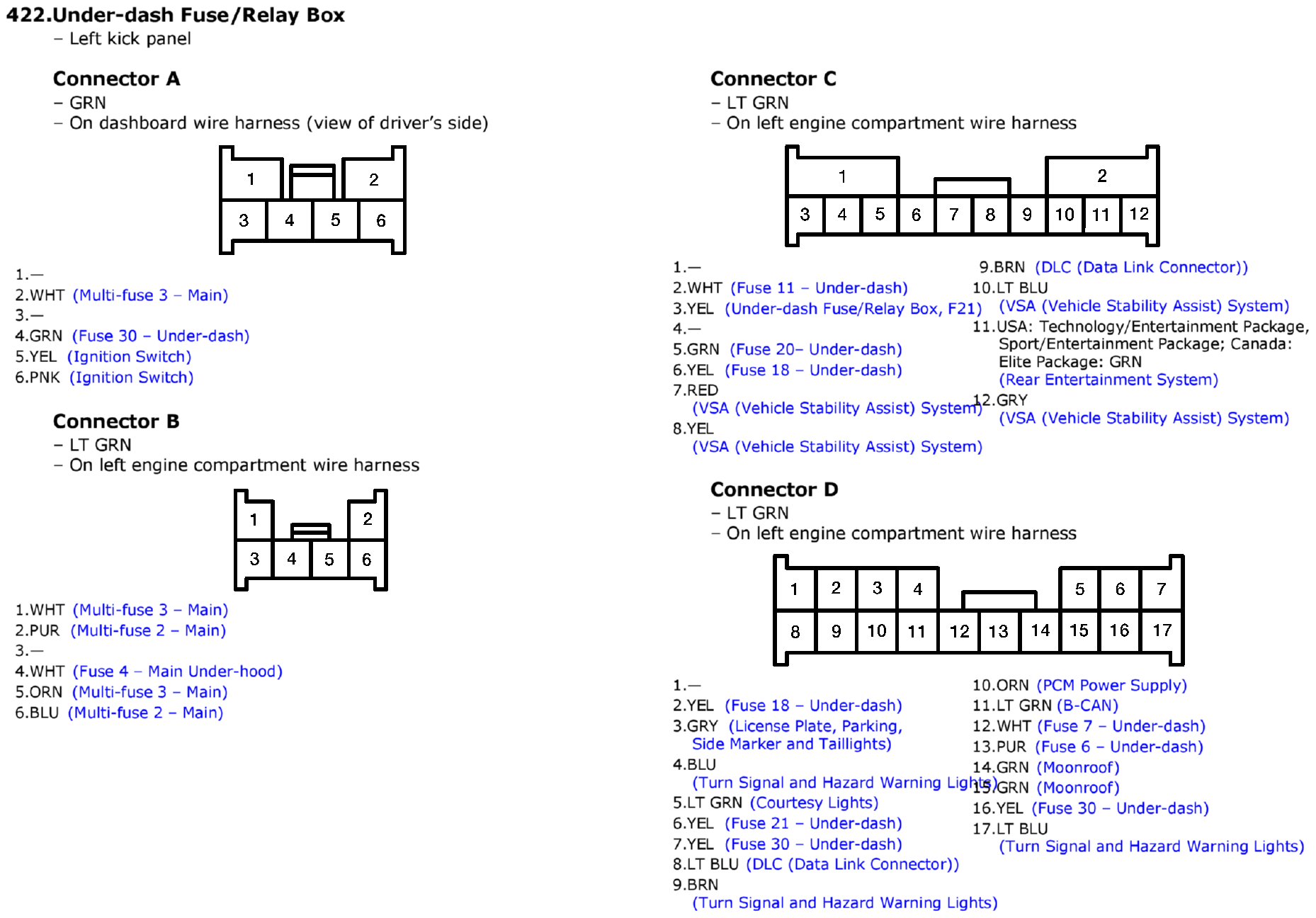

Fig 1: Under-dash Fuse/Relay Box Connector End View (4 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

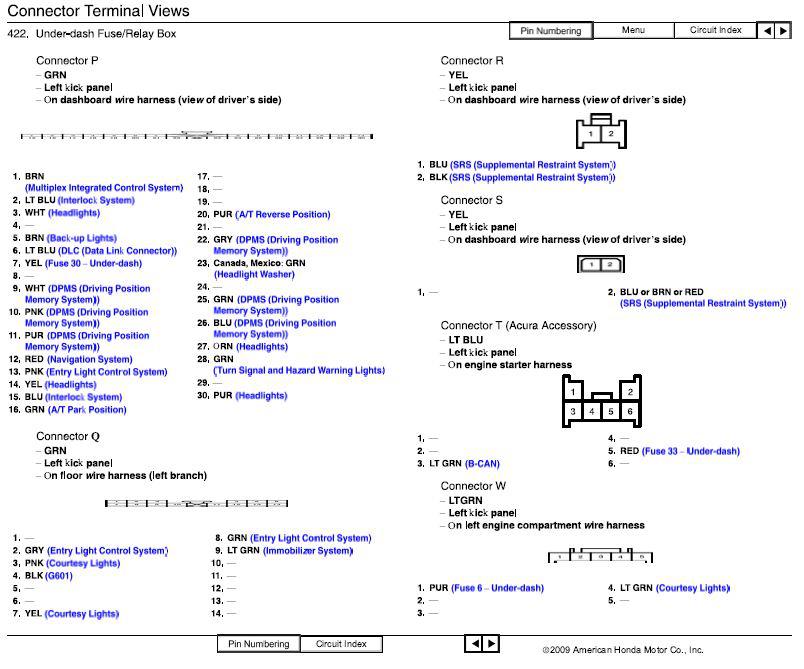

Fig 1: Under-dash Fuse/Relay Box Connector End View (5 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

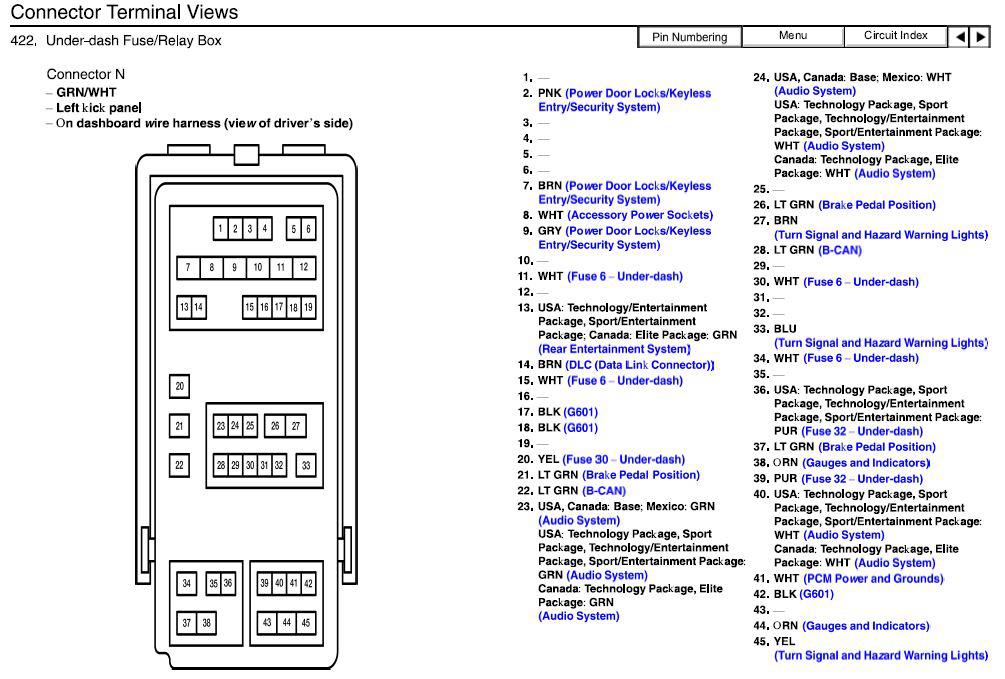

Fig 1: Under-dash Fuse/Relay Box Connector End View (6 of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
