DTC P0797: A/T Clutch Pressure Control Solenoid Valve C Stuck ON: Notes

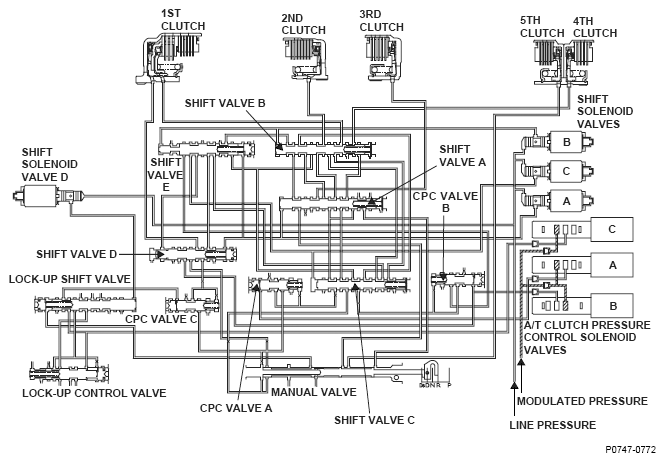

Fig 1: A/T Clutch Pressure Control Solenoid Valve C (Stuck ON) - System Diagram
G04835965
Fig 2: Gear Position To Shift Status Graph
G04822989

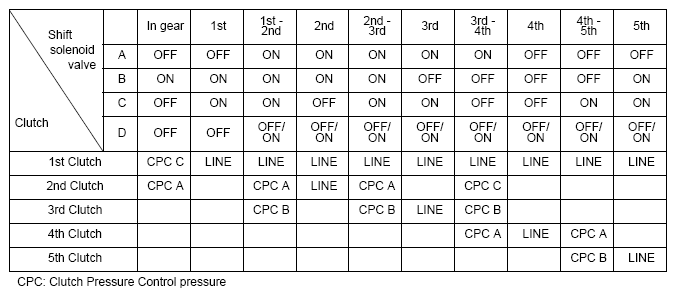

Fig 3: Shift Solenoid Valve And Clutch Specification Chart
G04836004
