Relays And Control Unit Locations: Rear

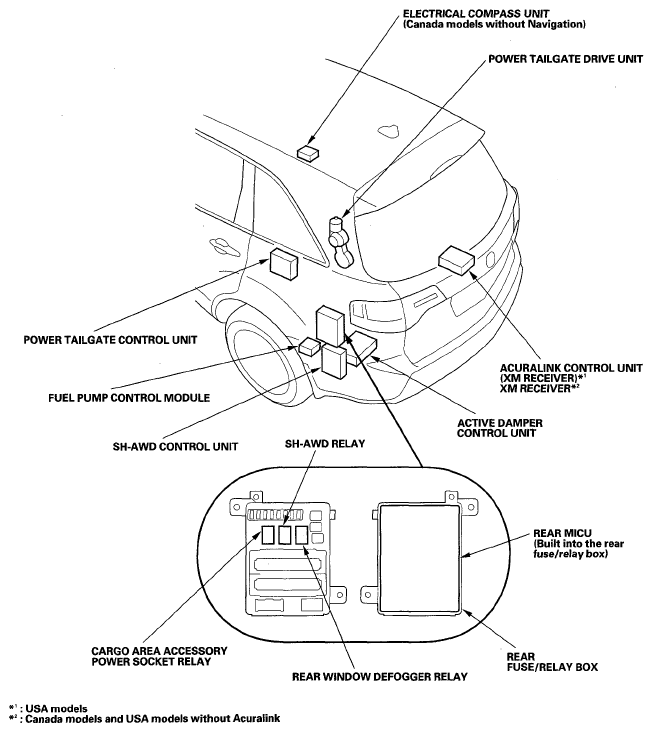

Fig 1: Identifying Relay And Control Unit Locations (Rear)
G05487798Courtesy of AMERICAN HONDA MOTOR CO., INC.
