Keyless Entry: Locations

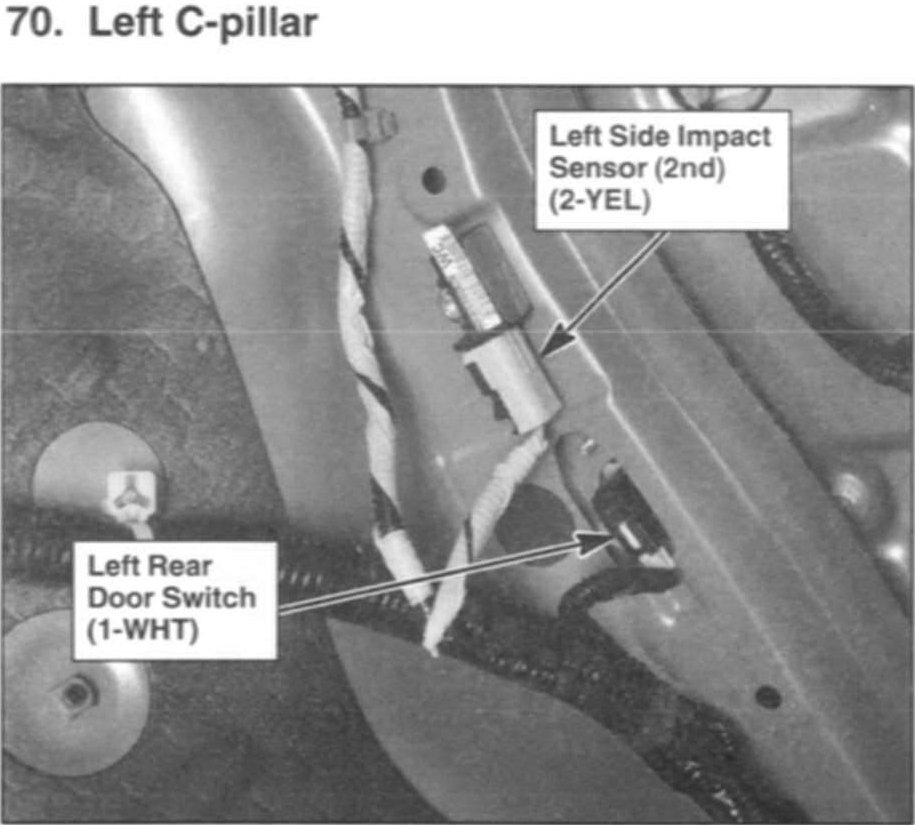

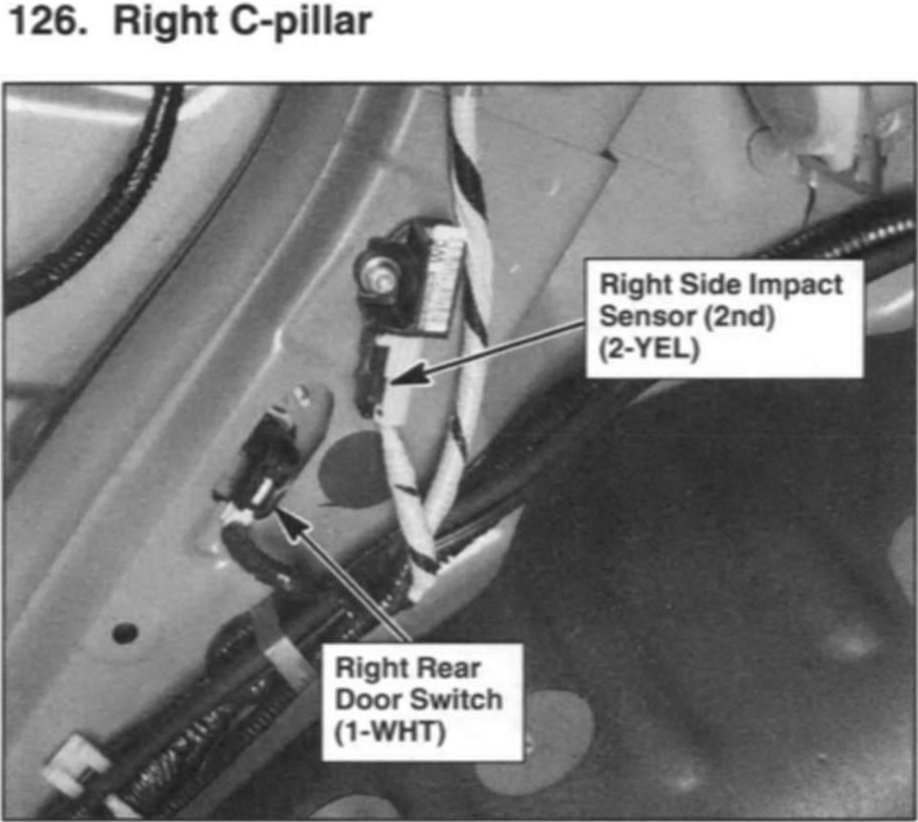

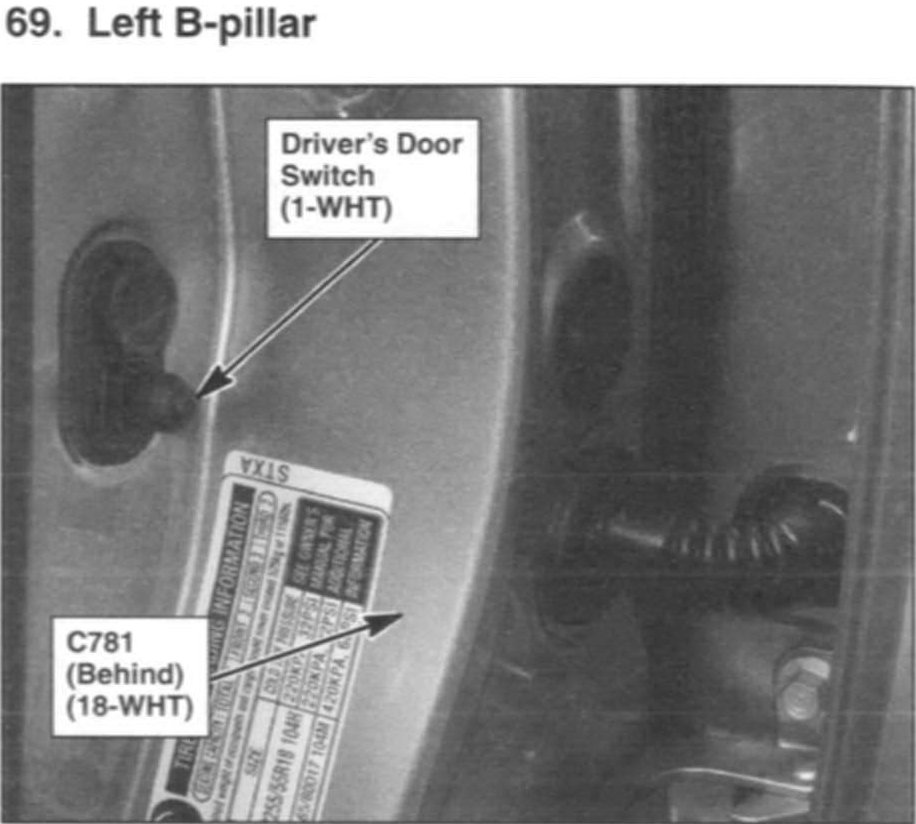

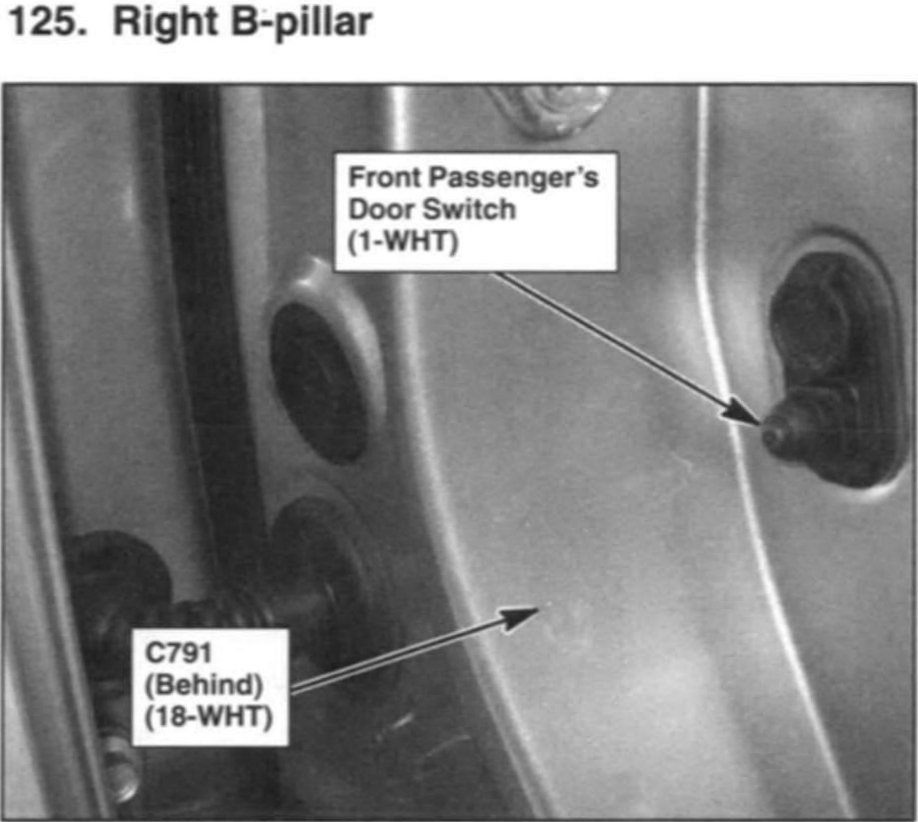

Keyless/Power Door Locks/Security System Component Location Index:



Keyless/Power Door Locks/Security System Component Location Index:

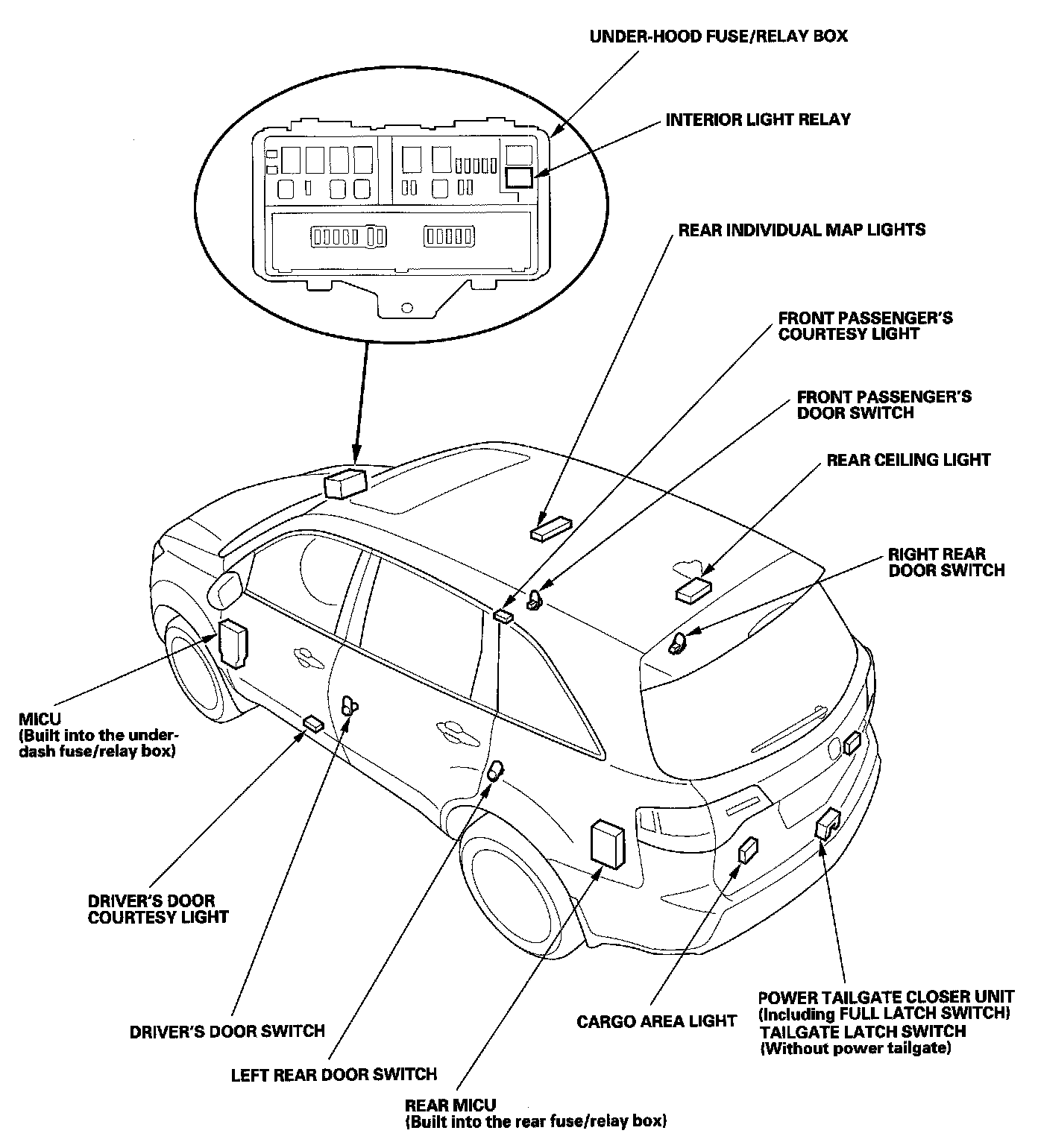

Interior Lights Component Location Index:
