Memory Positioning Module: Locations

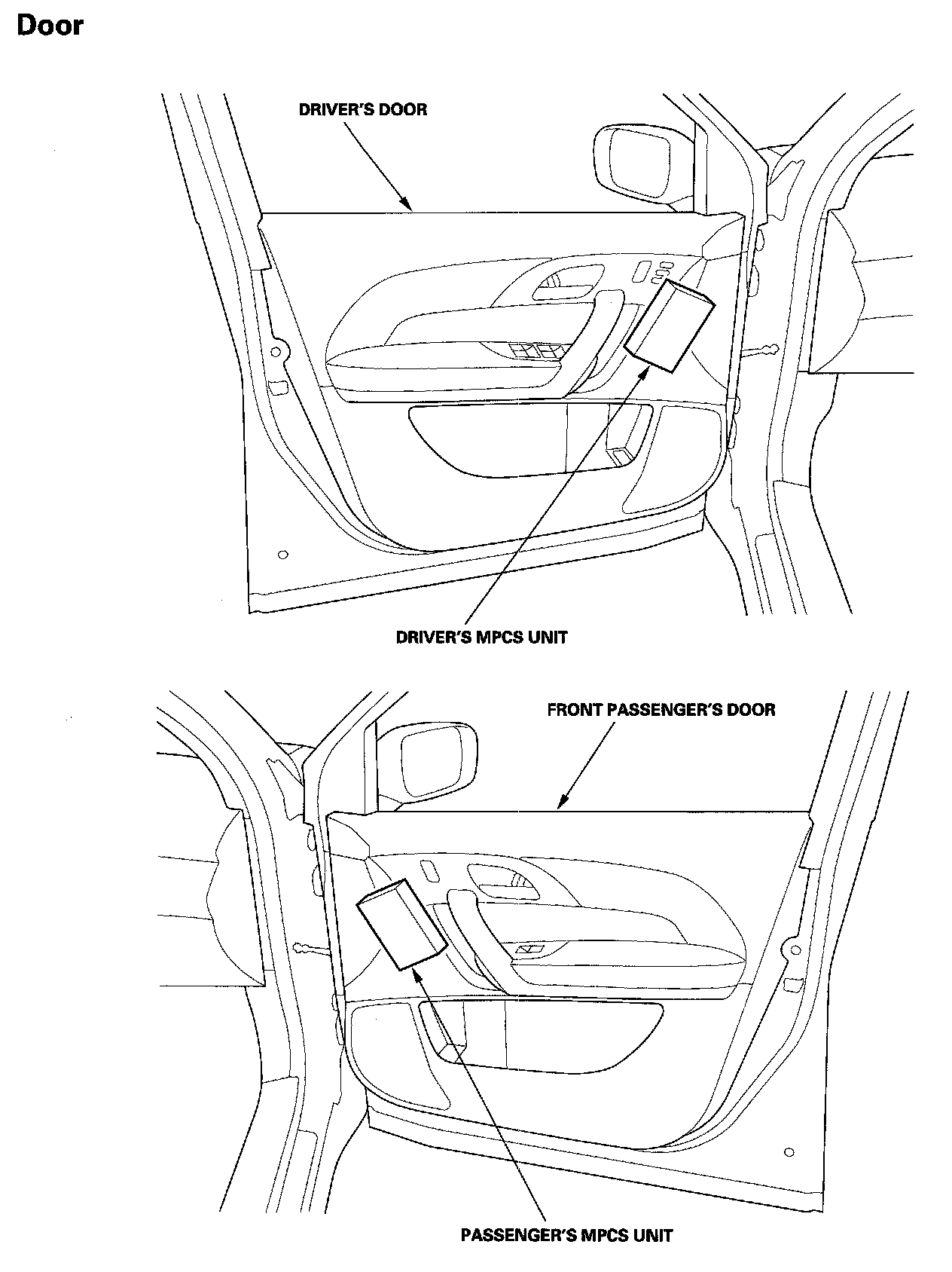

Relay And Control Unit Locations Door:

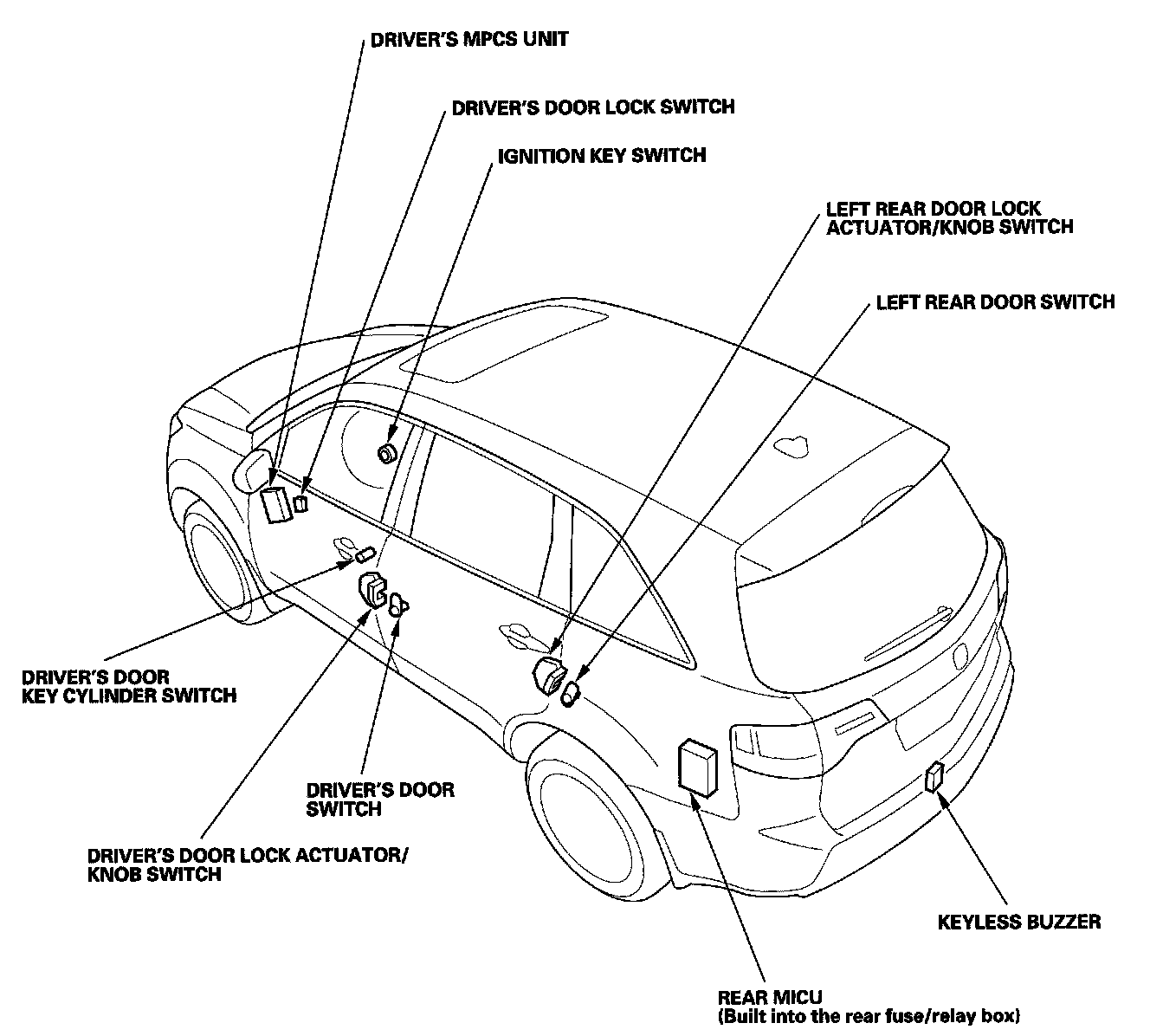

Keyless/Power Door Locks/Security System Component Location Index:

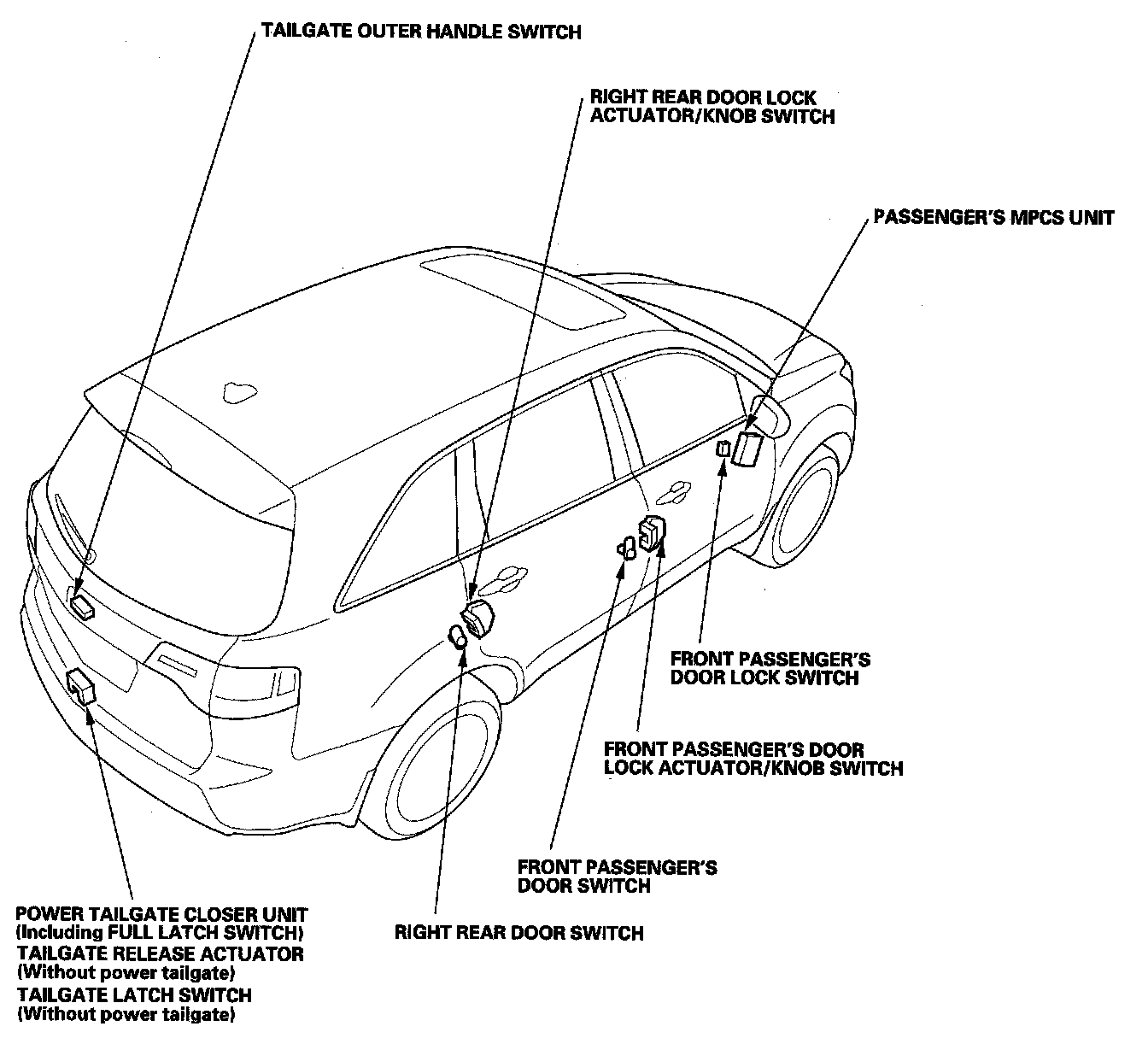

Keyless/Power Door Locks/Security System Component Location Index:

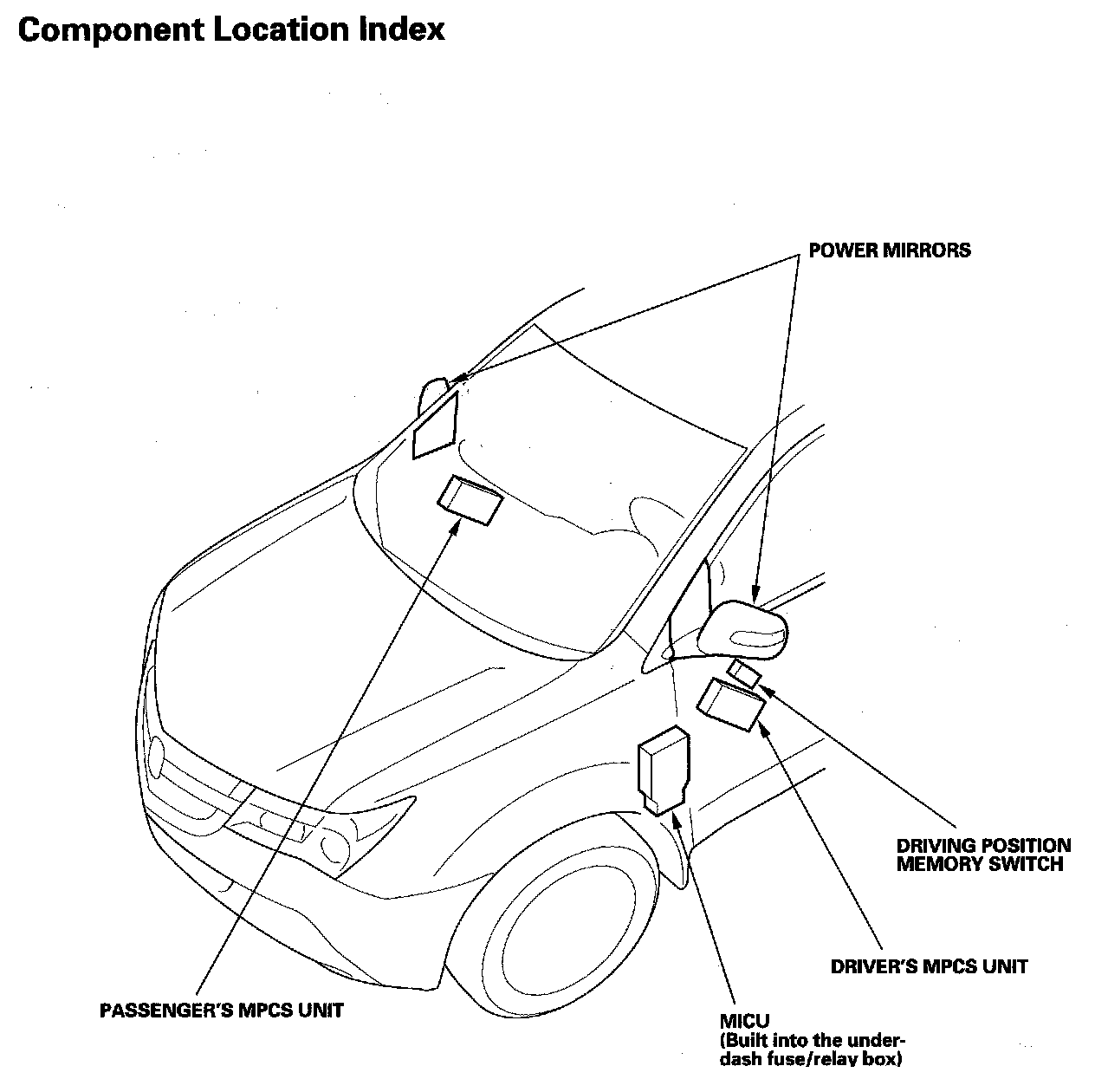

Driving Position Memory System (DPMS) Component Location Index:
