Component Location Index

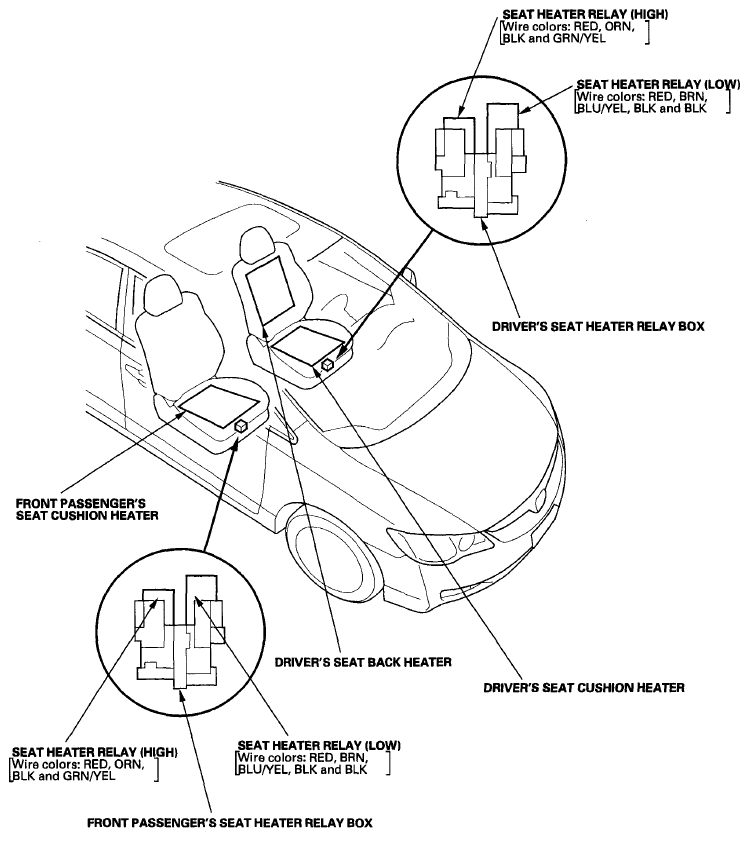

Fig 1: Identifying Seat Heaters Component Location (1 Of 2)
G06268874Courtesy of AMERICAN HONDA MOTOR CO., INC.

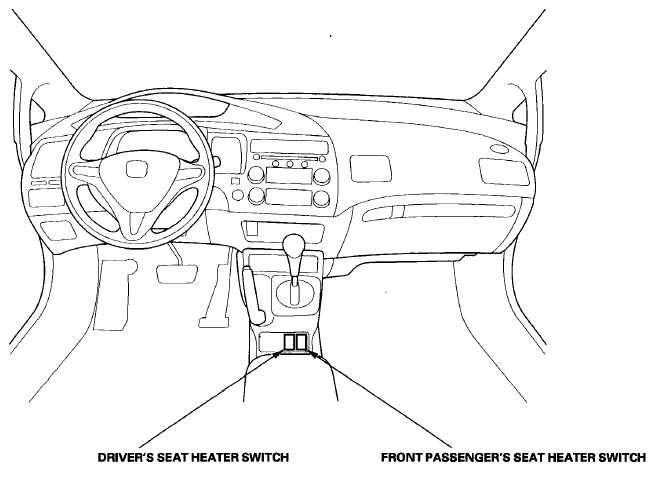

Fig 2: Identifying Seat Heaters Component Location (2 Of 2)
G06268875Courtesy of AMERICAN HONDA MOTOR CO., INC.
