Lever-Locked Connector: Connecting

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

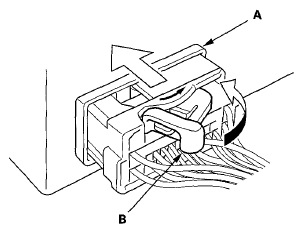

To connect the connector, push the connector into the connector sleeve (A) As the connector is pressed in, the lever (B) moves to the locked position

Fig 1: Pushing Connector Into Connector Sleeve
G05989912Courtesy of AMERICAN HONDA MOTOR CO., INC.
