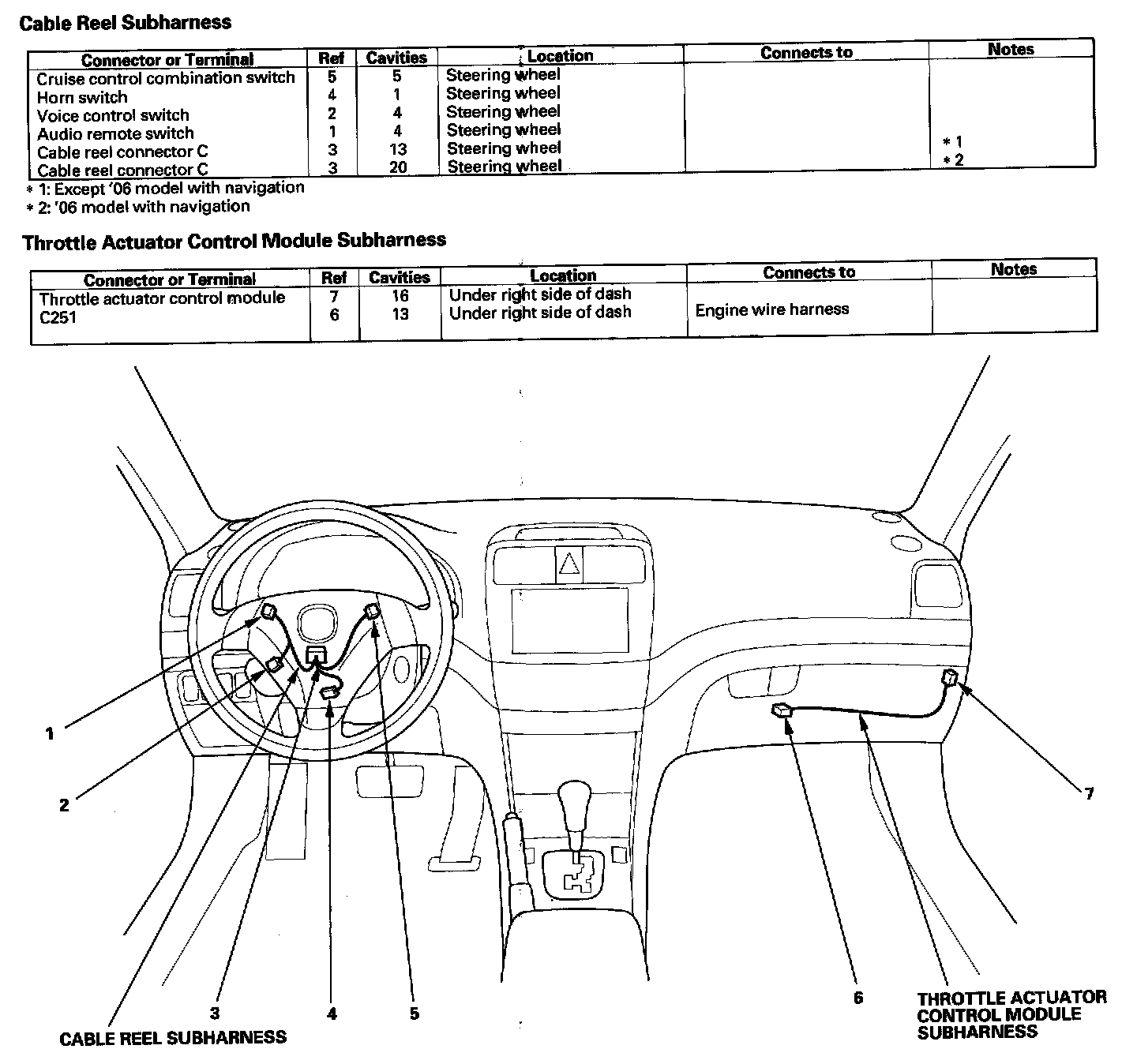

Throttle Actuator Control Module Subharness

Cable Reel Subharness/Throttle Actuator Control Module Subharness:
