Manual Transmission/Transaxle

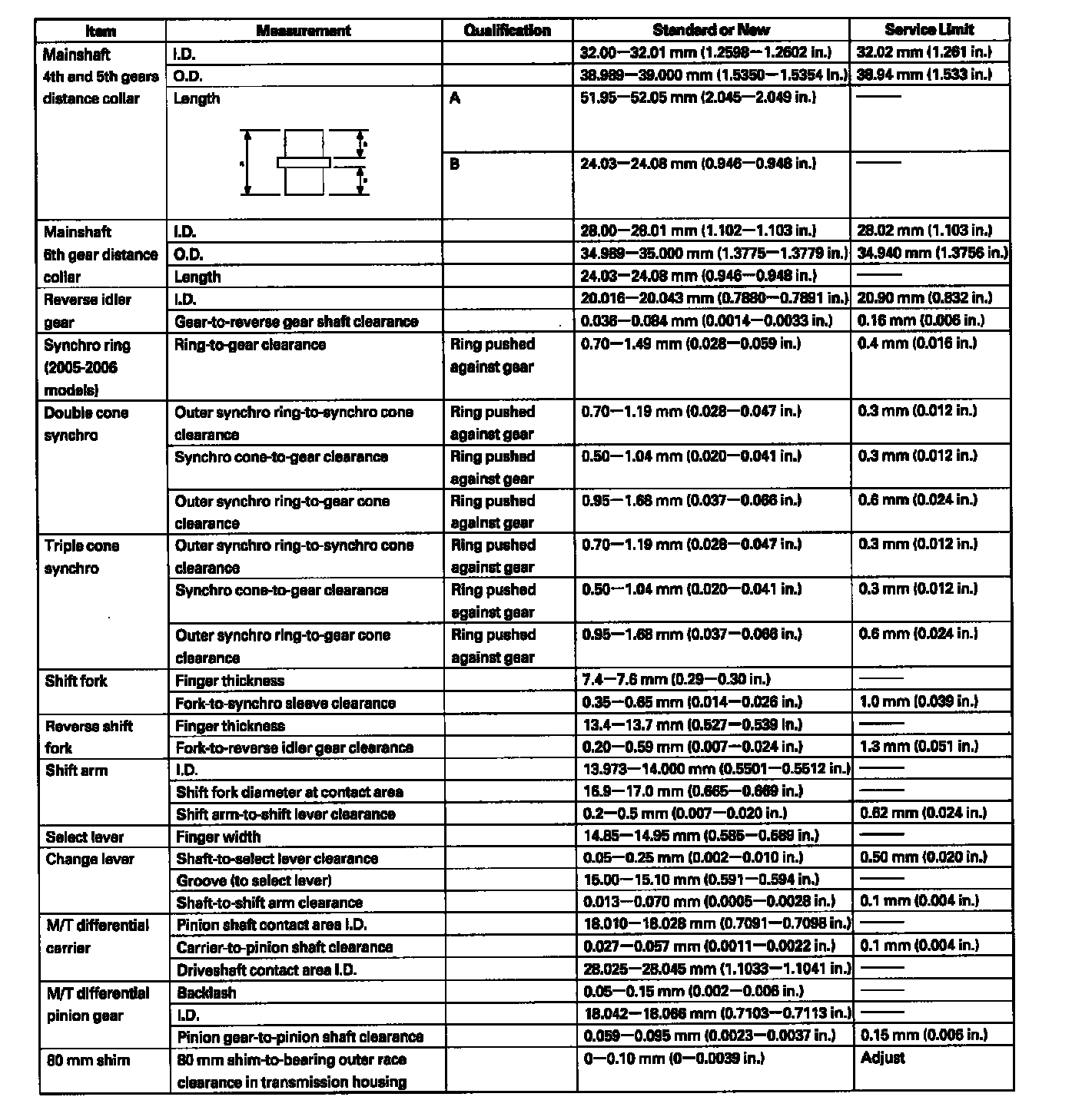

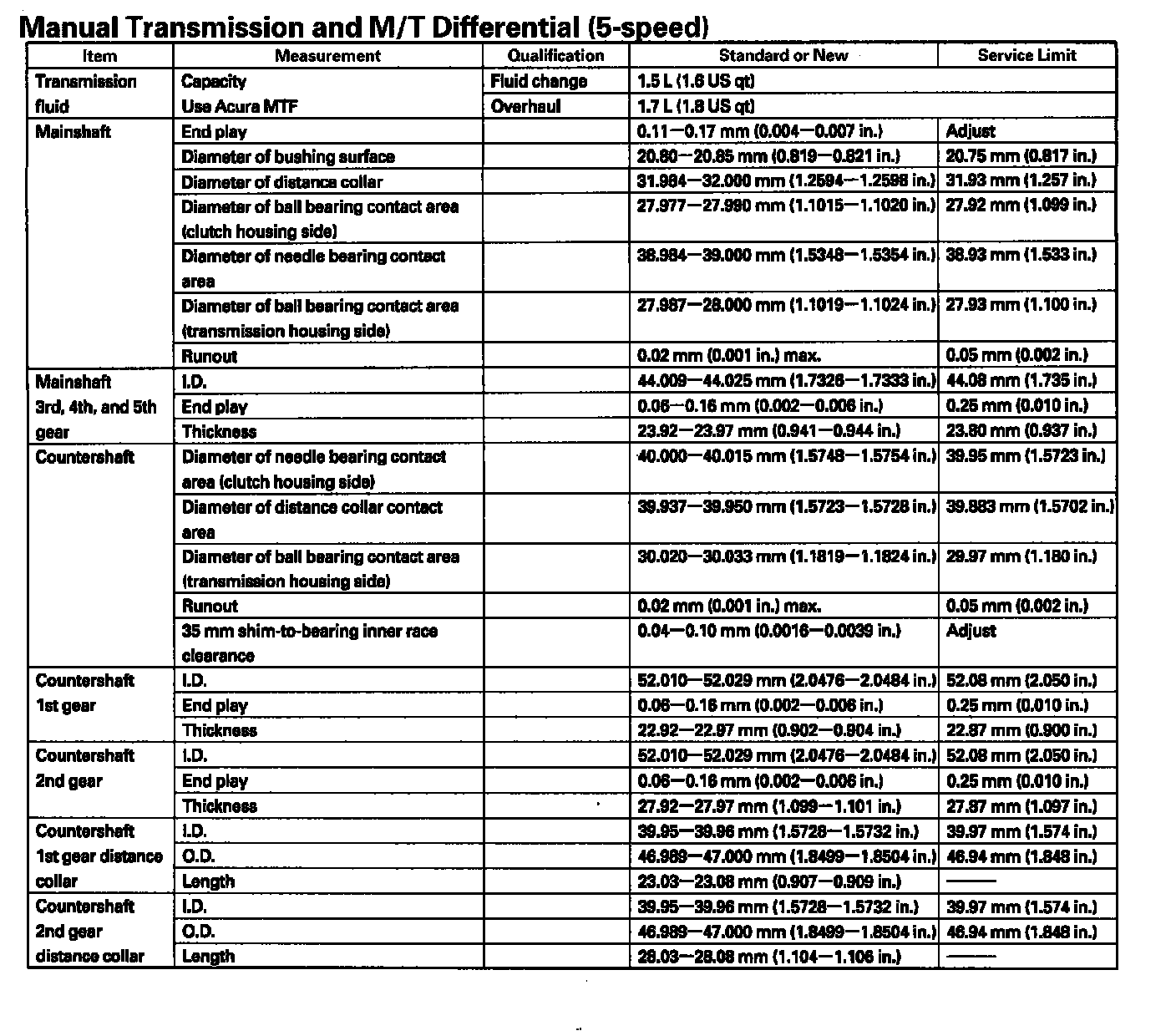

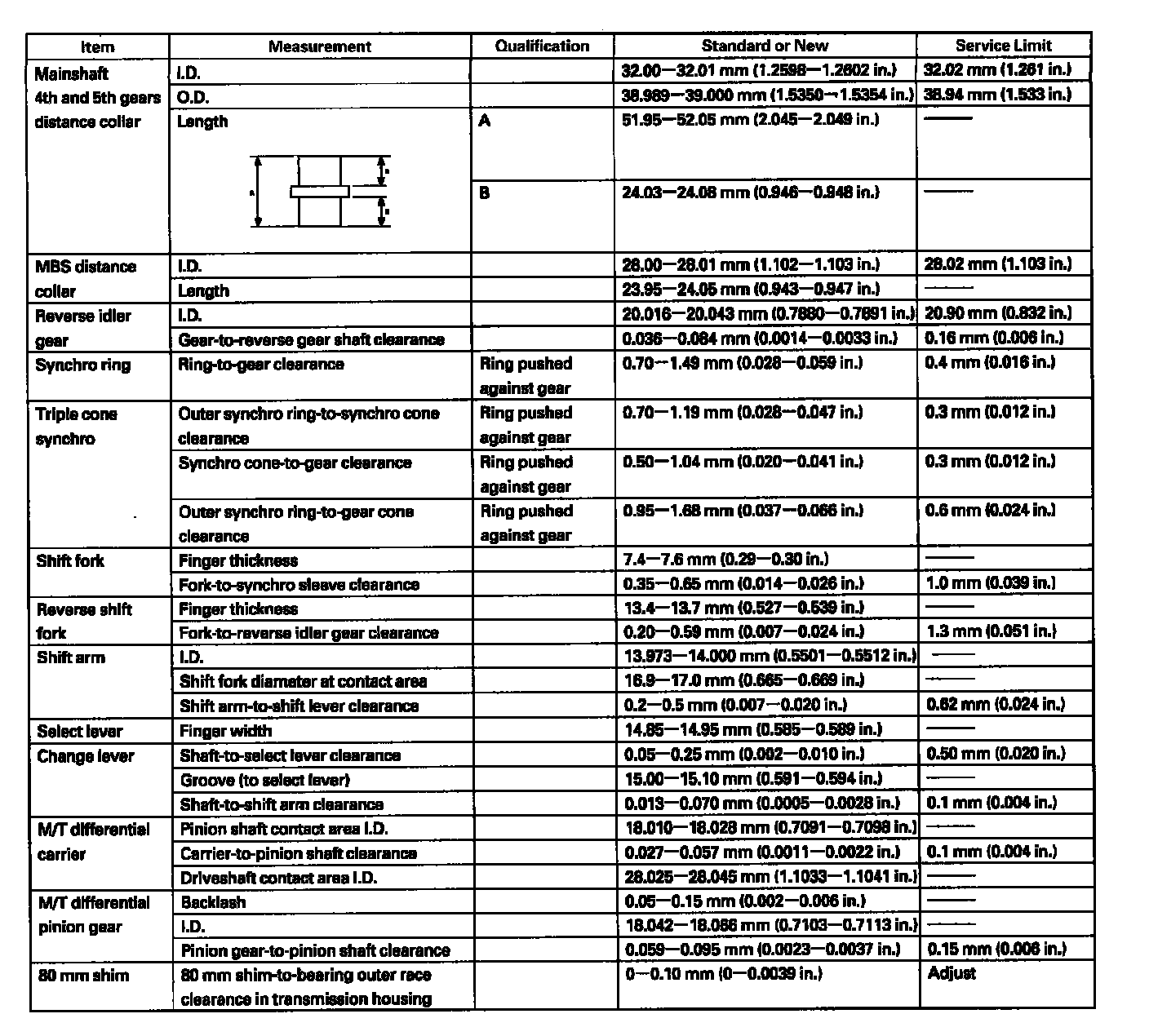

Manual Transmission and M/T Differential (5-speed):



Manual Transmission and M/T Differential (5-speed):

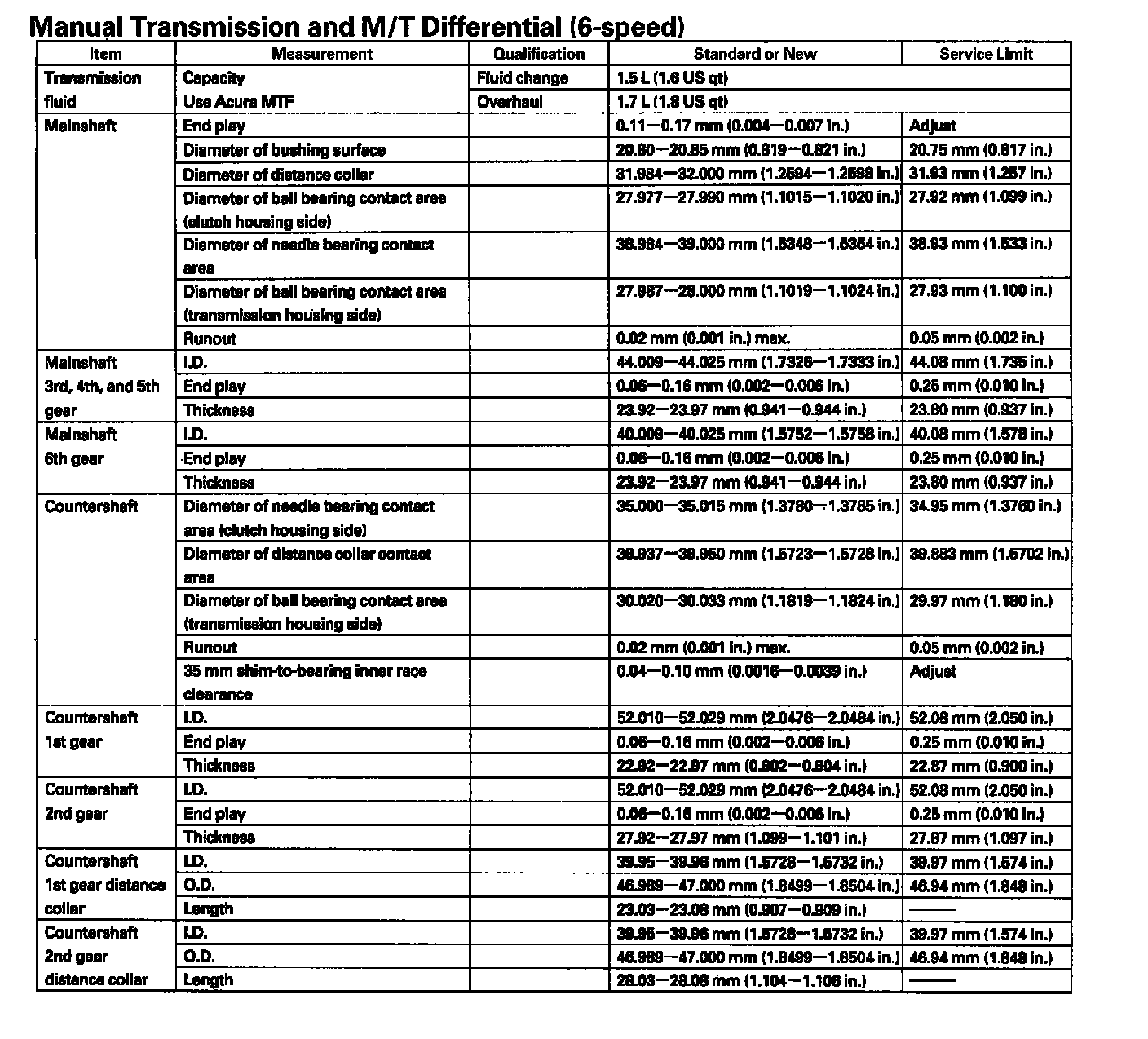

Manual Transmission and M/T Differential (6-speed):



Manual Transmission and M/T Differential (6-speed):
