Intake Manifold

Intake Manifold
K20A3

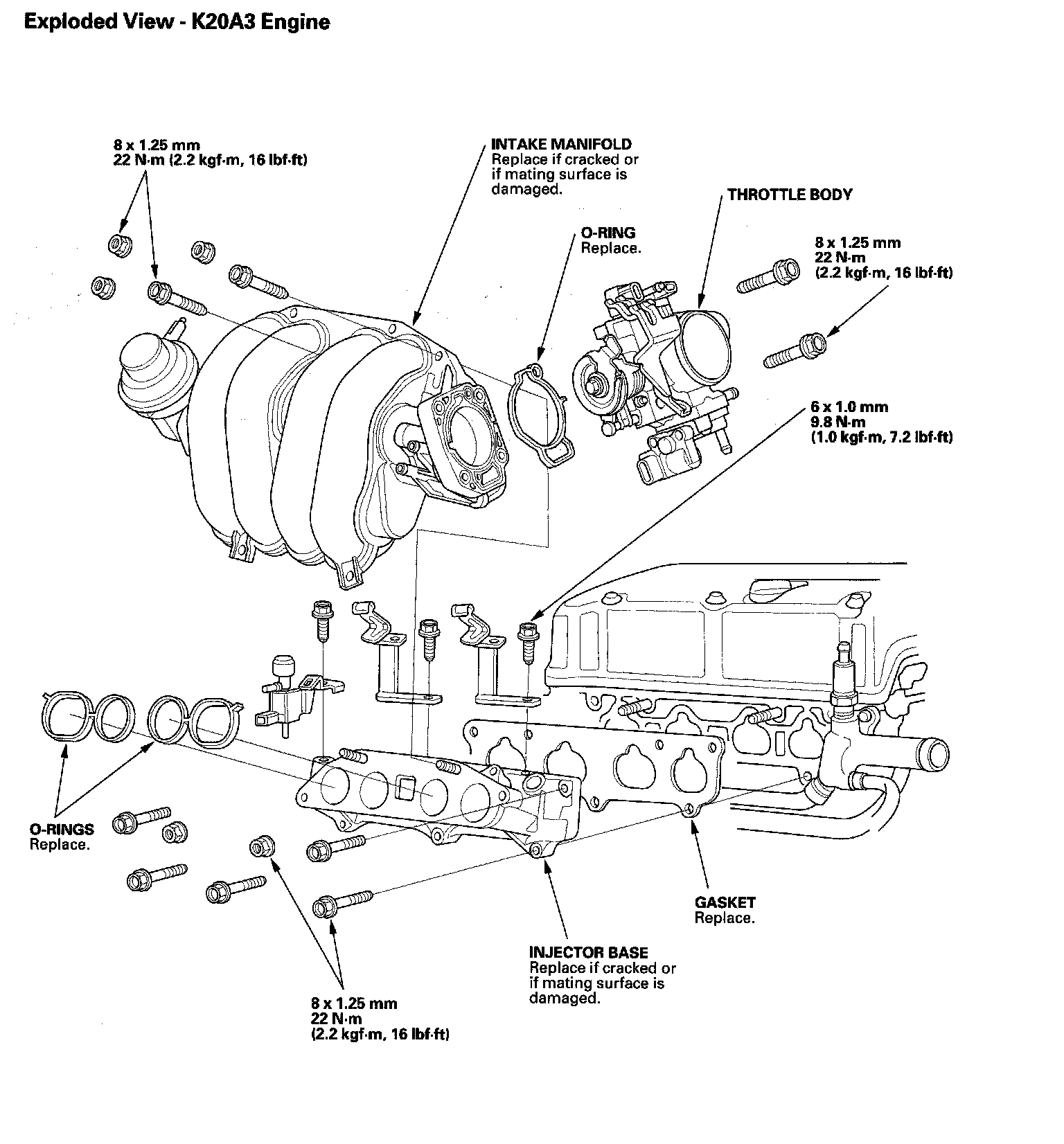

Intake Manifold - K20A3 Engine:

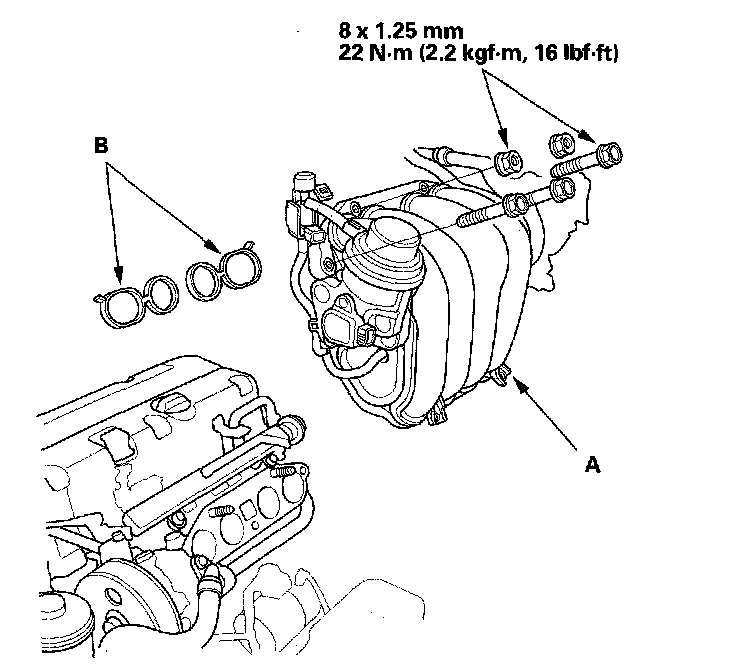

Install the intake manifold (A), and tighten the bolts/nuts in a crisscross pattern in two or three steps, beginning with the inner bolt. Use new O-rings (B).

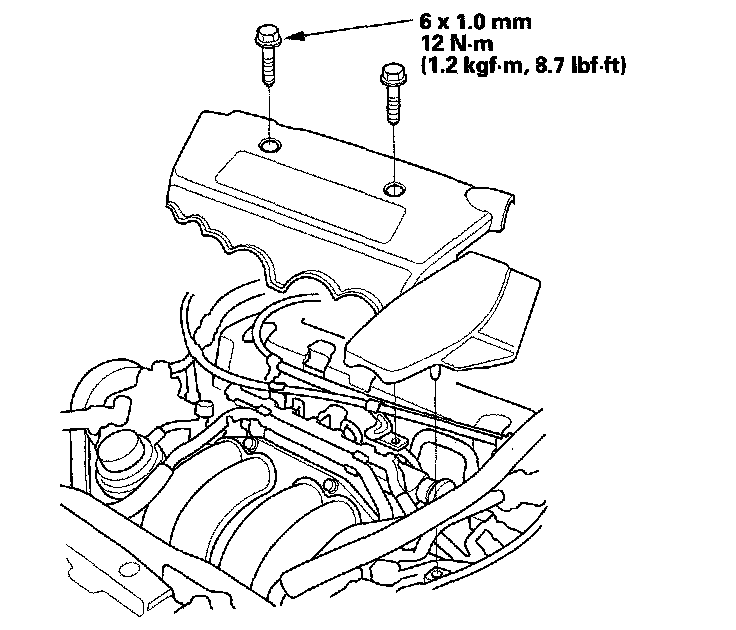

Install the intake manifold cover.

K20A2, K20Z1 Engines

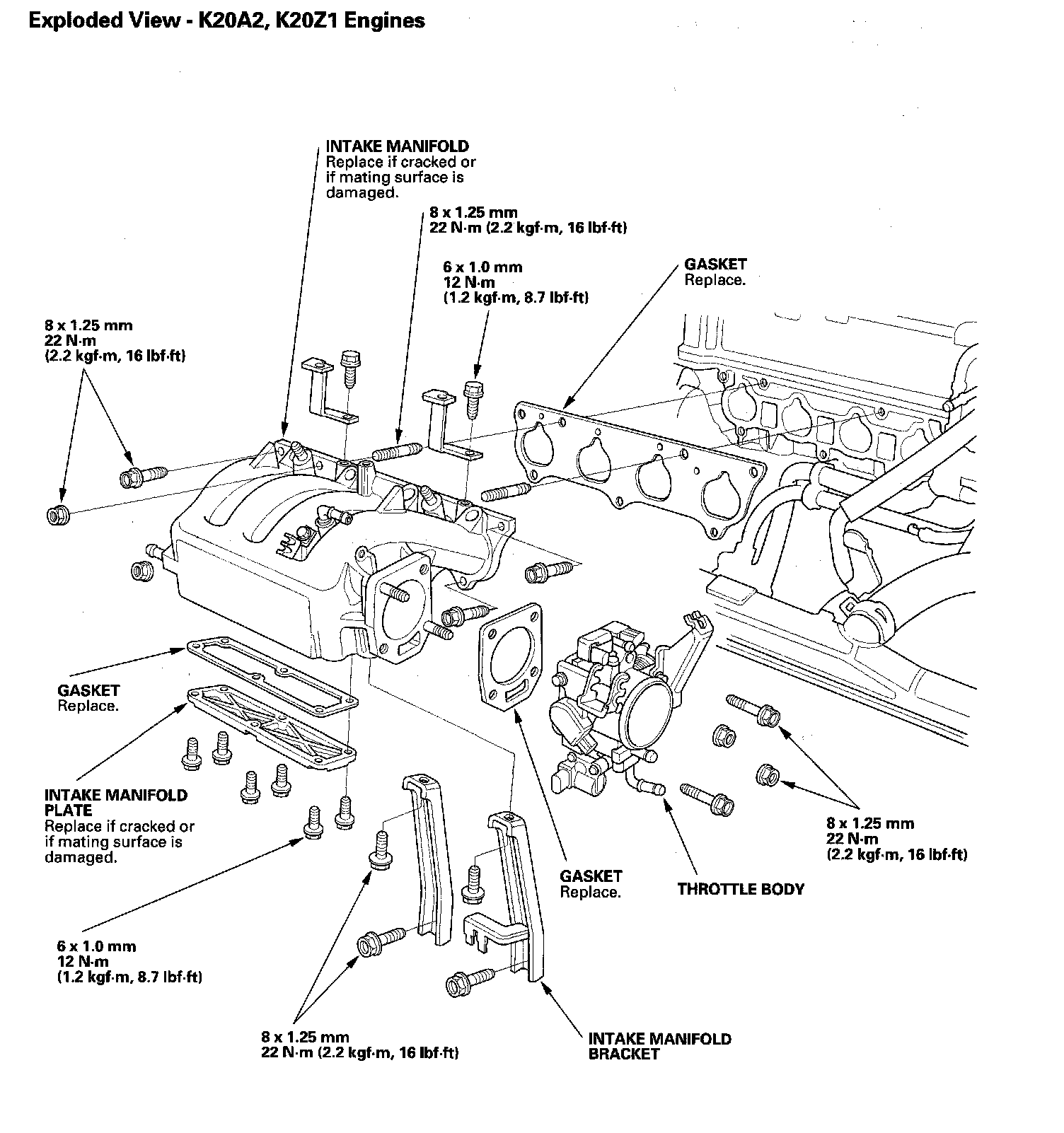

Intake Manifold - K20A2, K20Z1 Engines:








Install the intake manifold (A) with anew gasket (B), then tighten the two stud bolts (C).
Tighten all intake manifold mounting bolts/nuts (D) in a crisscross pattern in two or three steps, beginning with the inner bolt.





Tighten the two bolts securing the intake manifold and brackets.





Install the intake manifold cover.
