Overhaul Specifications

OVERHAUL

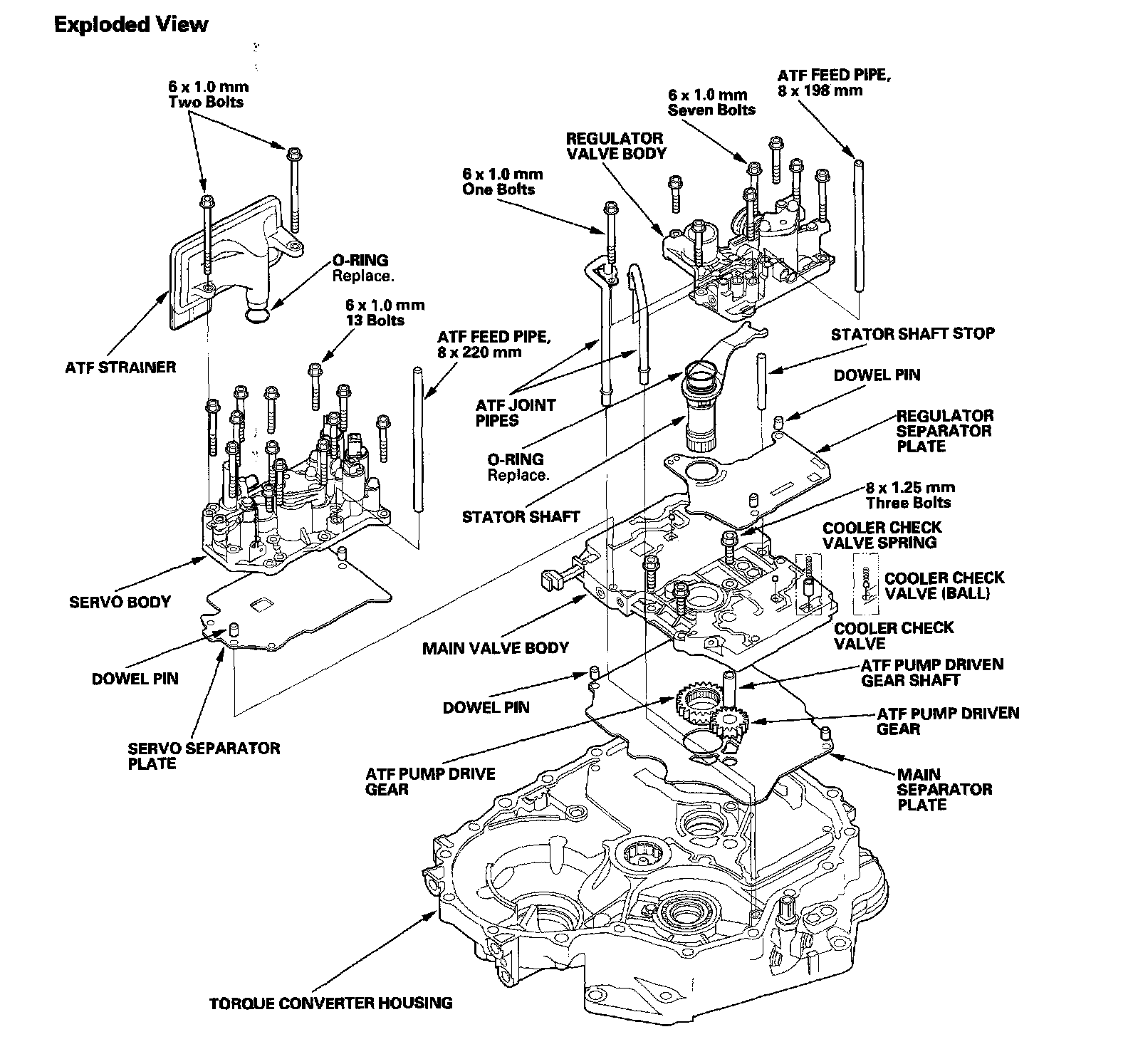

Valve Body And ATF Strainer:





Valve Body

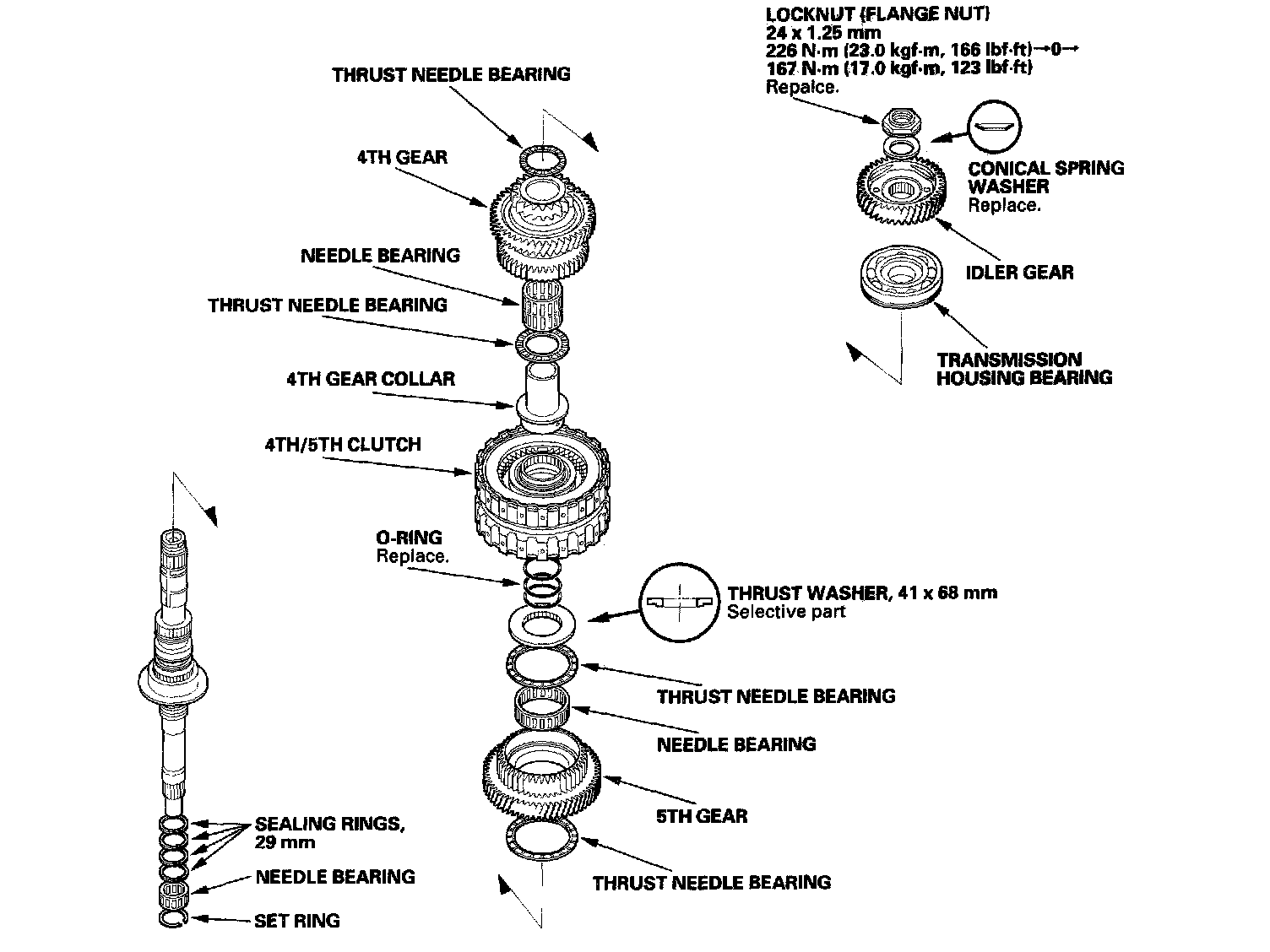

Mainshaft:





Mainshaft

Countershaft:





Countershaft

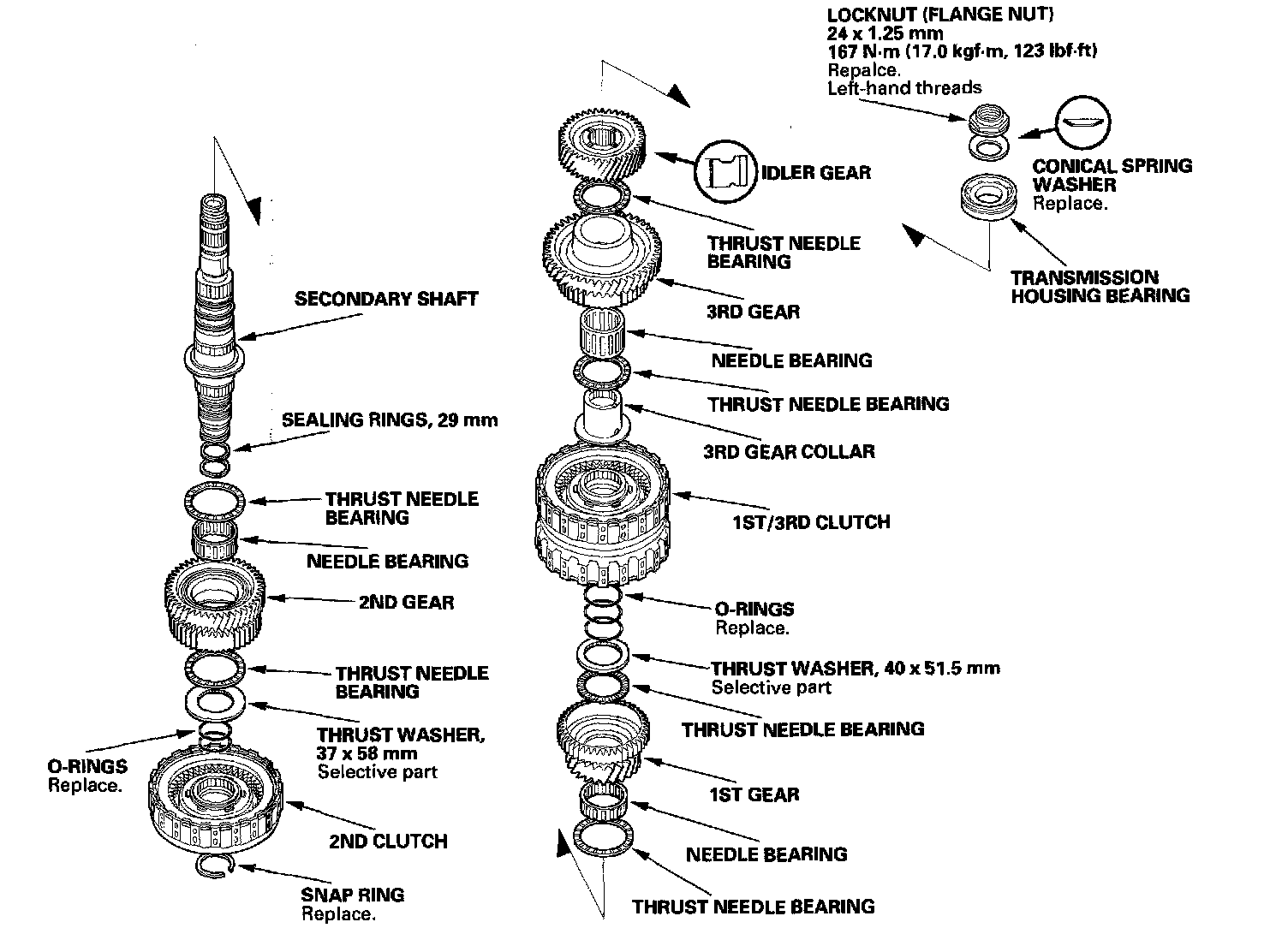

Secondary Shaft:





Secondary Shaft
