PCM Electrical Connections - 2005-2006 Models

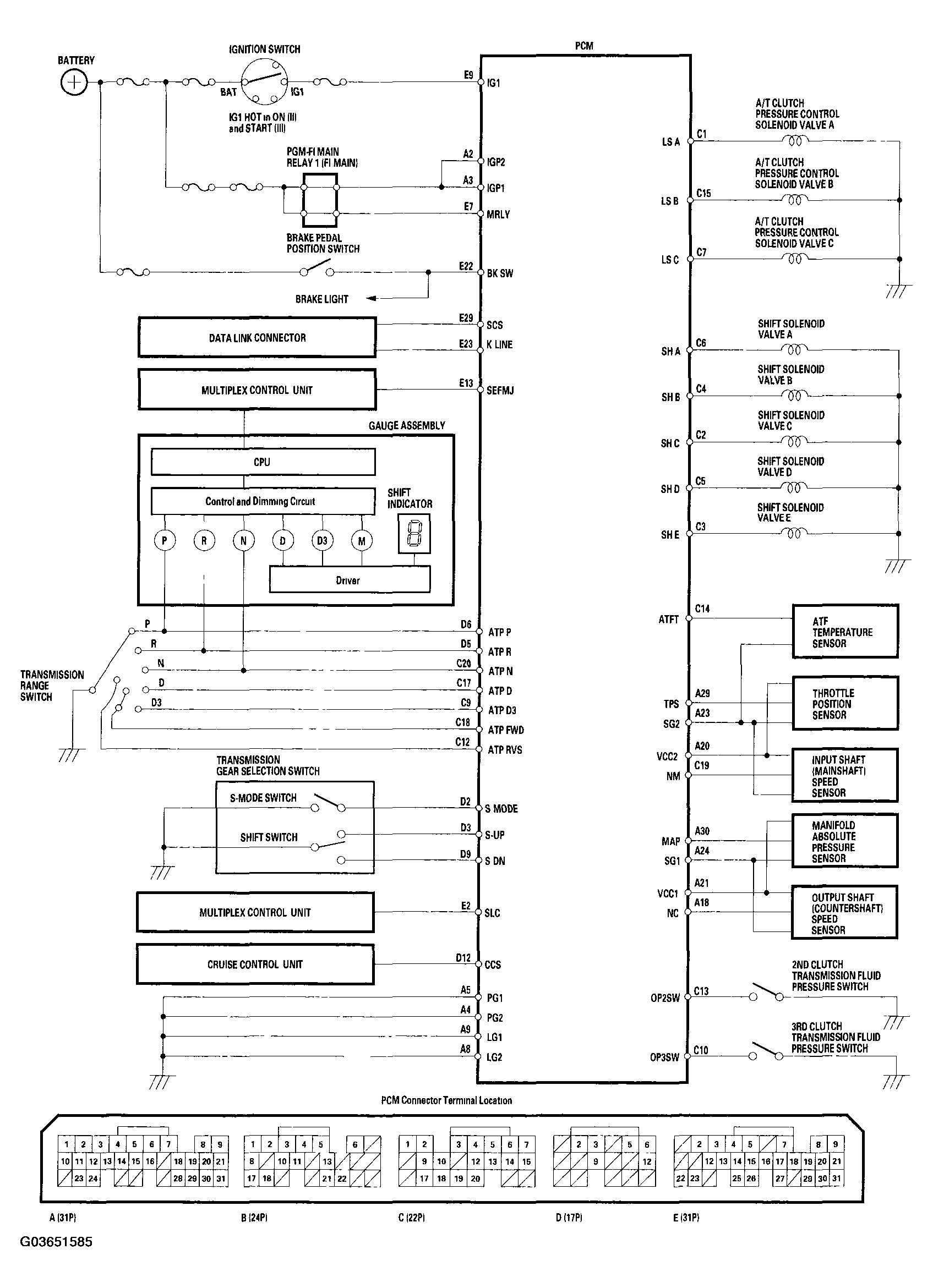

Fig 1: Identifying PCM Electrical Connections - Circuit Diagram (2005-2006 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
