Transfer Assembly Removal

Transfer Assembly Removal
1. Raise the vehicle, and make sure it is supported securely.
2. Shift the transmission into the N position.

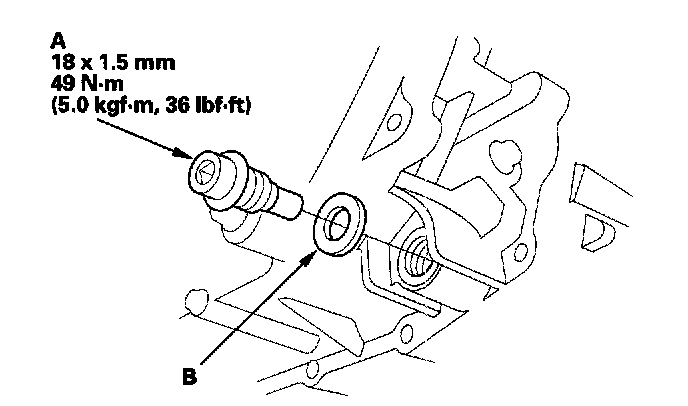

3. Remove the ATF filler bolt and drain plug (A), and drain the automatic transmission fluid (ATF).





4. Reinstall the drain plug and a new sealing washer (B).

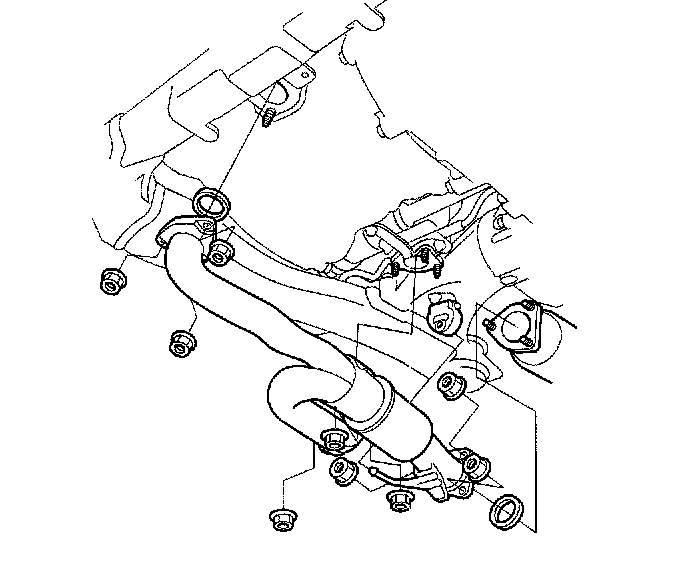

5. Remove exhaust pipe A.

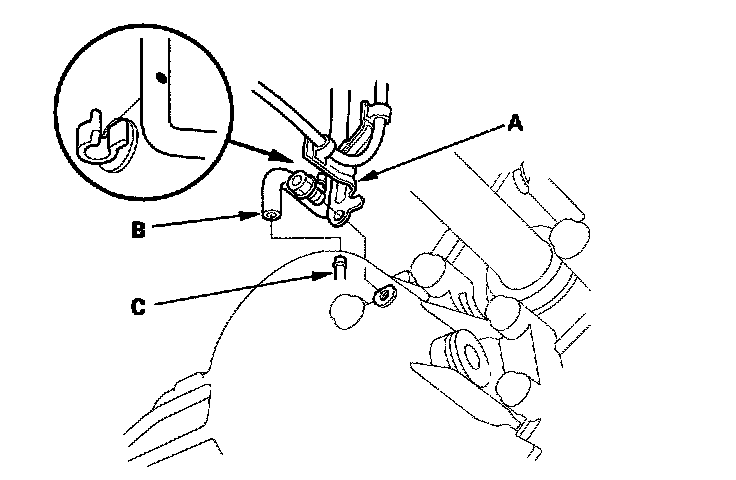

6. Remove the bolt securing the transfer breather tube bracket (A), and disconnect the breather tube (B) from the breather pipe (C) on the transfer assembly.

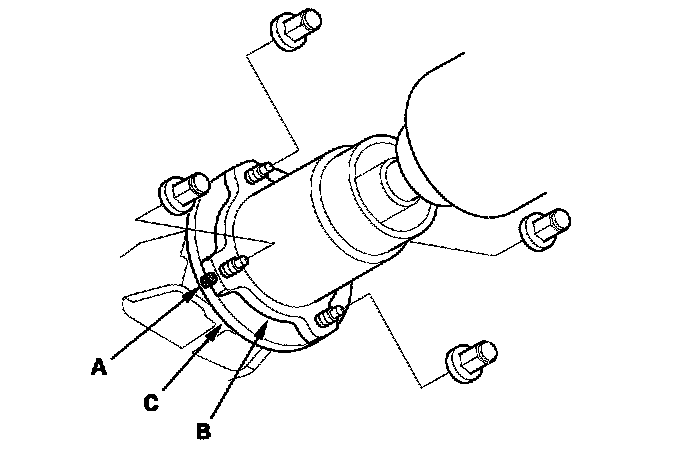

7. Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).





8. Separate the propeller shaft from the transfer companion flange.

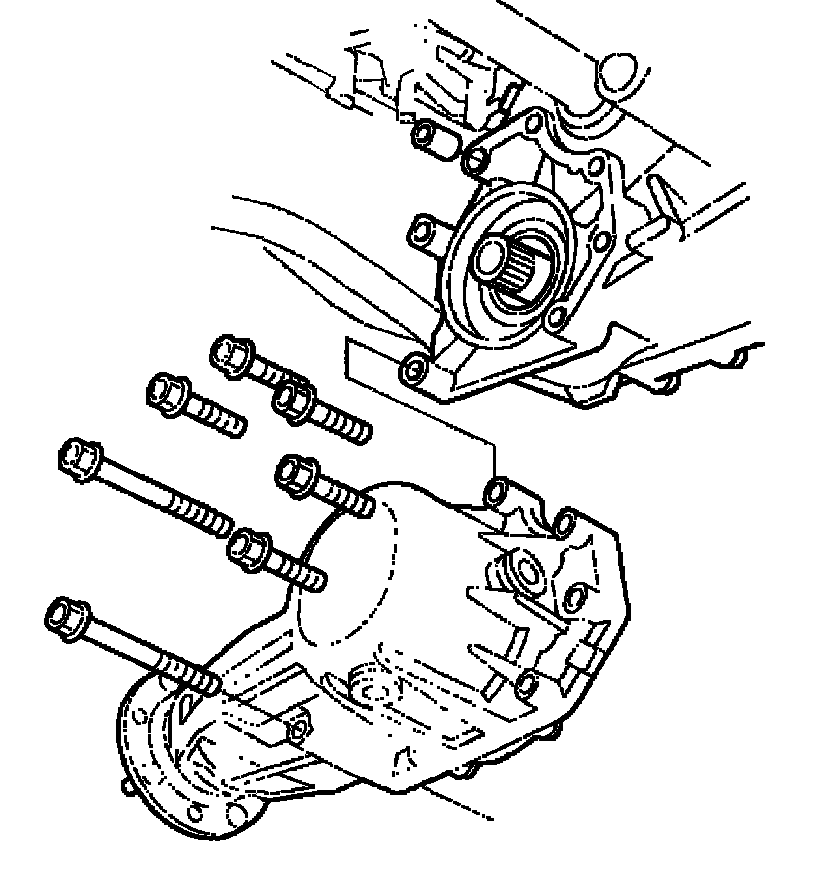

9. Remove the transfer assembly from the transmission.
