PCM Circuit Diagrams

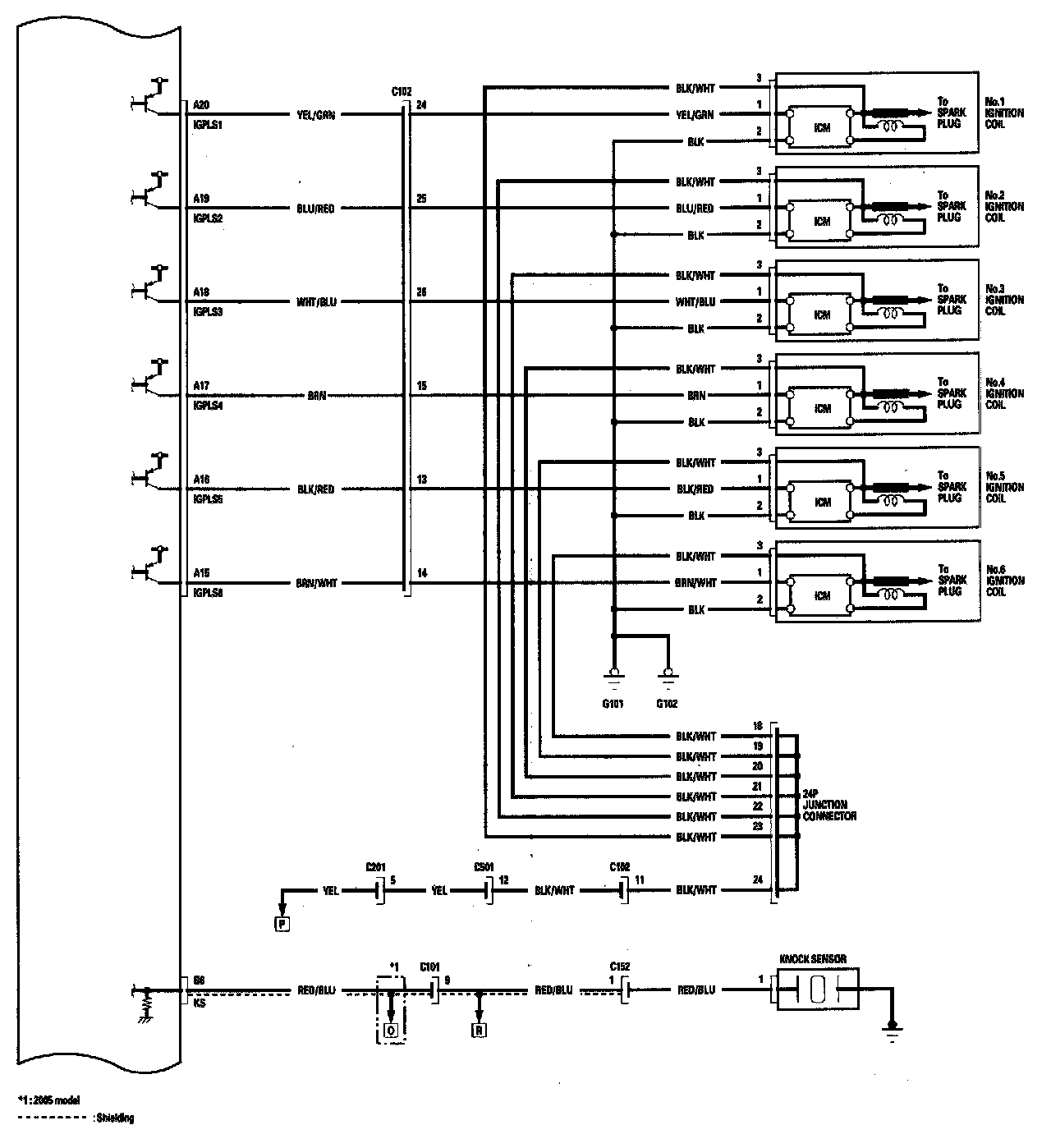

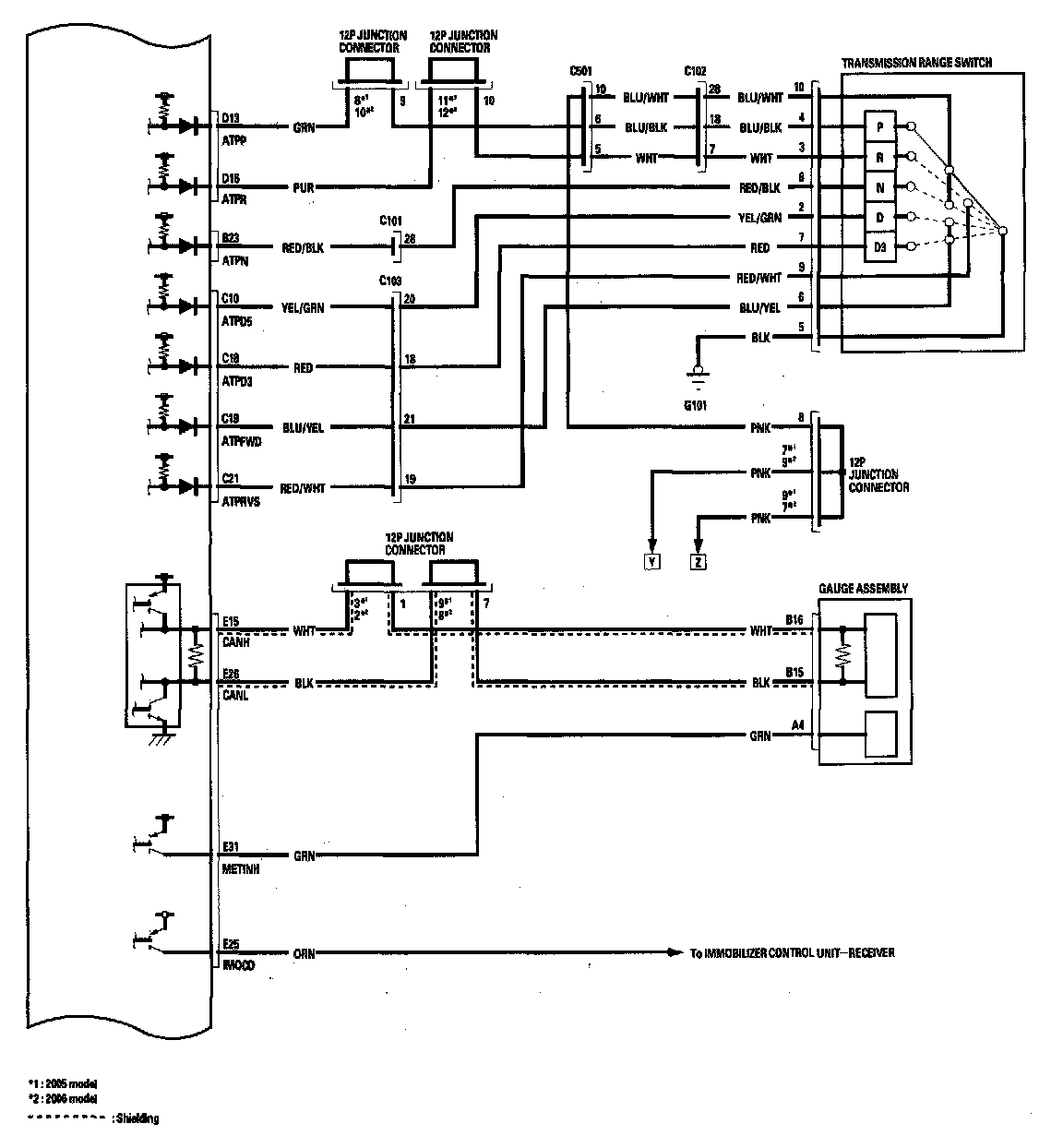

PCM Circuit Diagram 11-44:

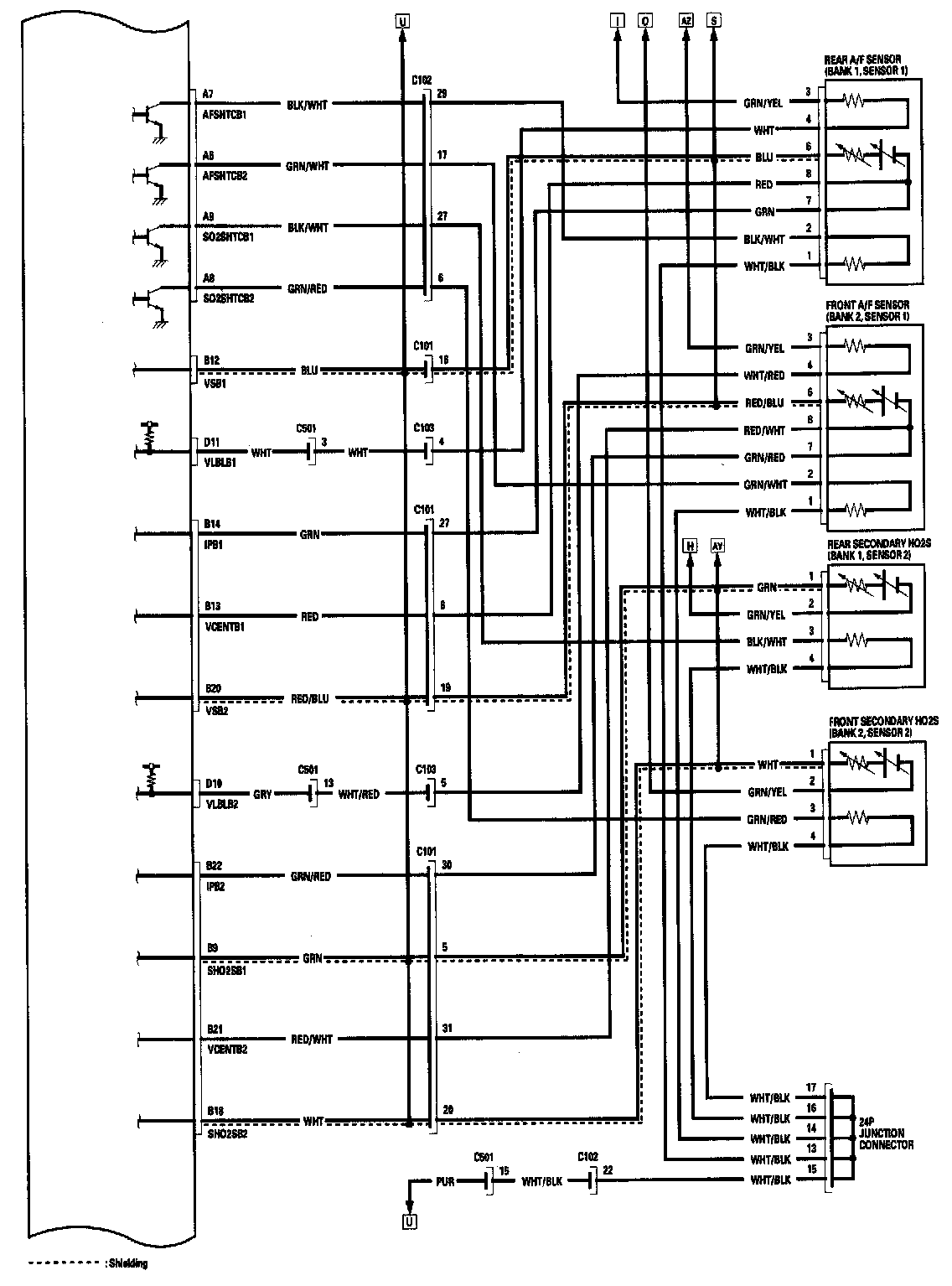

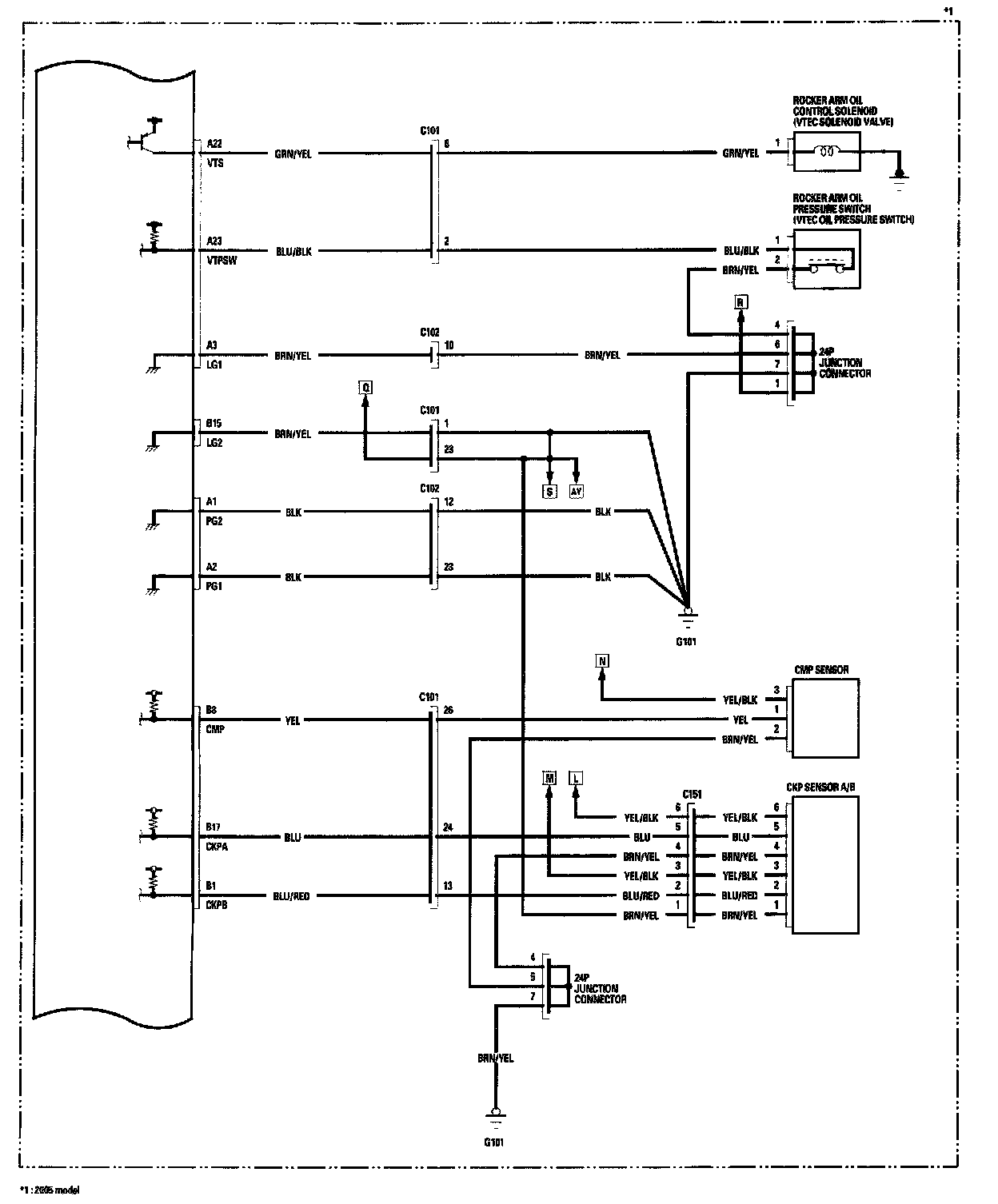

PCM Circuit Diagram 11-45:

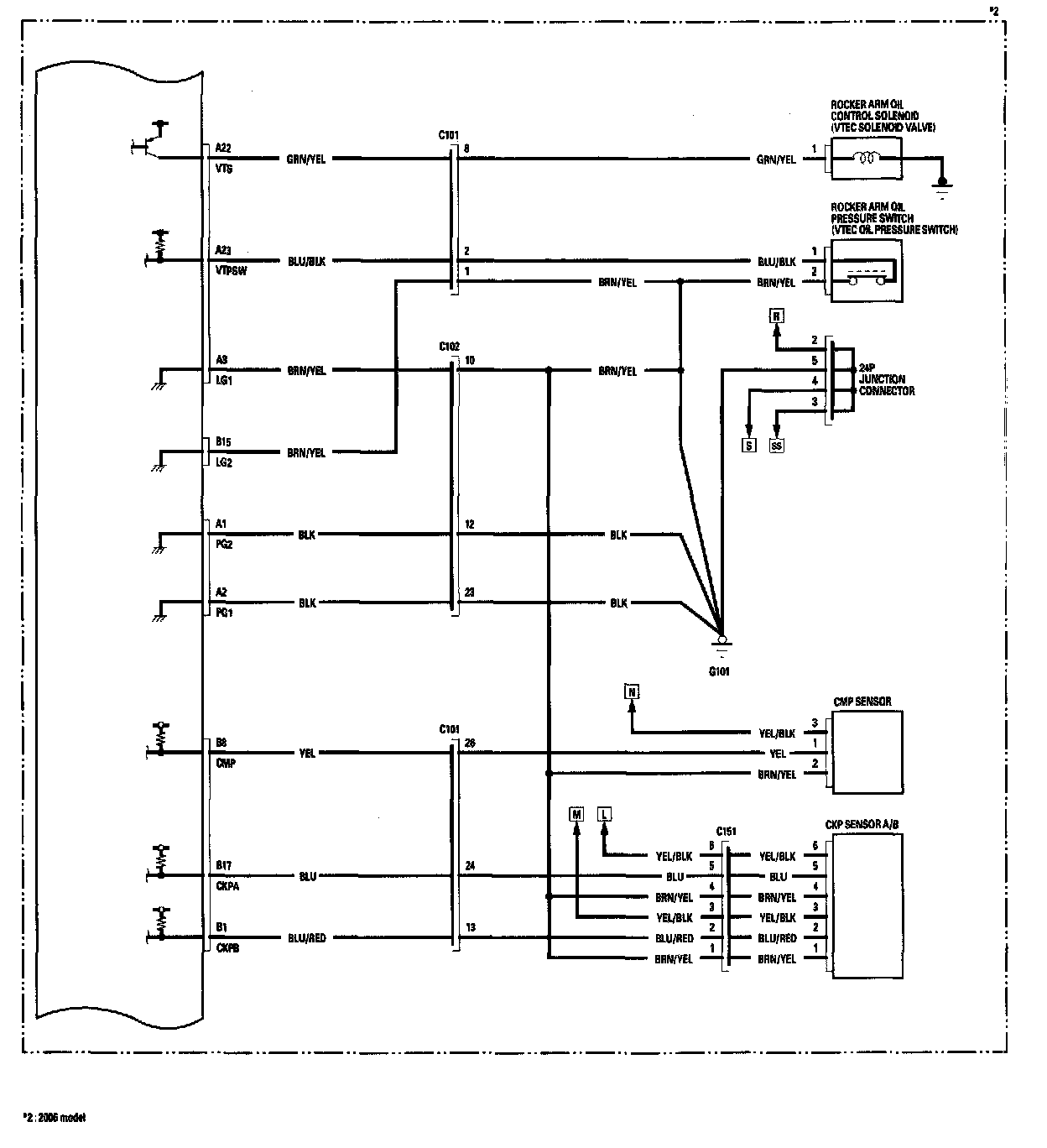

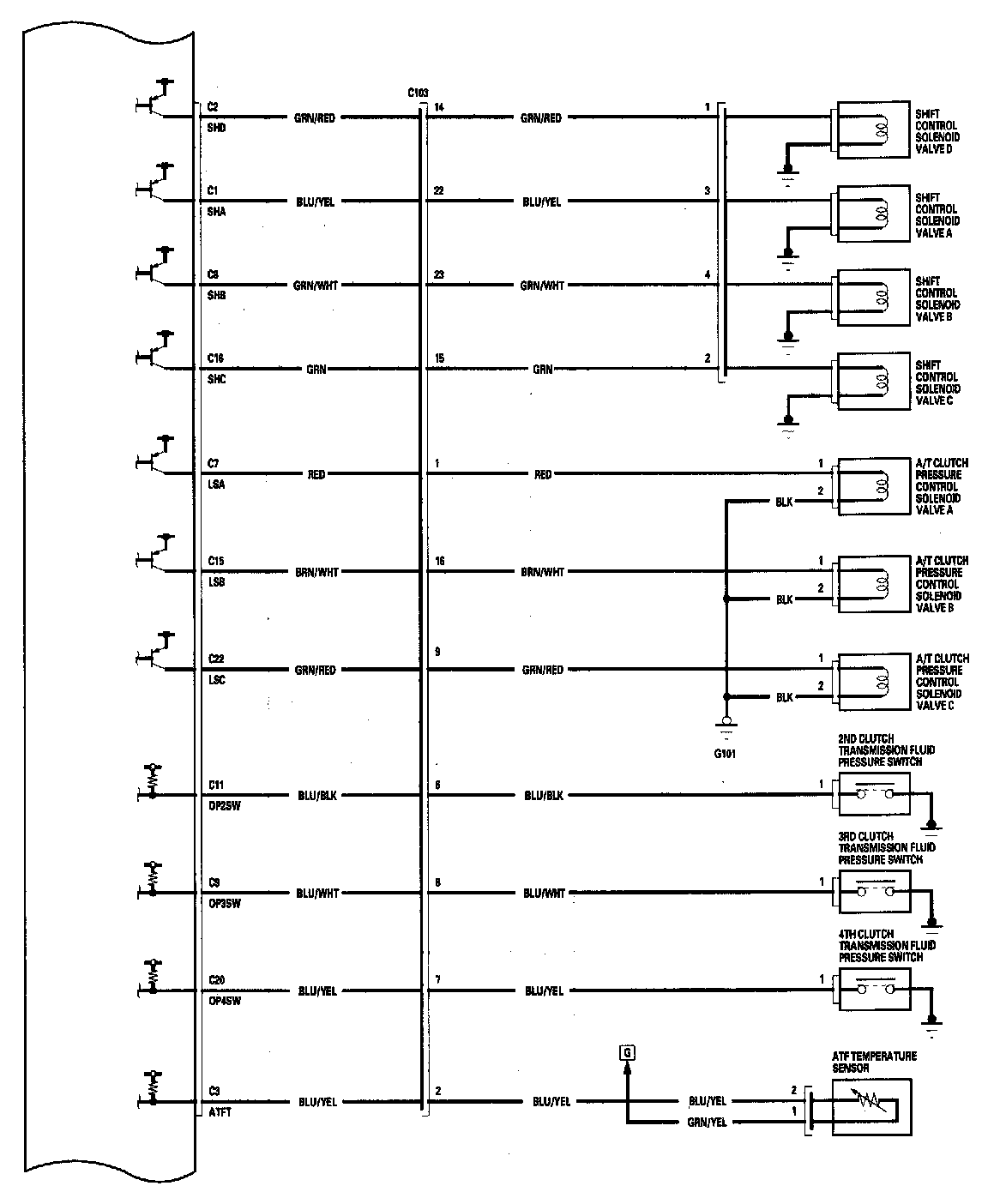

PCM Circuit Diagram 11-46:

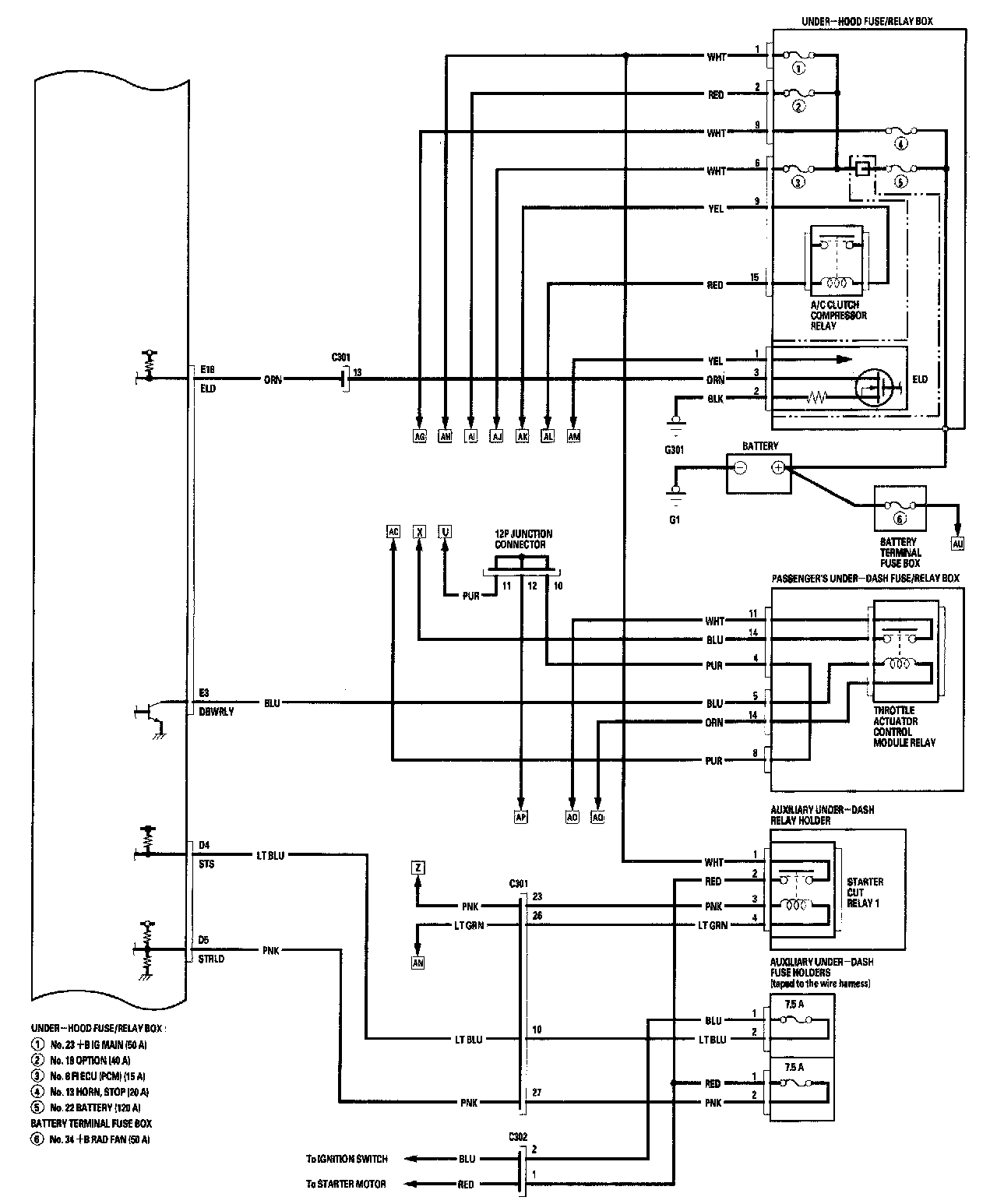

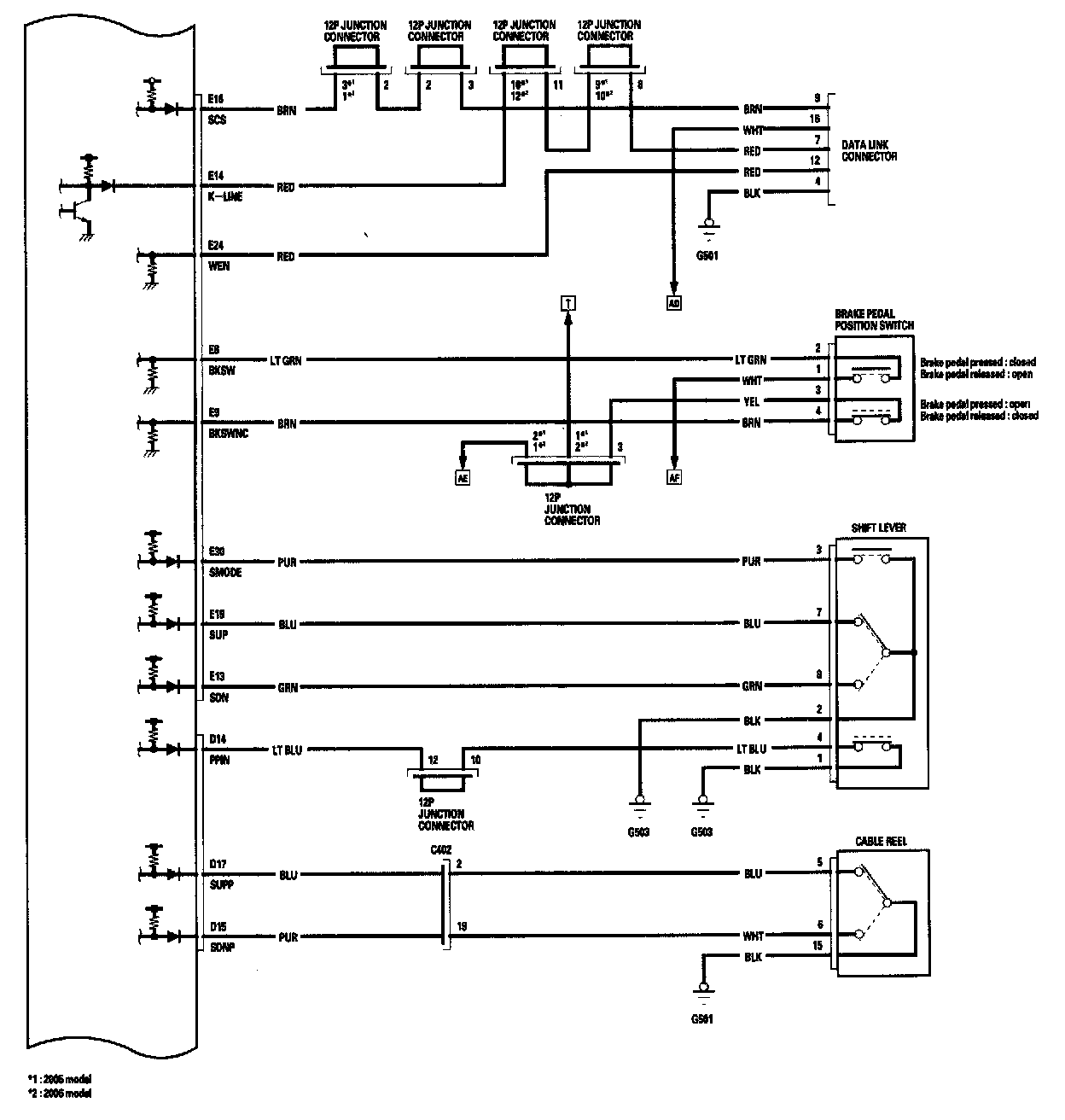

PCM Circuit Diagram 11-47:

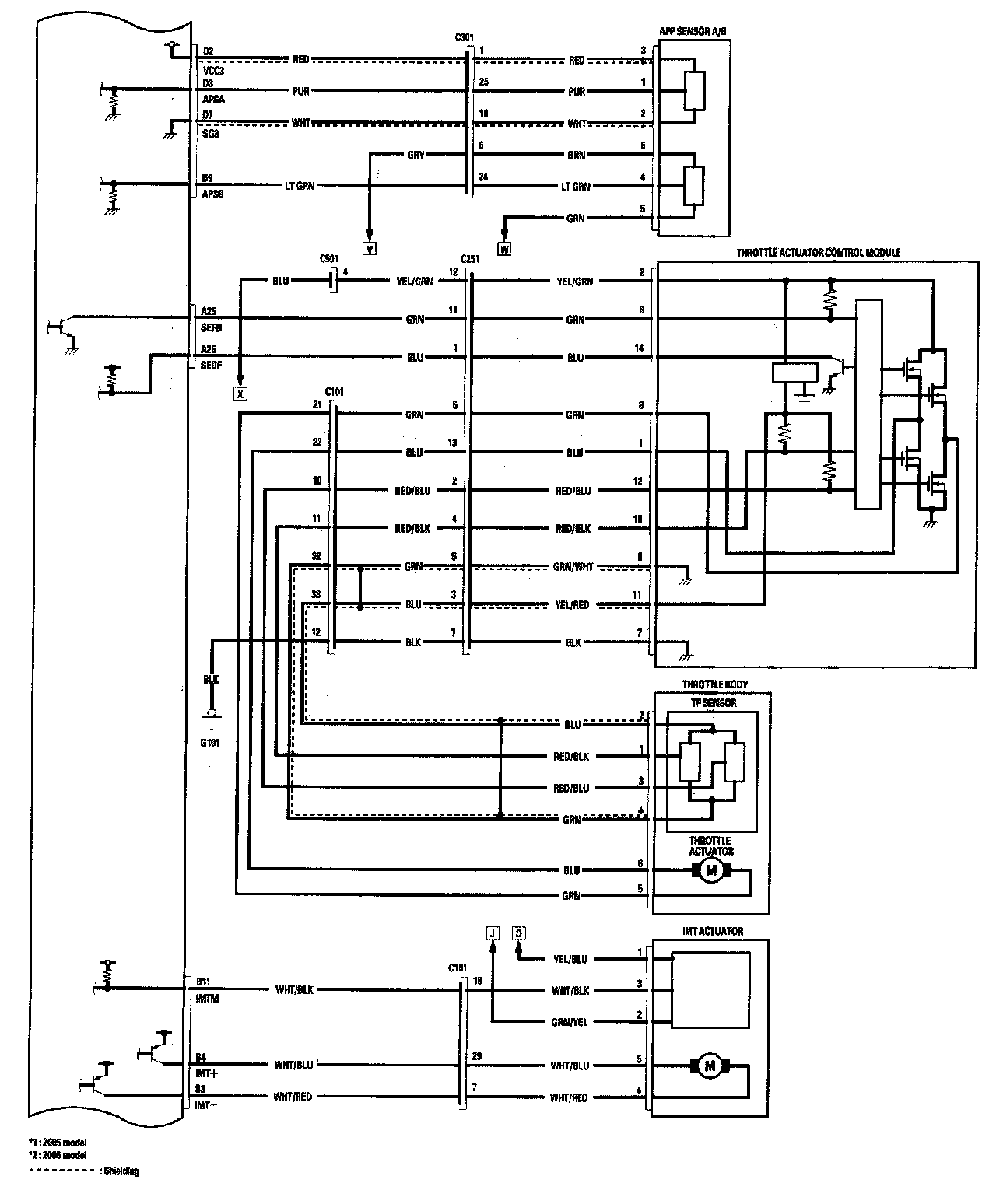

PCM Circuit Diagram 11-48:

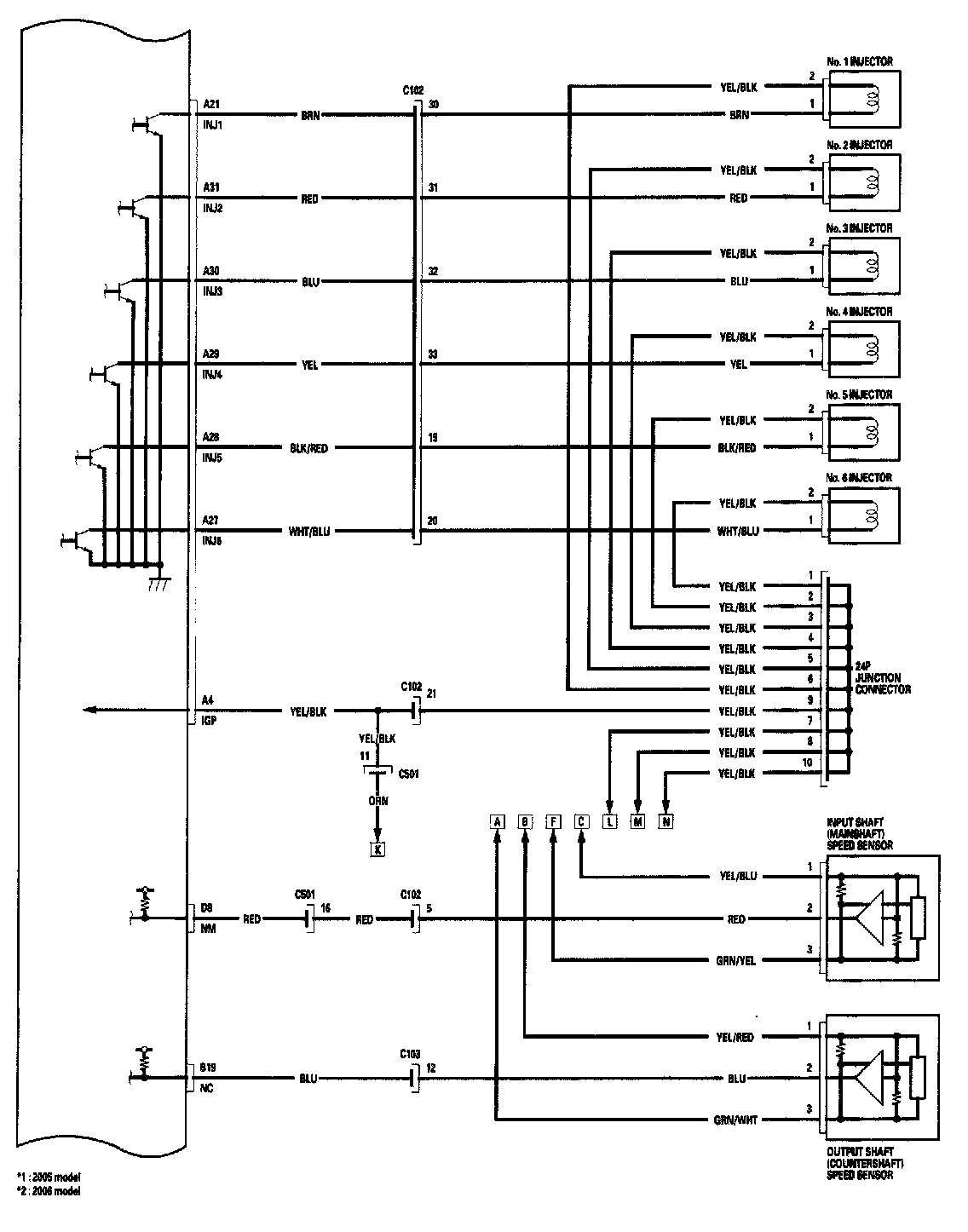

PCM Circuit Diagram 11-49:

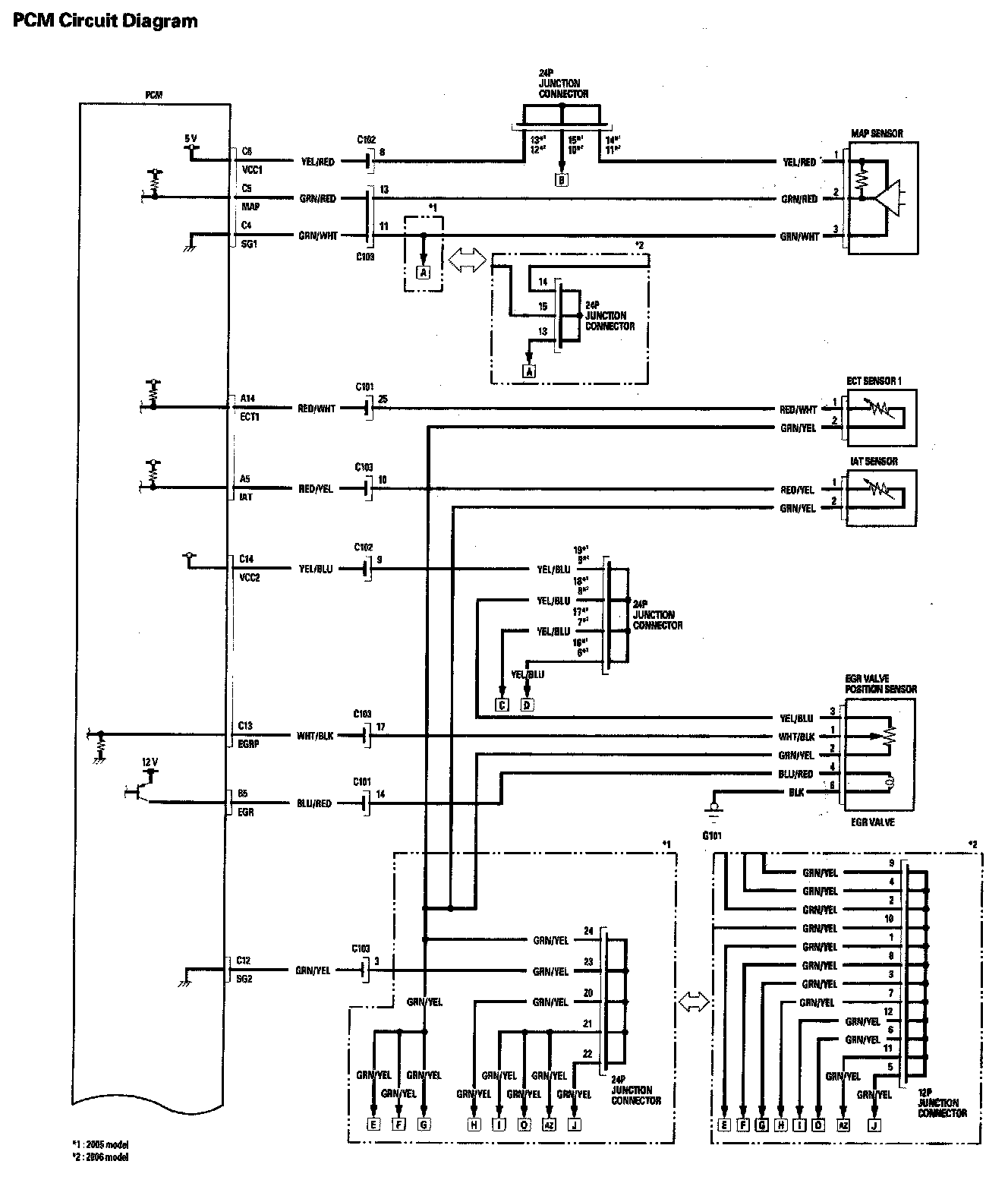

PCM Circuit Diagram 11-50:

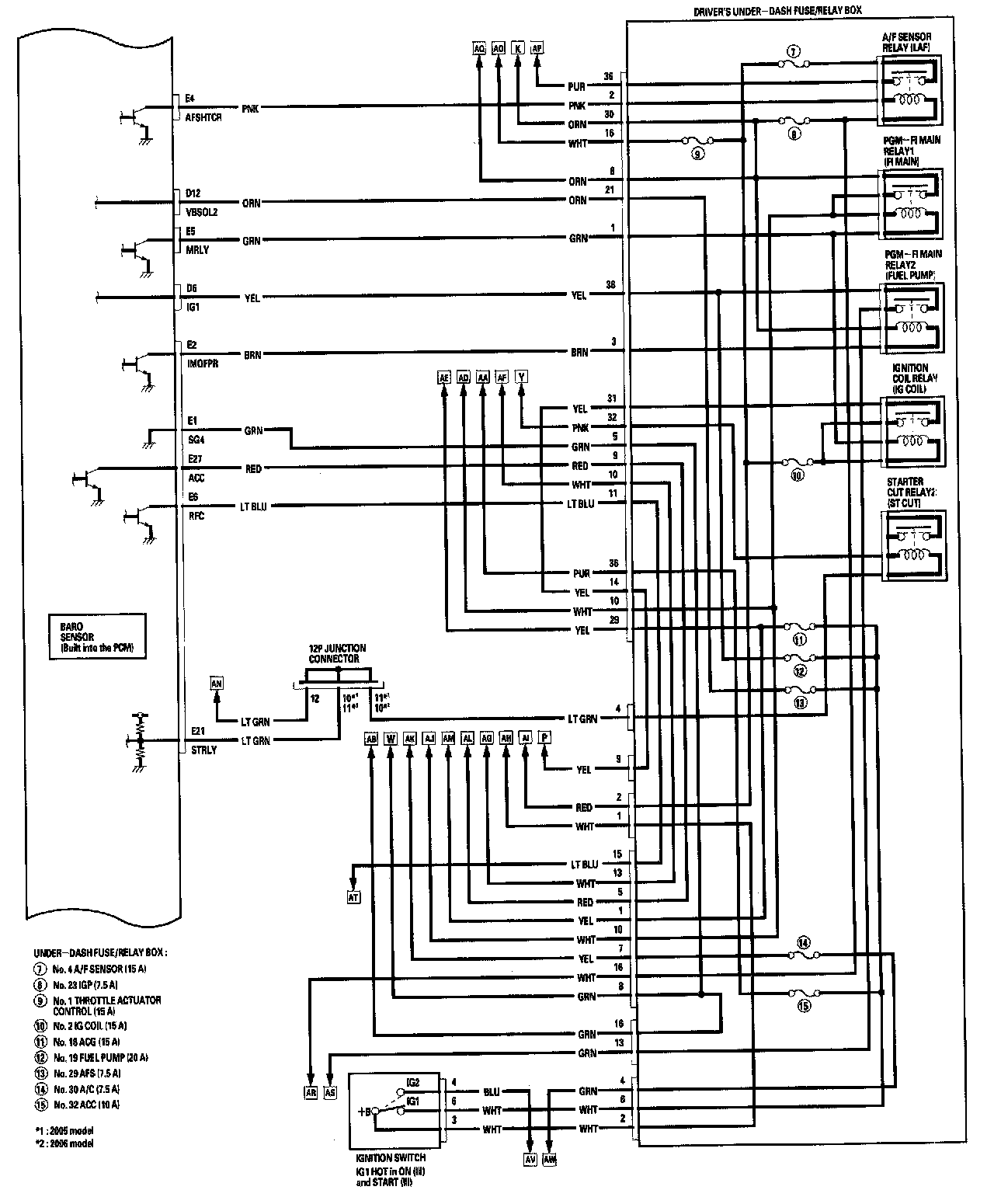

PCM Circuit Diagram 11-51:



PCM Circuit Diagram 11-52:



PCM Circuit Diagram 11-53:



PCM Circuit Diagram 11-54:



PCM Circuit Diagram 11-55:



PCM Circuit Diagram 11-56:



PCM Circuit Diagram 11-57:



PCM Circuit Diagram 11-58:
