July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

PCM Circuit Diagrams

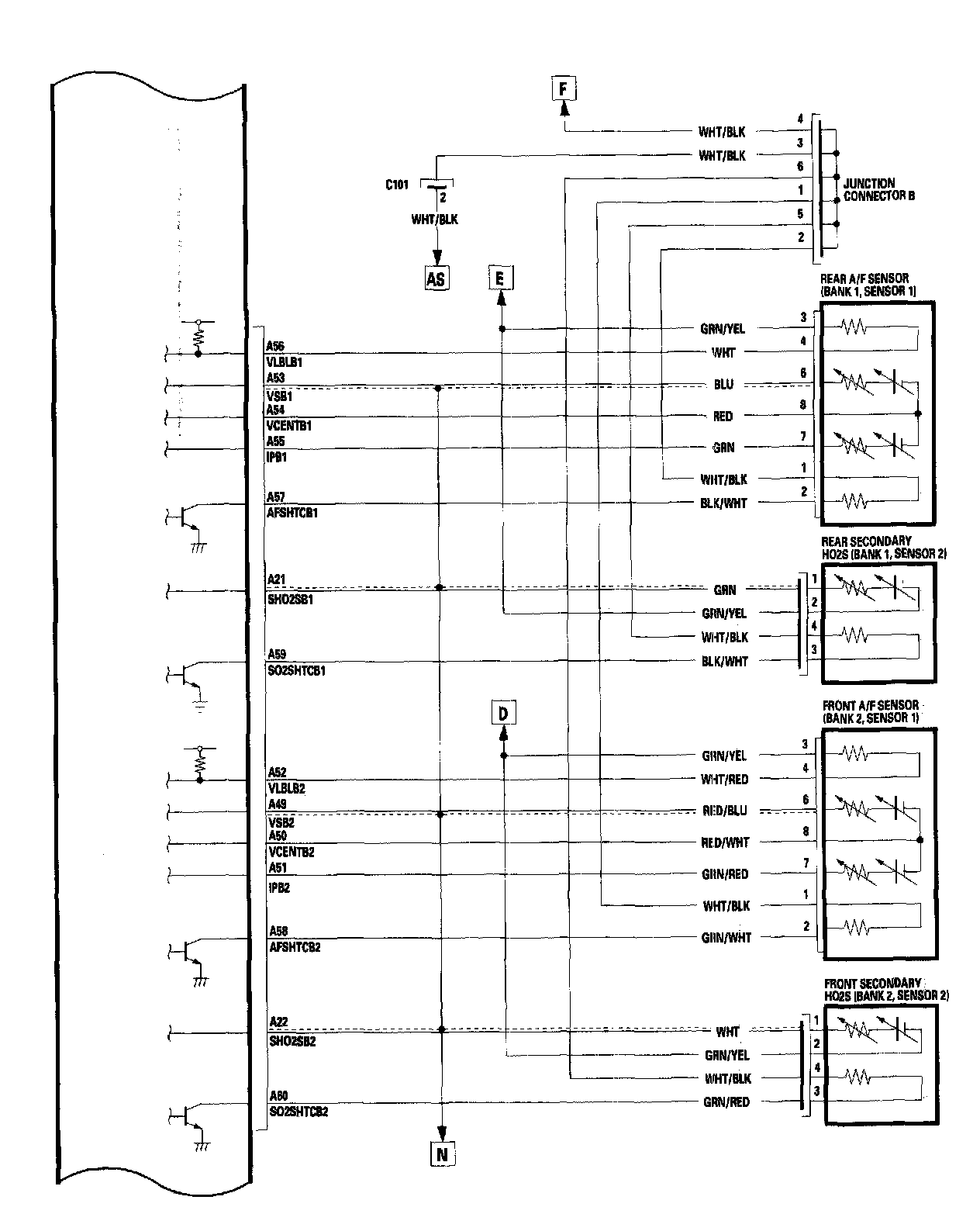

PCM Circuit Diagram 11-75:

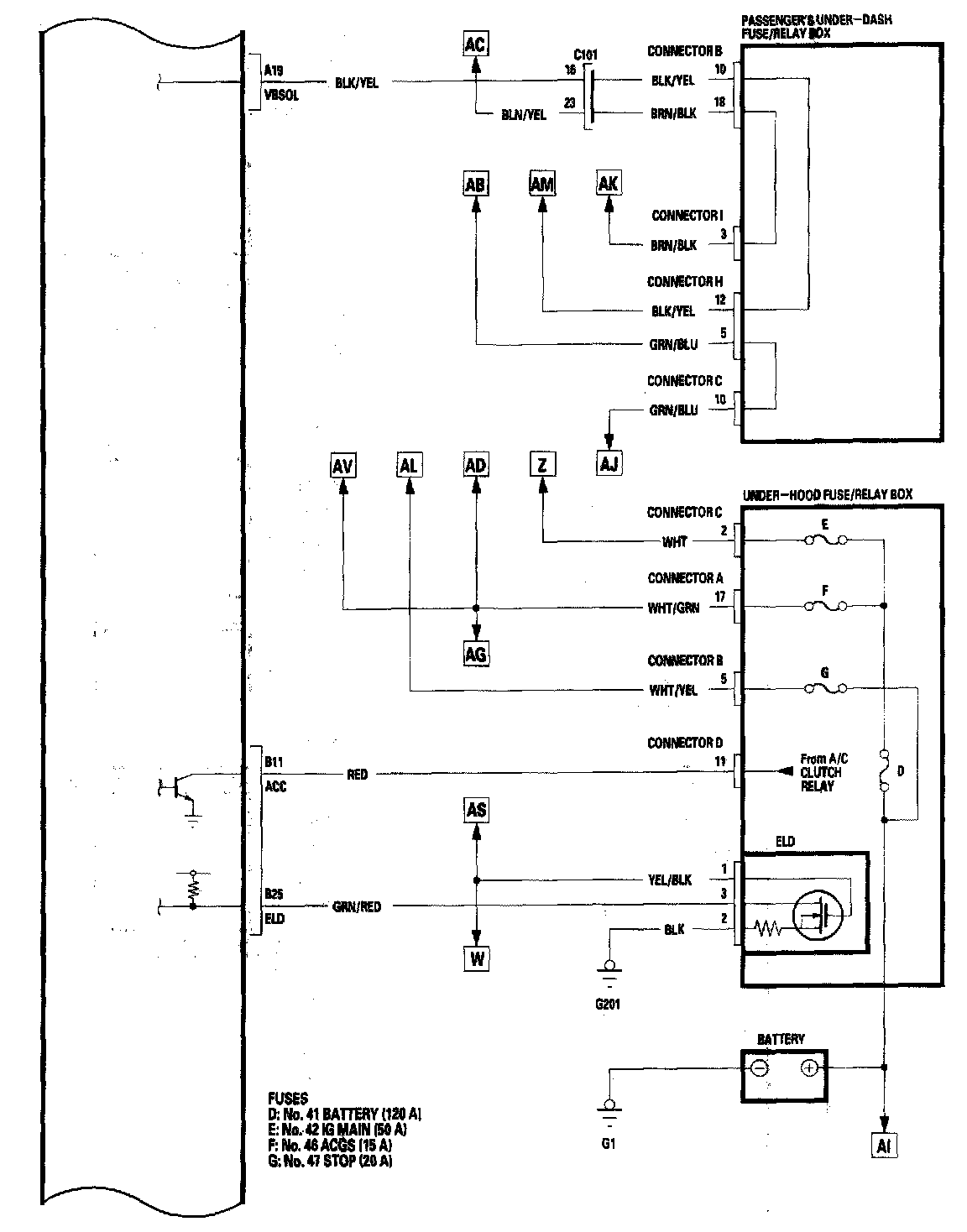

PCM Circuit Diagram 11-76:

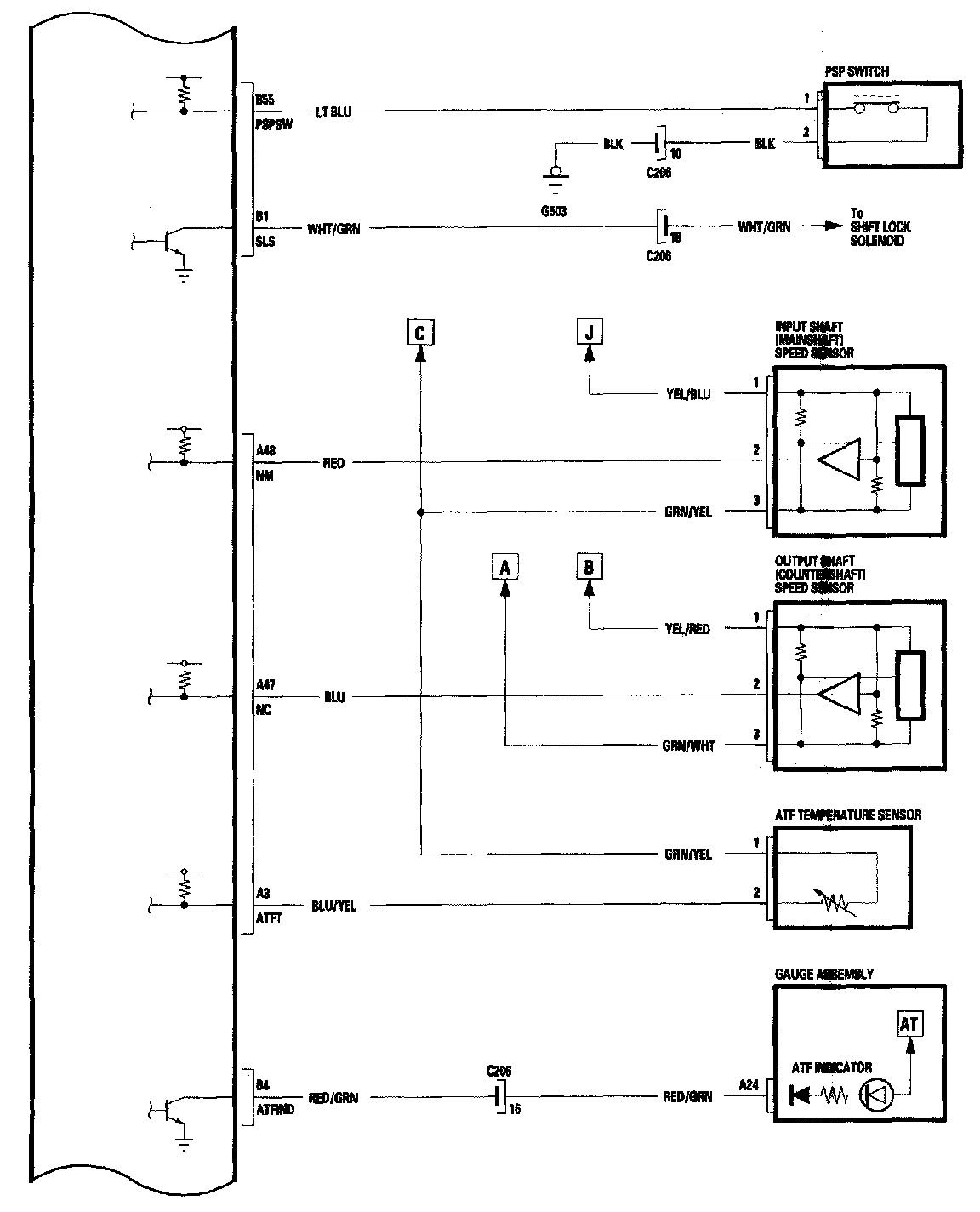

PCM Circuit Diagram 11-77:

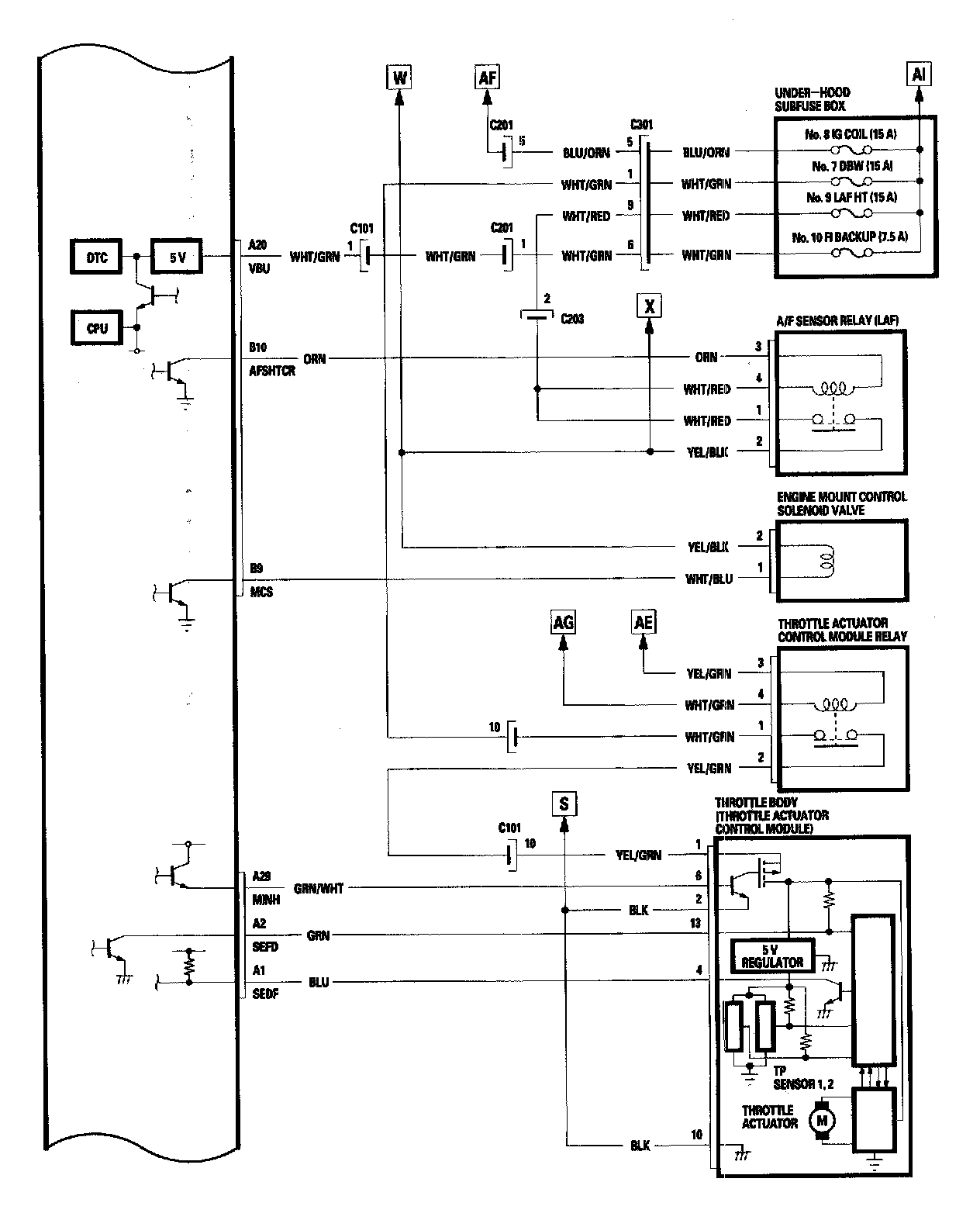

PCM Circuit Diagram 11-78:

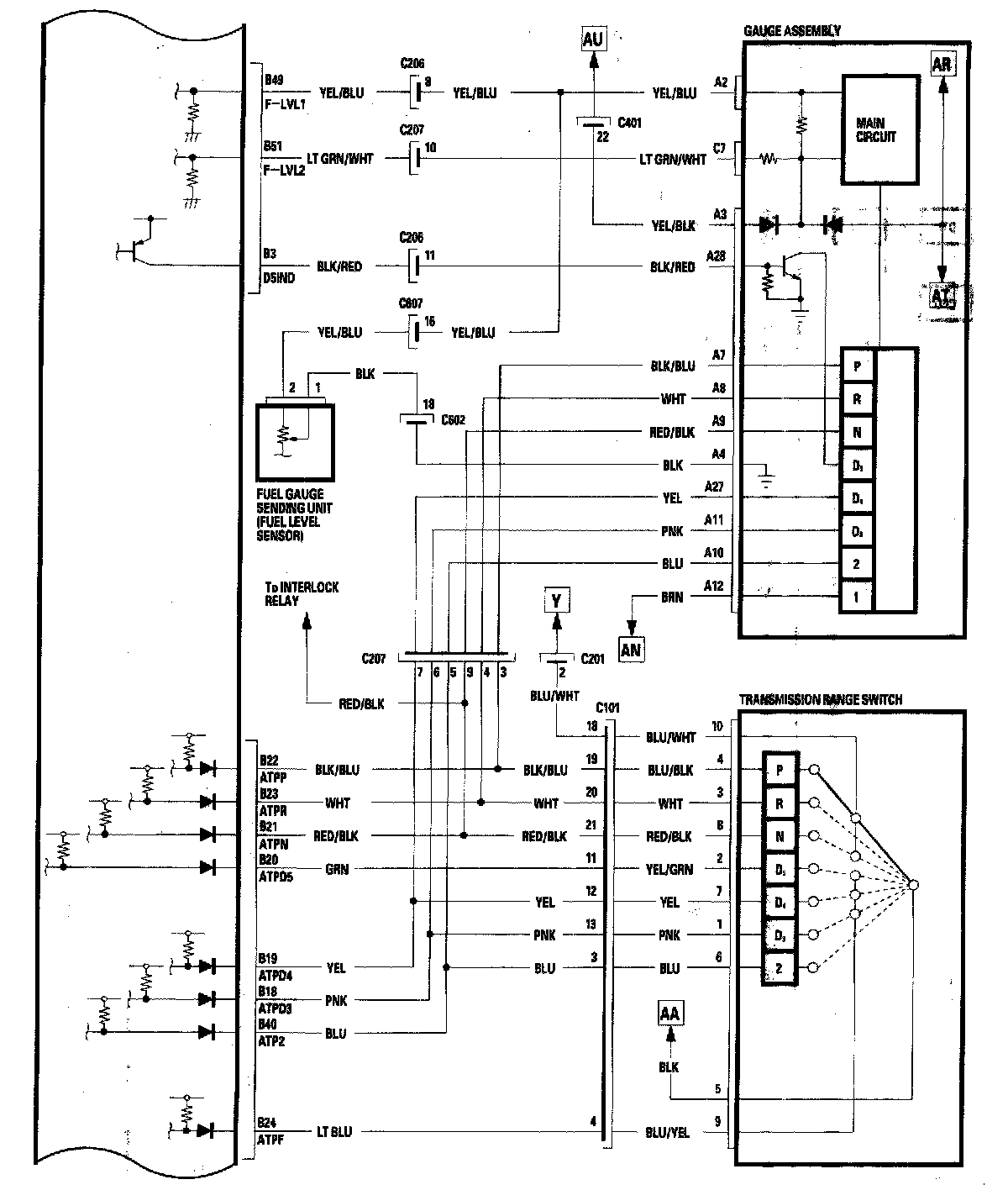

PCM Circuit Diagram 11-79:

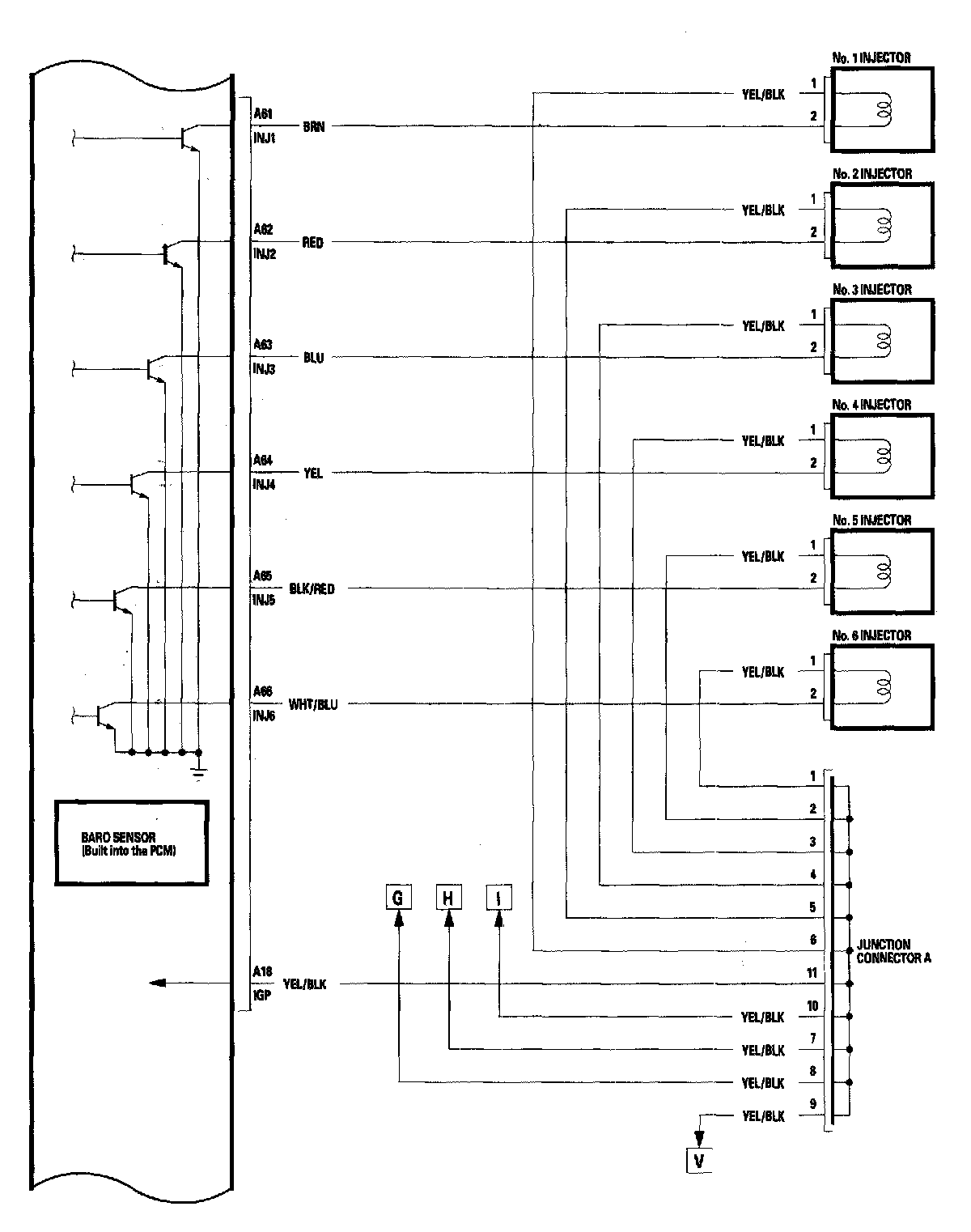

PCM Circuit Diagram 11-80:

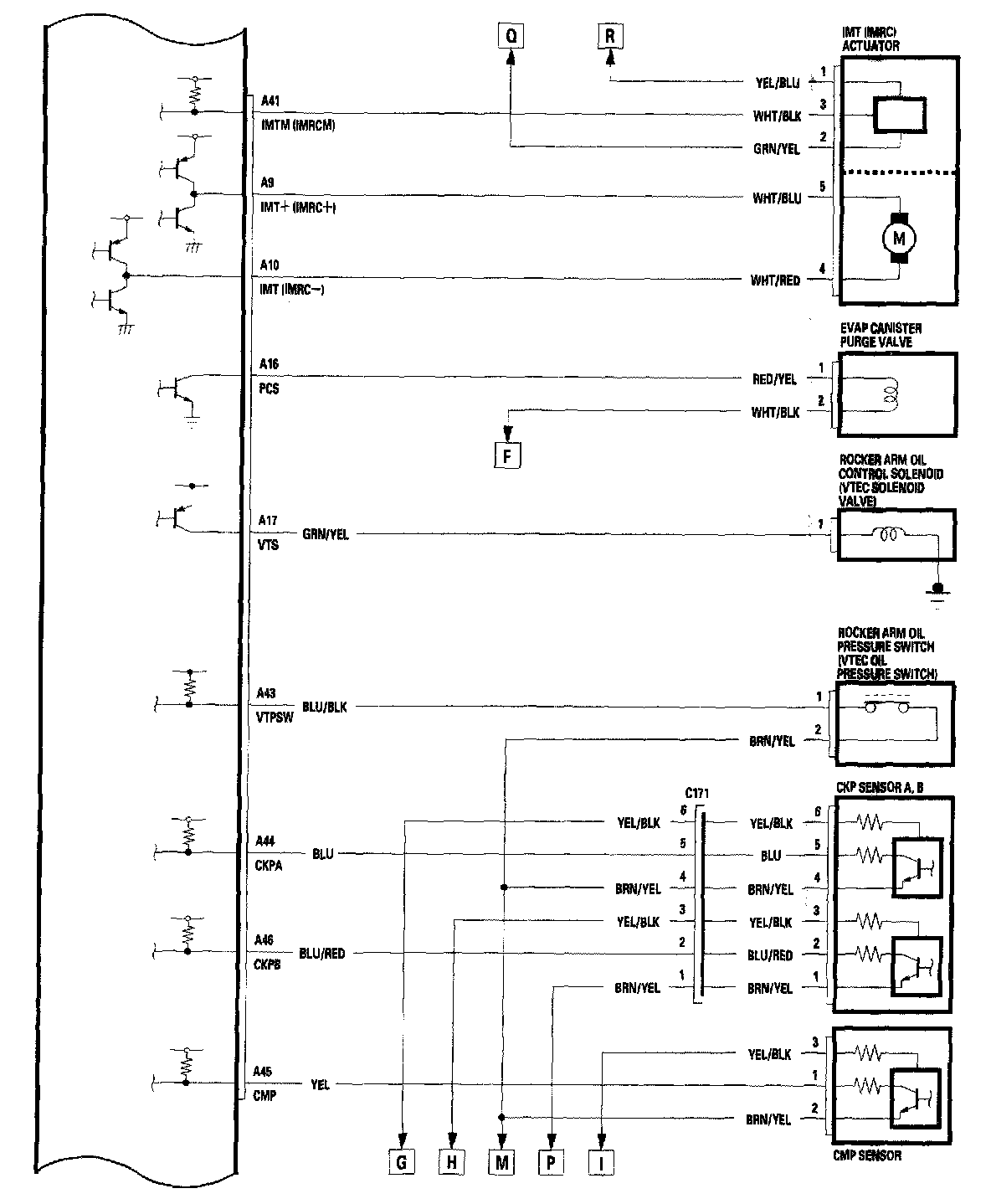

PCM Circuit Diagram 11-81:

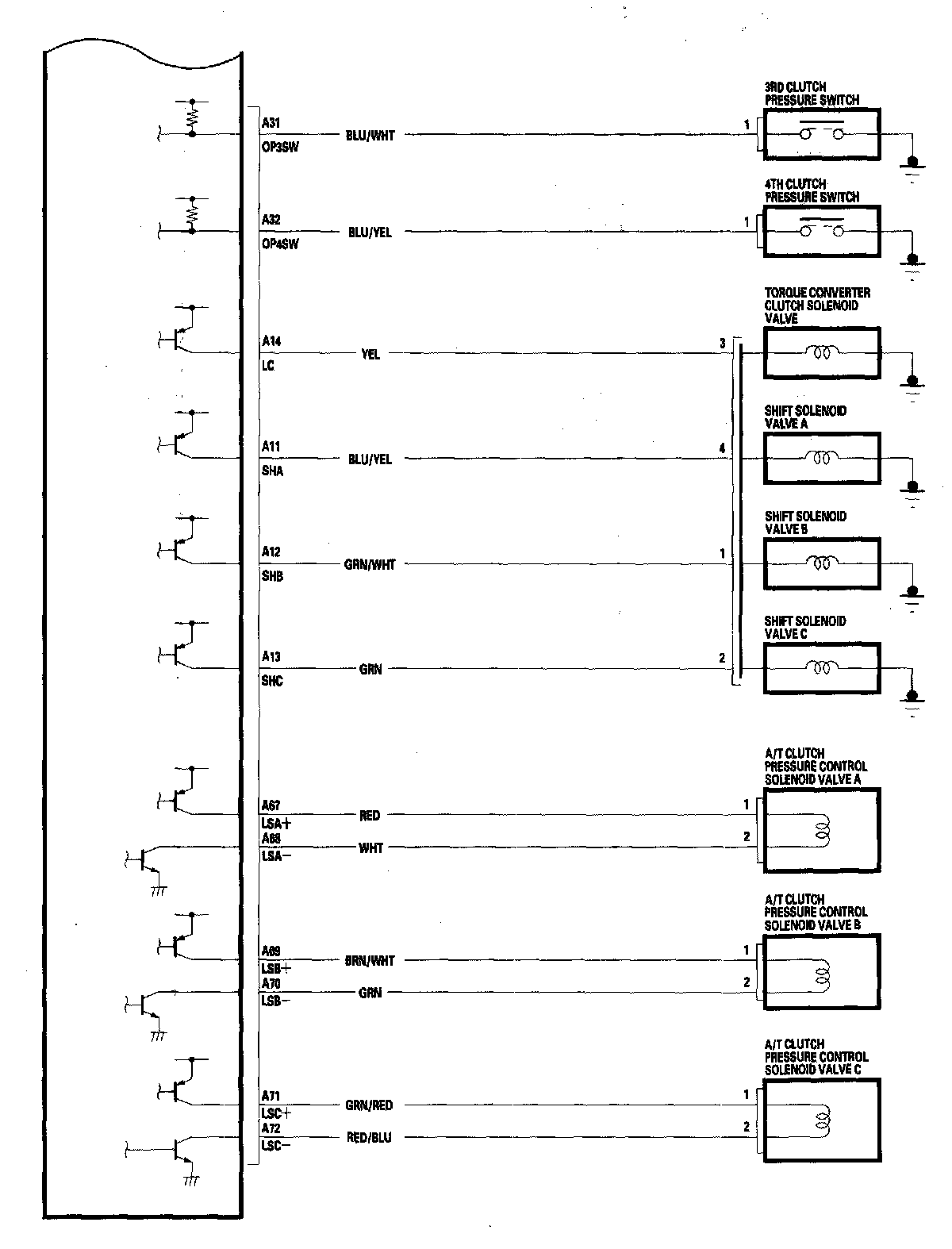

PCM Circuit Diagram 11-82:

PCM Circuit Diagram 11-83:

PCM Circuit Diagram 11-84:

PCM Circuit Diagram 11-85:

PCM Circuit Diagram 11-86:

PCM Circuit Diagram 11-87:

PCM Circuit Diagram 11-88:

PCM Circuit Diagram 11-89:
