Multiplex Control System Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Multiplex Control System Circuit Diagram

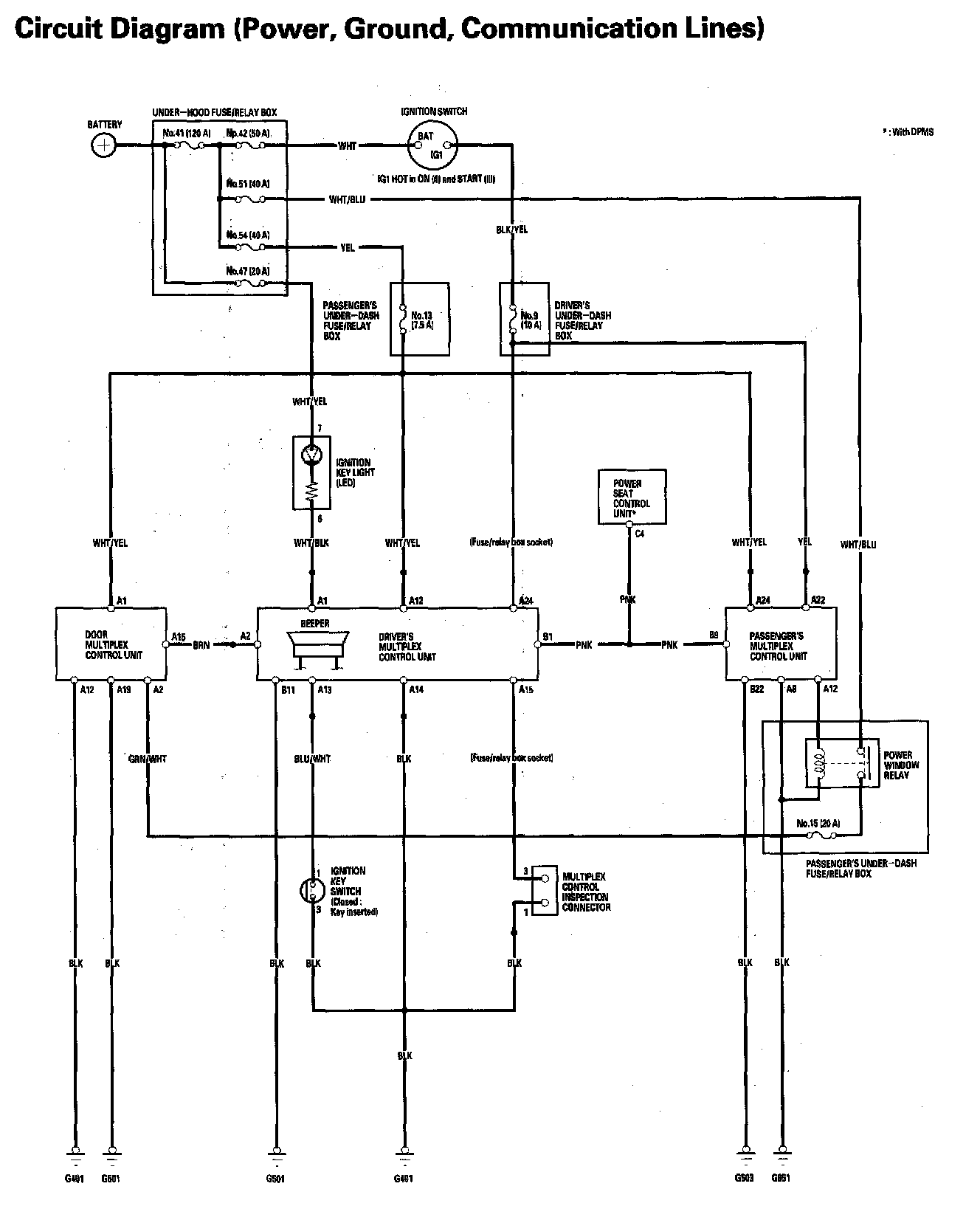

Circuit Diagram - (Power, Ground, Communication Lines):
