Navigation Connectors

84. Navigation Service Check Connector:



237. Rearview Camera (Navigation):

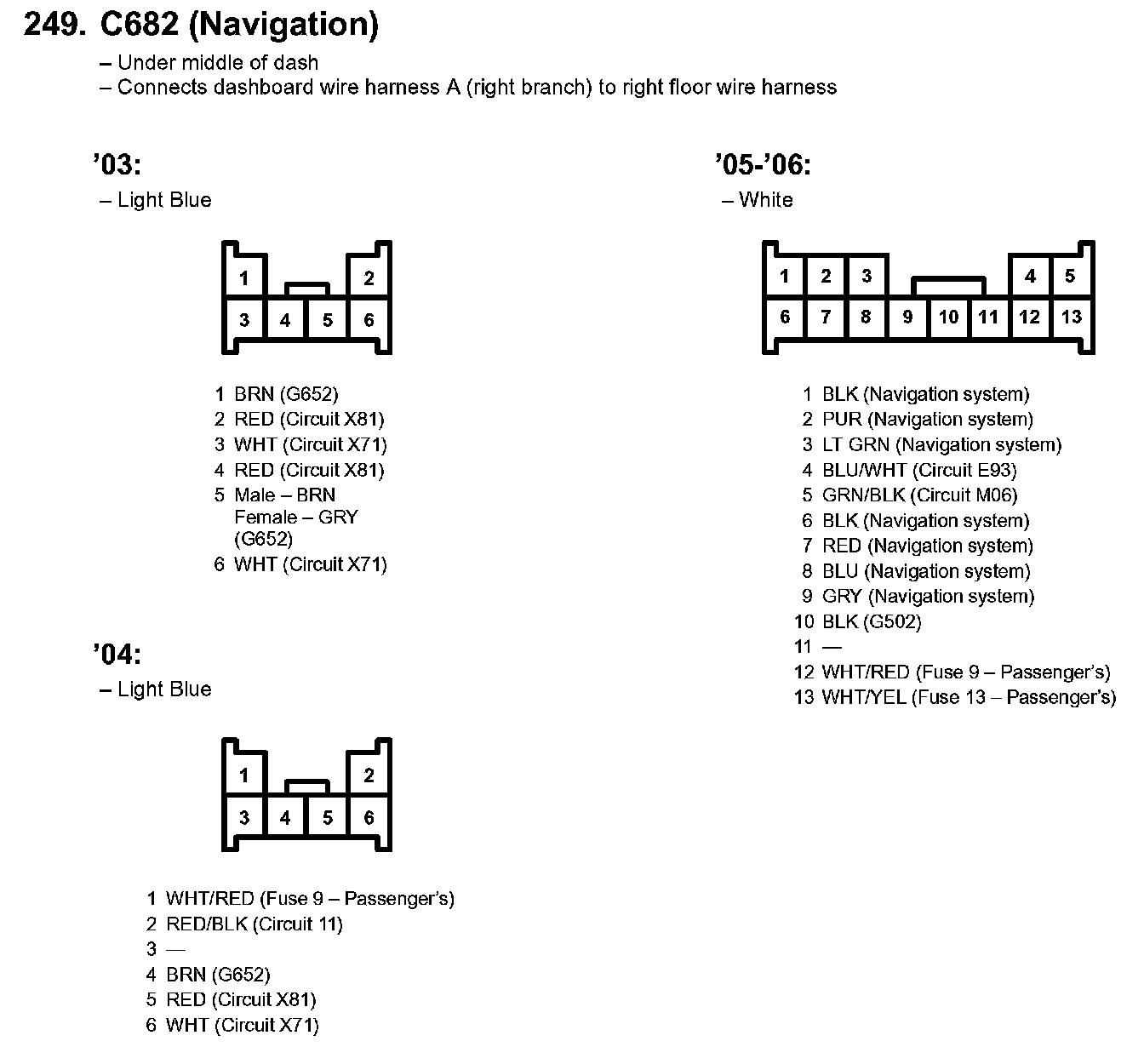

249. C682 (Navigation):



382. C655 ('04-'06: Navigation):

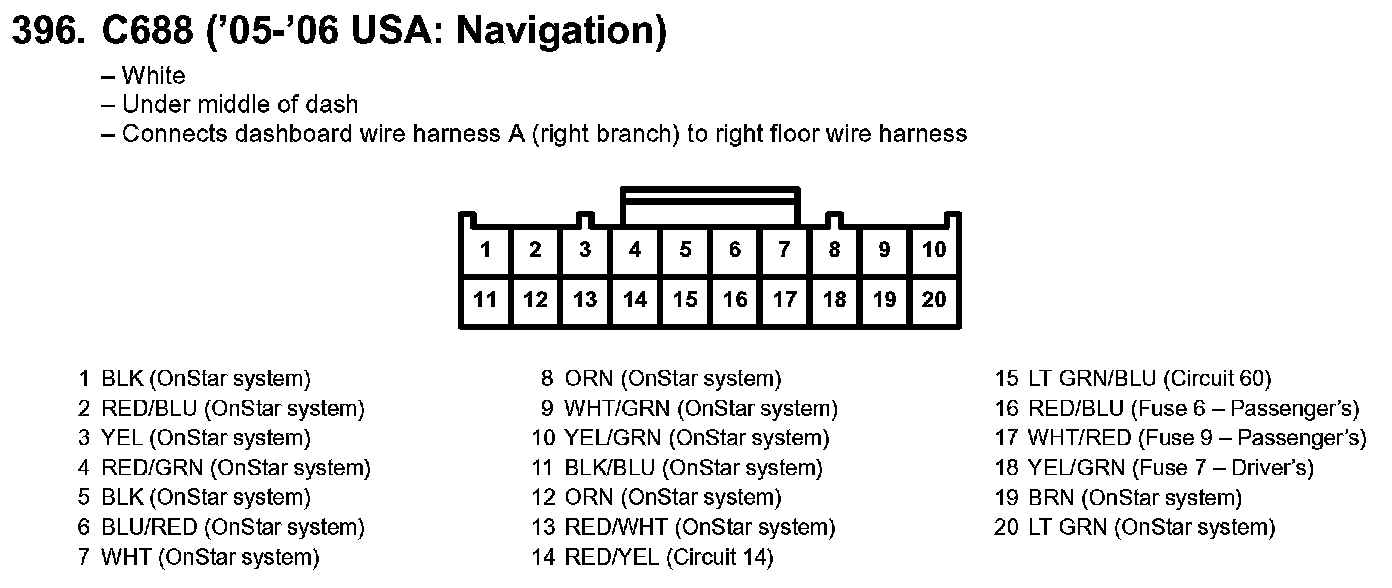

396. C688 ('05-'06 USA: Navigation):

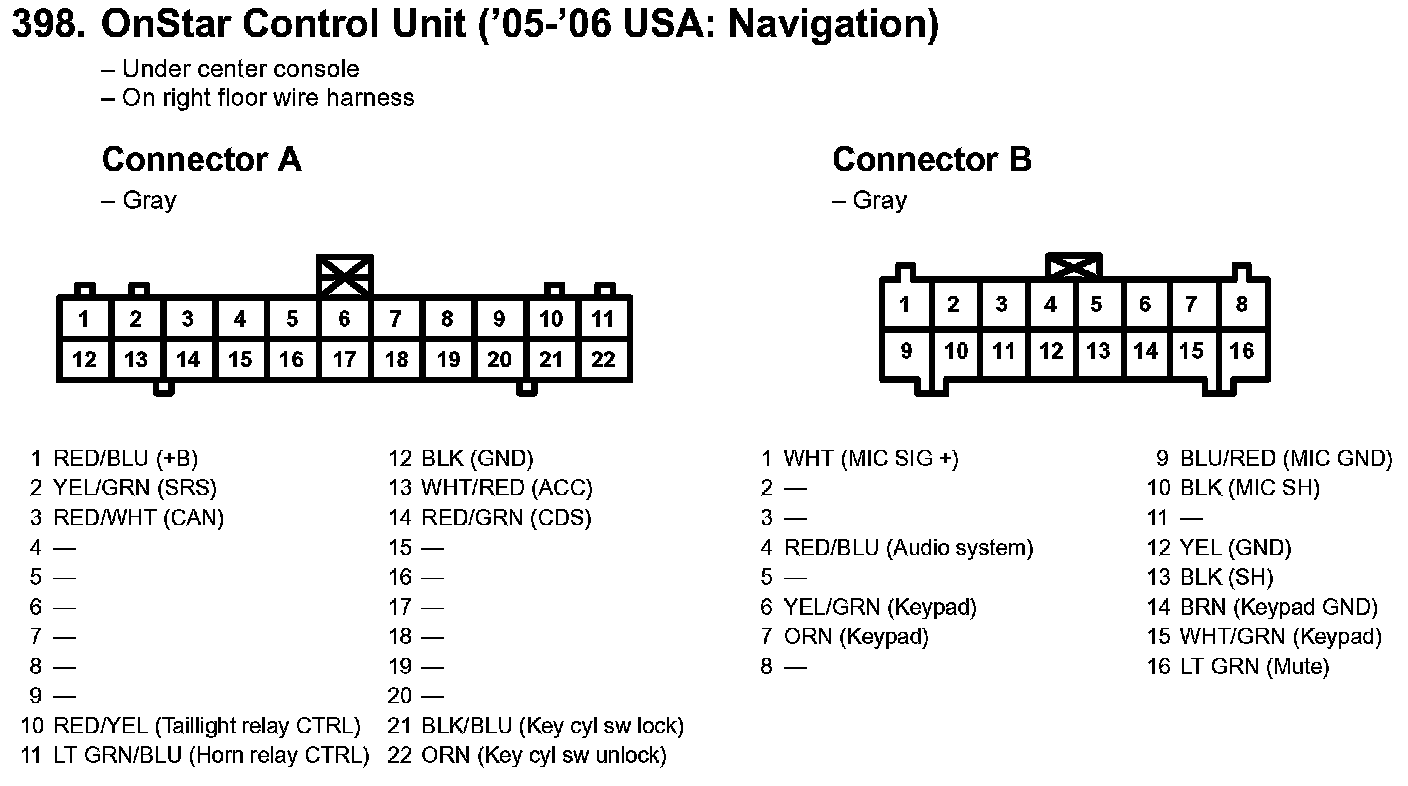

398. OnStar Control Unit ('05-'06 USA: Navigation):



403. C670 ('05-'06: Navigation):
