ECM/PCM Connector End View

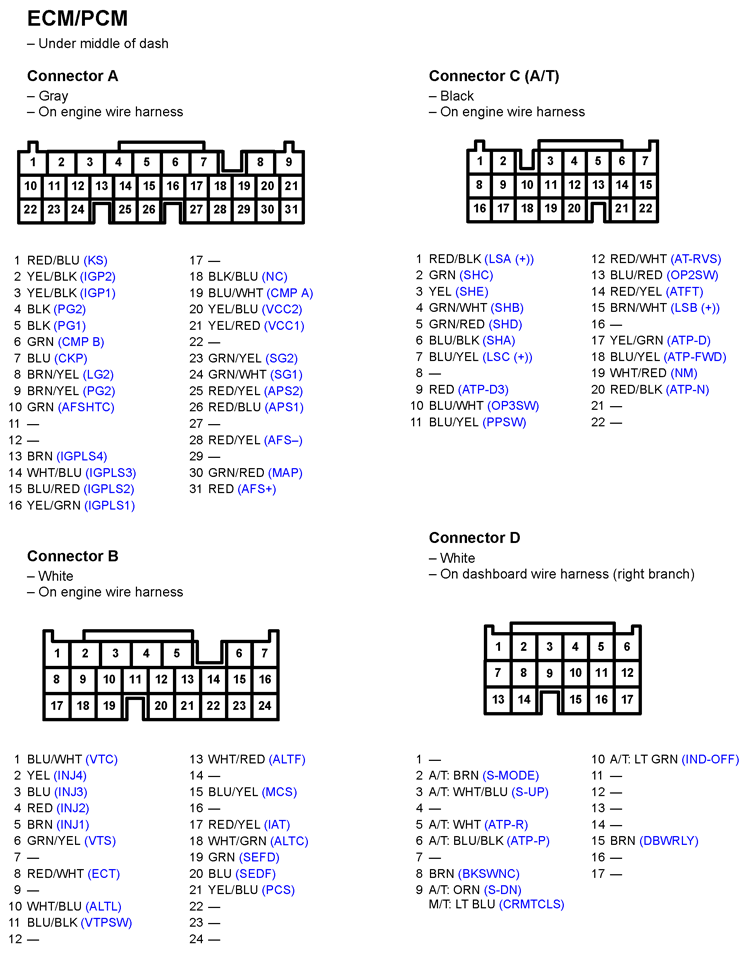

Fig 1: ECM/PCM Connector End View (1 Of 2)

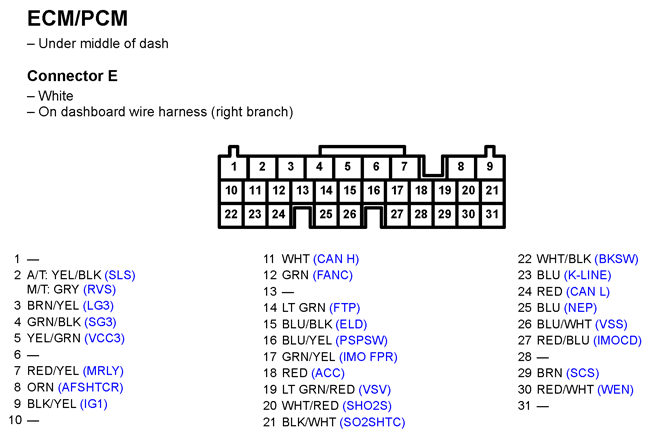

Fig 2: ECM/PCM Connector End View (2 Of 2)
