ECM/PCM Circuit Diagrams

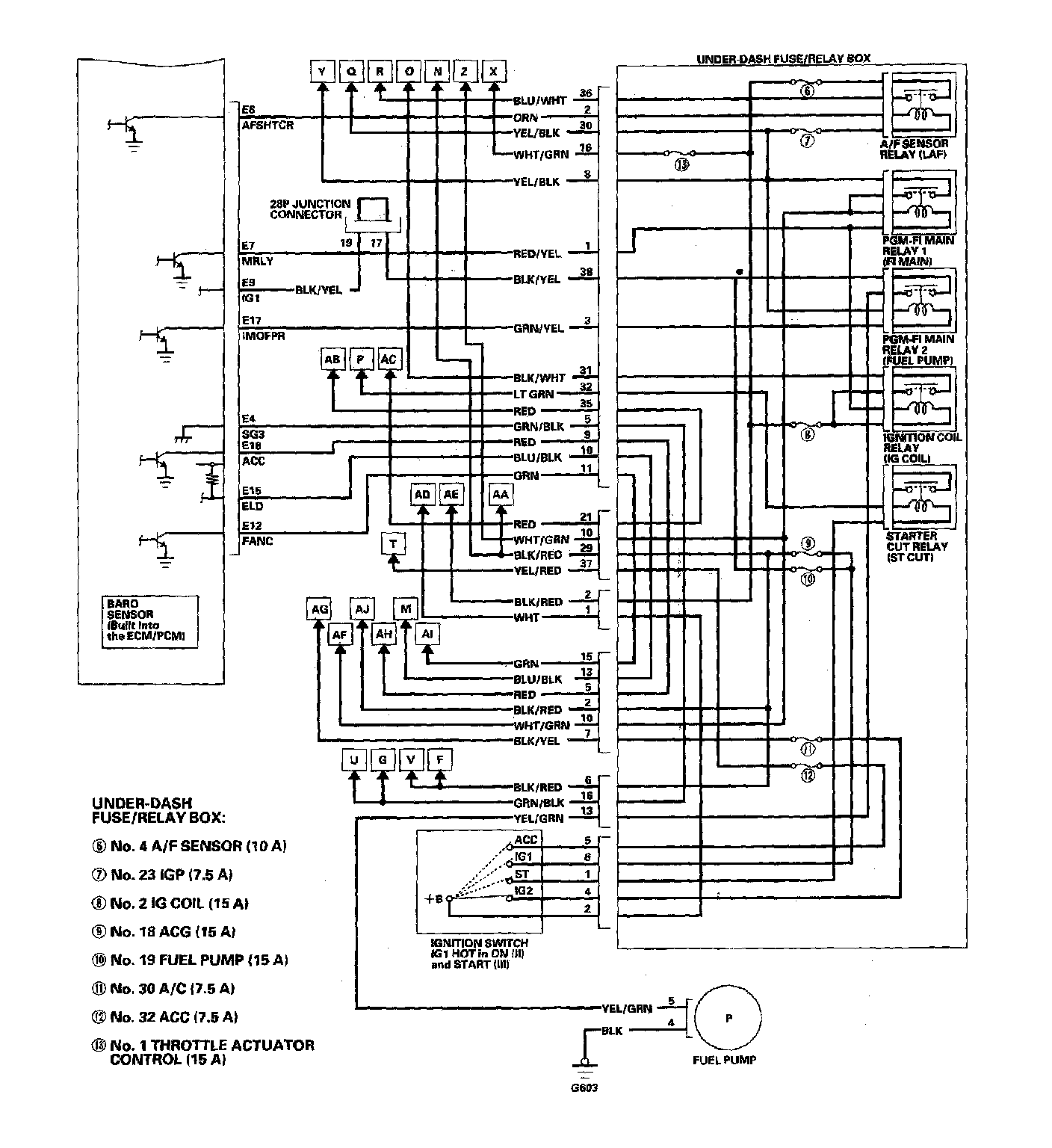

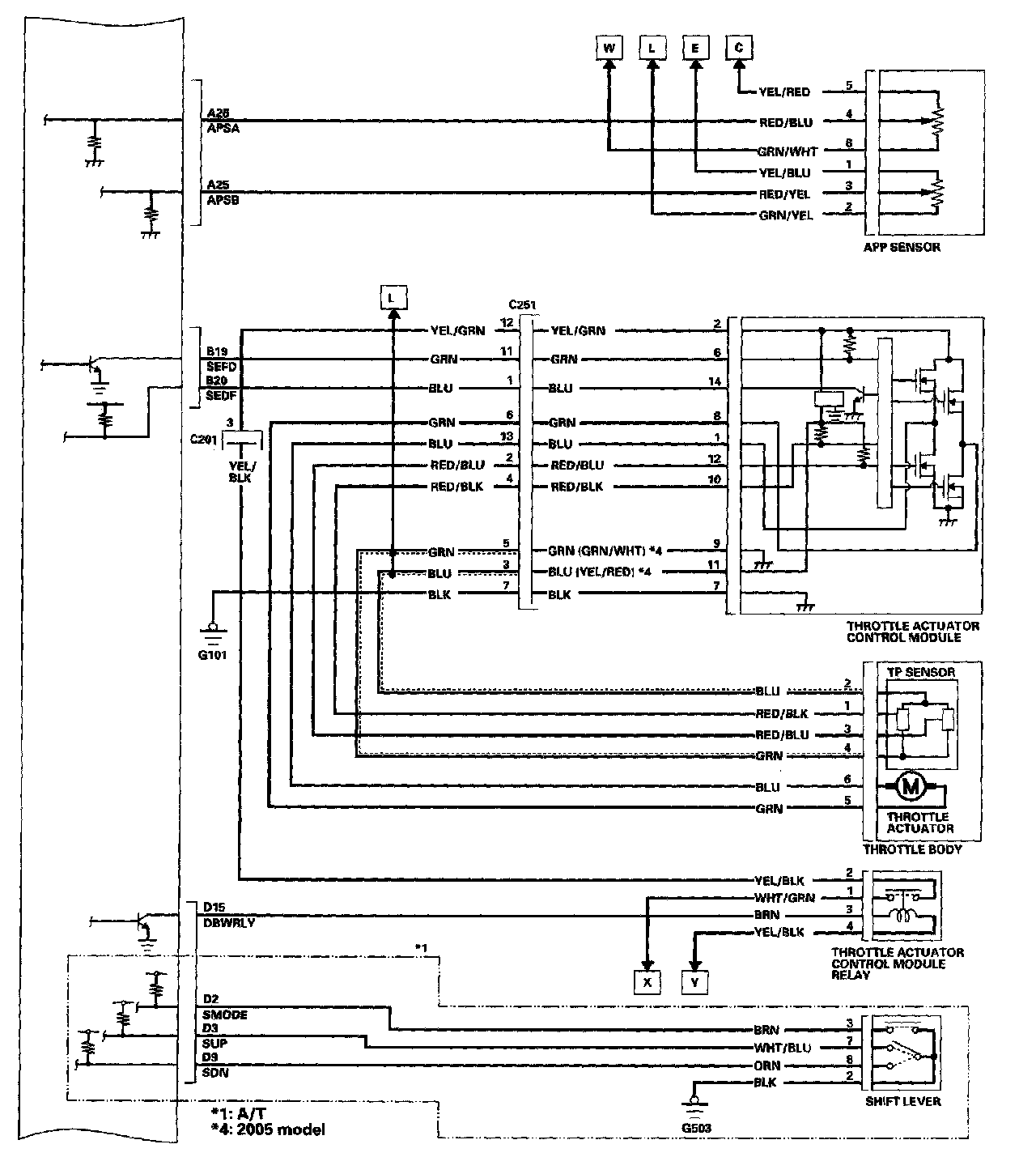

ECM/PCM Circuit Diagram 11-40:

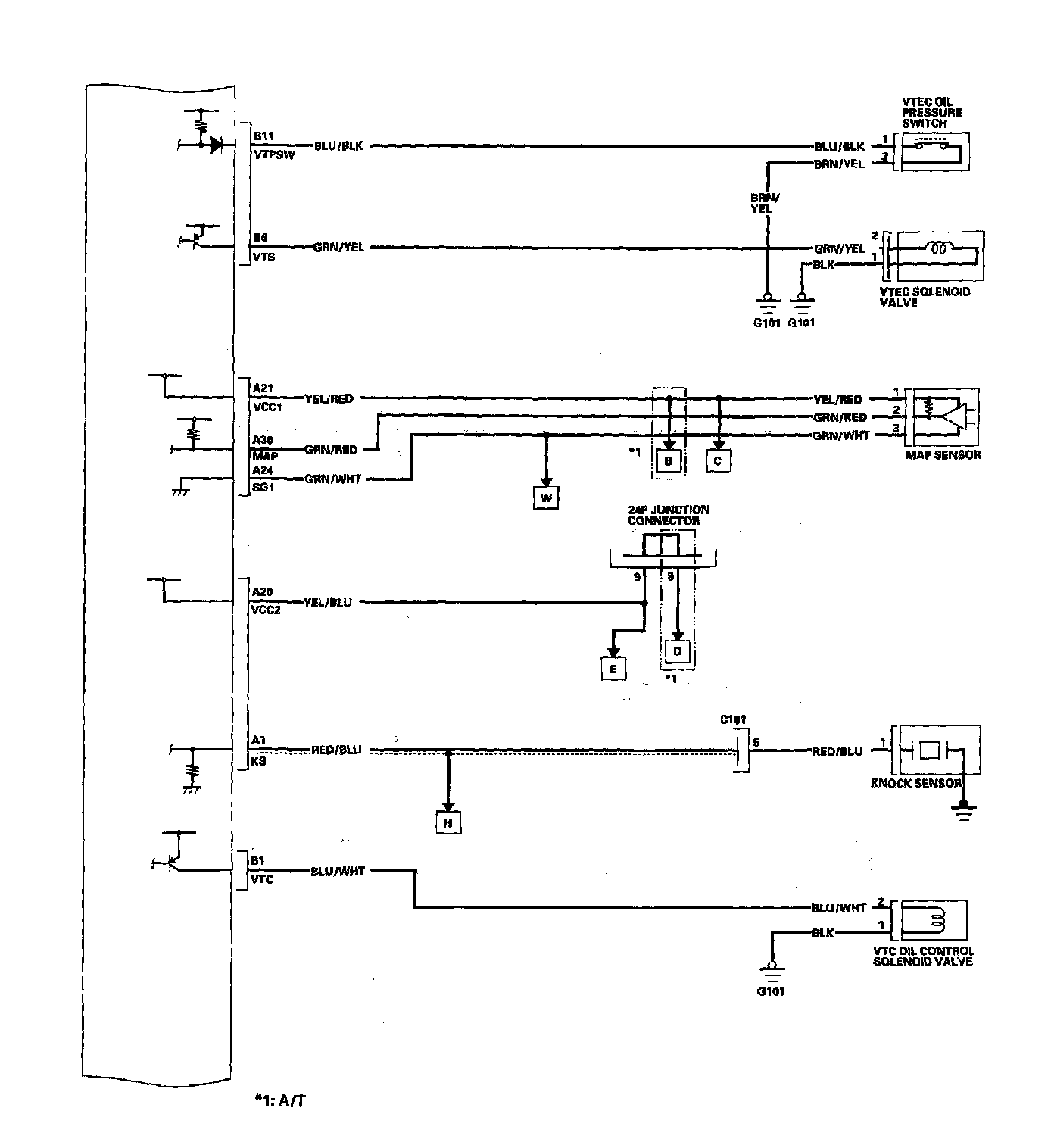

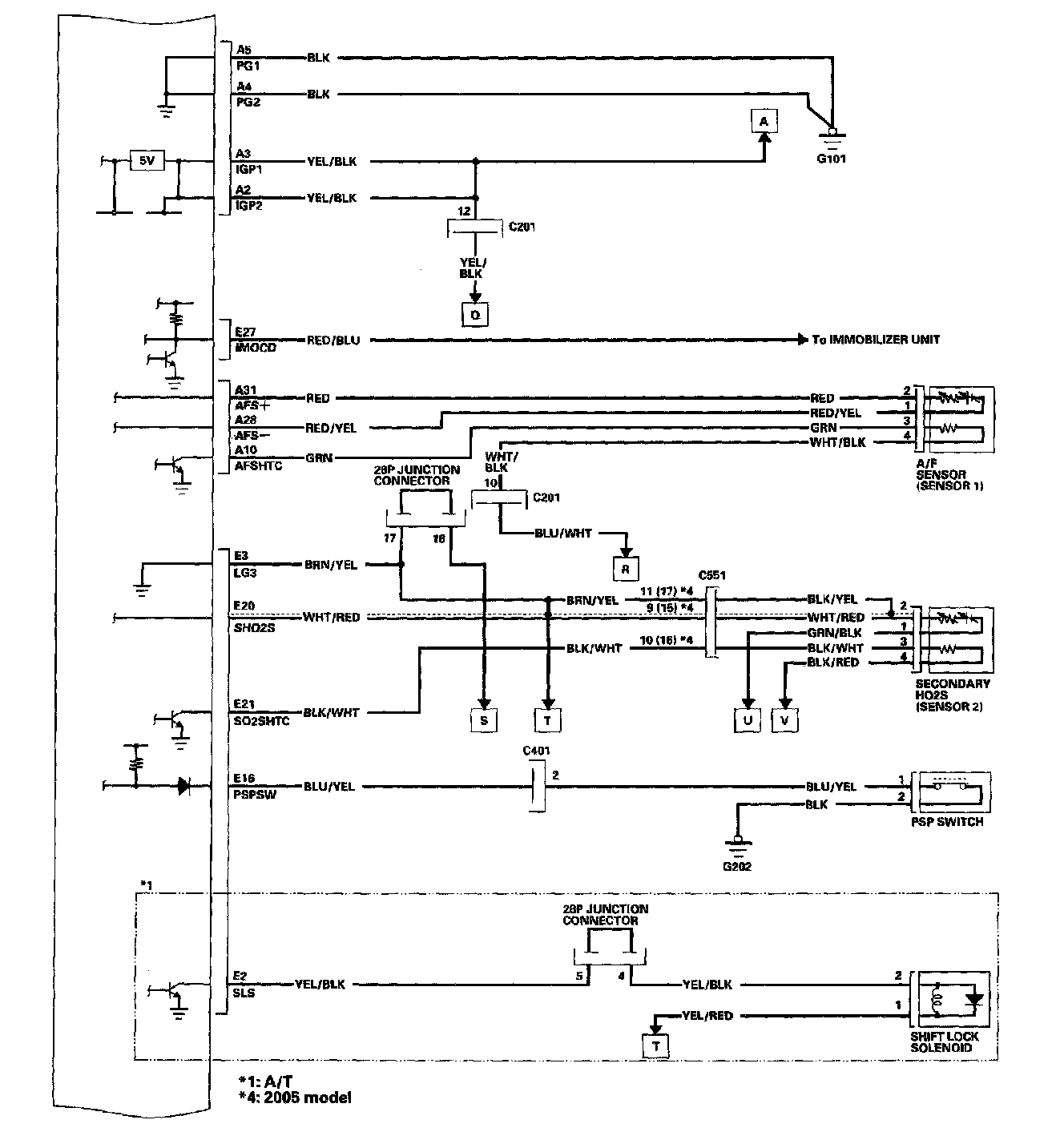

ECM/PCM Circuit Diagram 11-41:

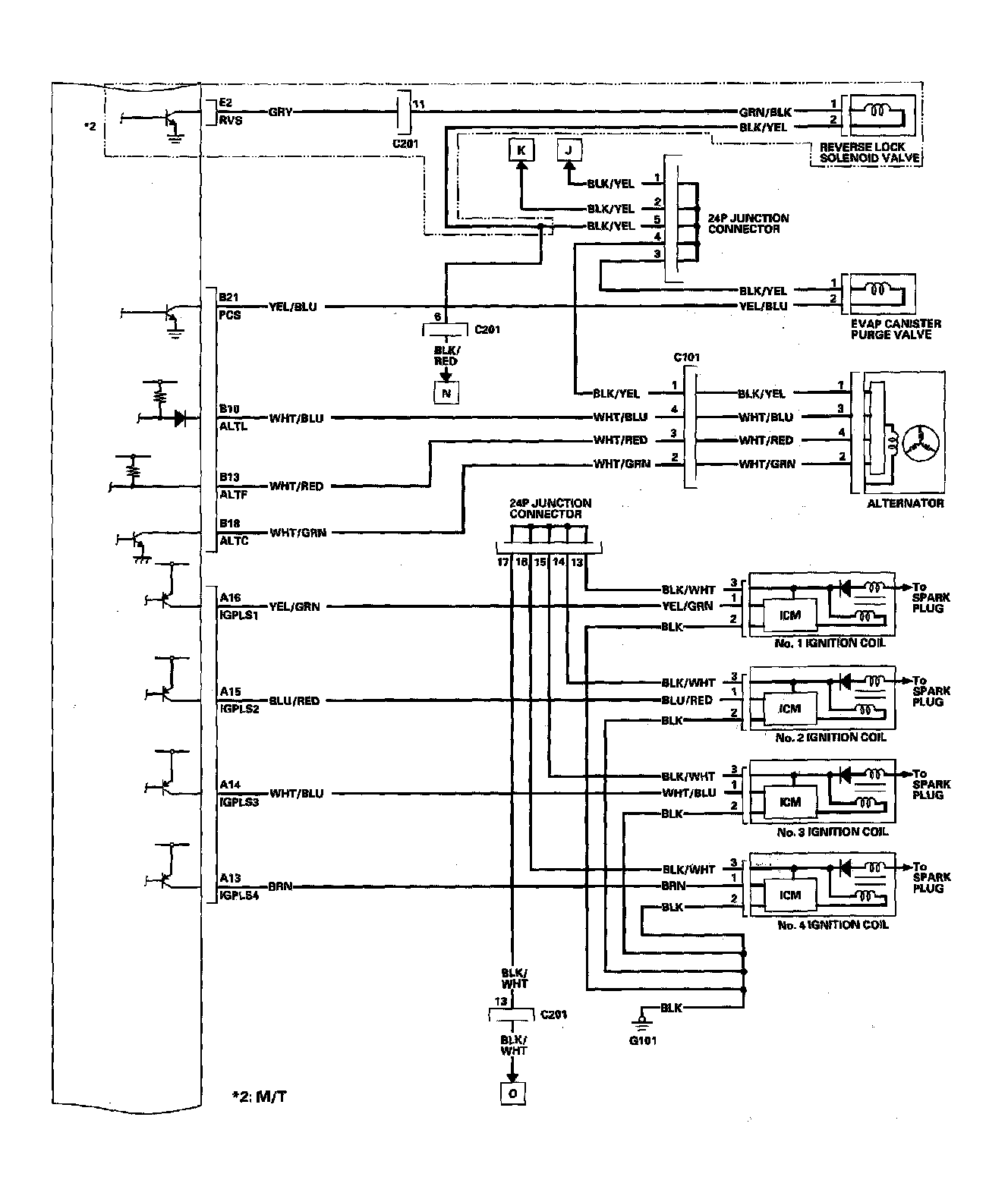

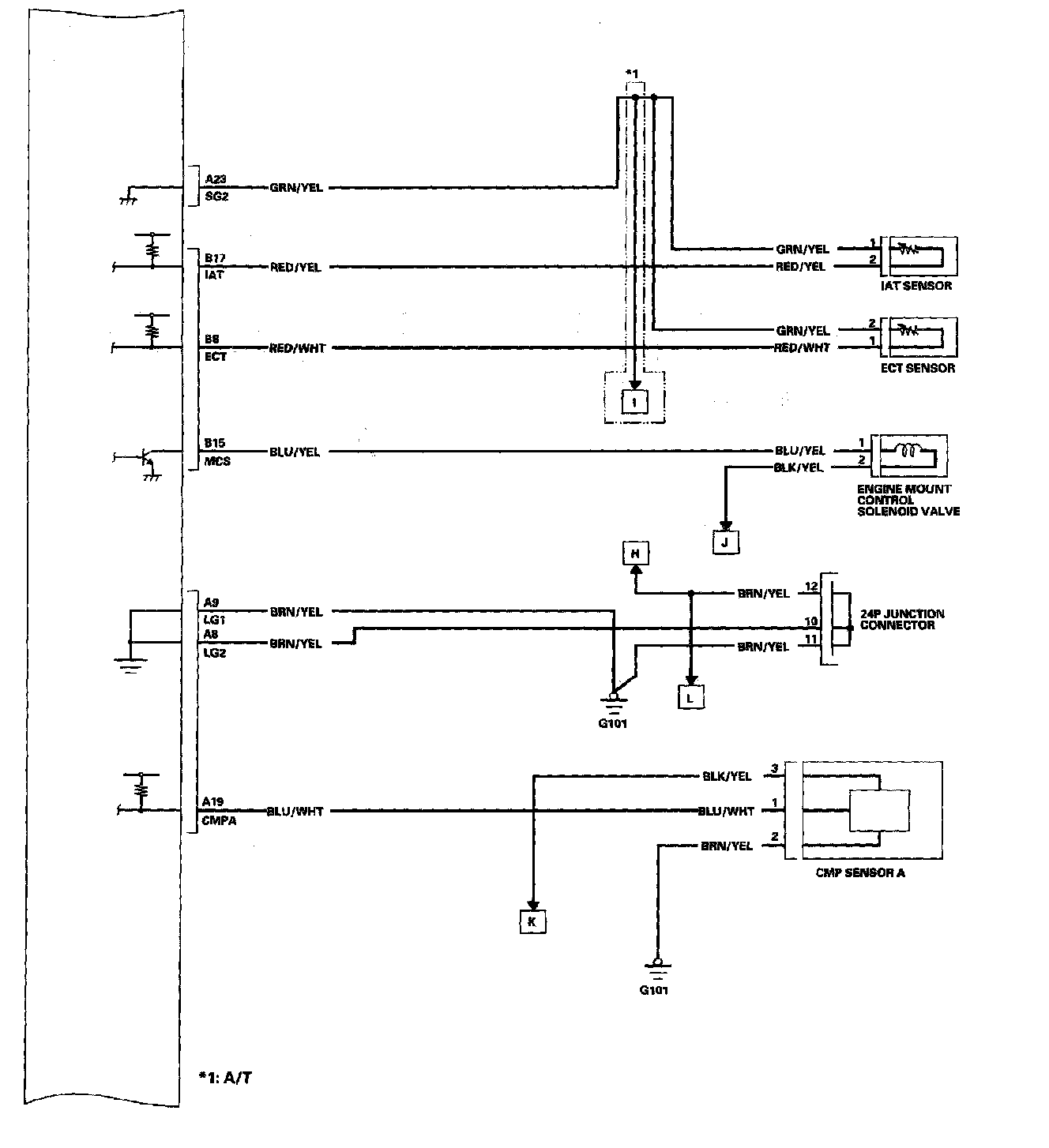

ECM/PCM Circuit Diagram 11-42:

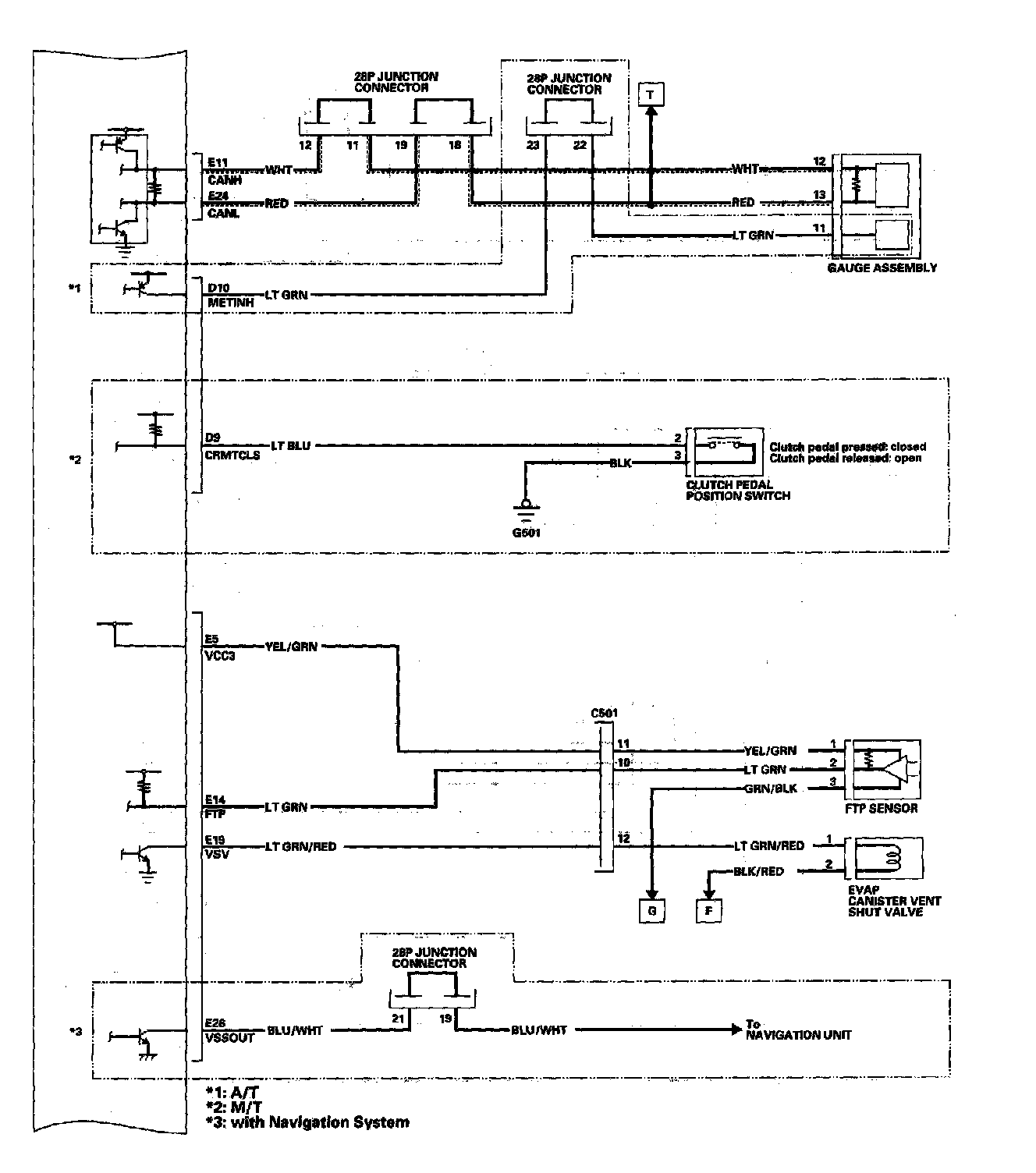

ECM/PCM Circuit Diagram 11-43:

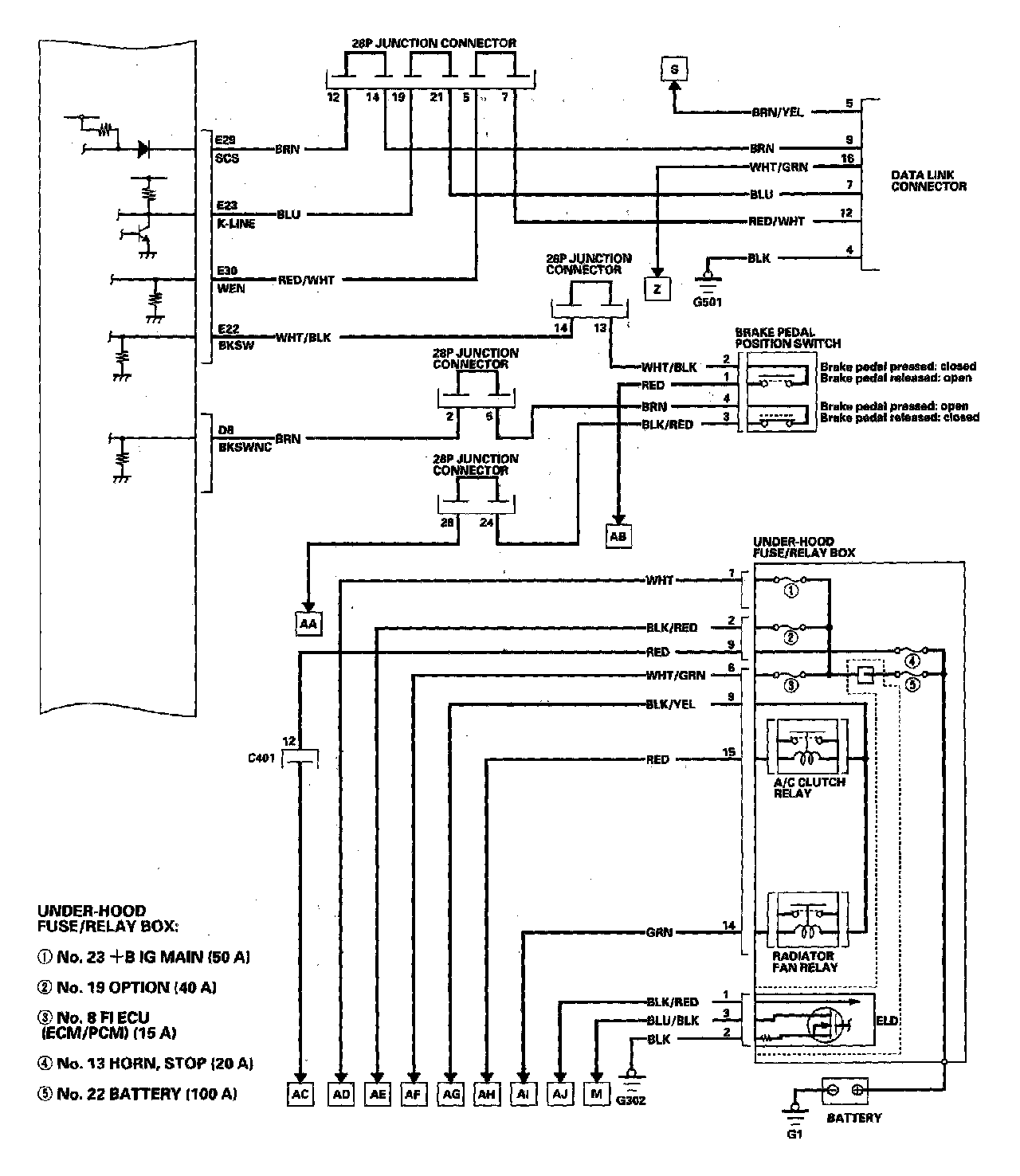

ECM/PCM Circuit Diagram 11-44:

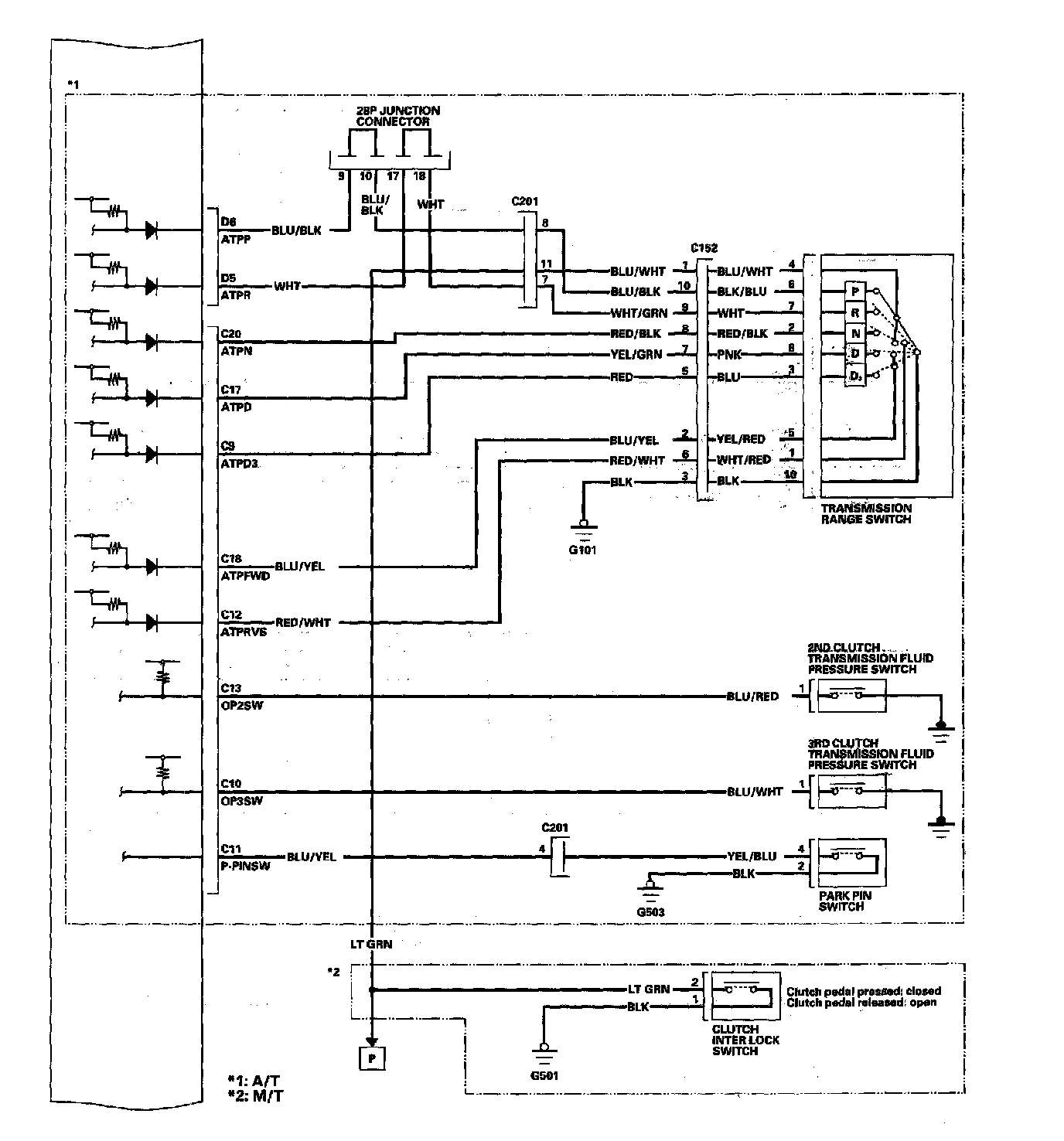

ECM/PCM Circuit Diagram 11-45:

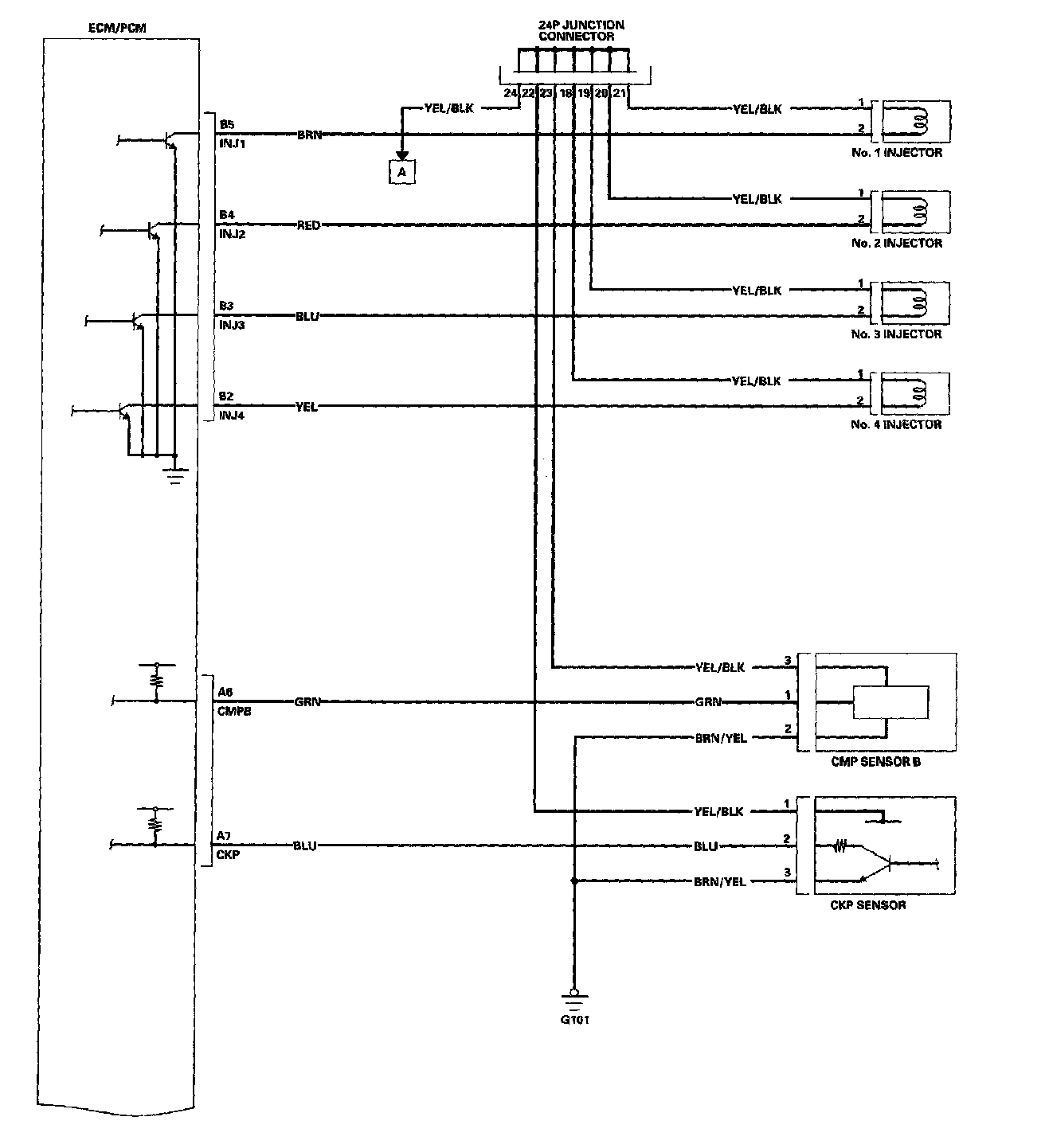

ECM/PCM Circuit Diagram 11-46:

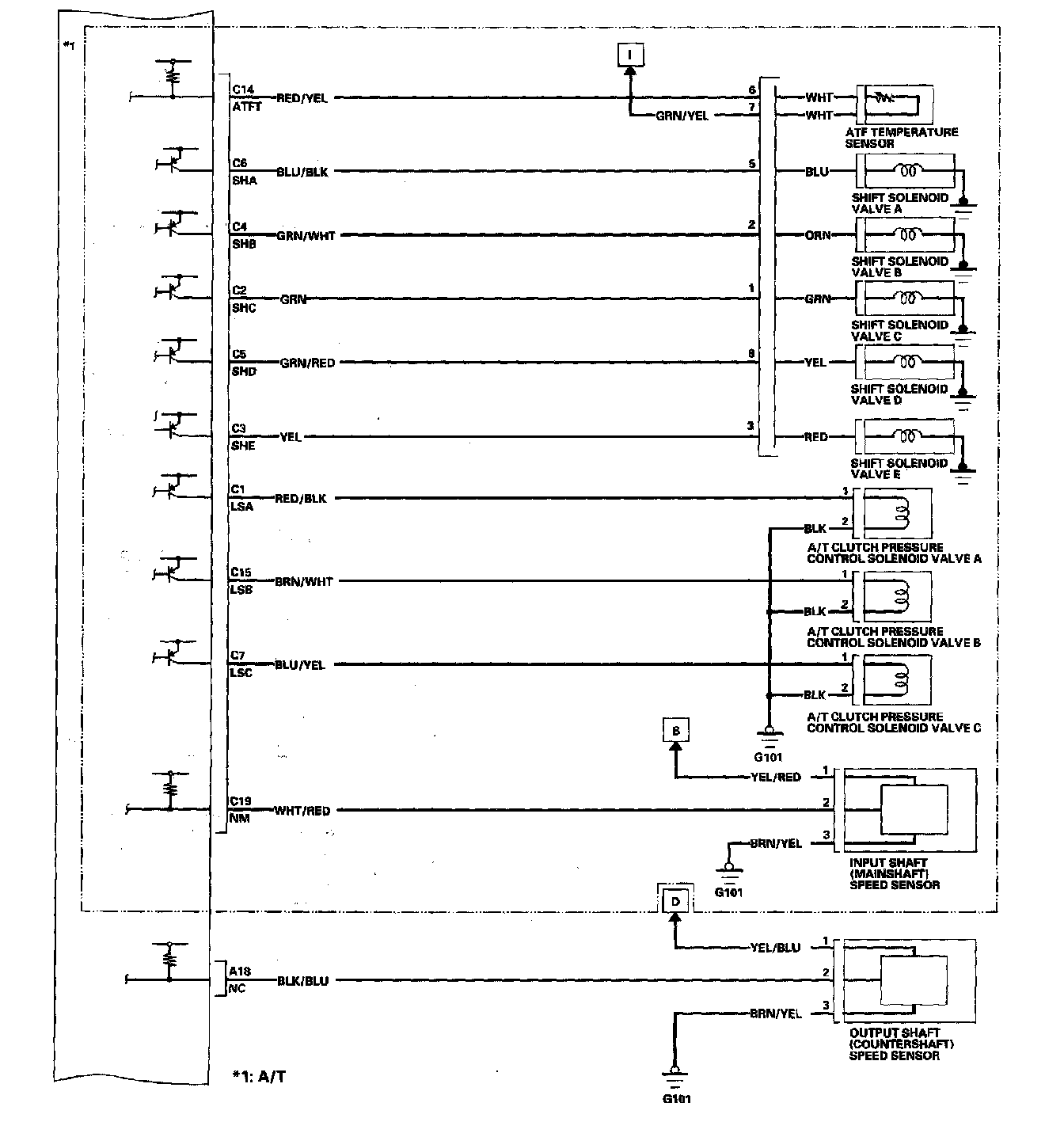

ECM/PCM Circuit Diagram 11-47:
ECM/PCM Circuit Diagram 11-48:
ECM/PCM Circuit Diagram 11-49:
ECM/PCM Circuit Diagram 11-50:
