Connector Locations

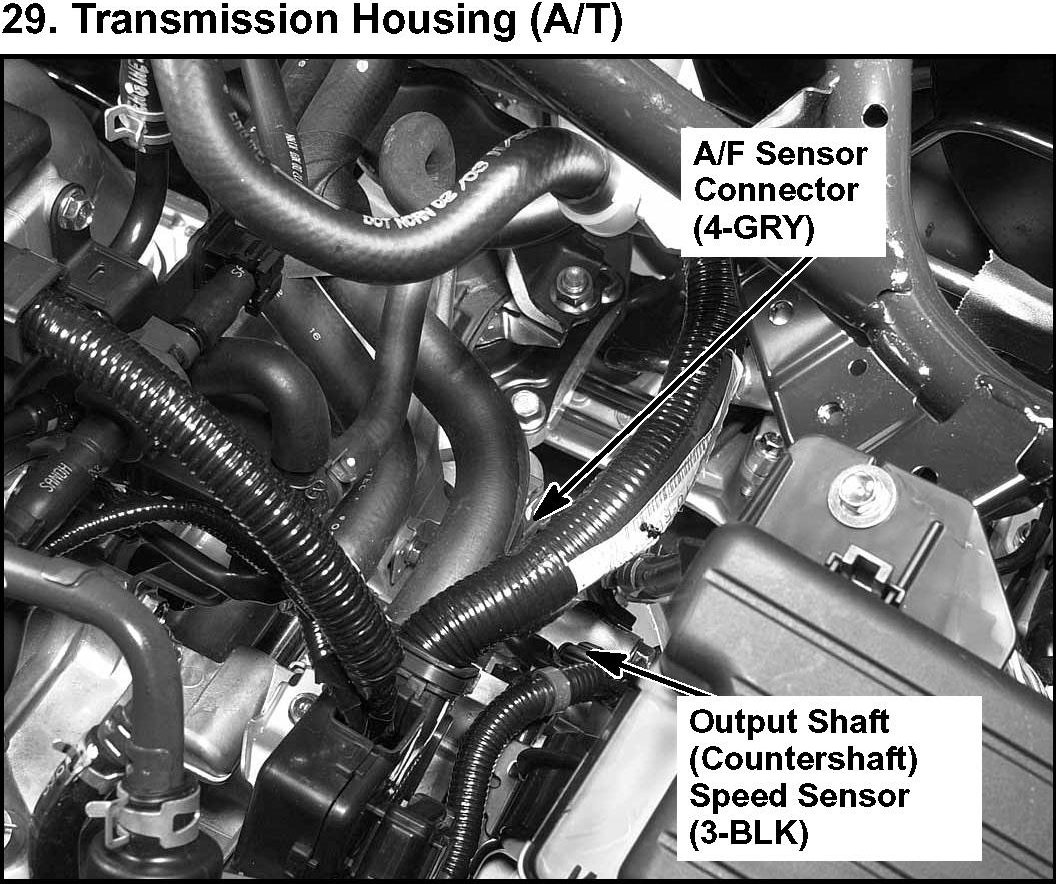

29. Transmission Housing (A/T):

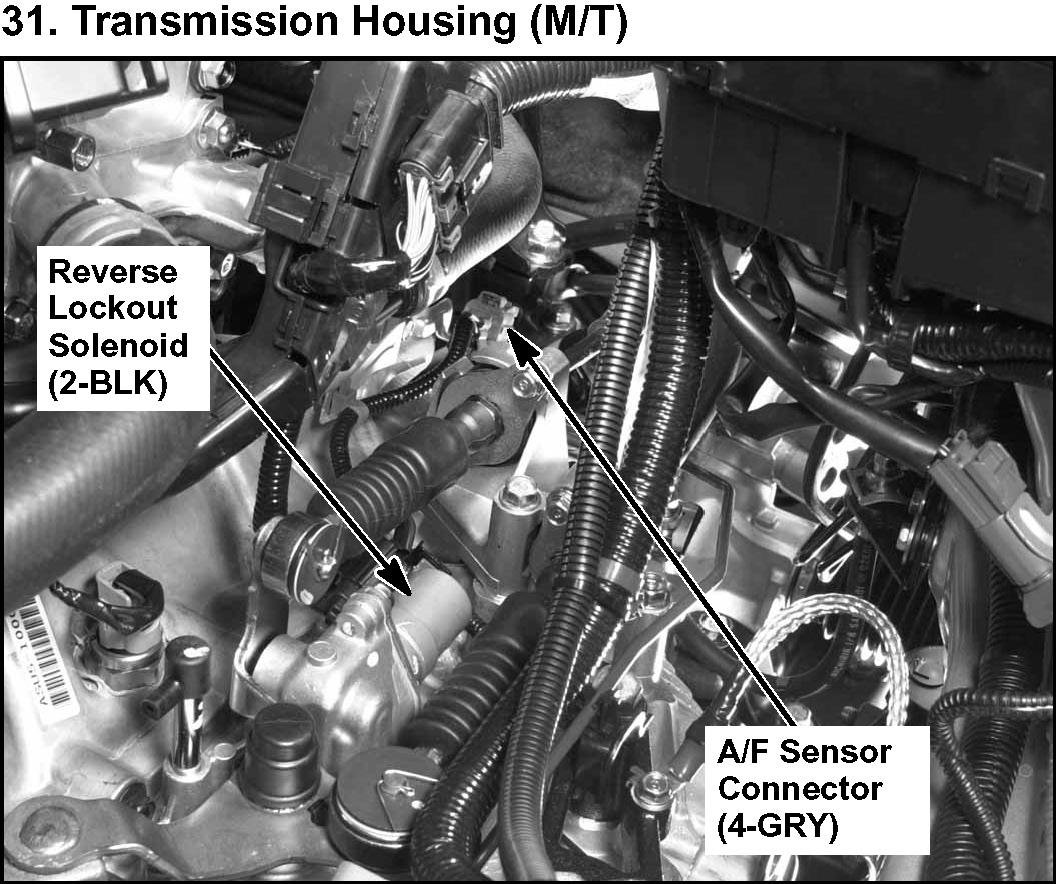

31. Transmission Housing (M/T):

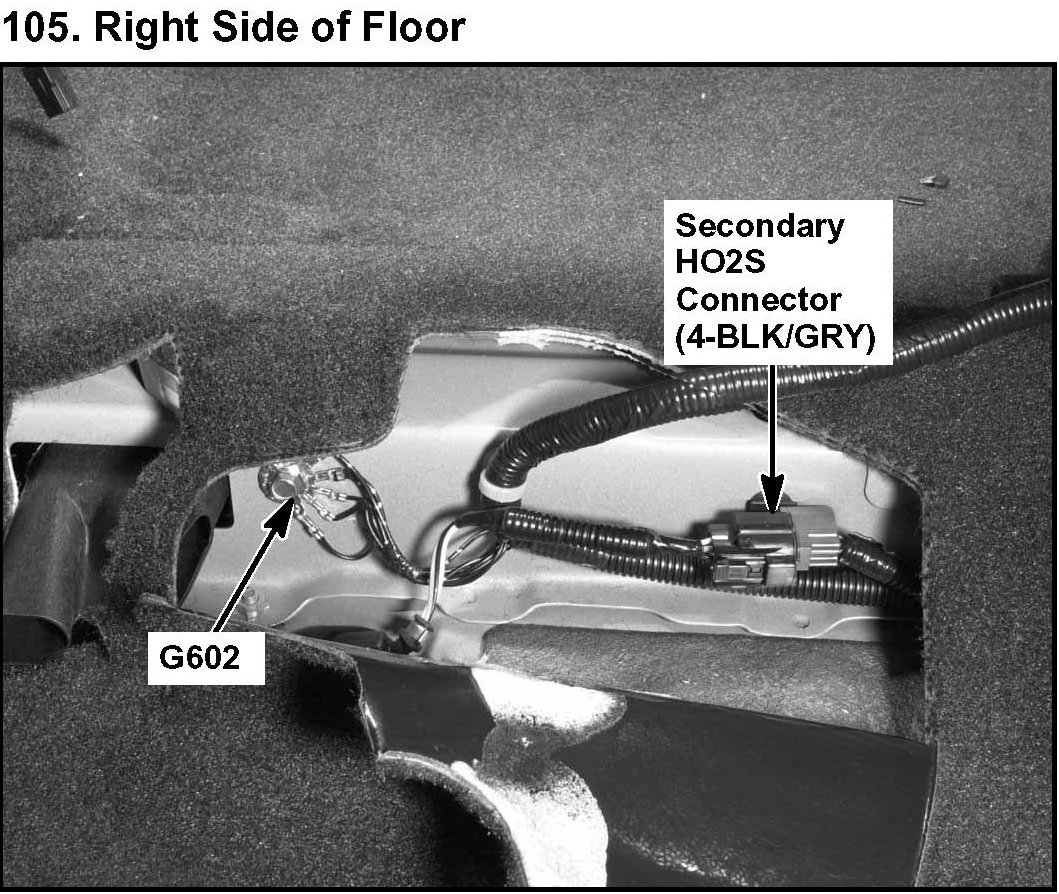

105. Right Side Of Floor:
