Audio-HVAC Display Panel Removal/Installation

Audio-HVAC Display Panel Removal/Installation

1. Remove the audio-HVAC display module.

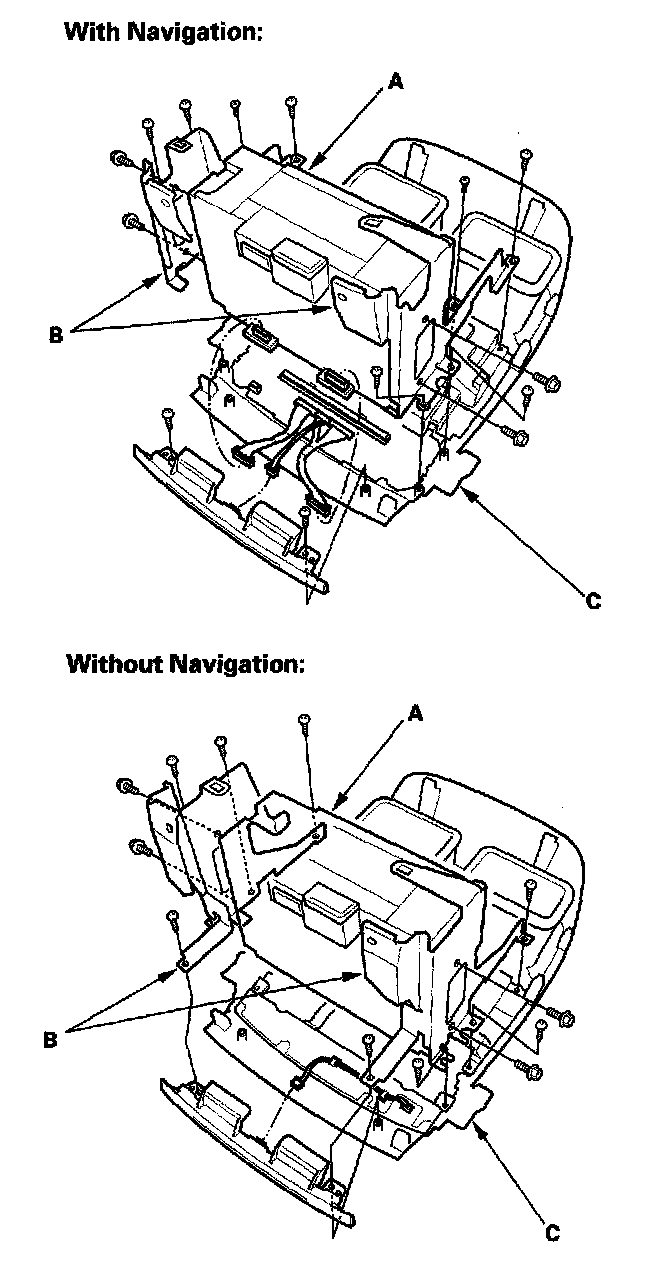

2. Remove the mounting screws and audio unit (A) from the radio bracket (B), and separate the audio unit from the audio-HVAC display panel (C).
3. Install the audio unit and audio-HVAC display module in the reverse order of removal.
