Manual Transmission/Transaxle

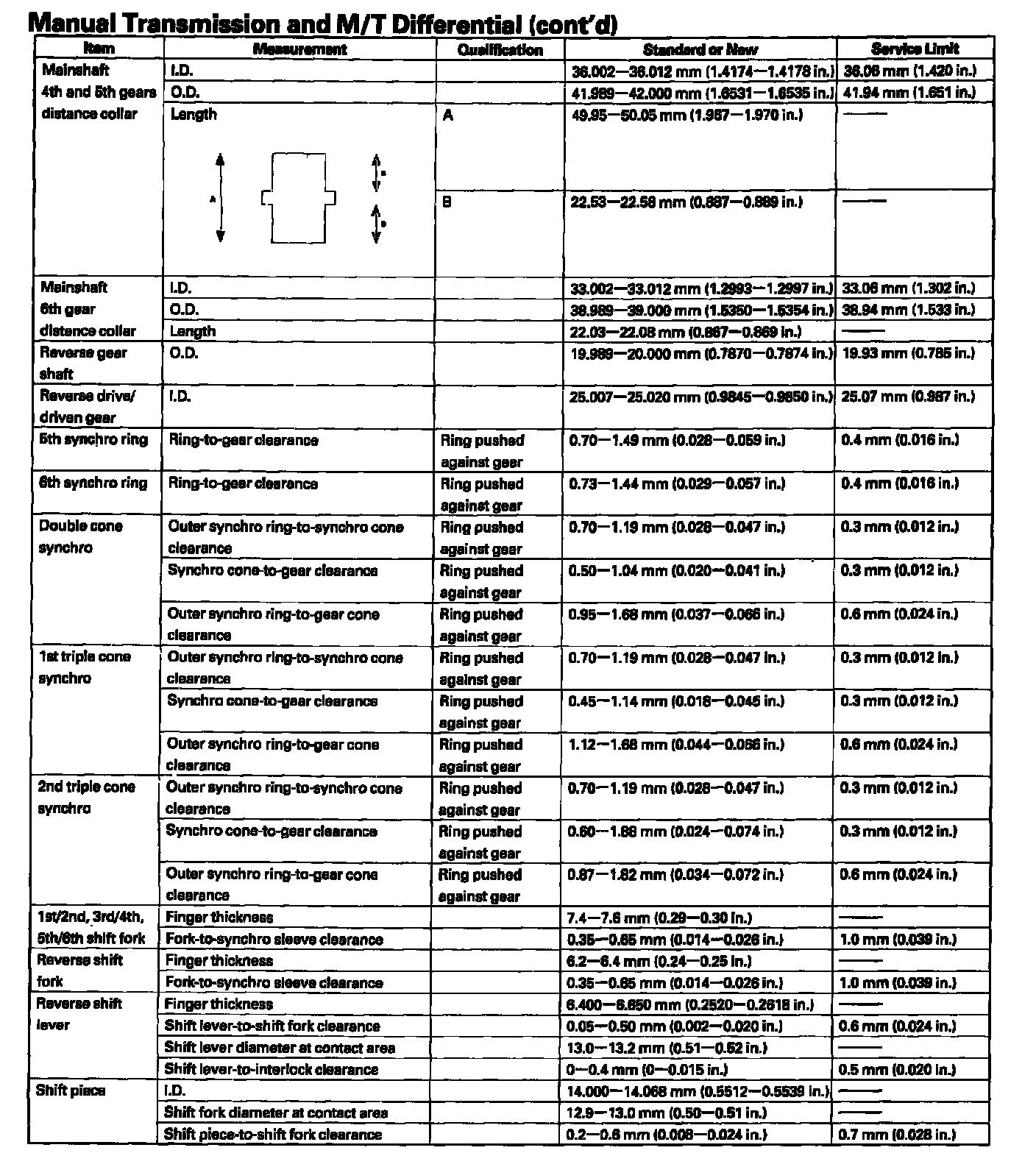

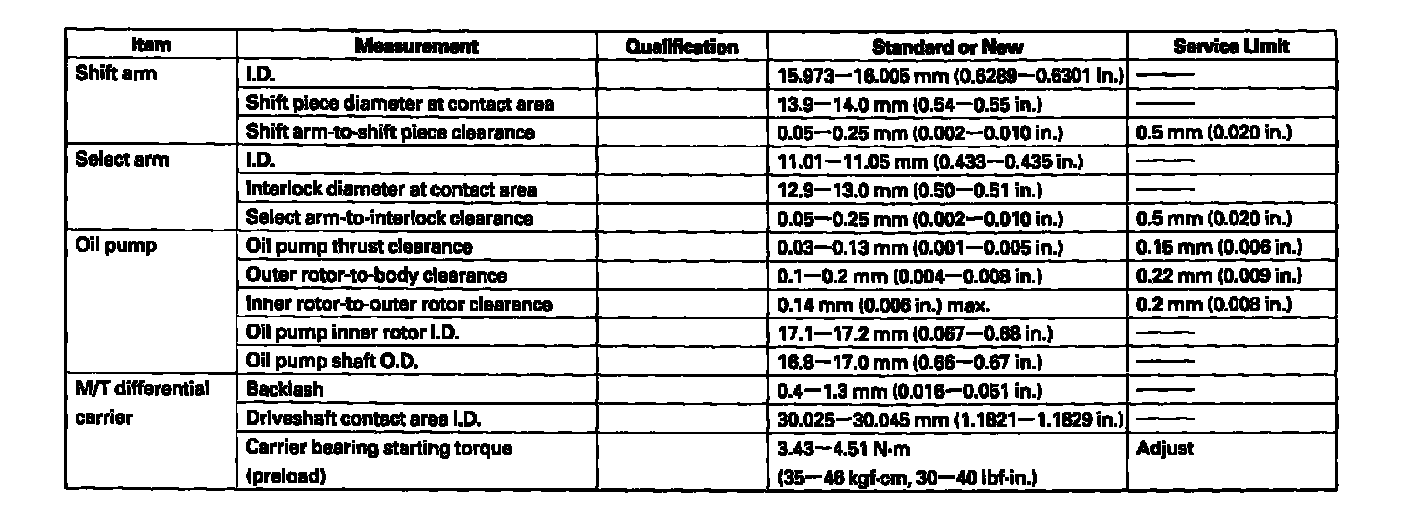

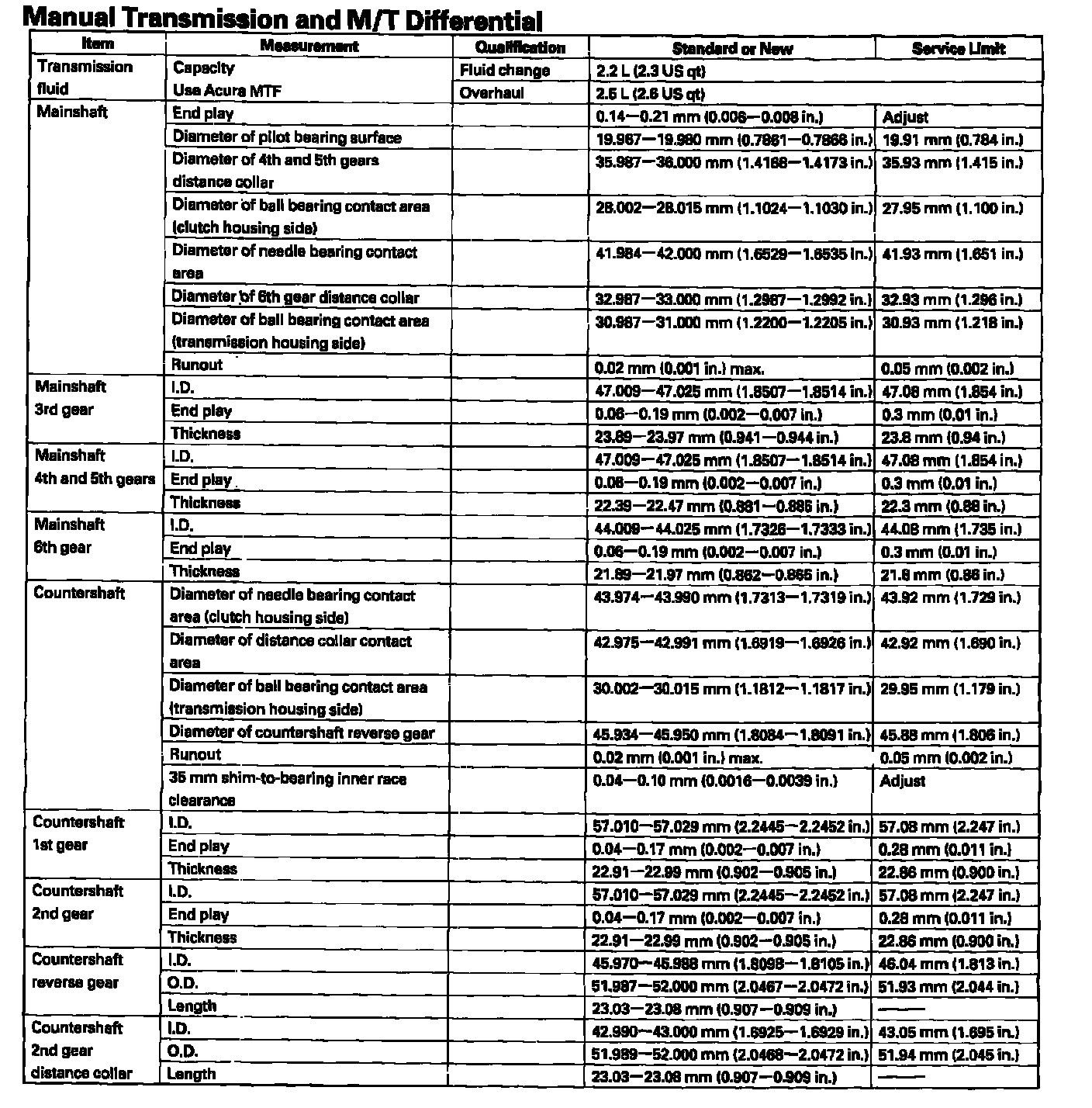

Manual Transmission and M/T Differential:



Manual Transmission and M/T Differential:



Manual Transmission and M/T Differential:
