Instrument Panel Control Module: Locations

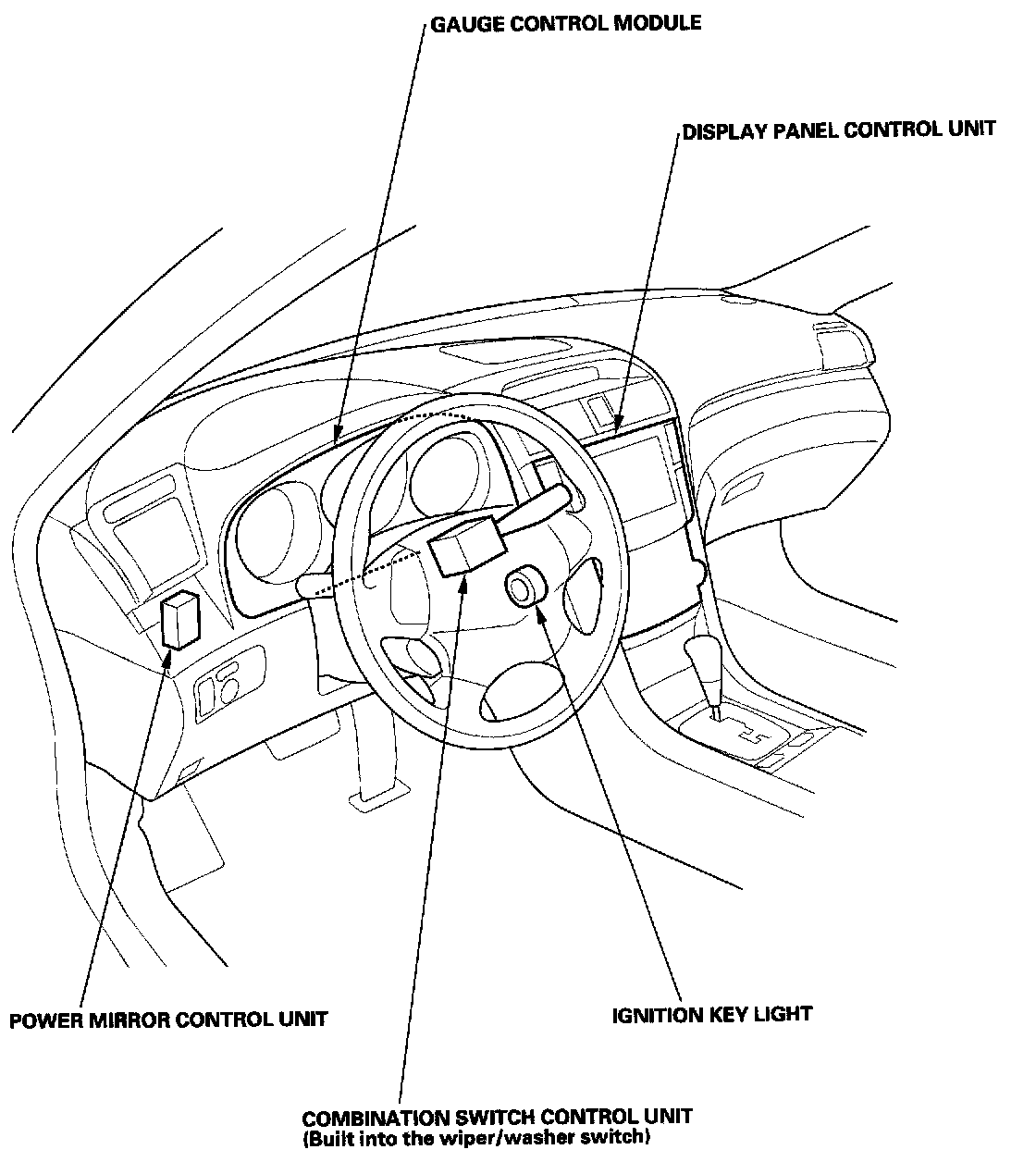

Relay And Control Unit Locations - Dashboard:

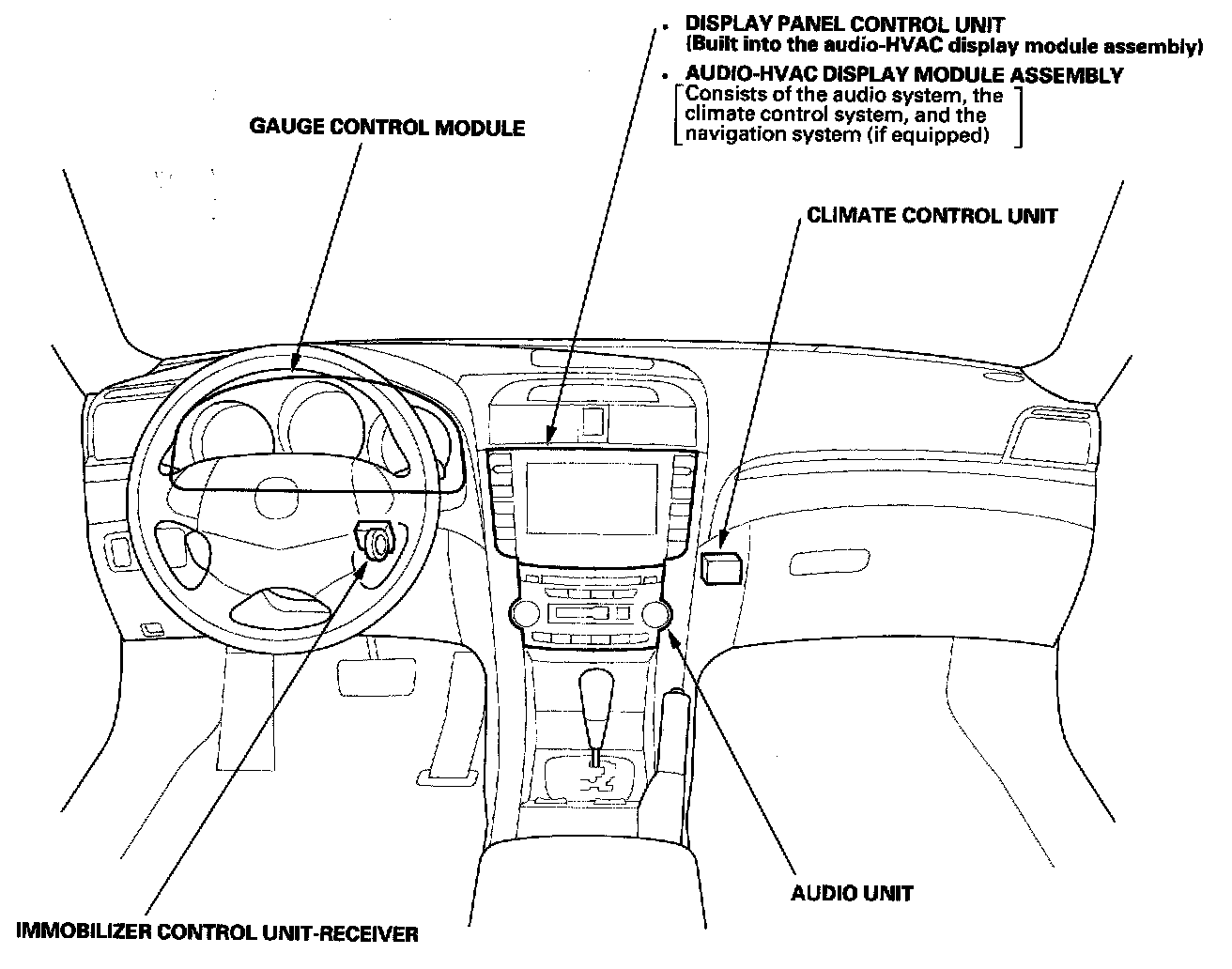

Multiplex Integrated Control System (MICS) Component Location Index Multiplex Integrated Control System (MICS) Component Location Index Multiplex Integrated Control System - Component Location Index:

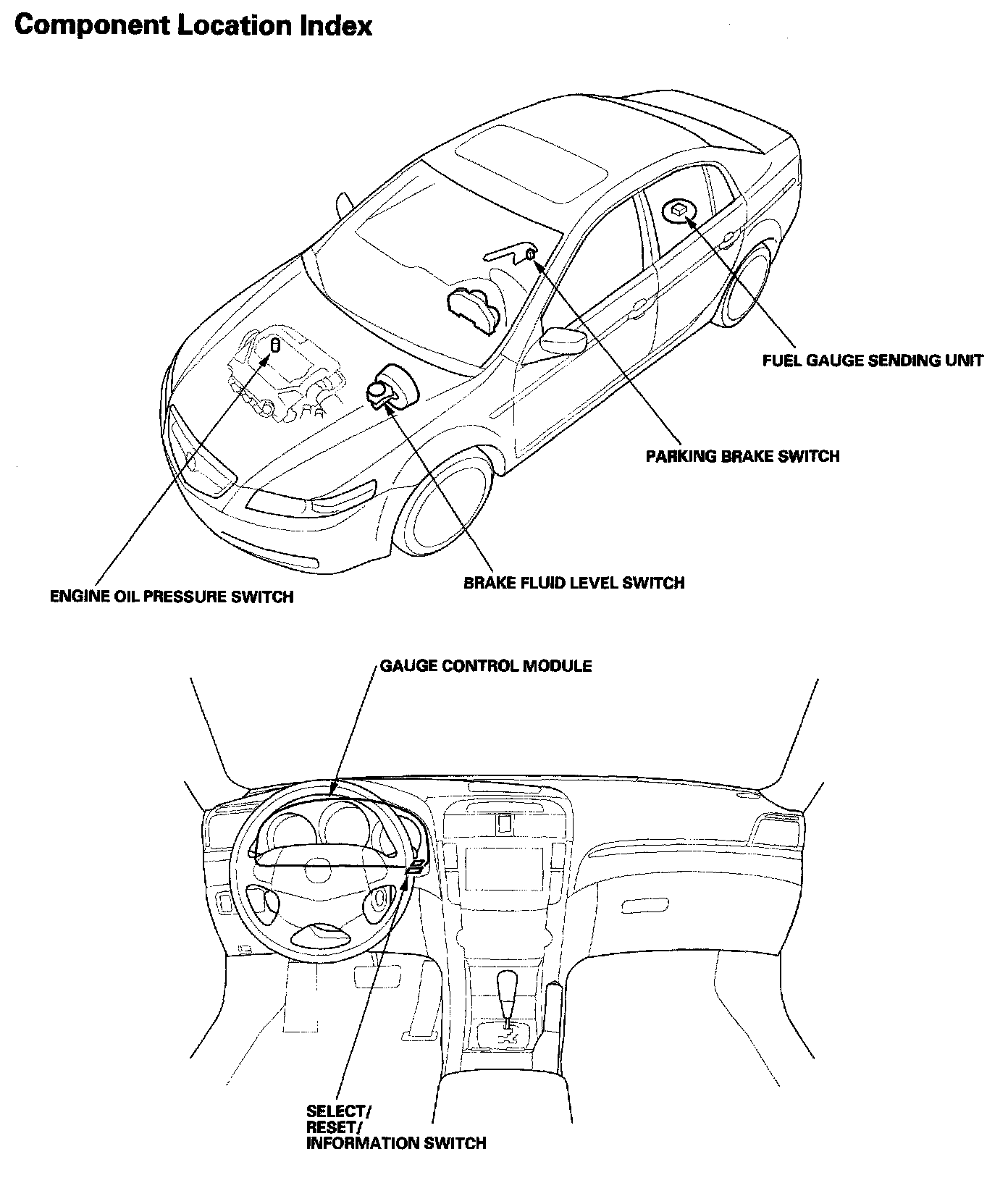

Gauges - Component Location Index:

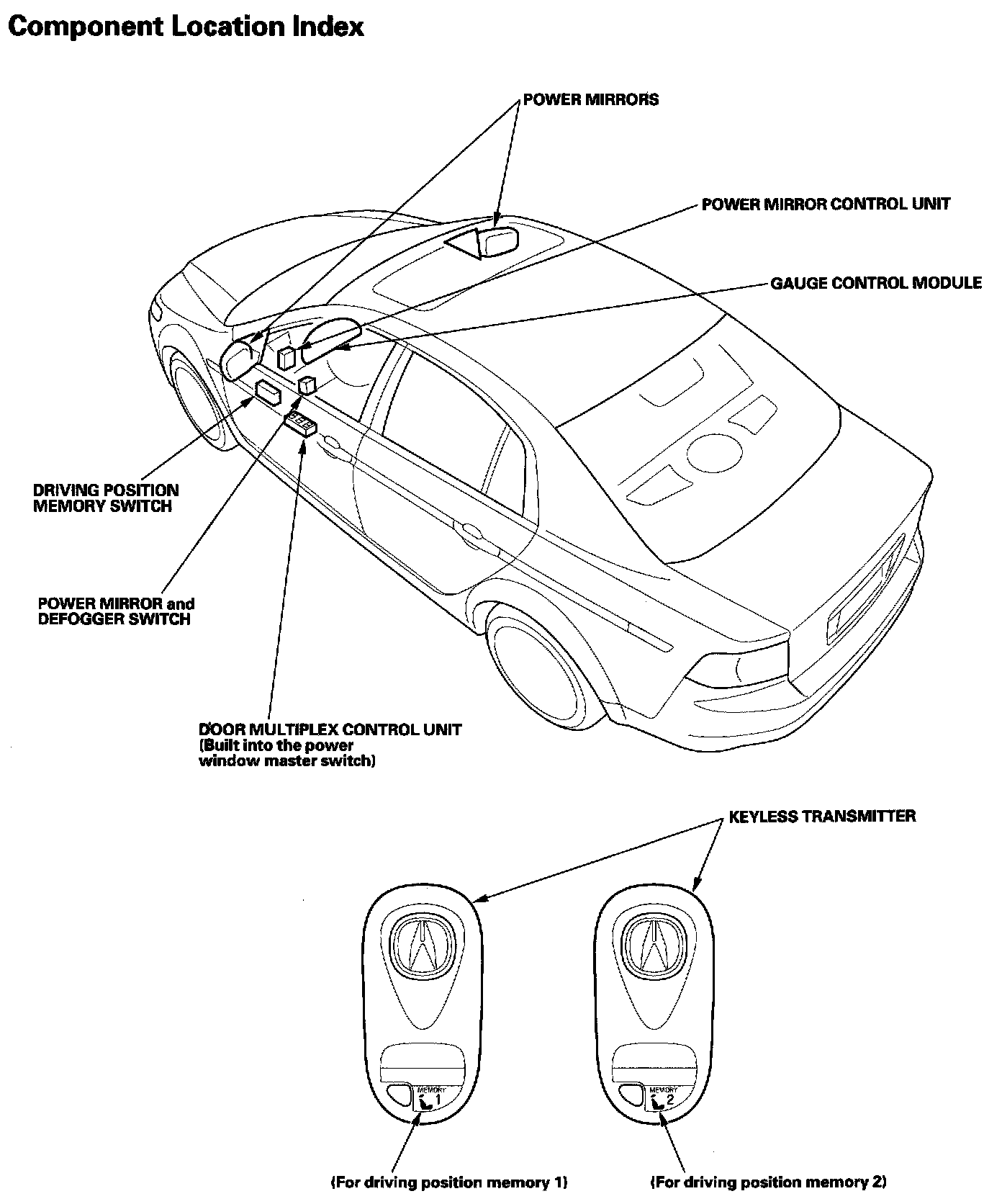

Driving Position Memory System (DPMS) - Component Location Index:

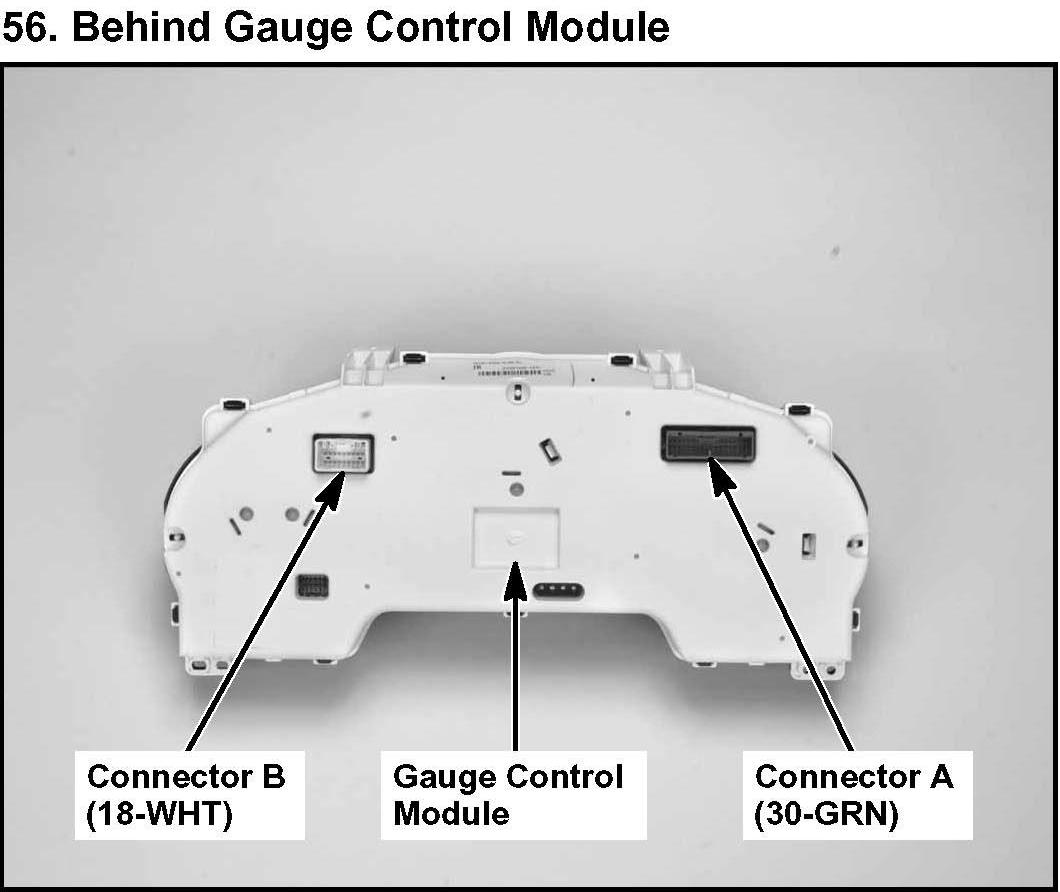

56. Behind Gauge Control Module:
