Antenna Control Module: Service and Repair

Antenna Module Replacement

1. Remove the left C-pillar trim.

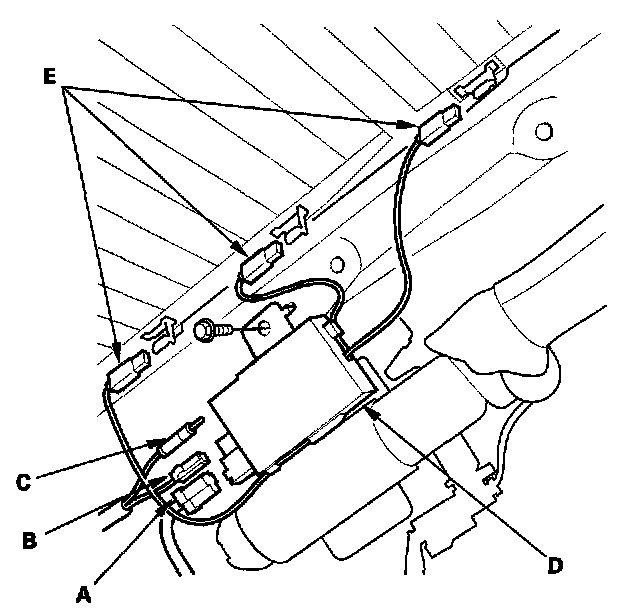

2. Disconnect the 1P connector (A), 1P connector (B), and antenna lead (C) from the antenna module (D) and the three window connectors (E).
3. Disconnect all connectors, then remove the bolt and antenna module.
4. Install in the reverse order of removal.
