ECM/PCM Circuit Diagrams

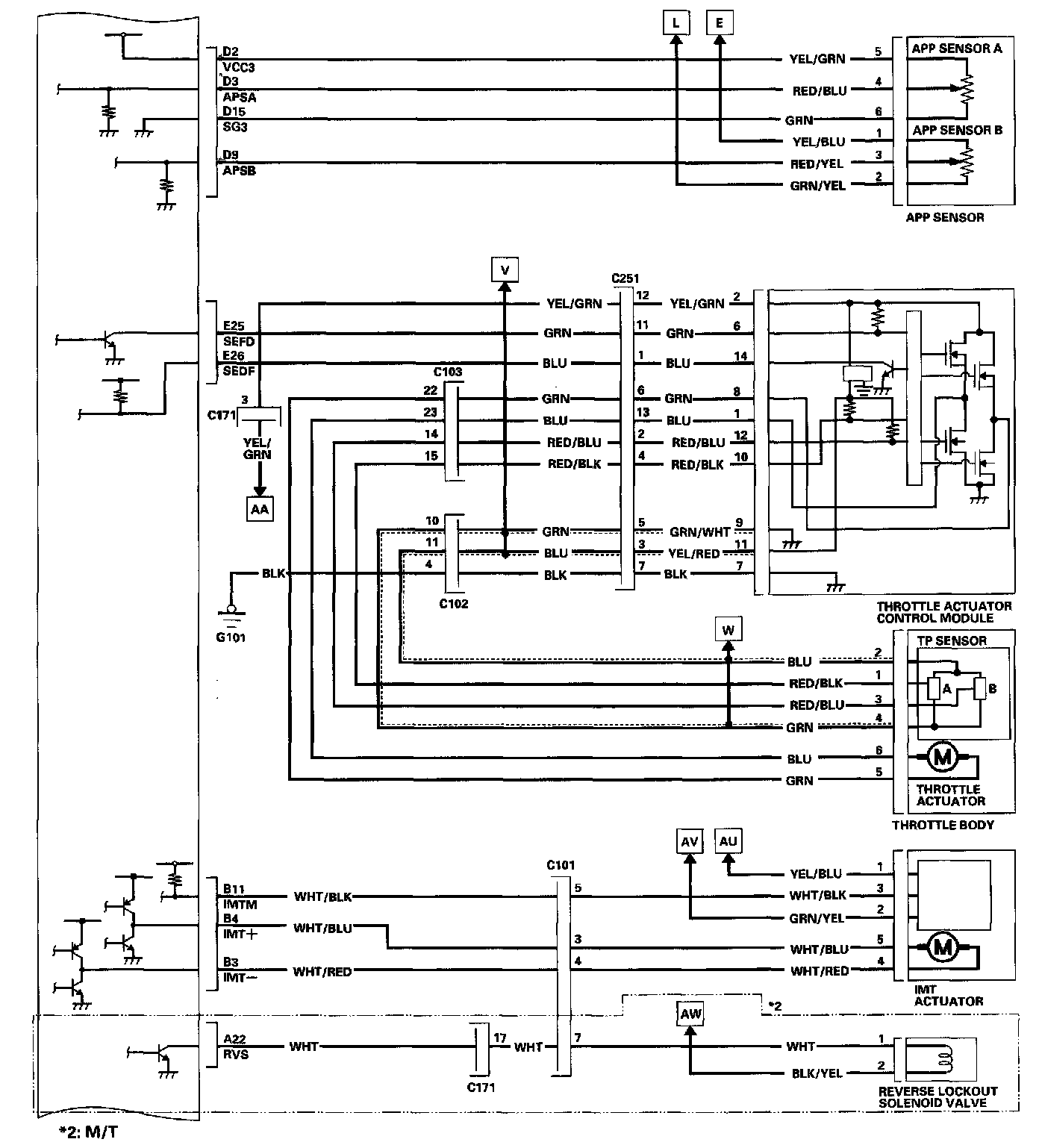

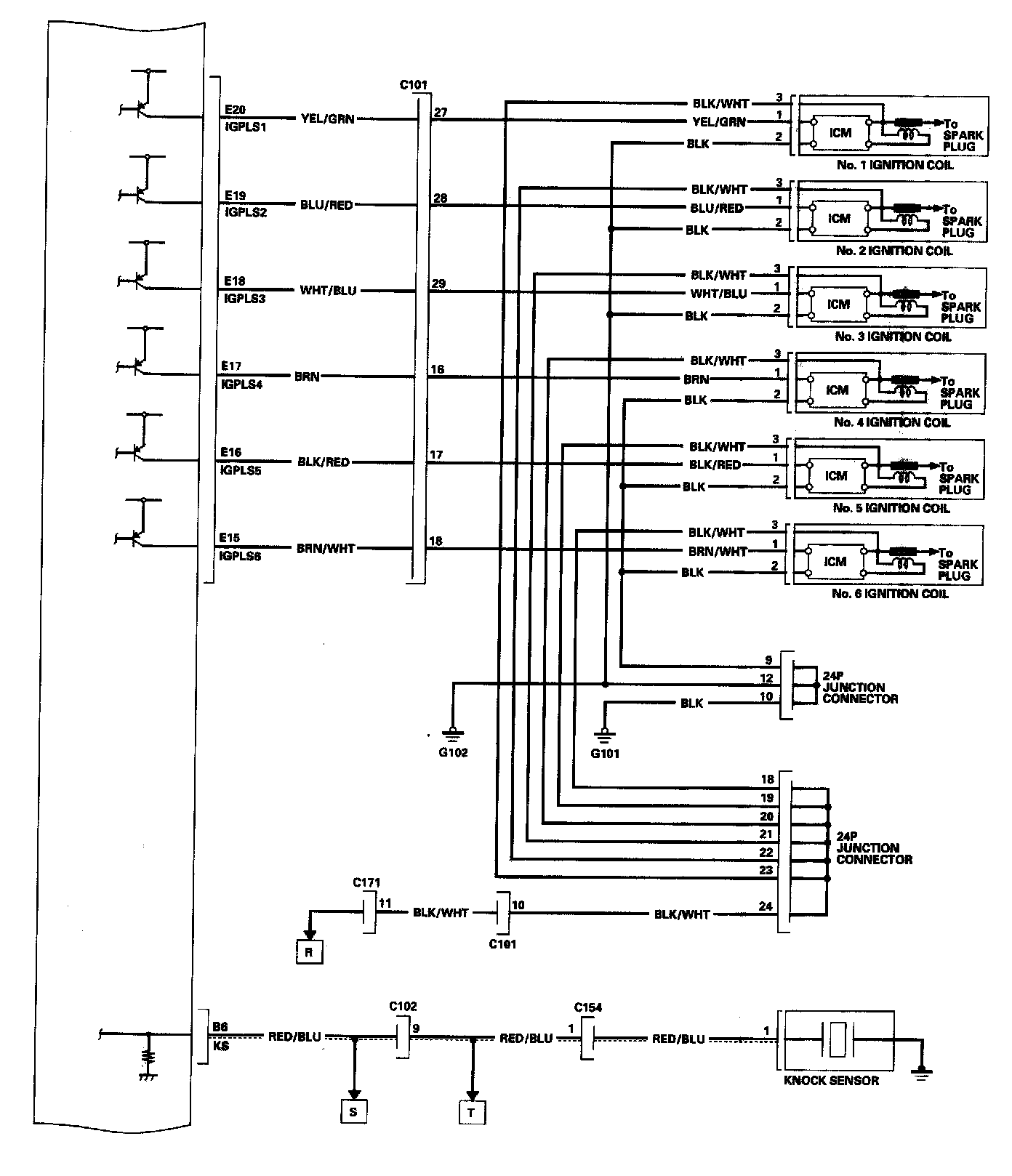

ECM/PCM Circuit Diagram 11-61:

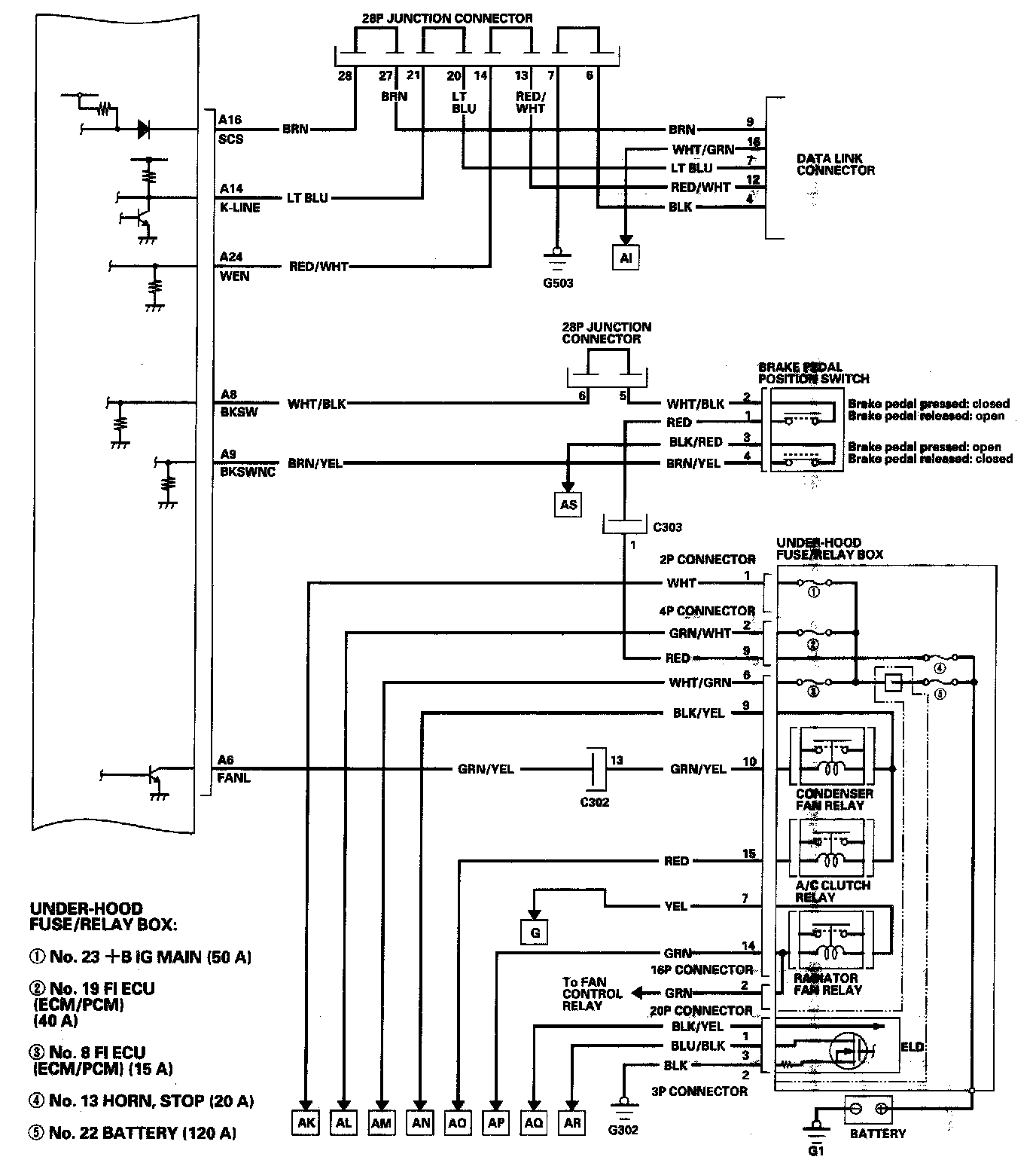

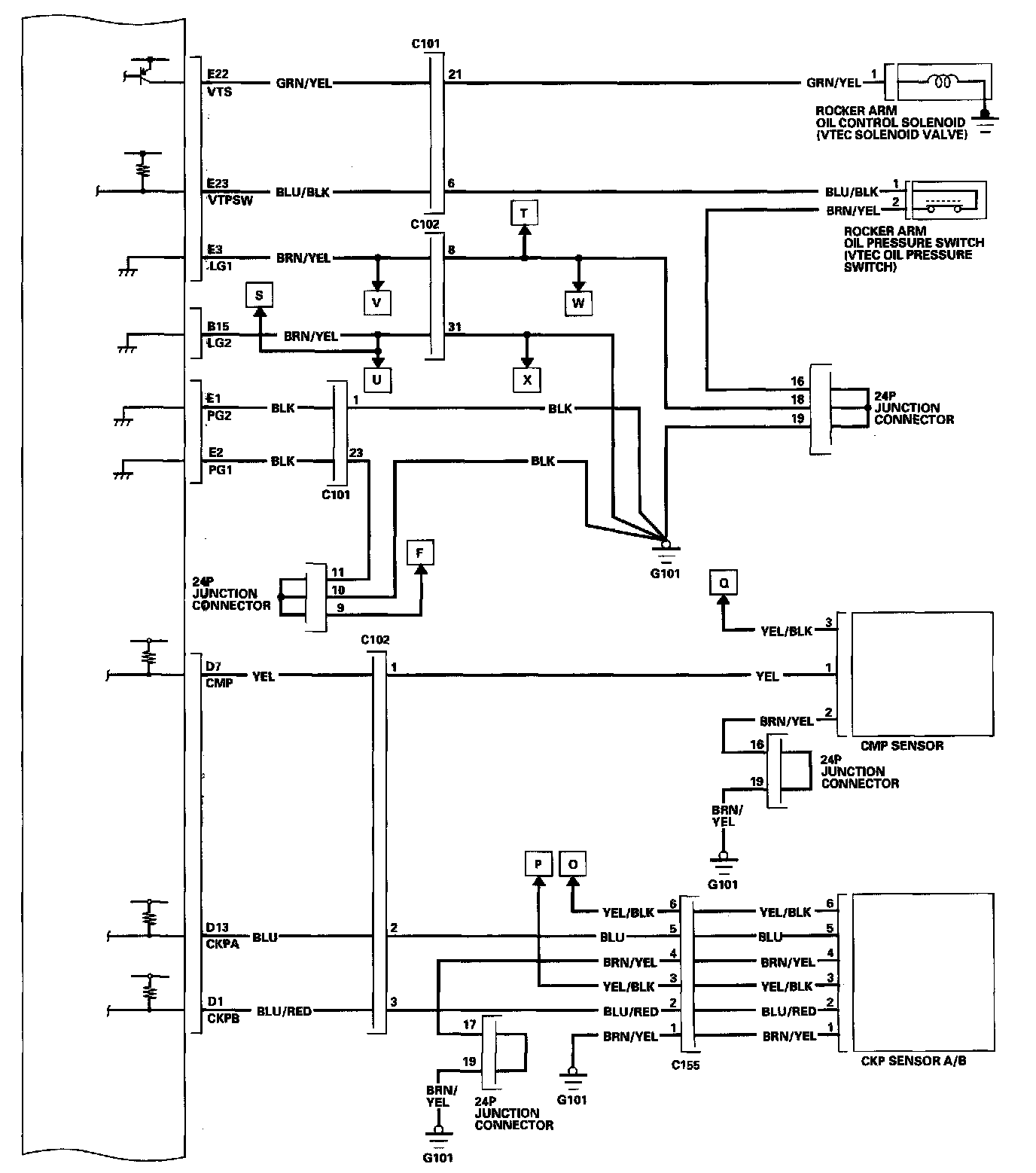

ECM/PCM Circuit Diagram 11-62:

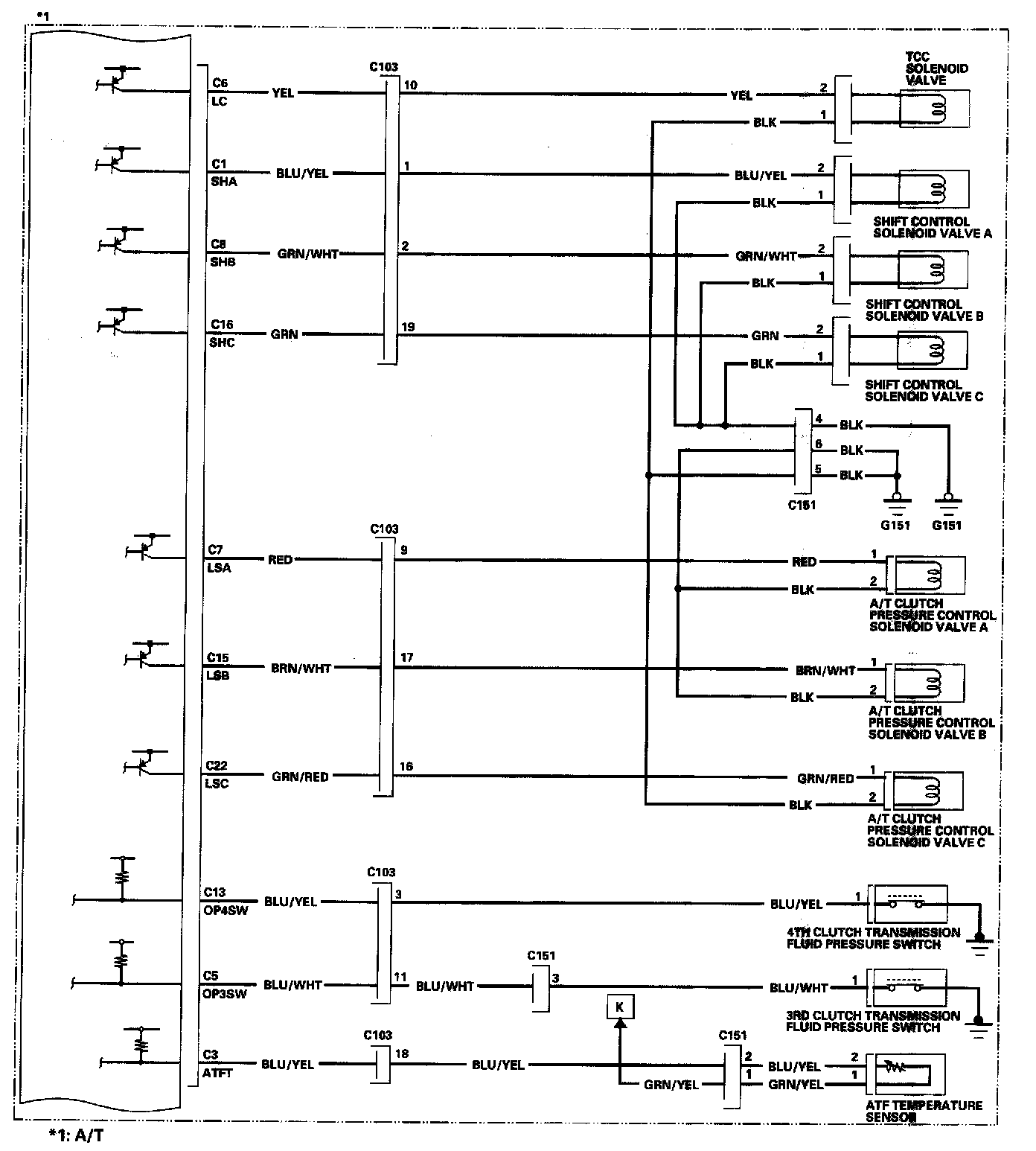

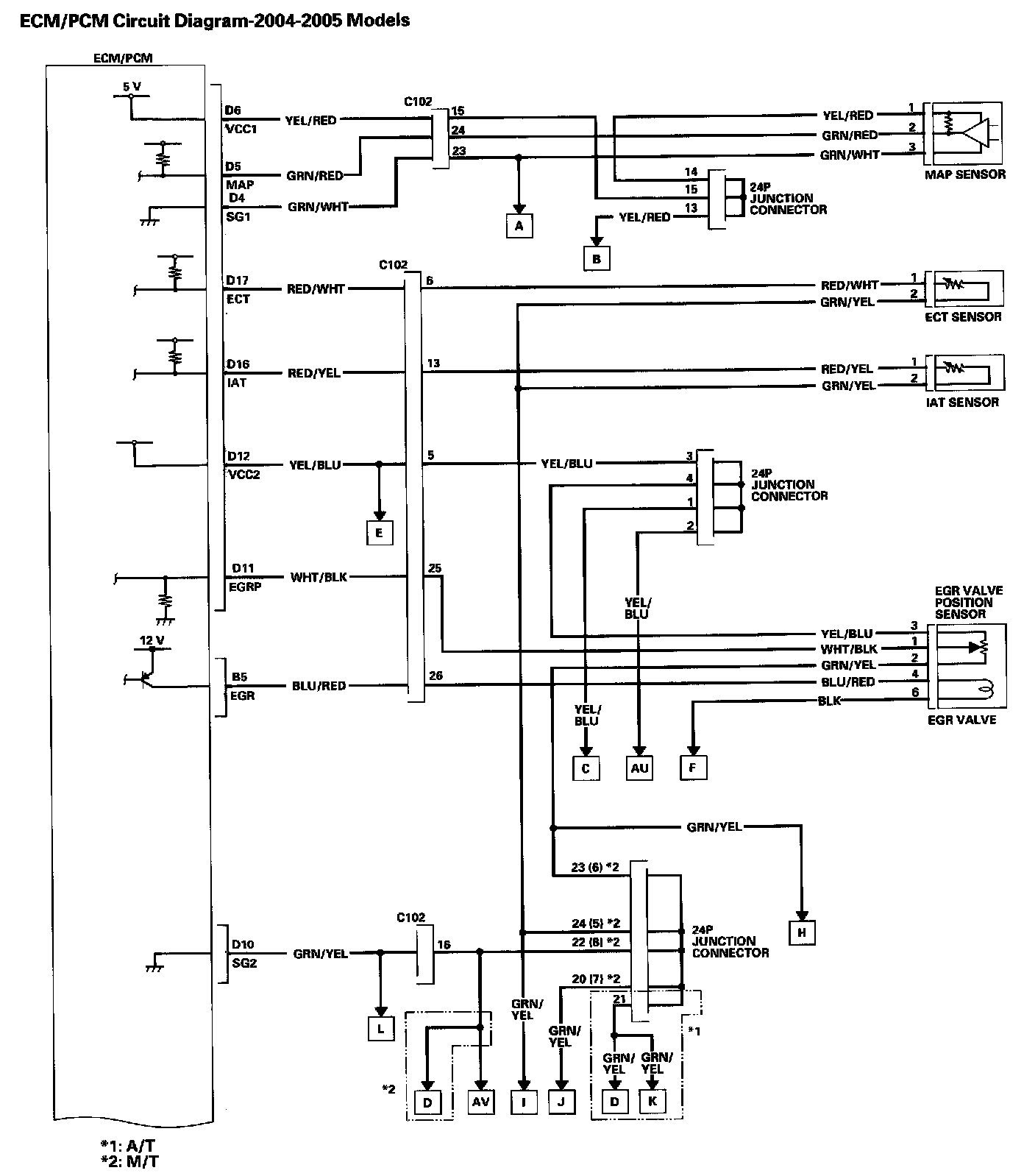

ECM/PCM Circuit Diagram 11-63:

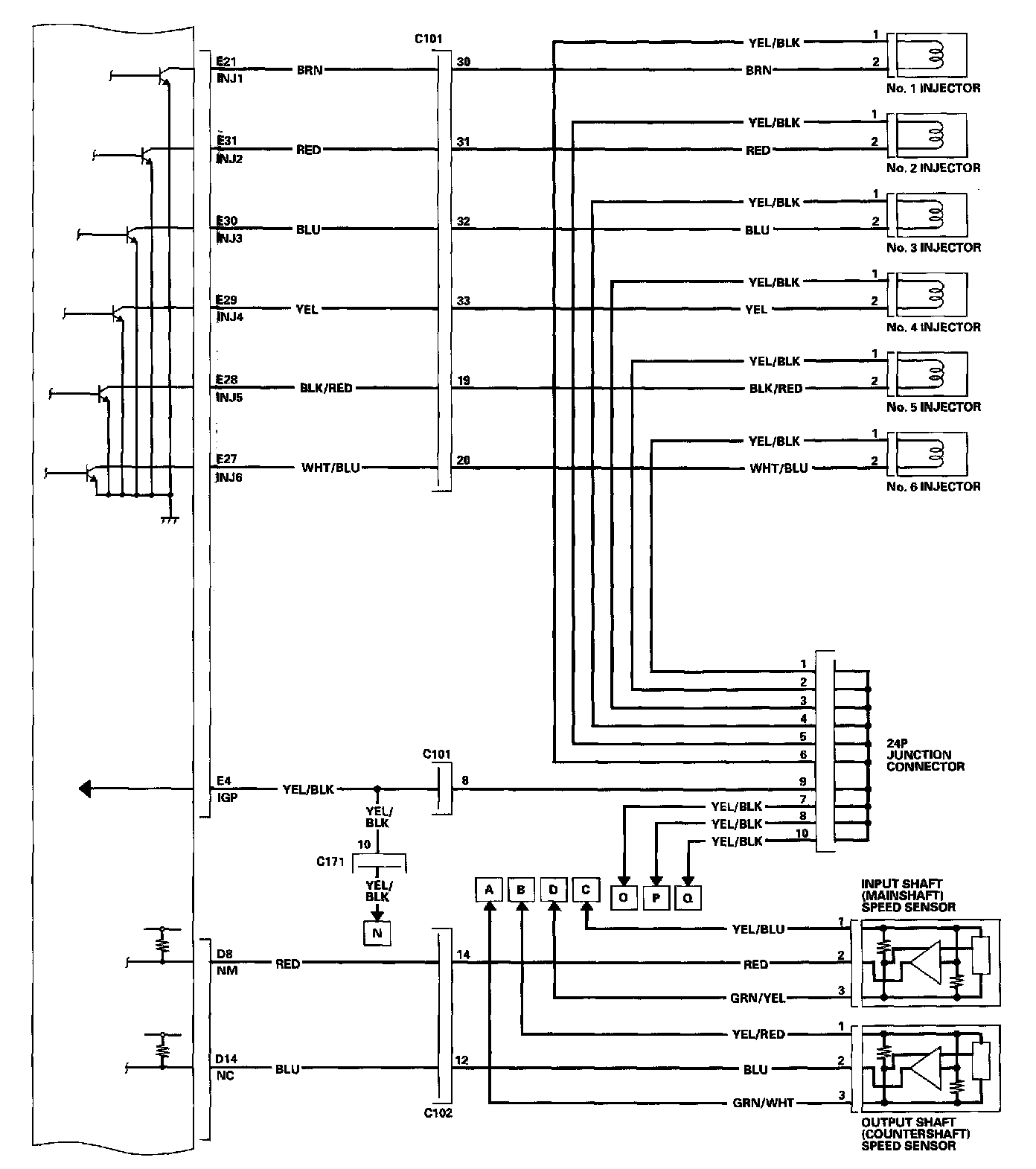

ECM/PCM Circuit Diagram 11-64:

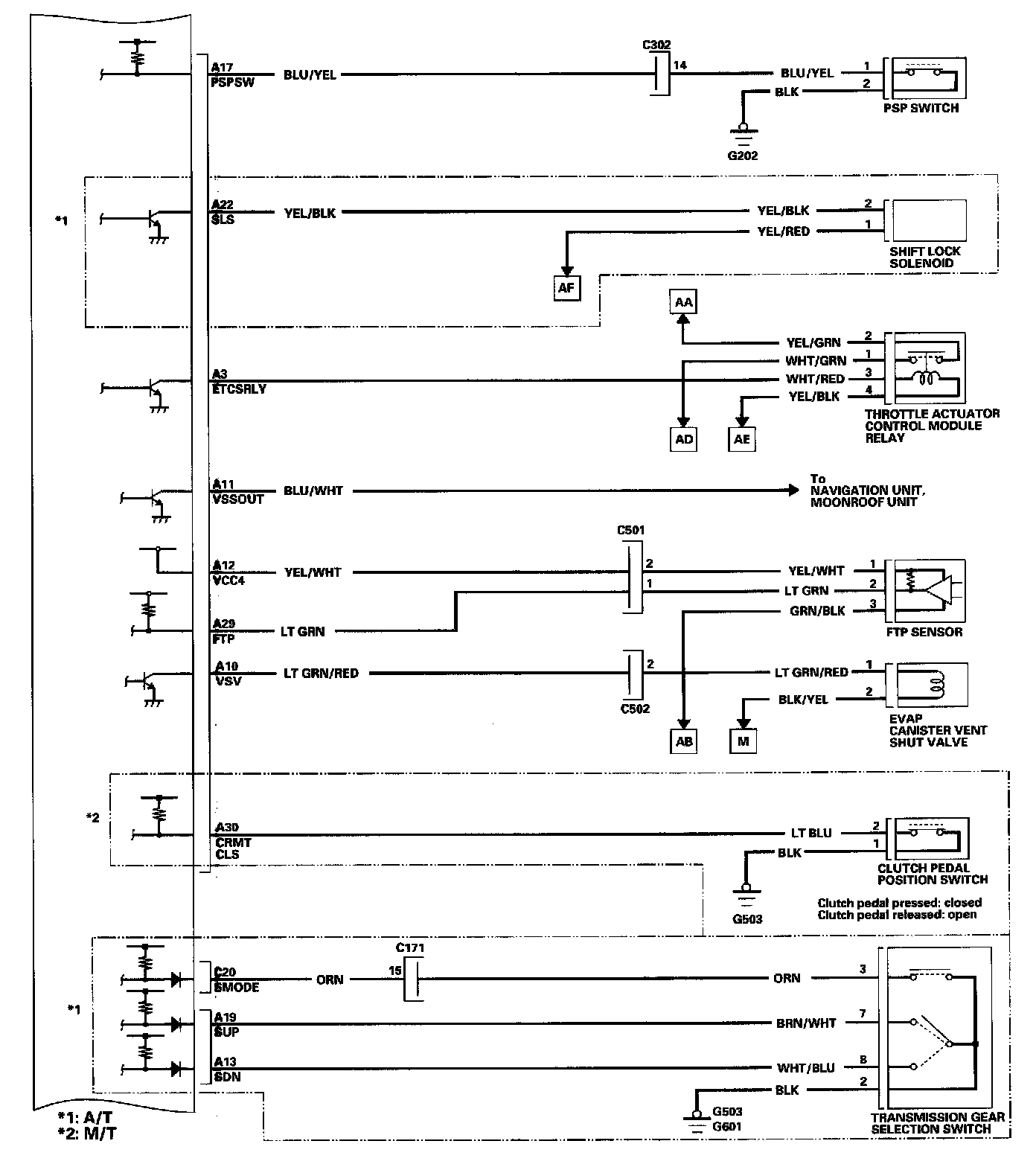

ECM/PCM Circuit Diagram 11-65:

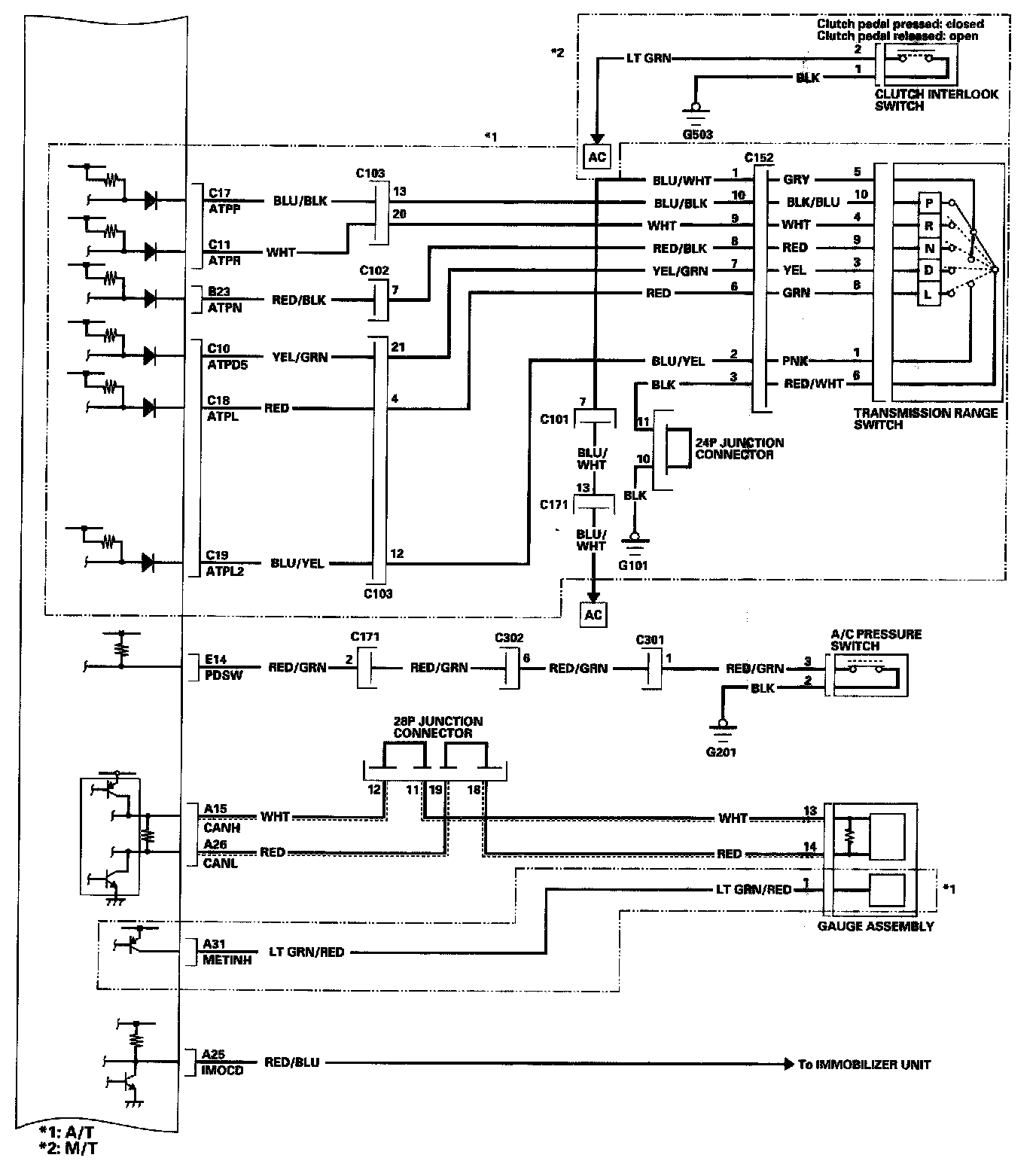

ECM/PCM Circuit Diagram 11-66:

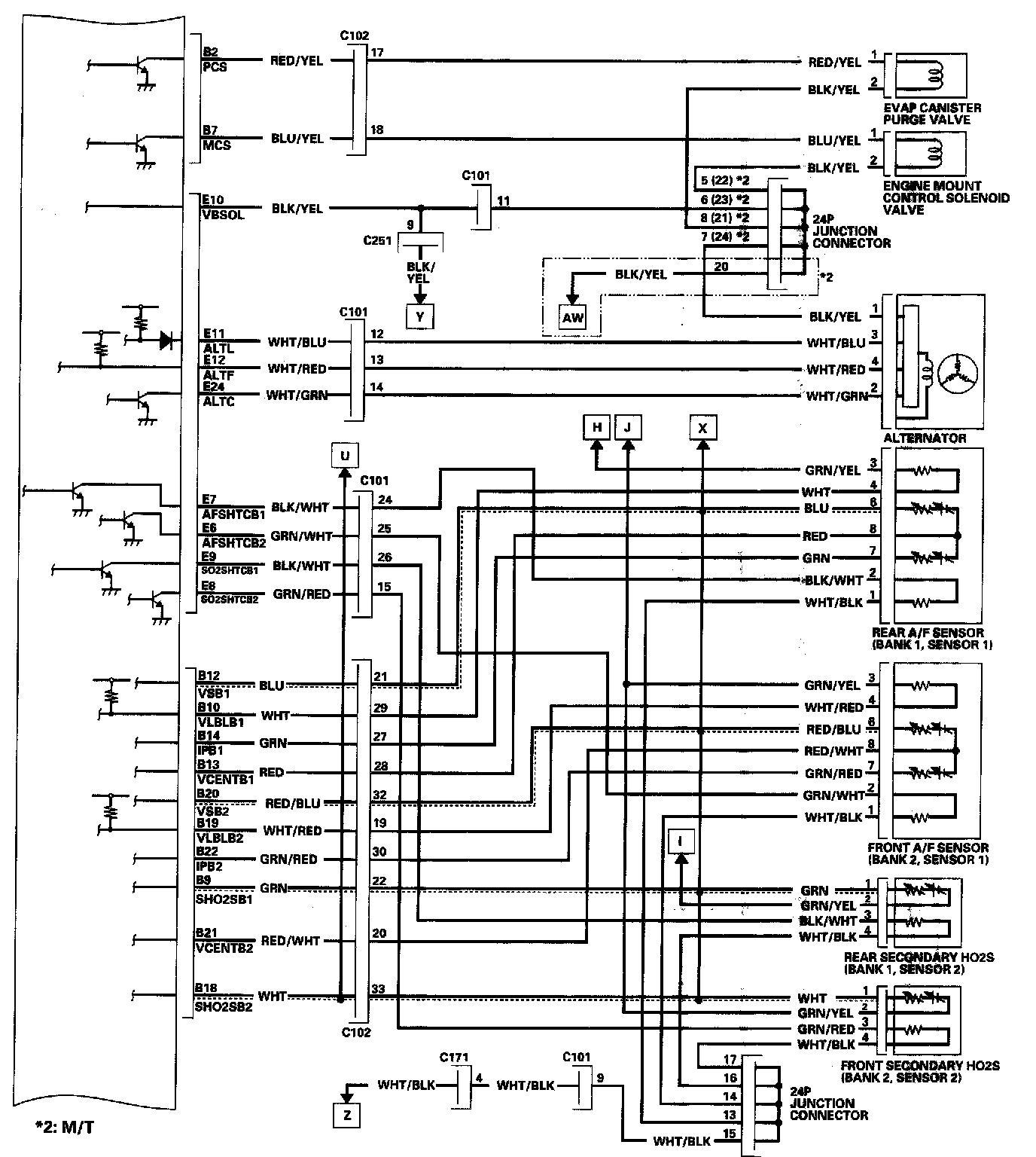

ECM/PCM Circuit Diagram 11-67:

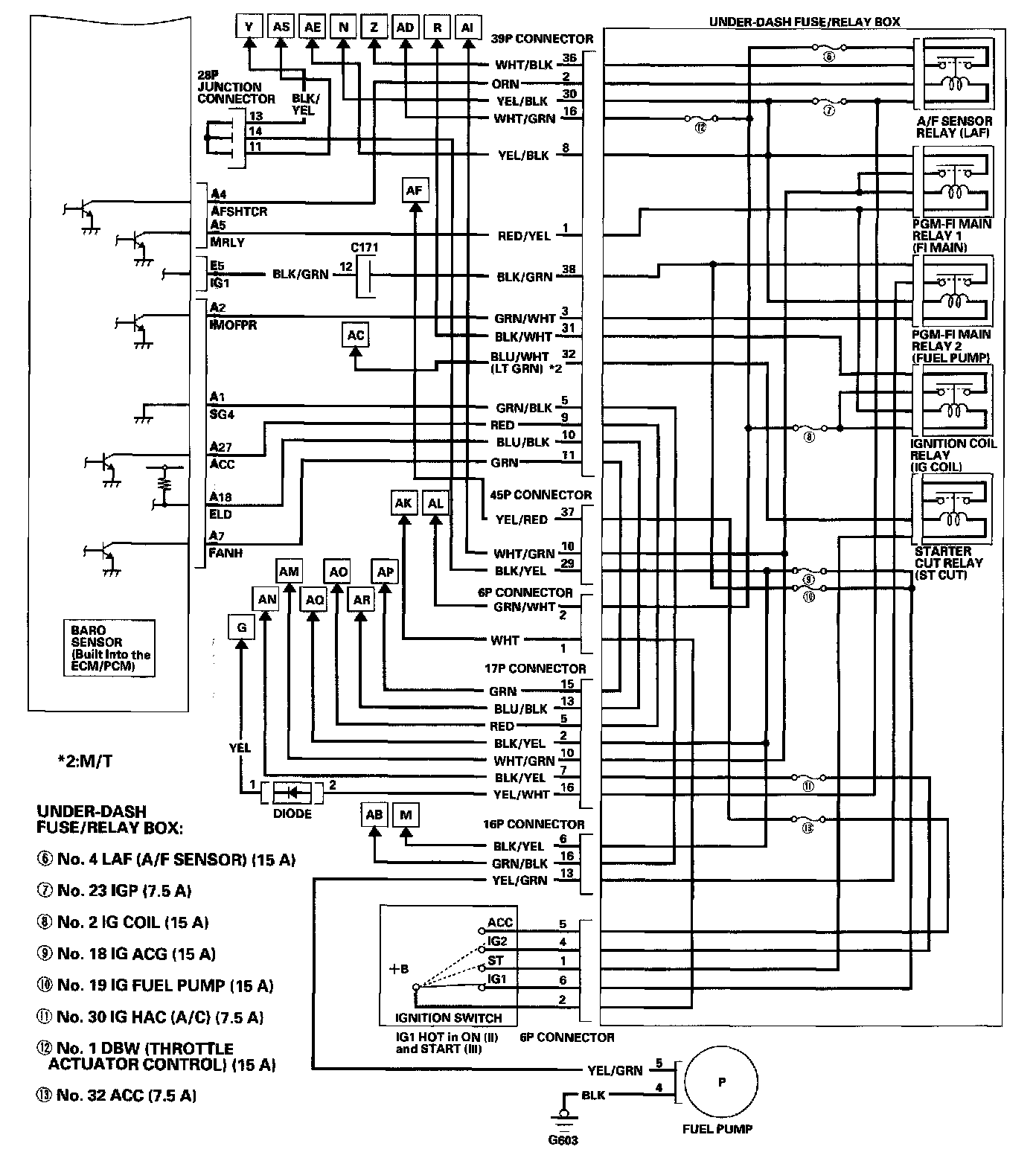

ECM/PCM Circuit Diagram 11-68:



ECM/PCM Circuit Diagram 11-69:



ECM/PCM Circuit Diagram 11-70:



ECM/PCM Circuit Diagram 11-71:
