Input and Output For Connectors

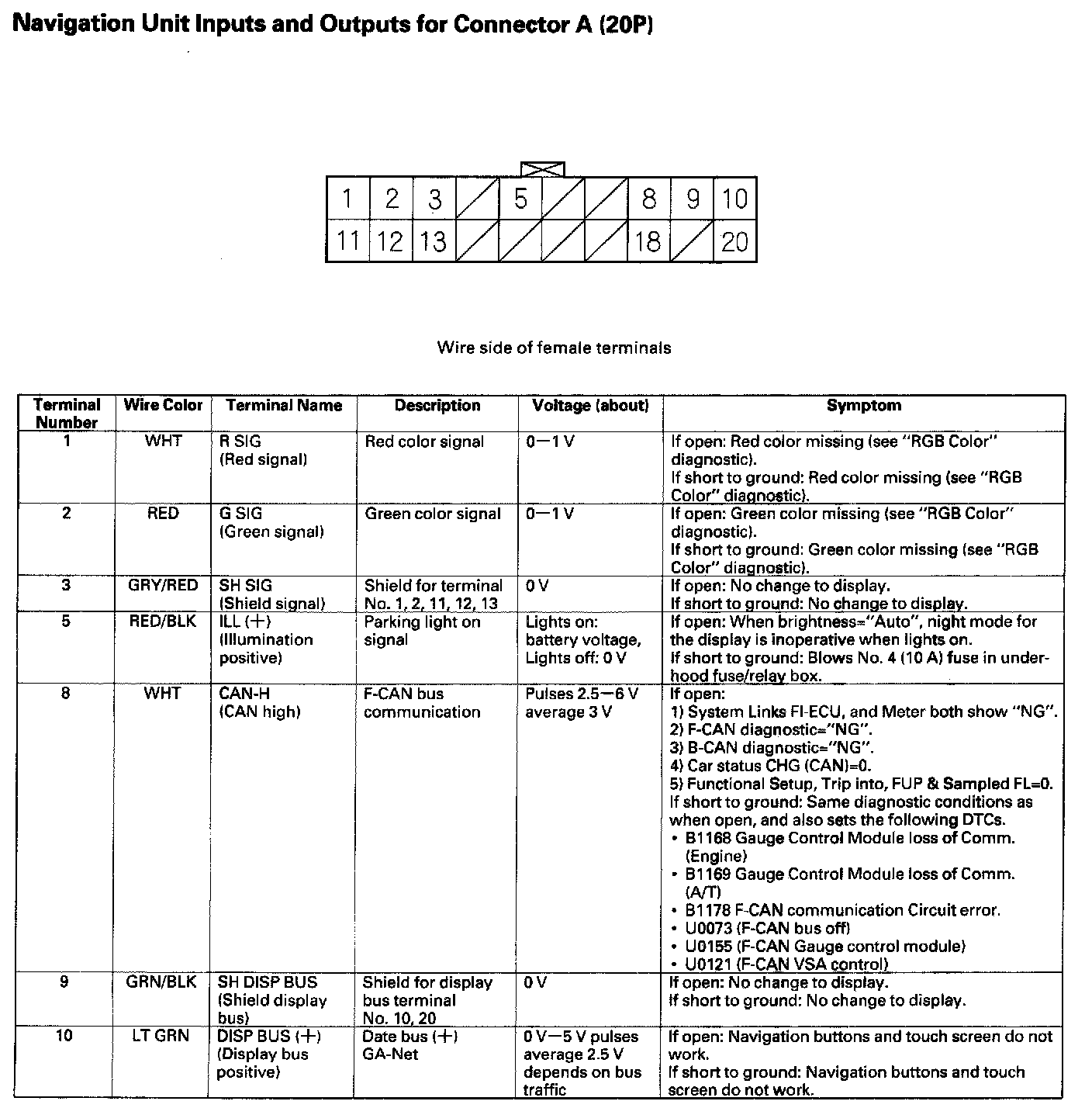

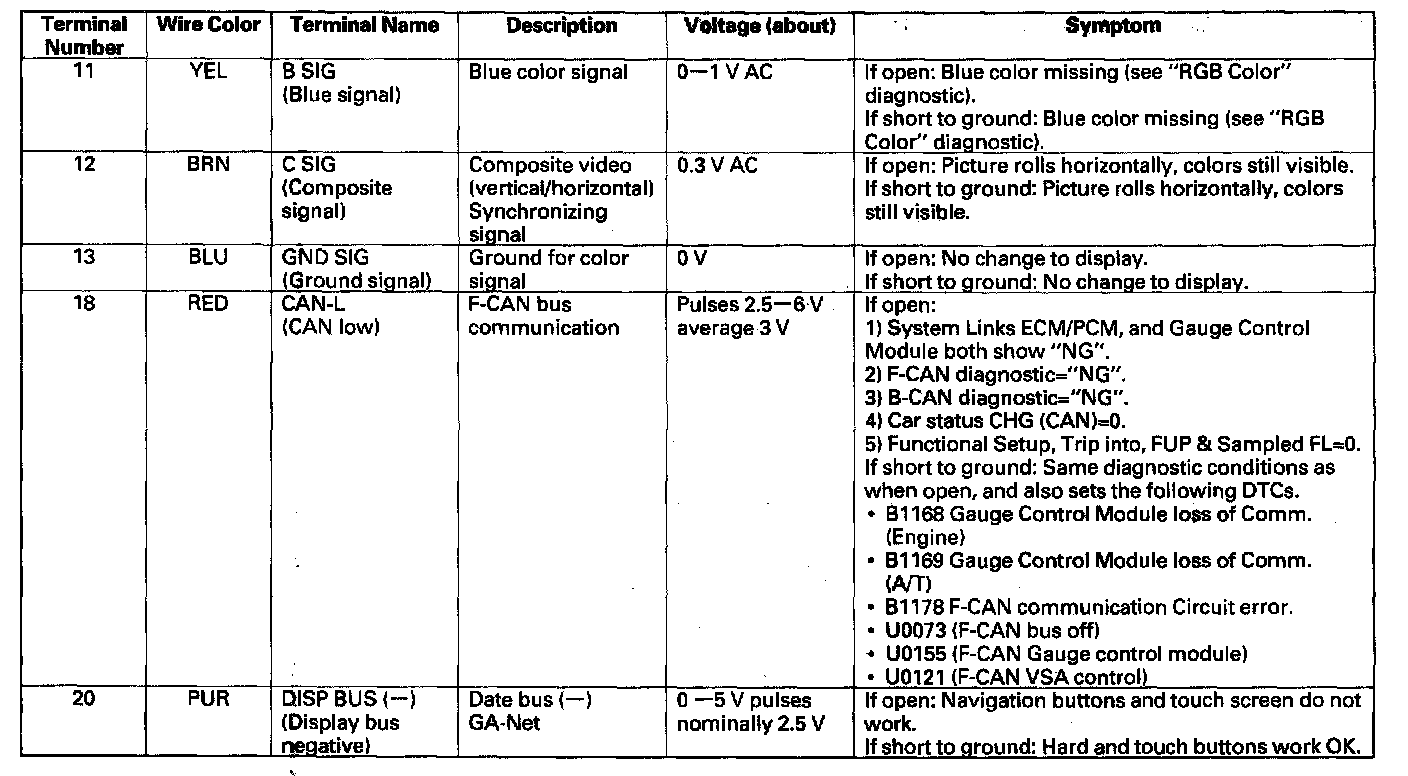

Navigation Unit Inputs And Outputs For Connector A (20P):

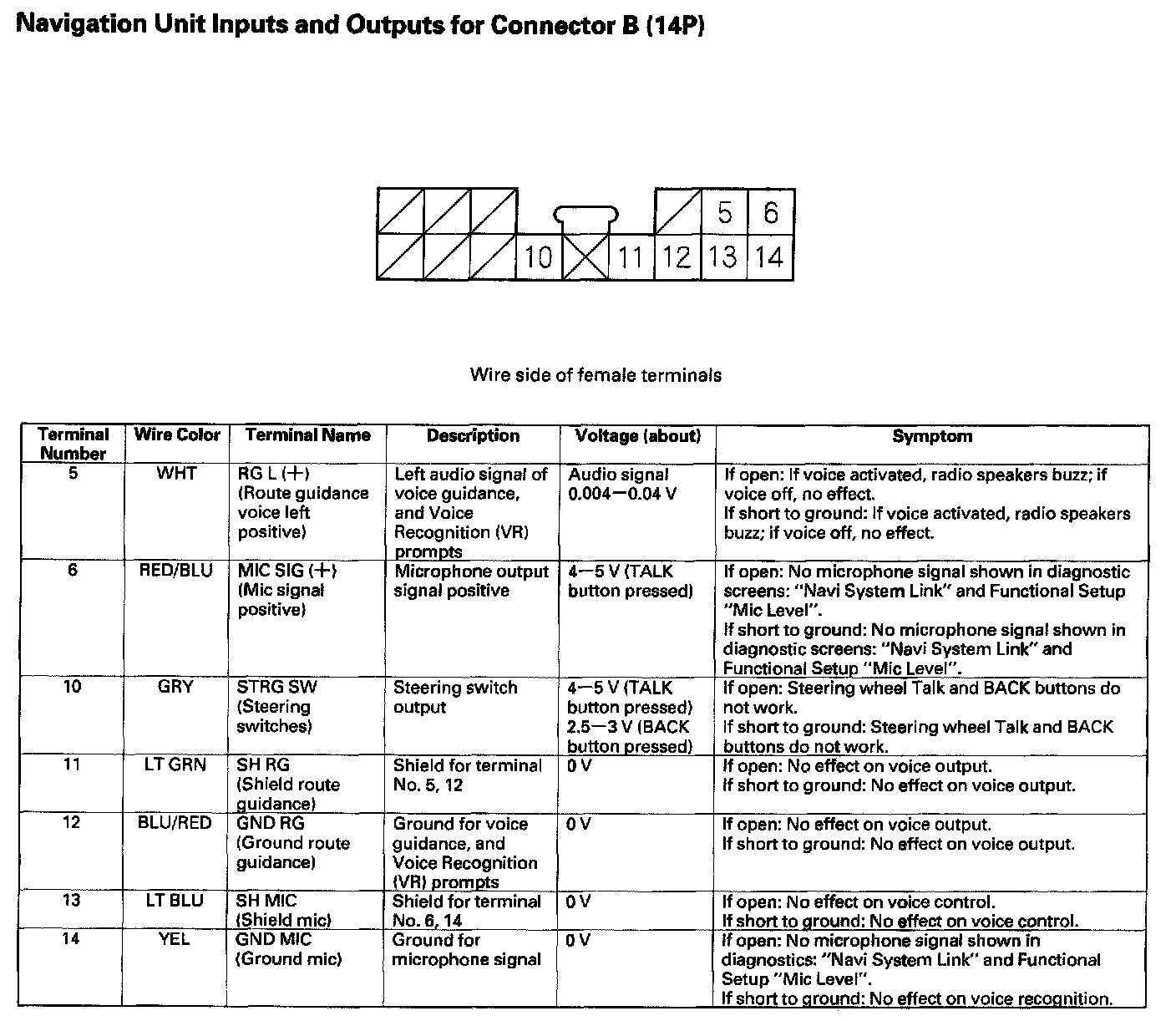

Navigation Unit Inputs And Outputs For Connector B (14P):

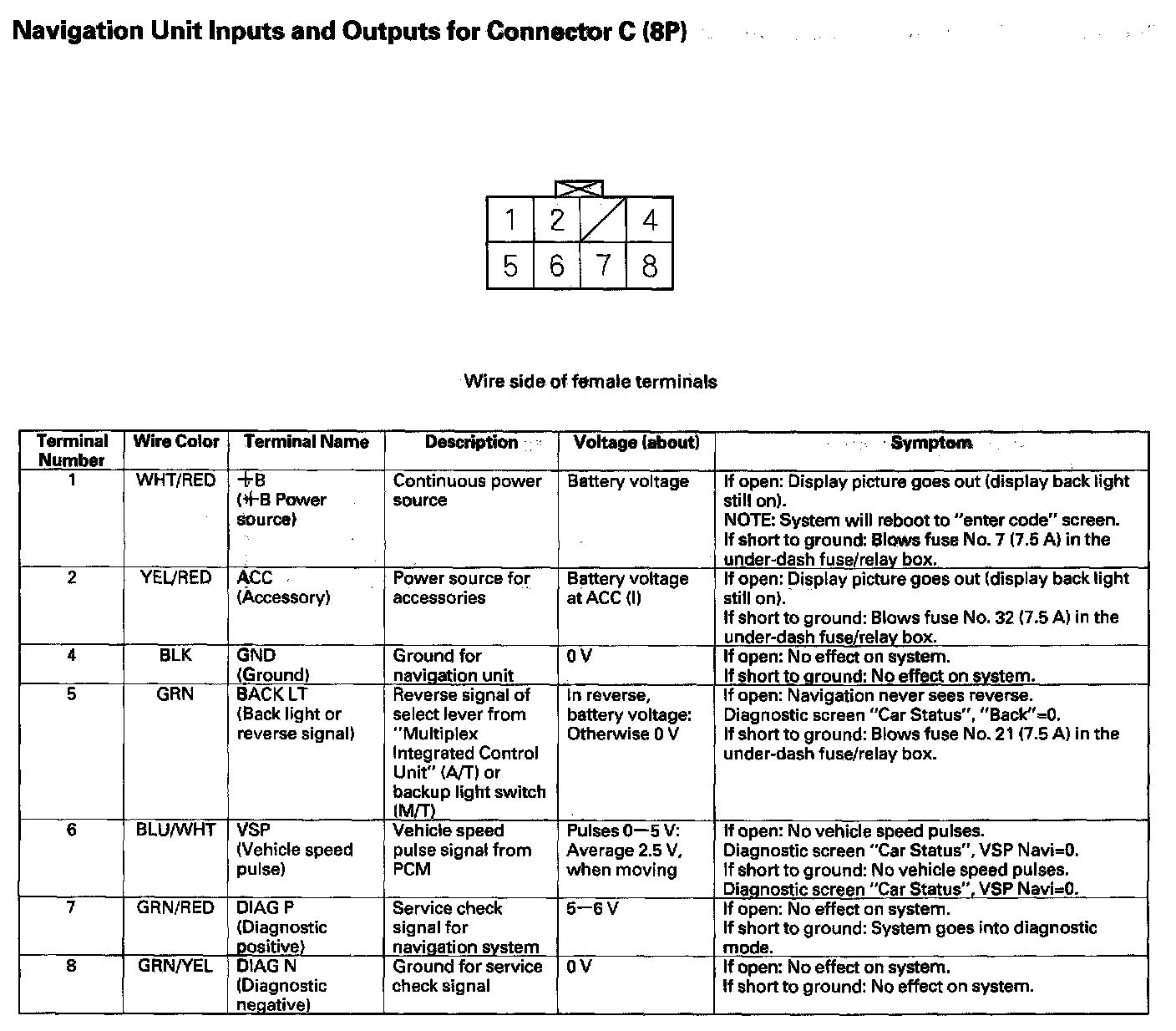

Navigation Unit Inputs And Outputs For Connector C (8P):
Navigation Unit Inputs And Outputs For Connector E (2P):

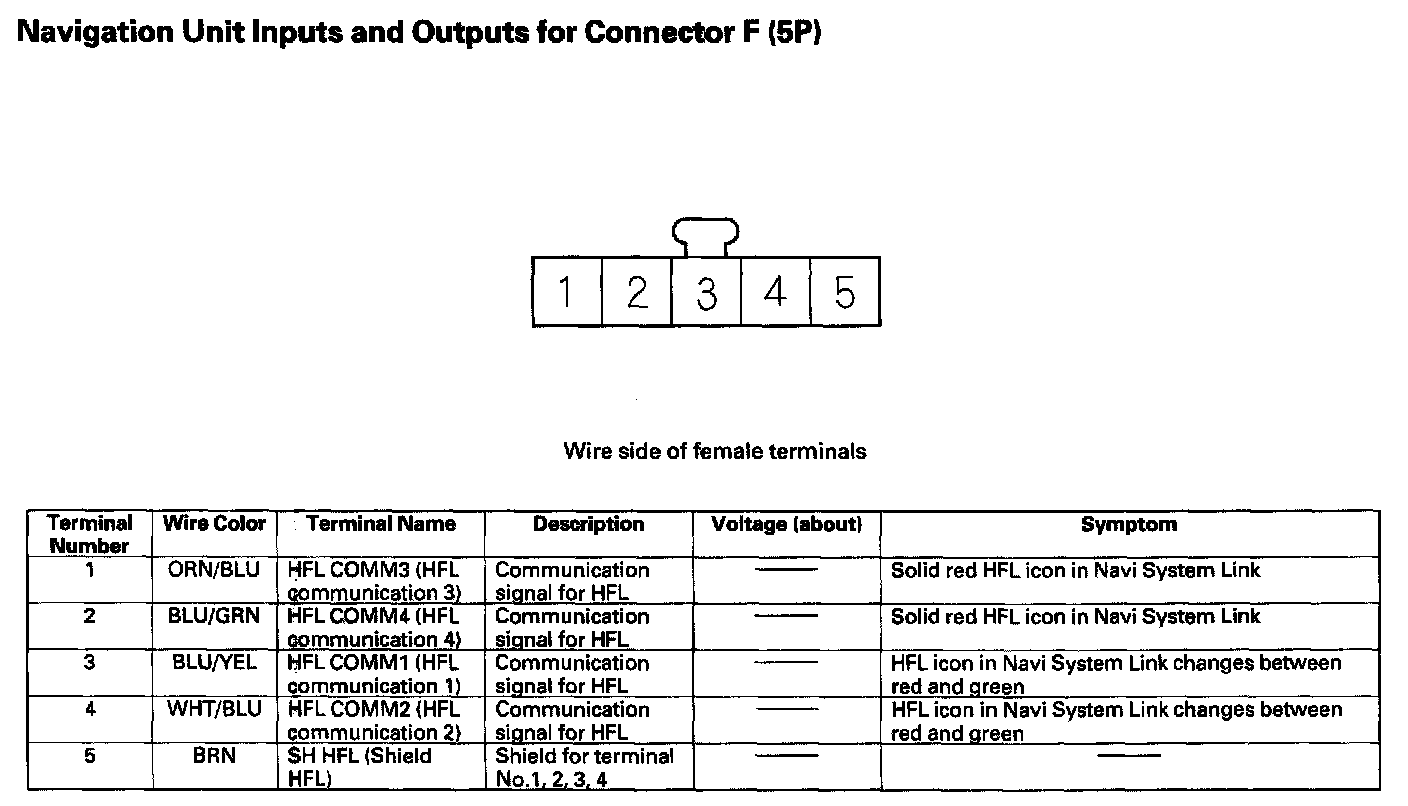

Navigation Unit Inputs And Outputs For Connector F (5P):

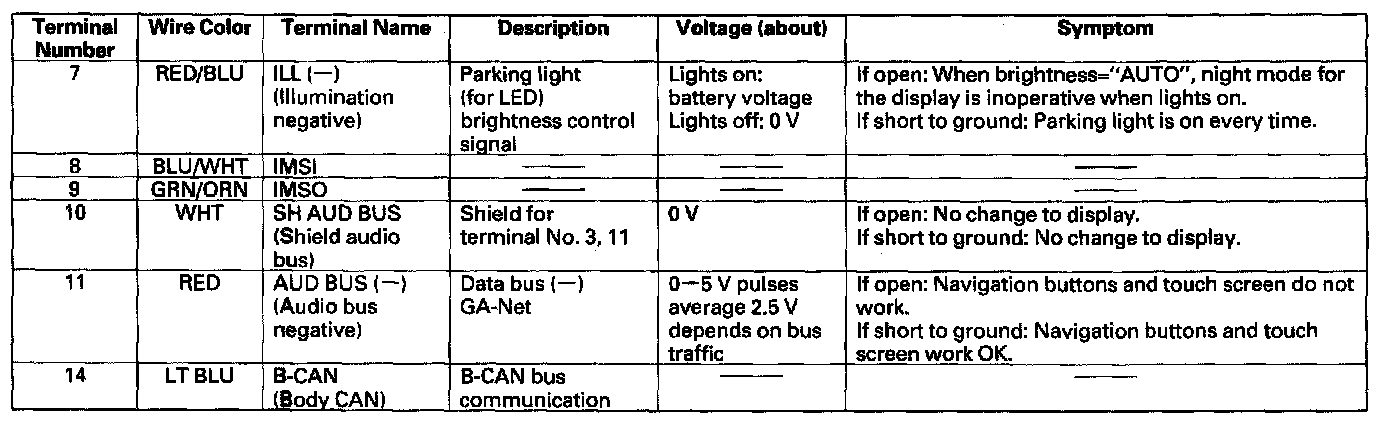

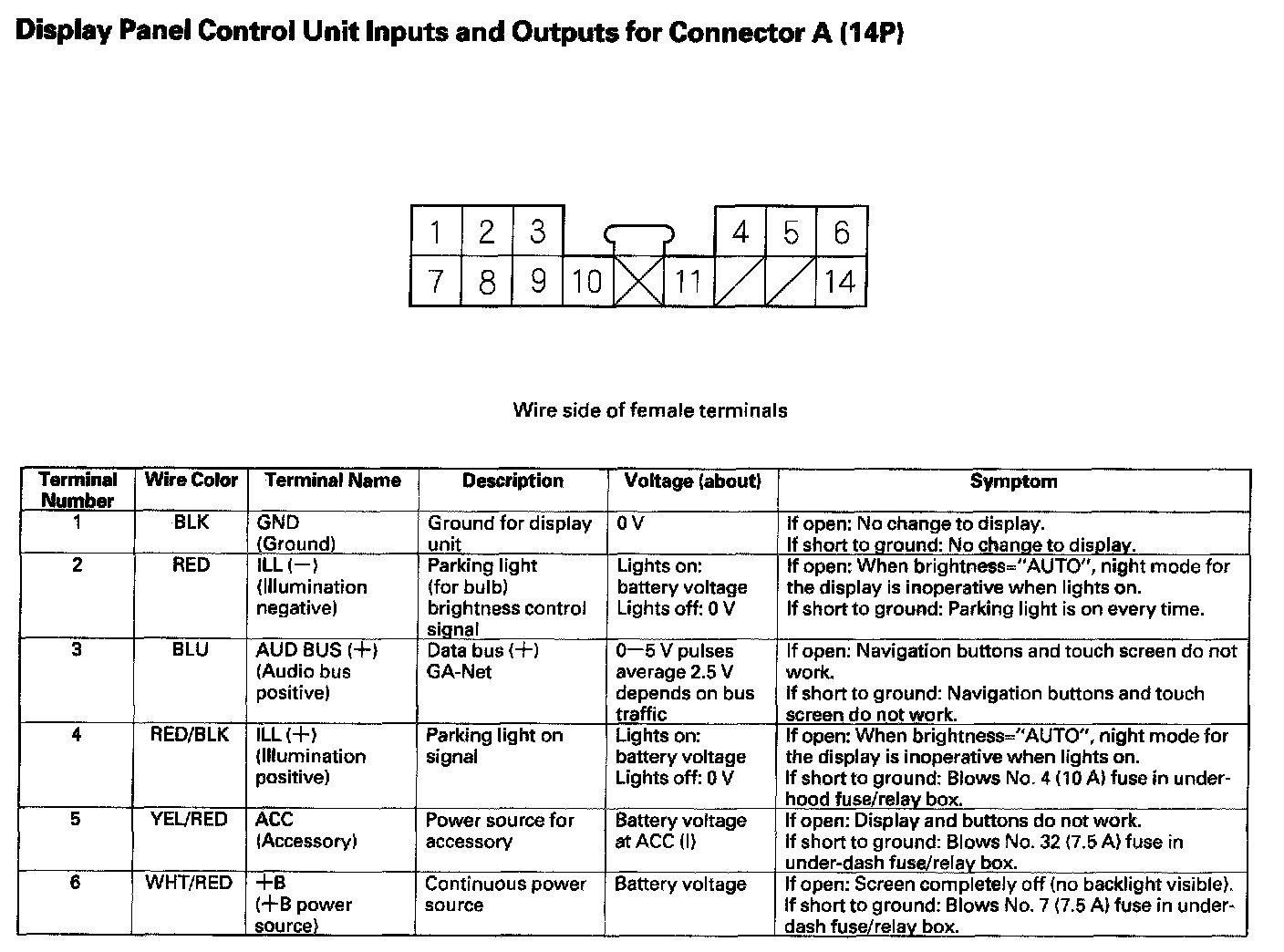

Display Panel Control Unit Inputs And Outputs For Connector A (14P):

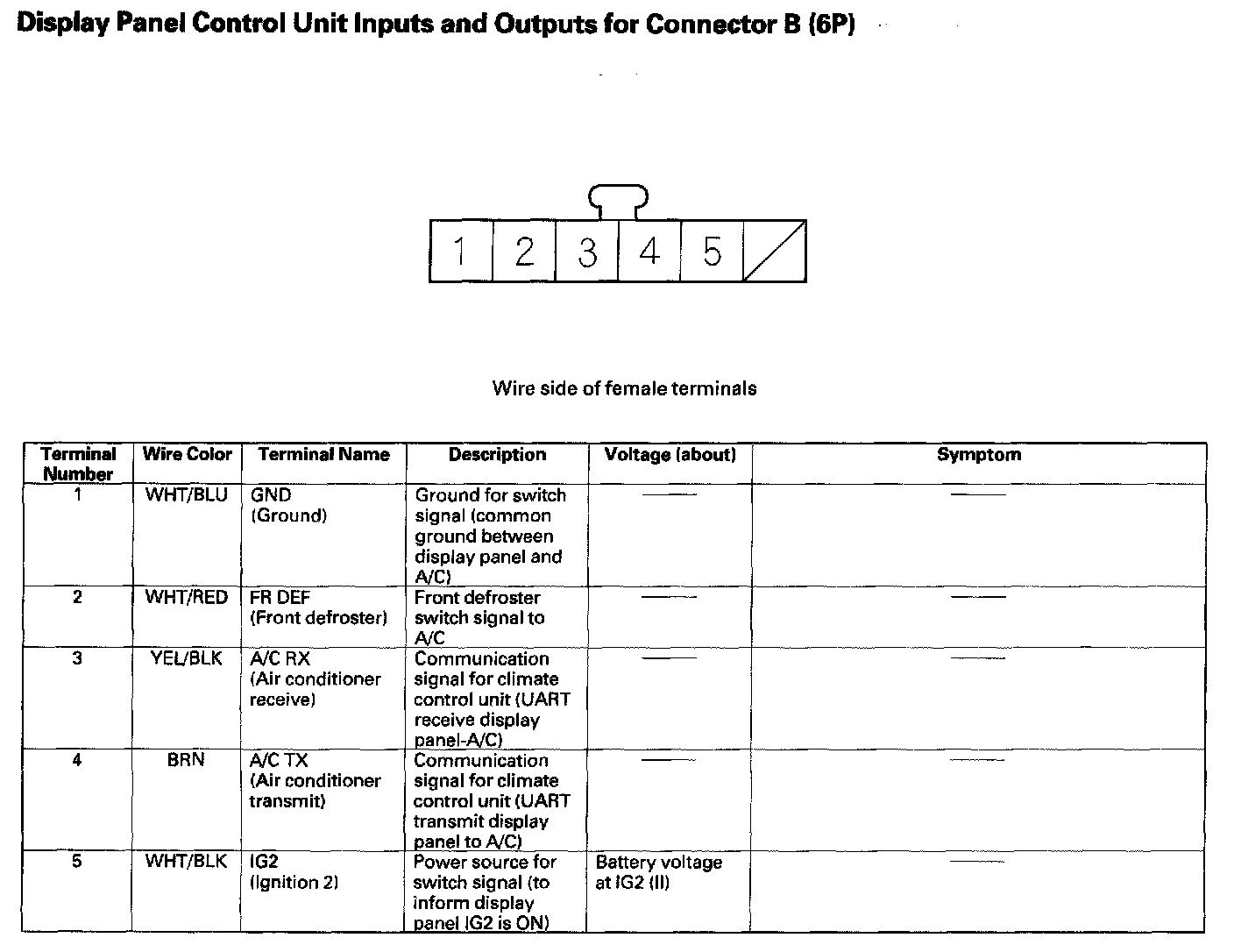

Display Panel Control Unit Inputs And Outputs FoT Connector B (6P):

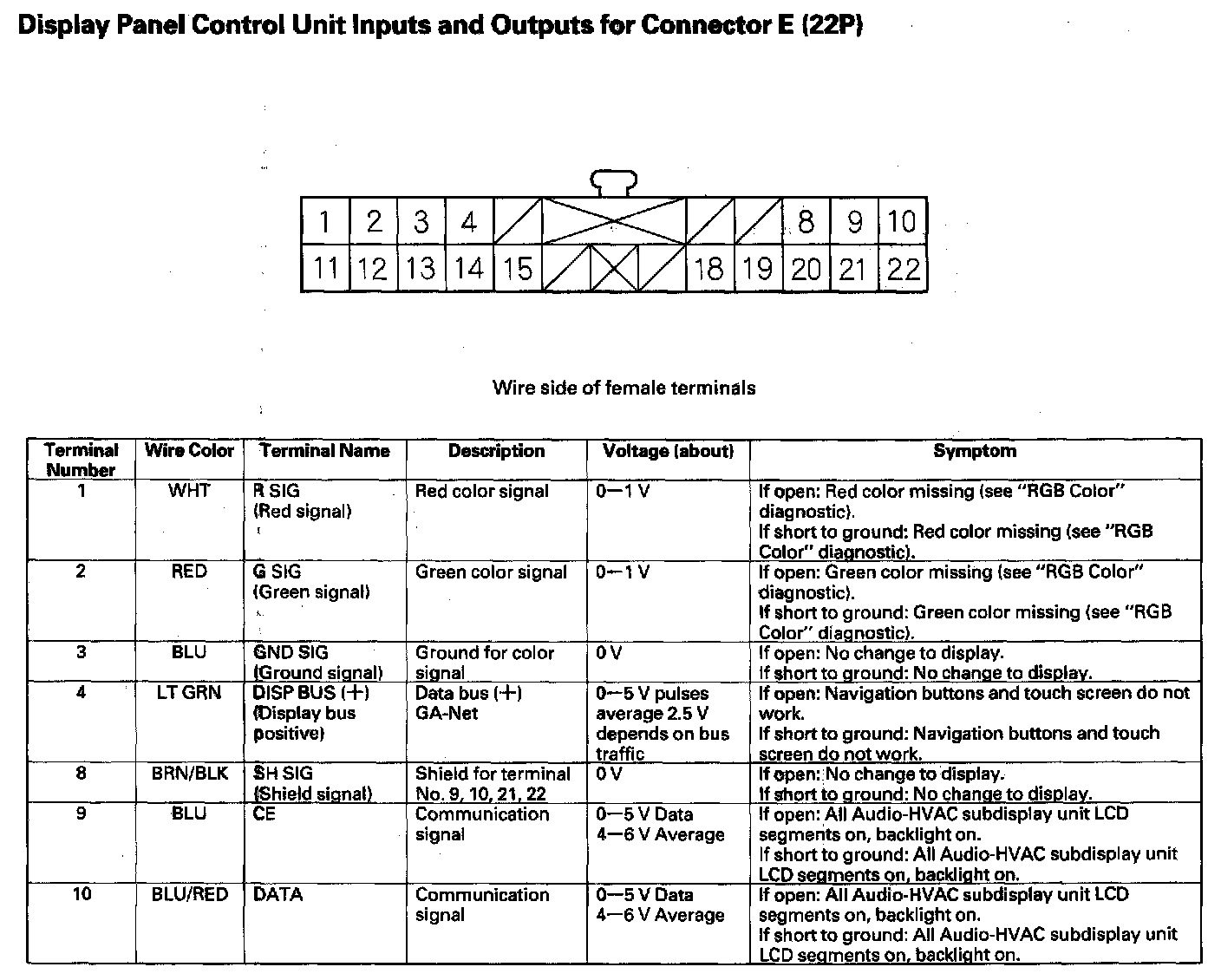

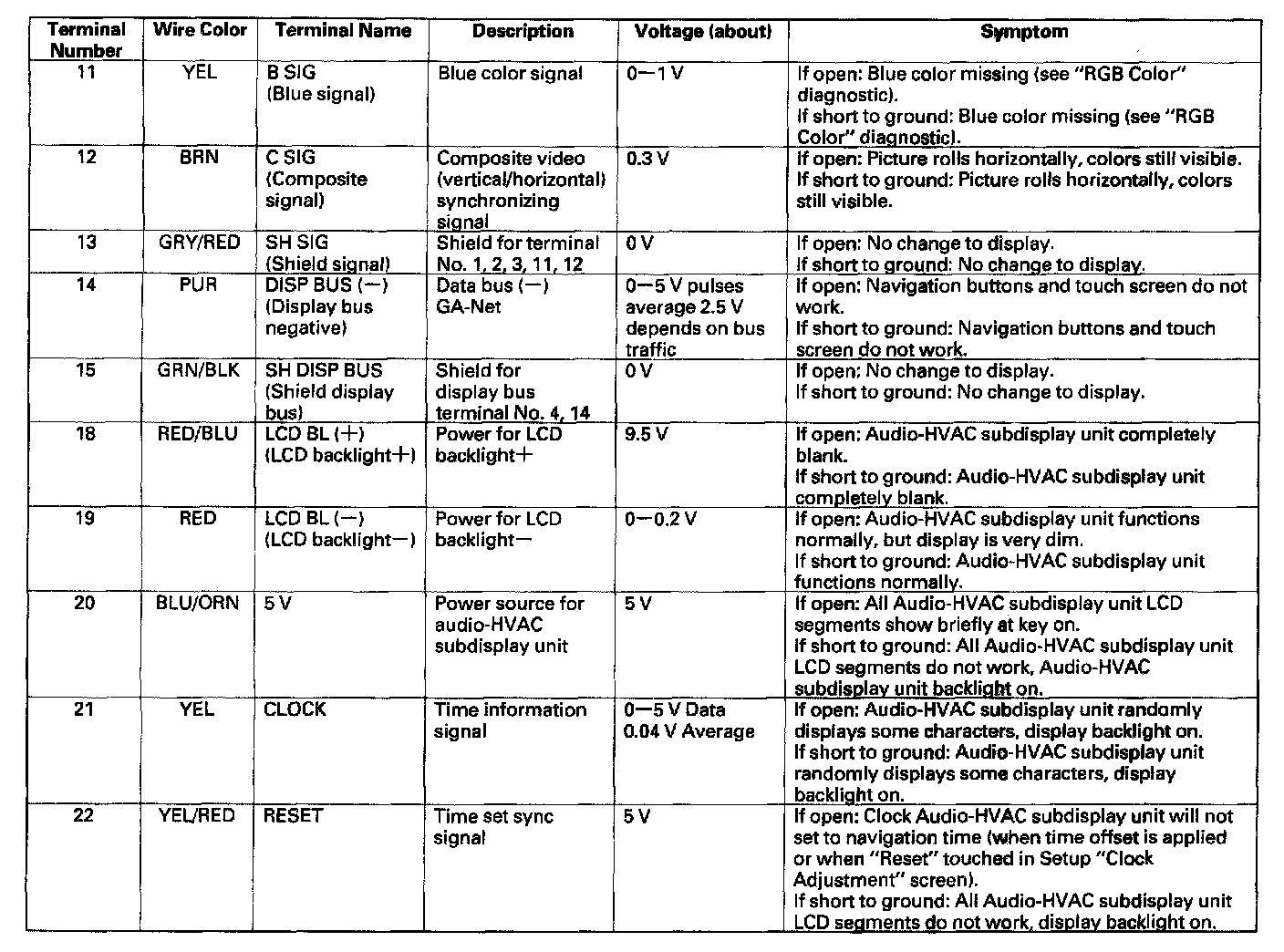

Display Panel Control Unit Inputs And Outputs For Connector E (22P):

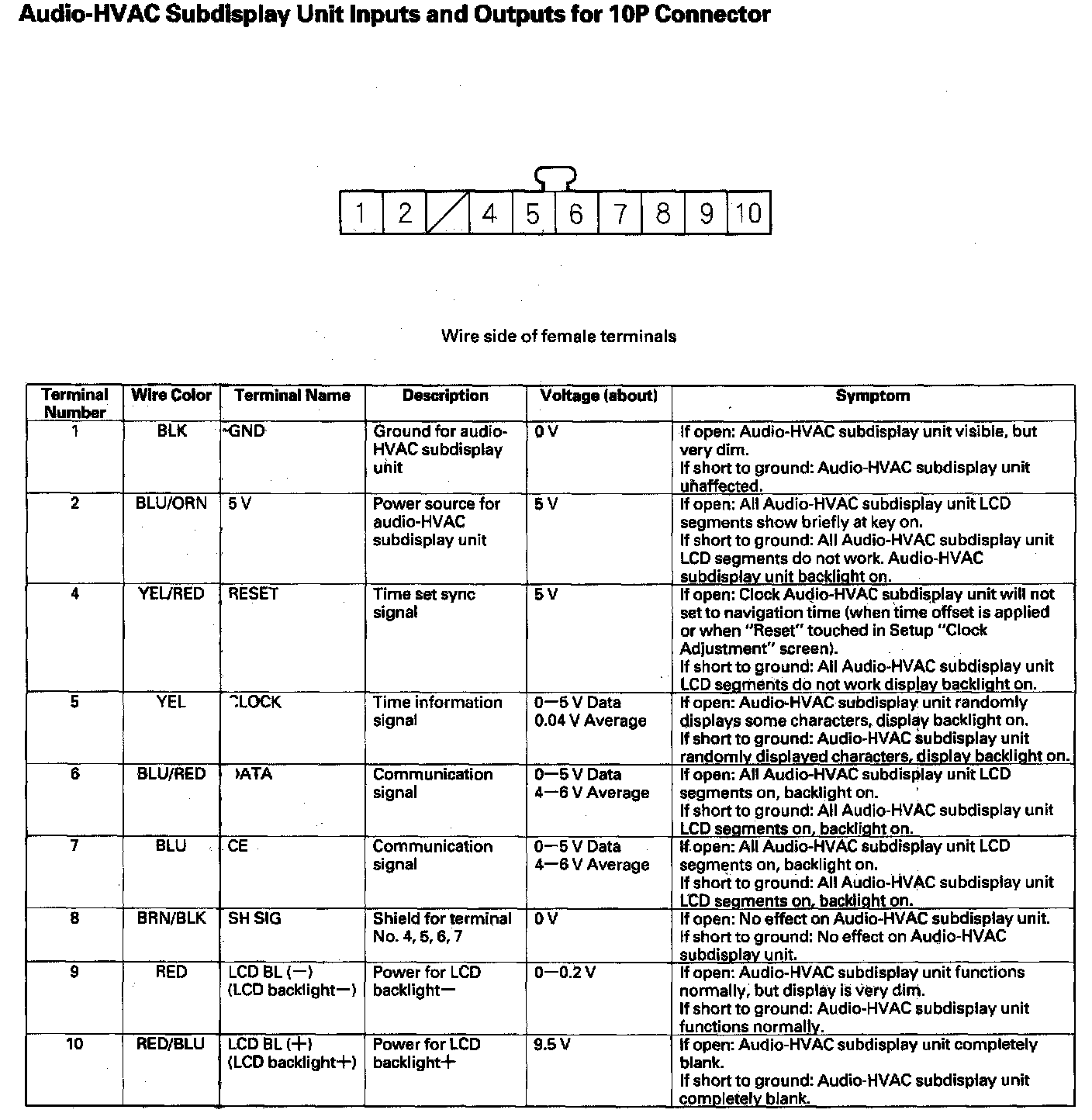

Audio-HVAC Subdisplay Unit Inputs And Outputs For 10P Connector:
