Subframe: Service and Repair

Subframe Replacement

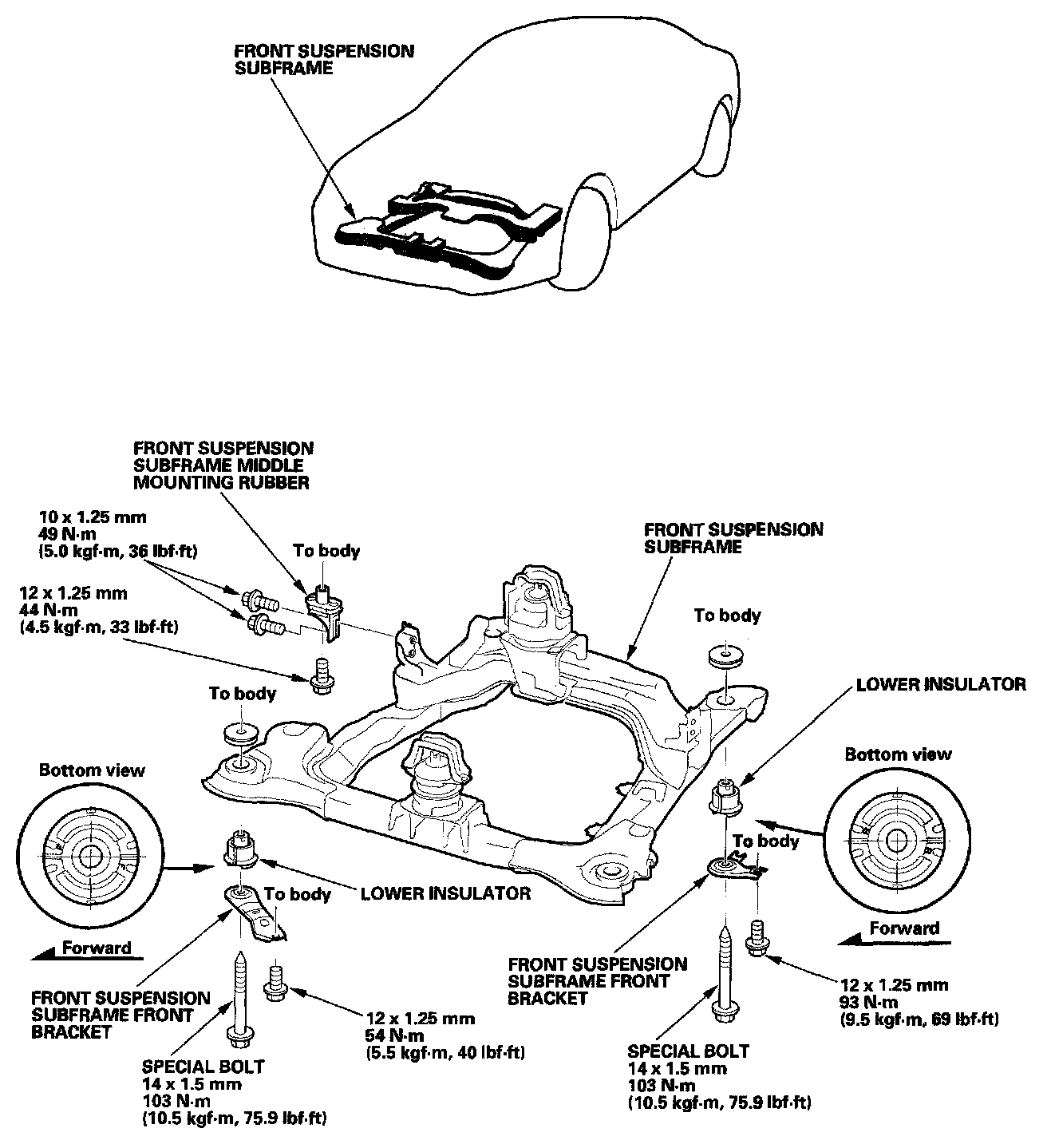

Front Subframe Torque




After removing the subframe mounting bolts, be sure to replace them with new ones.

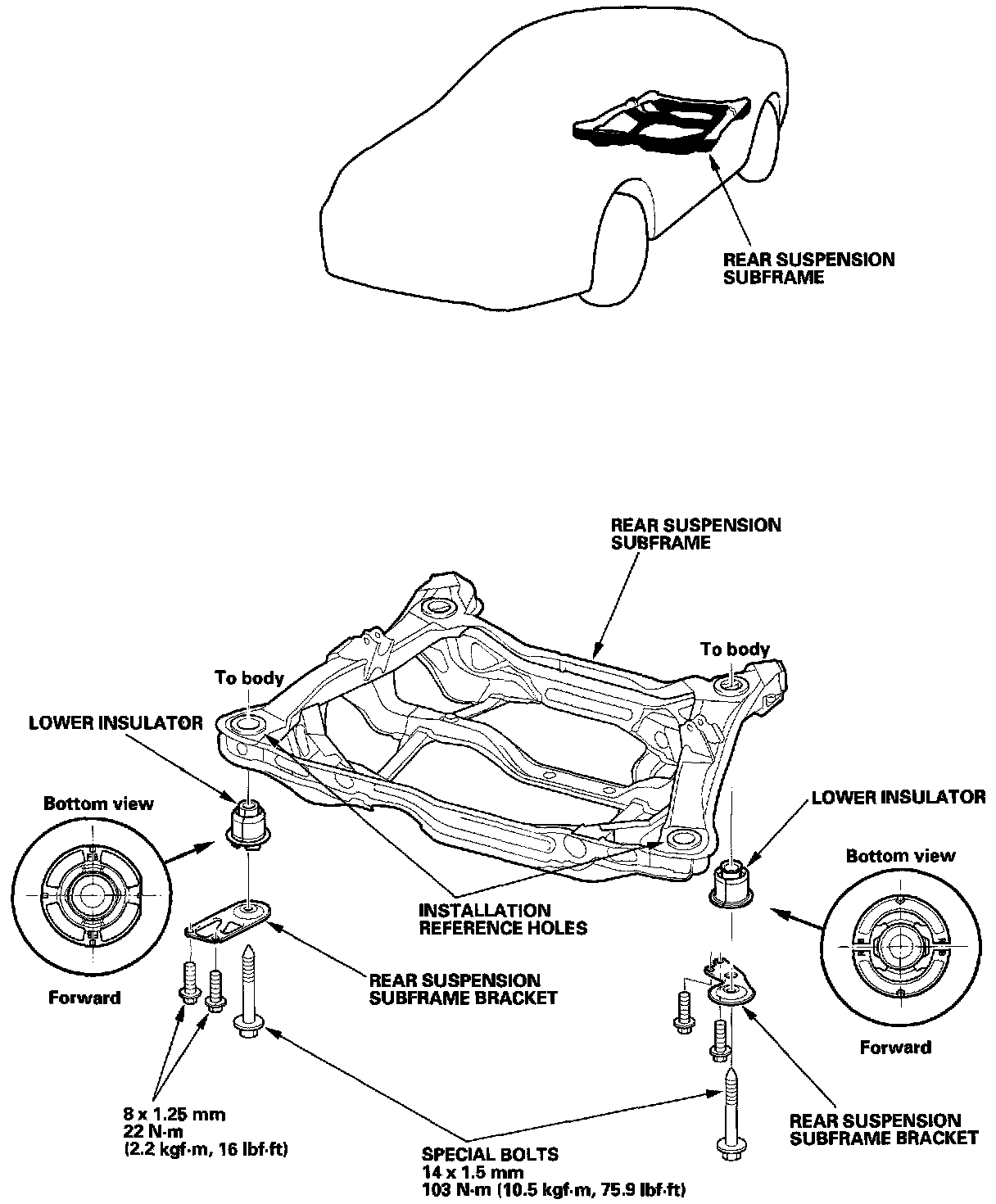

Rear Subframe Torque




After removing the subframe mounting bolts, be sure to replace them with new ones.
