Mainshaft Reassembly

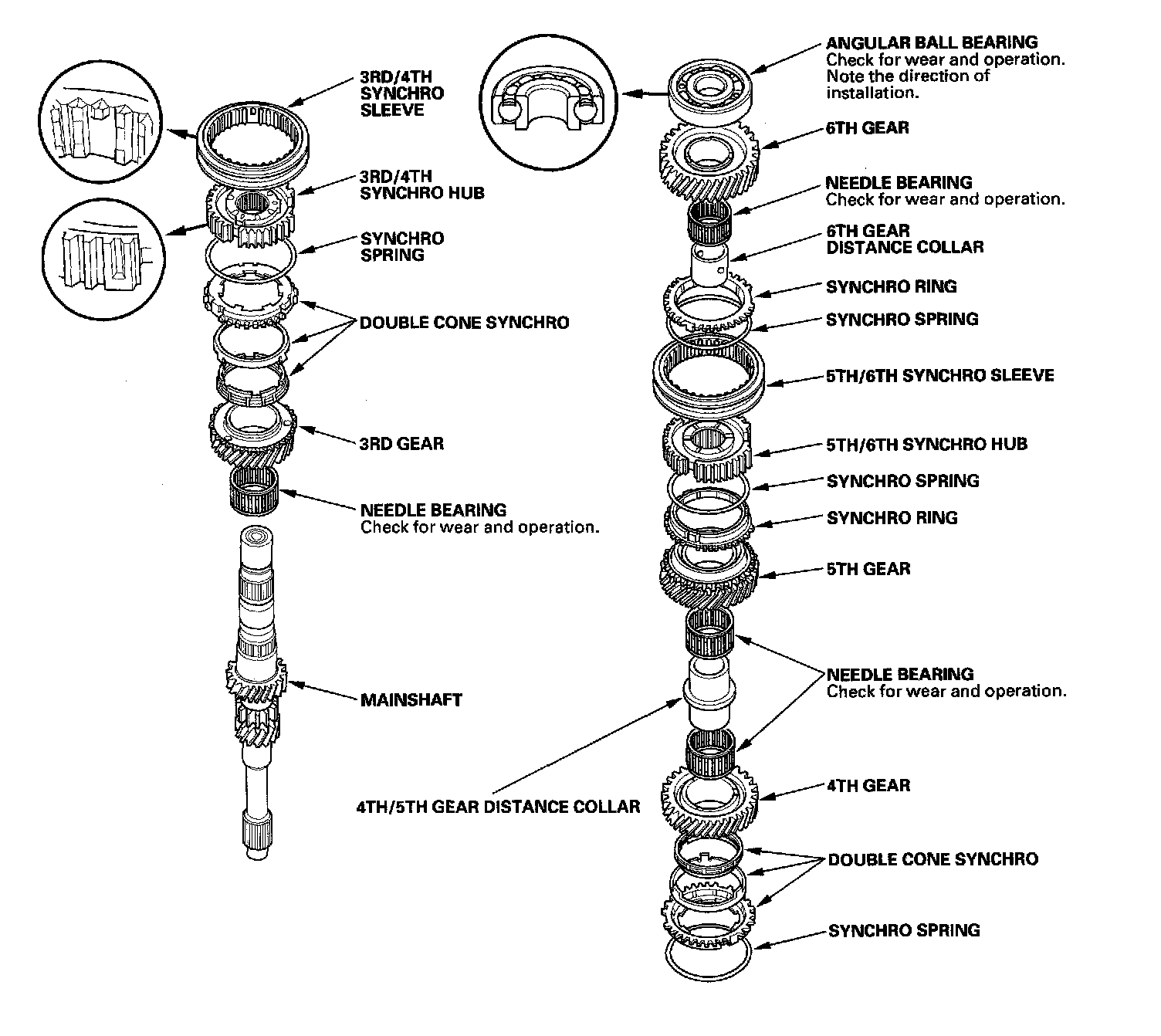

Exploded View





5-speed model

Exploded View





2004 6-speed model: X2M5 Transmission Number: 3004680 or later, and 2005 model
