Multi-Information Display

The Maintenance Minder is an important feature of the multi-information display. Based on engine operating conditions and accumulated engine revolutions, the RL's onboard computer (PCM) calculates the remaining engine oil life. The system also displays the codes for other scheduled maintenance items needing service.

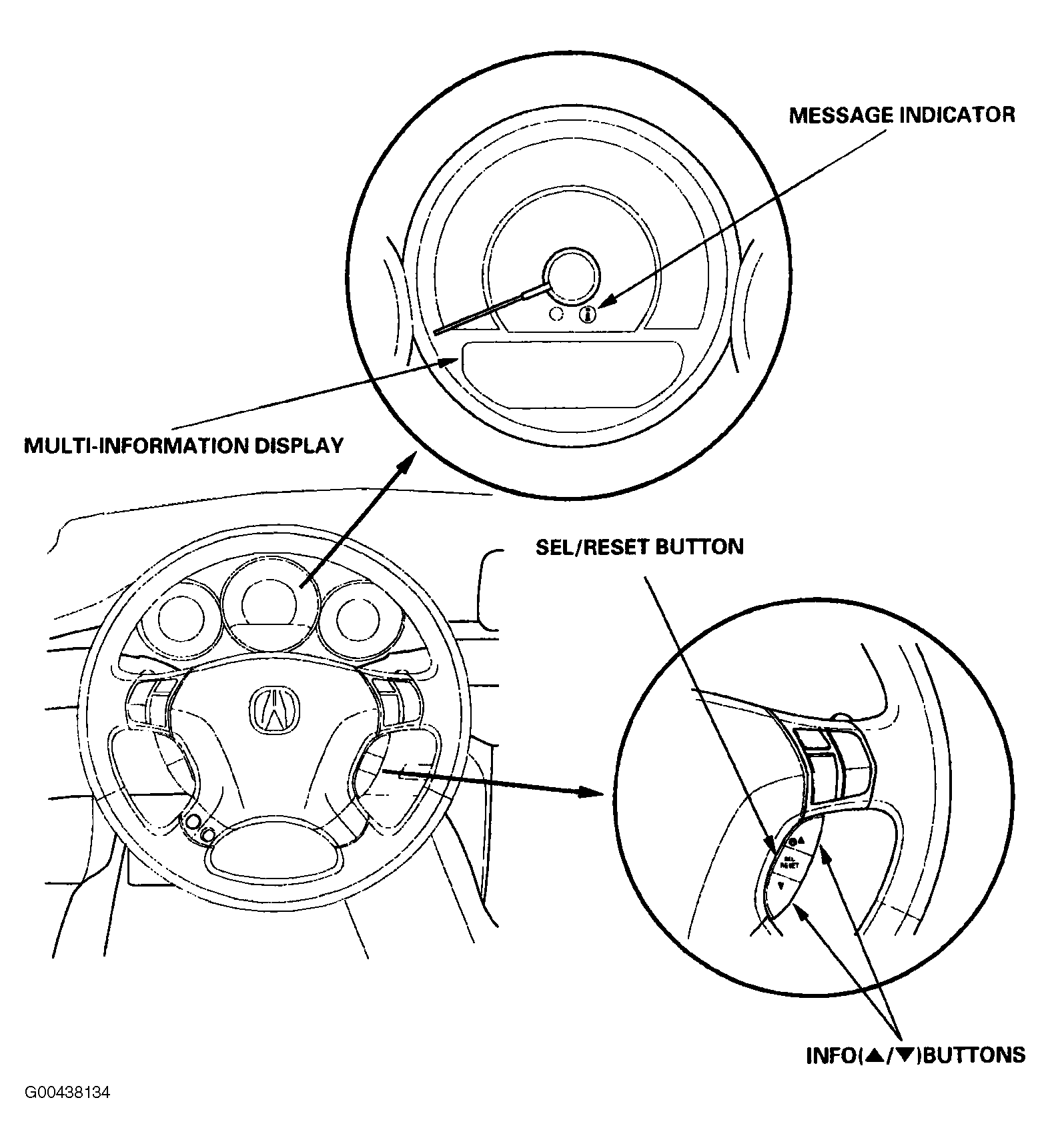

Fig 1: Identifying Multi-Information Display
G00438134Courtesy of AMERICAN HONDA MOTOR CO., INC.
