Antenna Control Module: Service and Repair

Antenna Module Replacement

1. Remove the C-pillar trim.

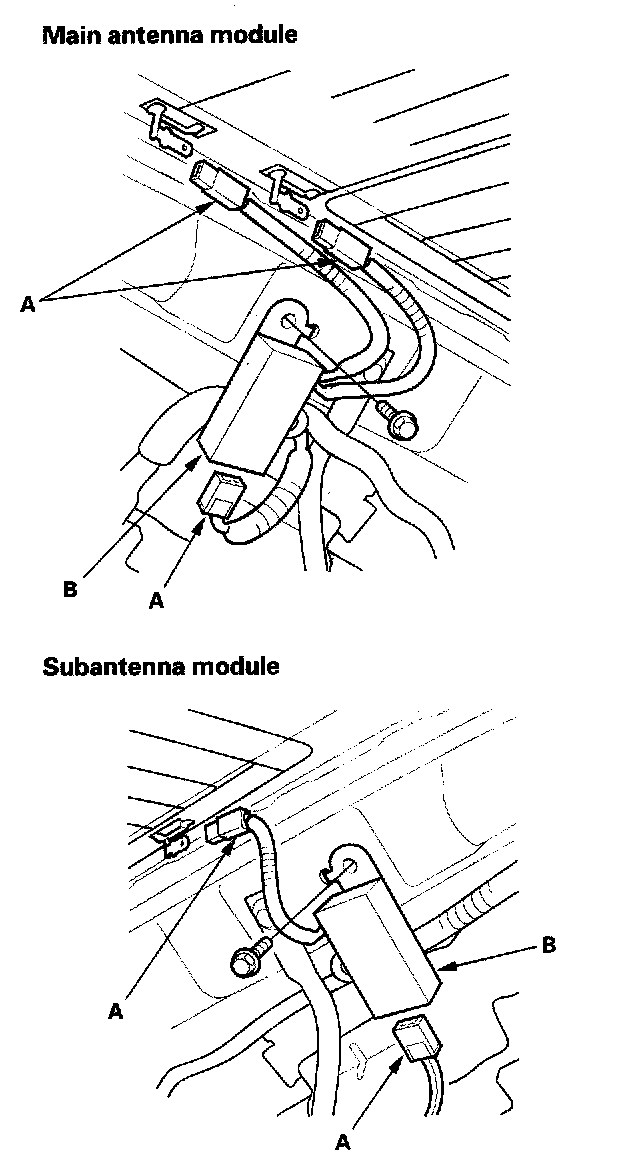

2. Disconnect the connectors (A) from the antenna module (B).
3. Remove the bolt and antenna module.
4. Install the unit in the reverse order of removal.
