Oxygen Sensor: Diagrams
157. Secondary H02S (B2, S2), Front:
158. Secondary H02S (B1, S2), Rear:

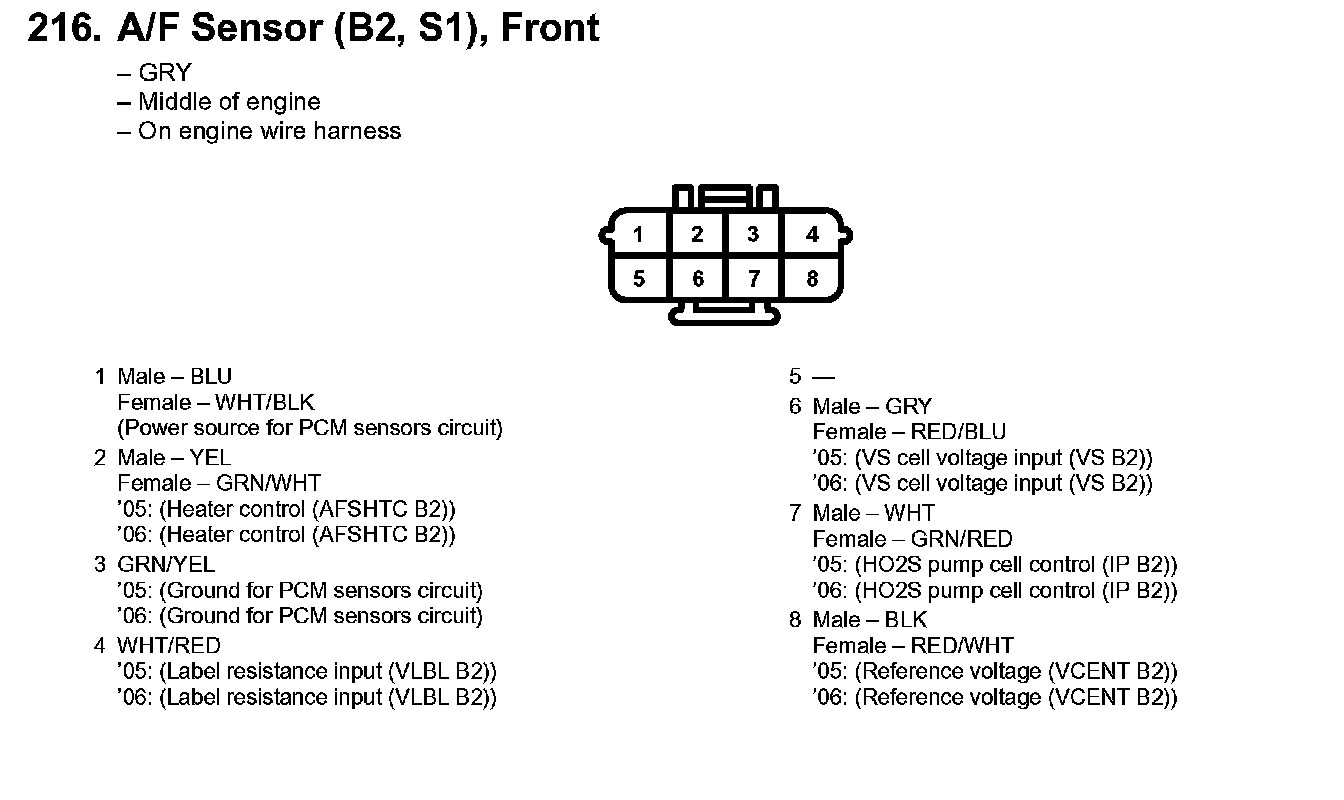

216. A/F Sensor (B2, S1), Front:
217. A/F Sensor (B1, S1), Rear:
