Passenger's Under-Dash Fuse/Relay Box

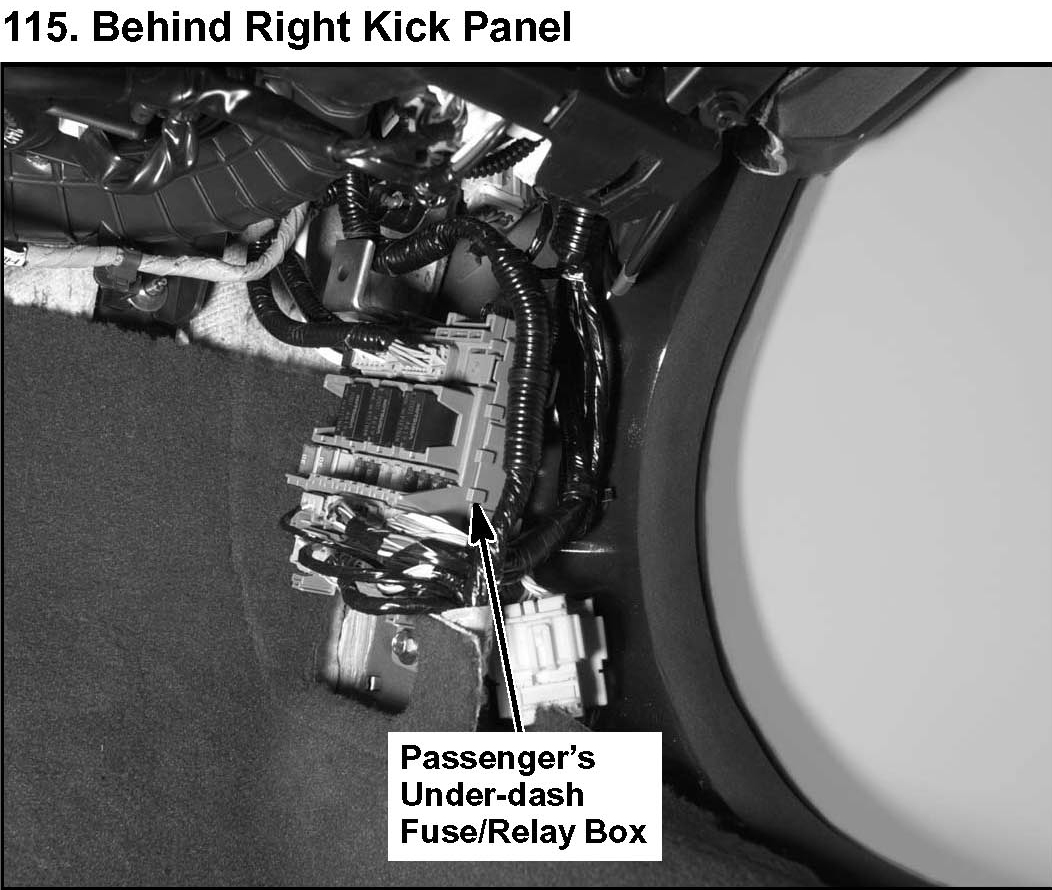

115. Behind Right Kick Panel:

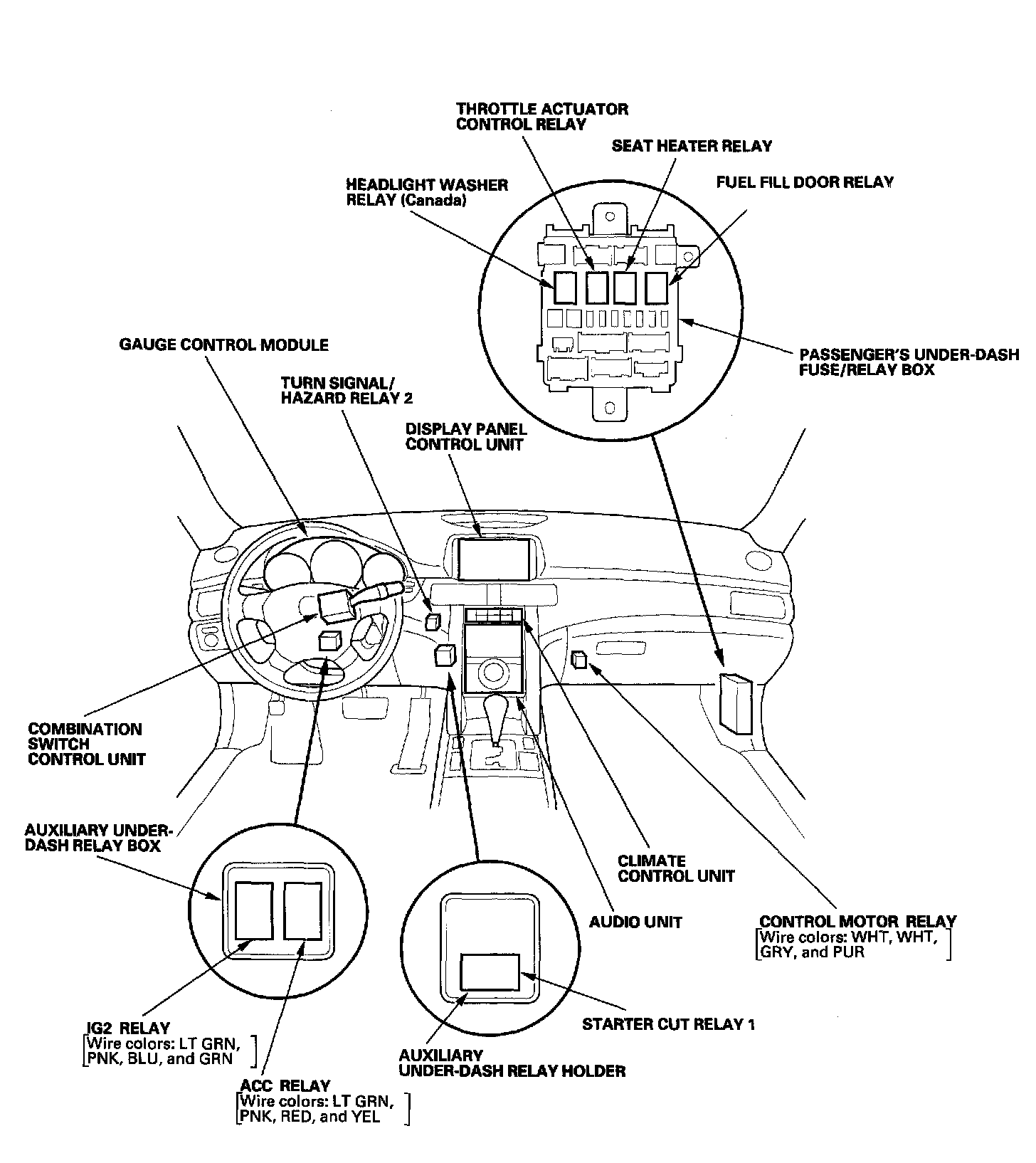

Relay And Control Unit Locations - Dashboard:

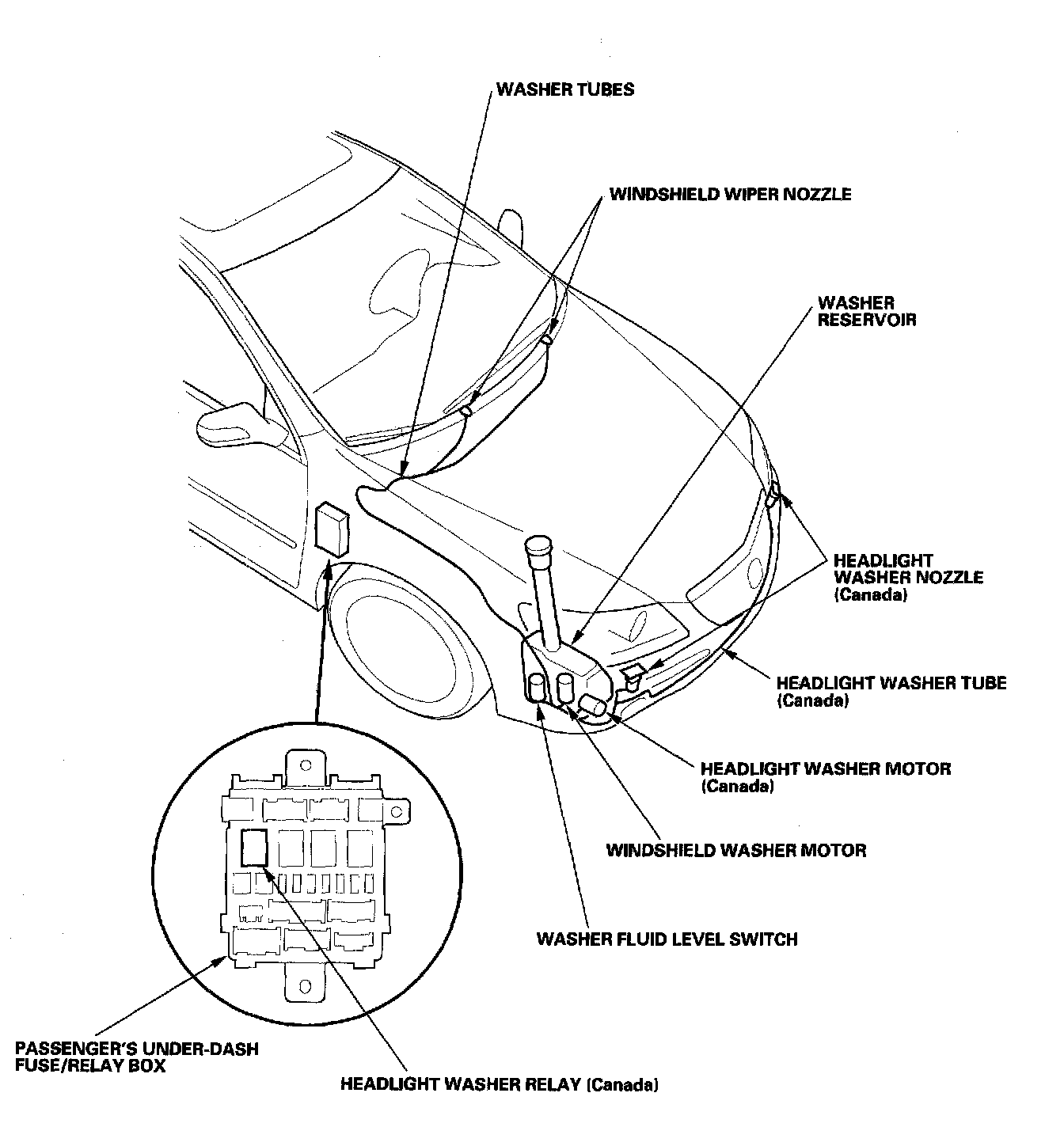

Wipers/washers - Component Location Index:



Fuel Fill Door Opener - Component Location Index:

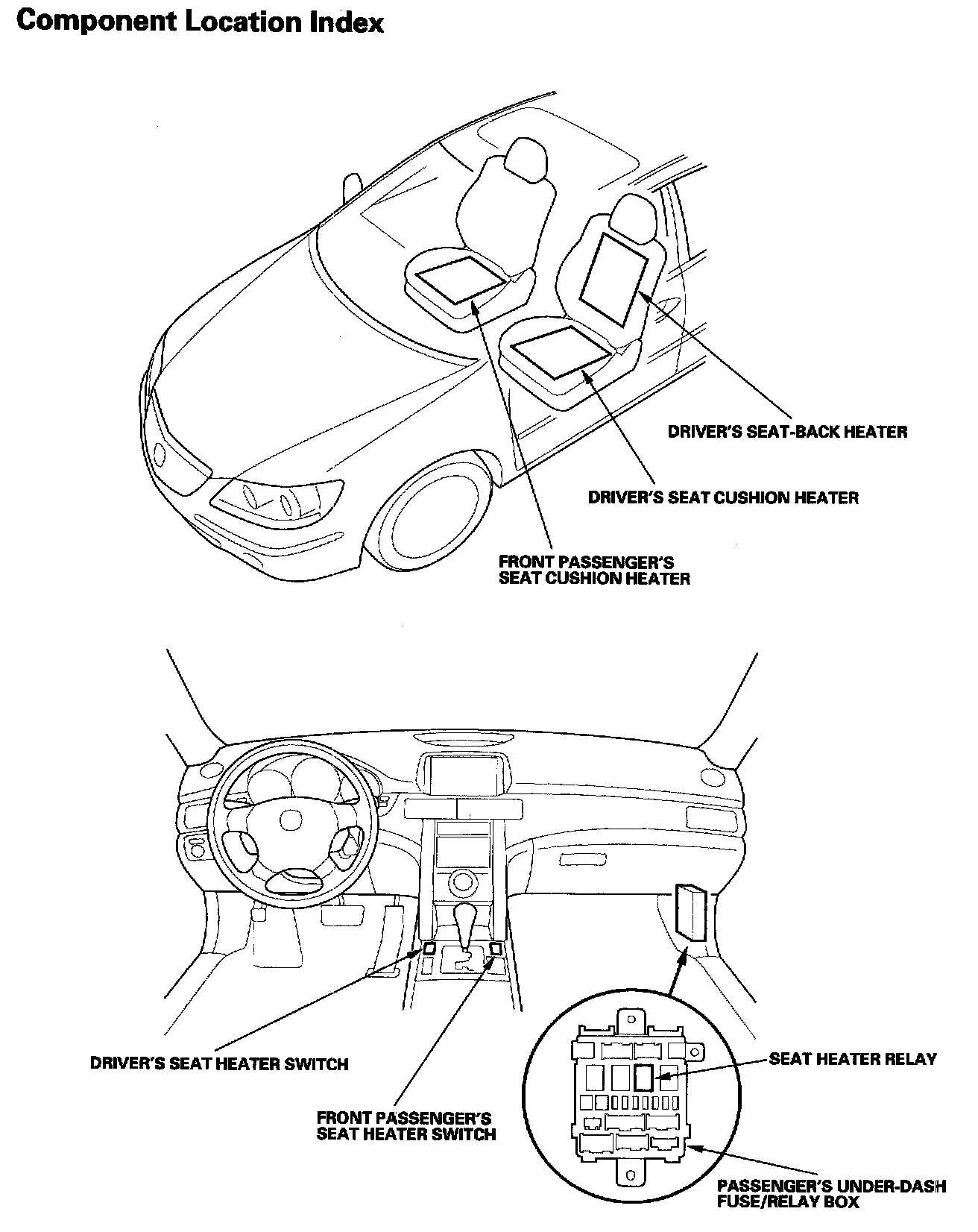

Seat Heaters - Component Location Index:

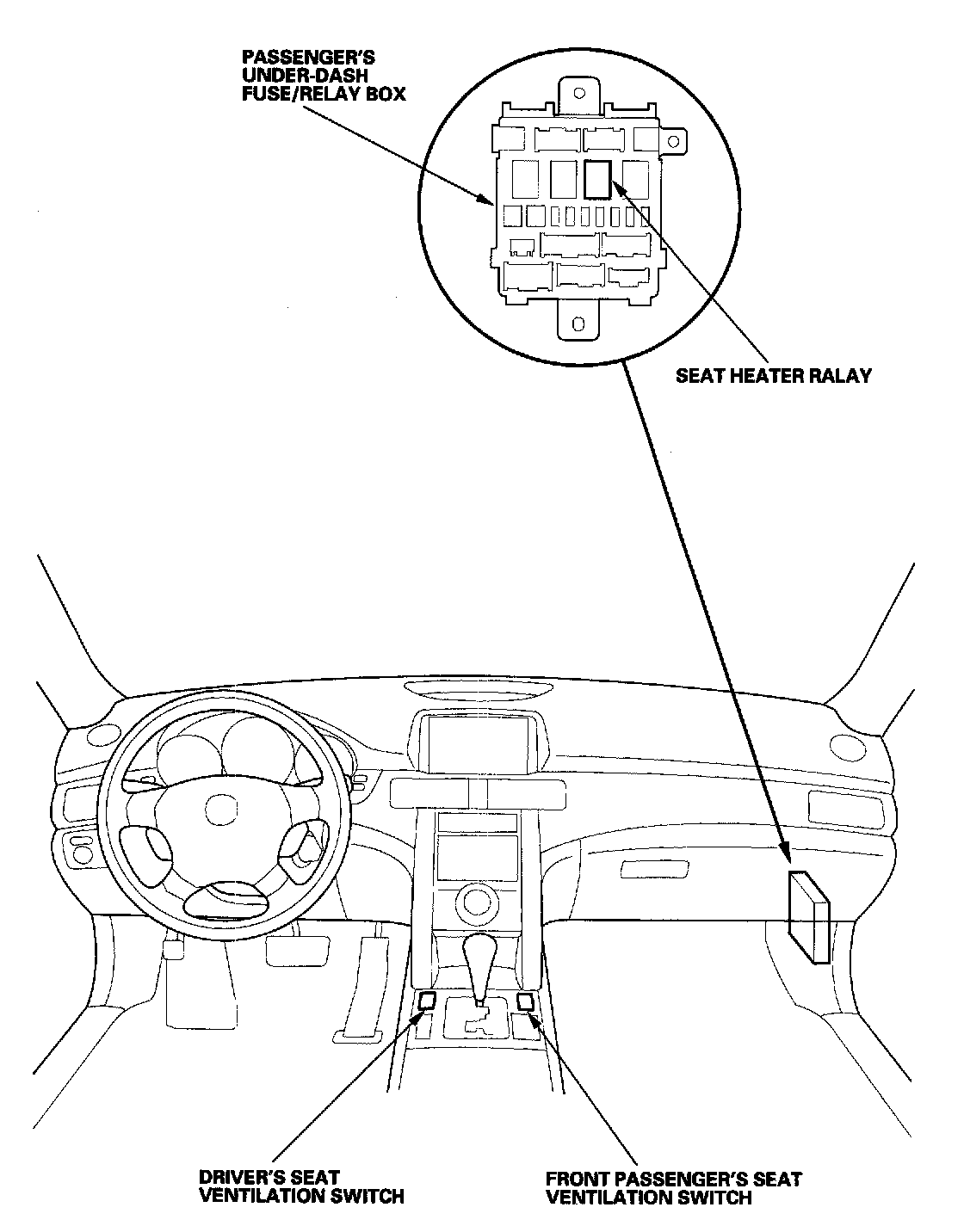

Ventilated Seats - Component Location Index:
