Engine Lubrication

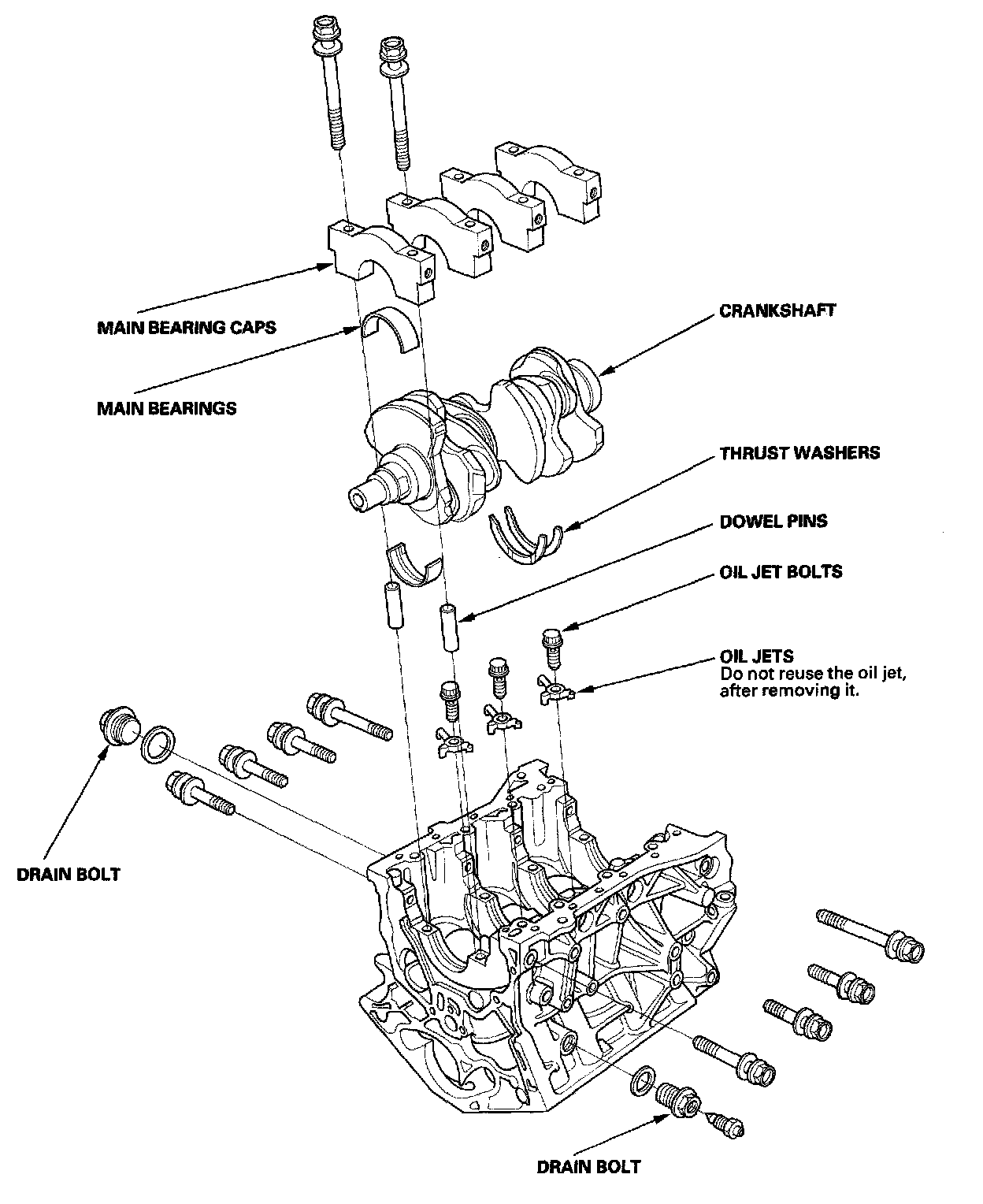

Engine Lubrication Component Location Index (part 1):

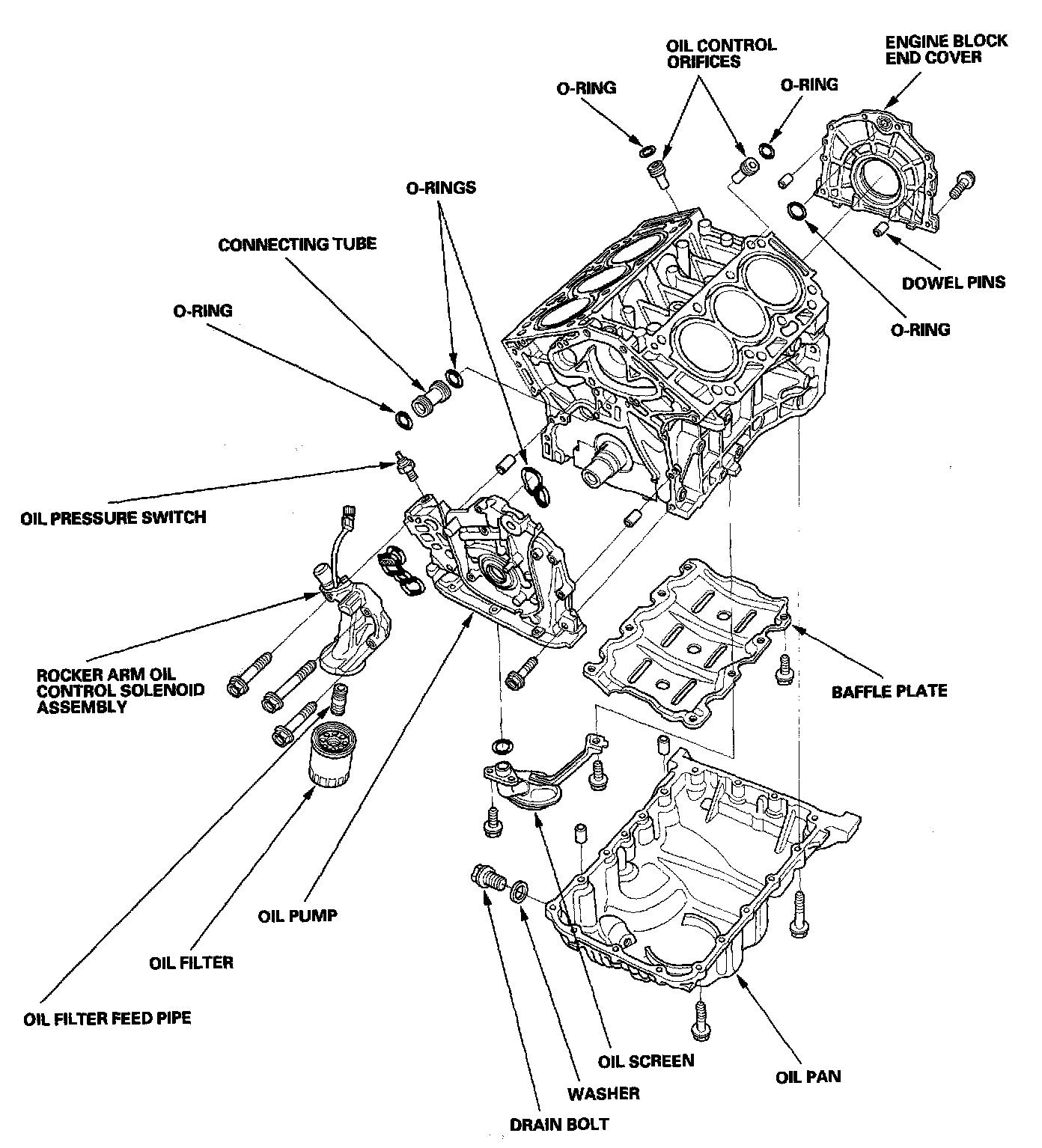

Engine Lubrication Component Location Index (part 2):
