Component Locations

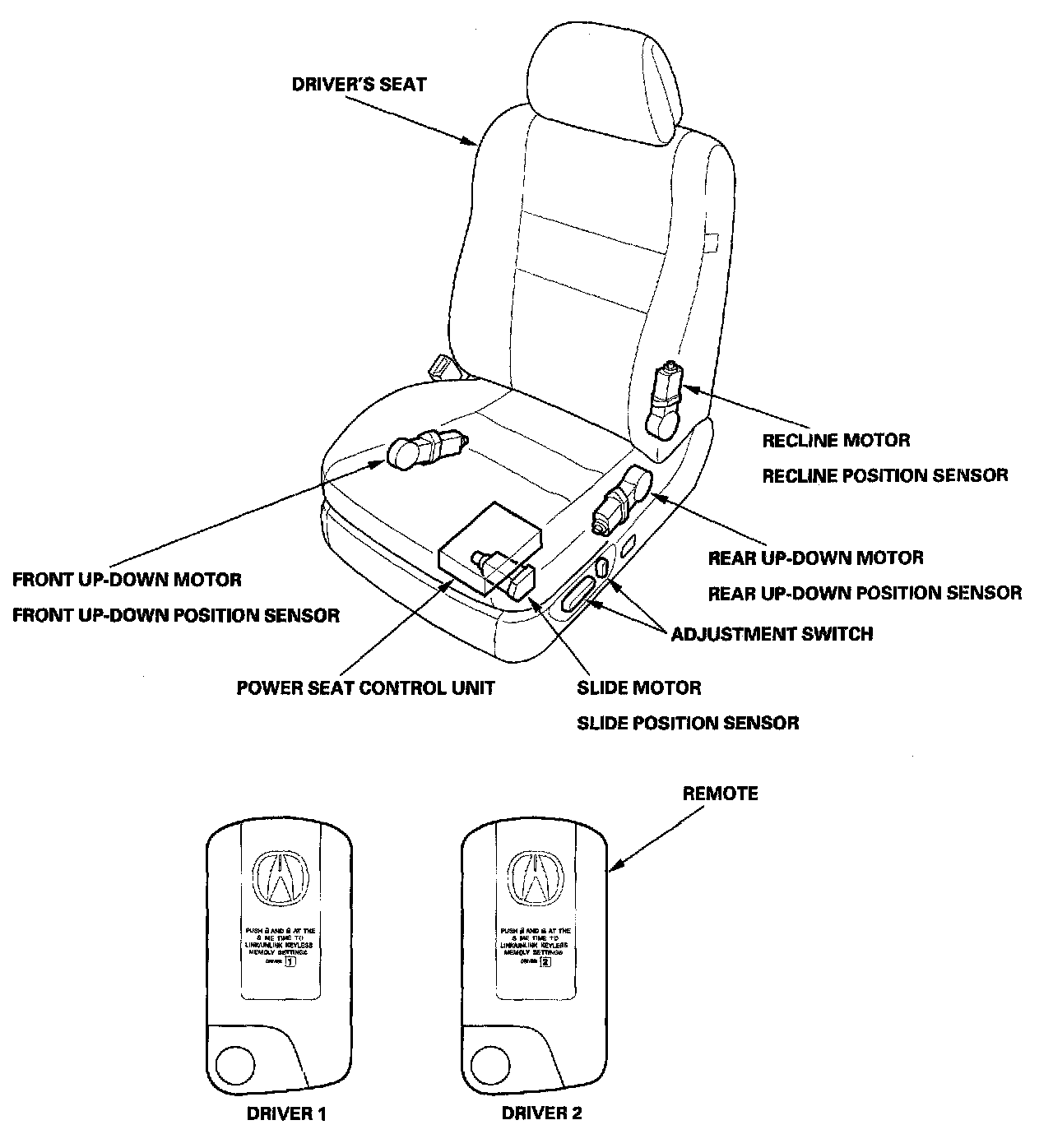

Driving Position Memory System (DMPS) - Component Location Index:

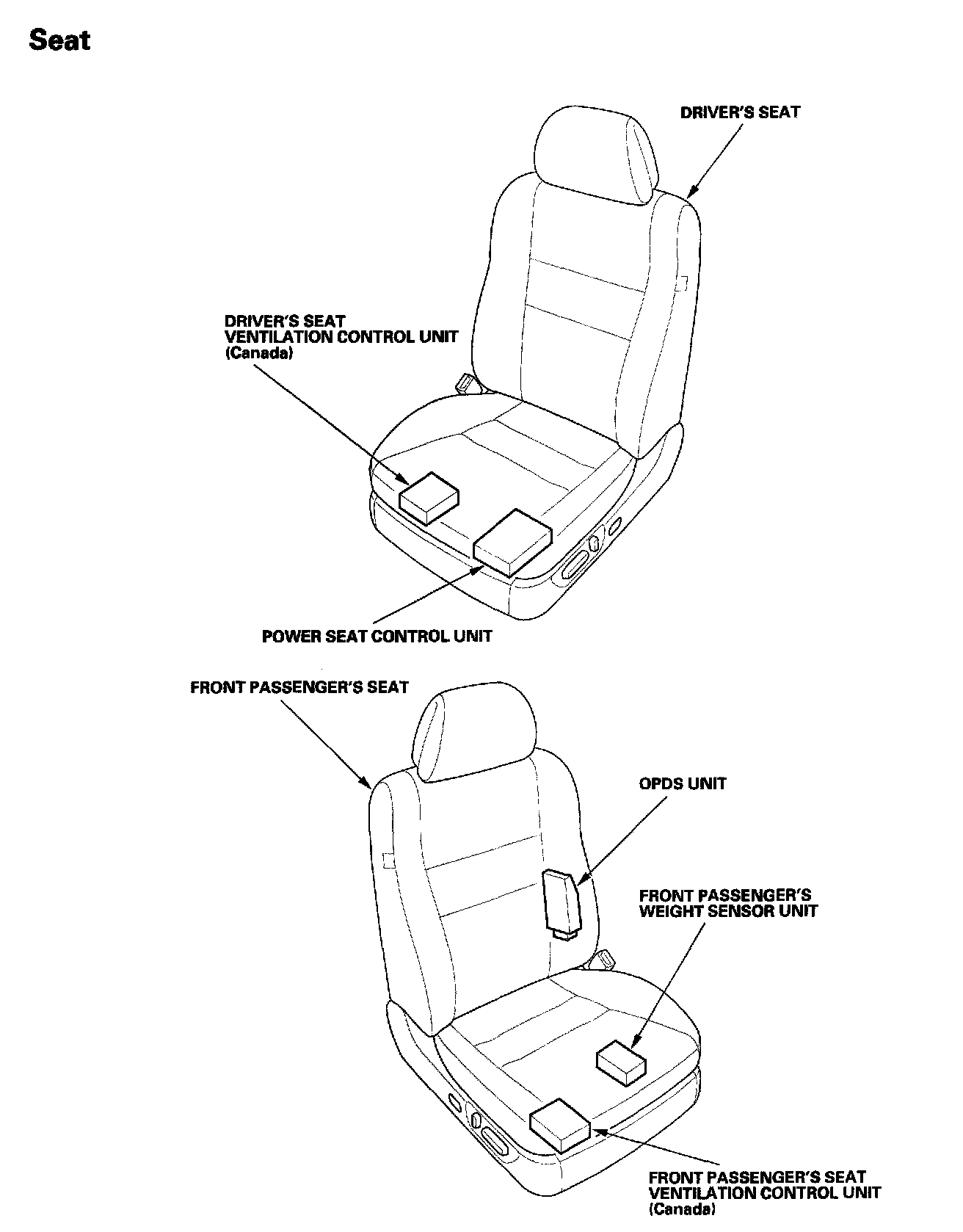

Relay And Control Unit Locations - Seat:

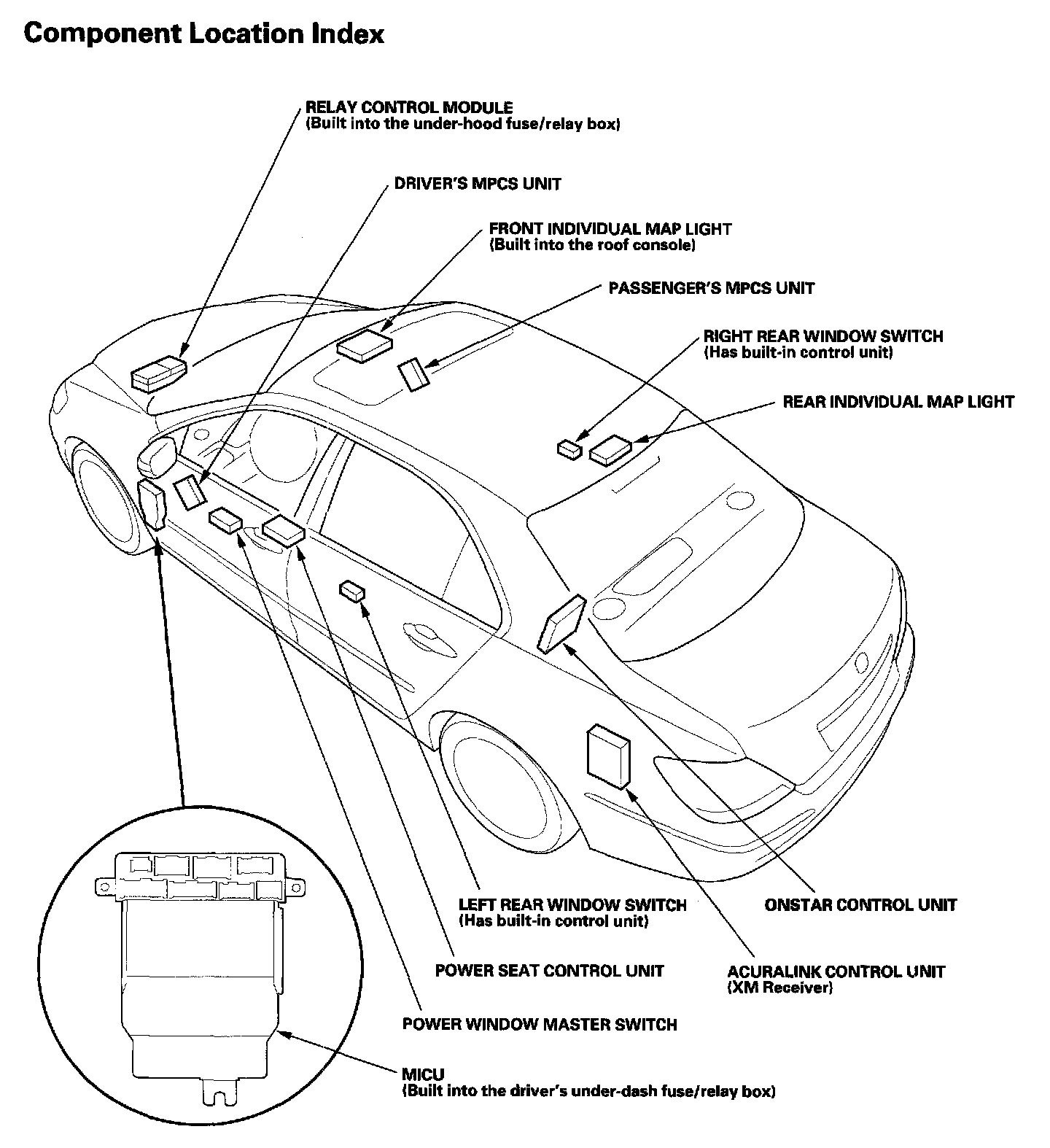

Multiplex Integrated Control System - Component Location Index:

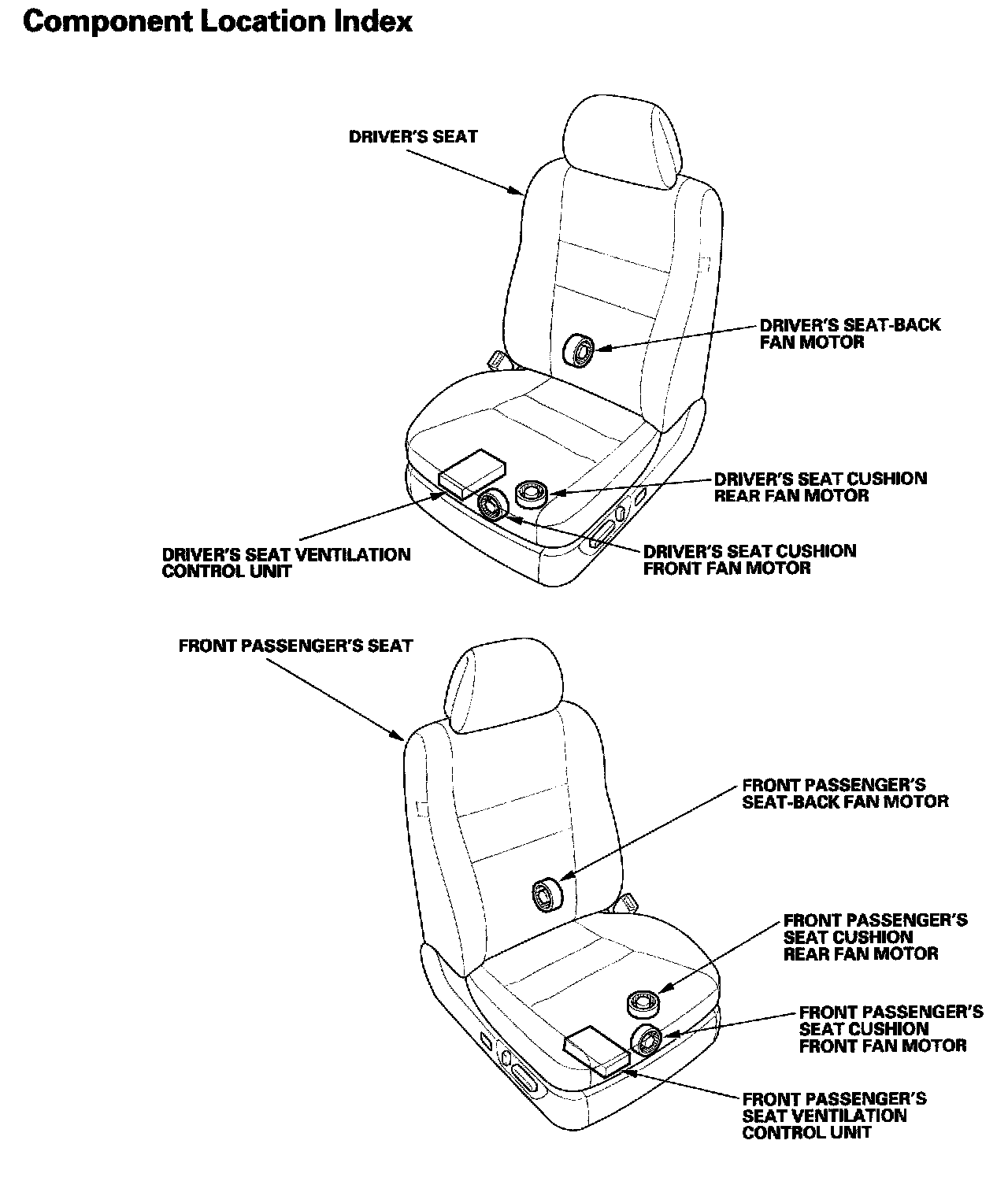

Ventilated Seats - Component Location Index:

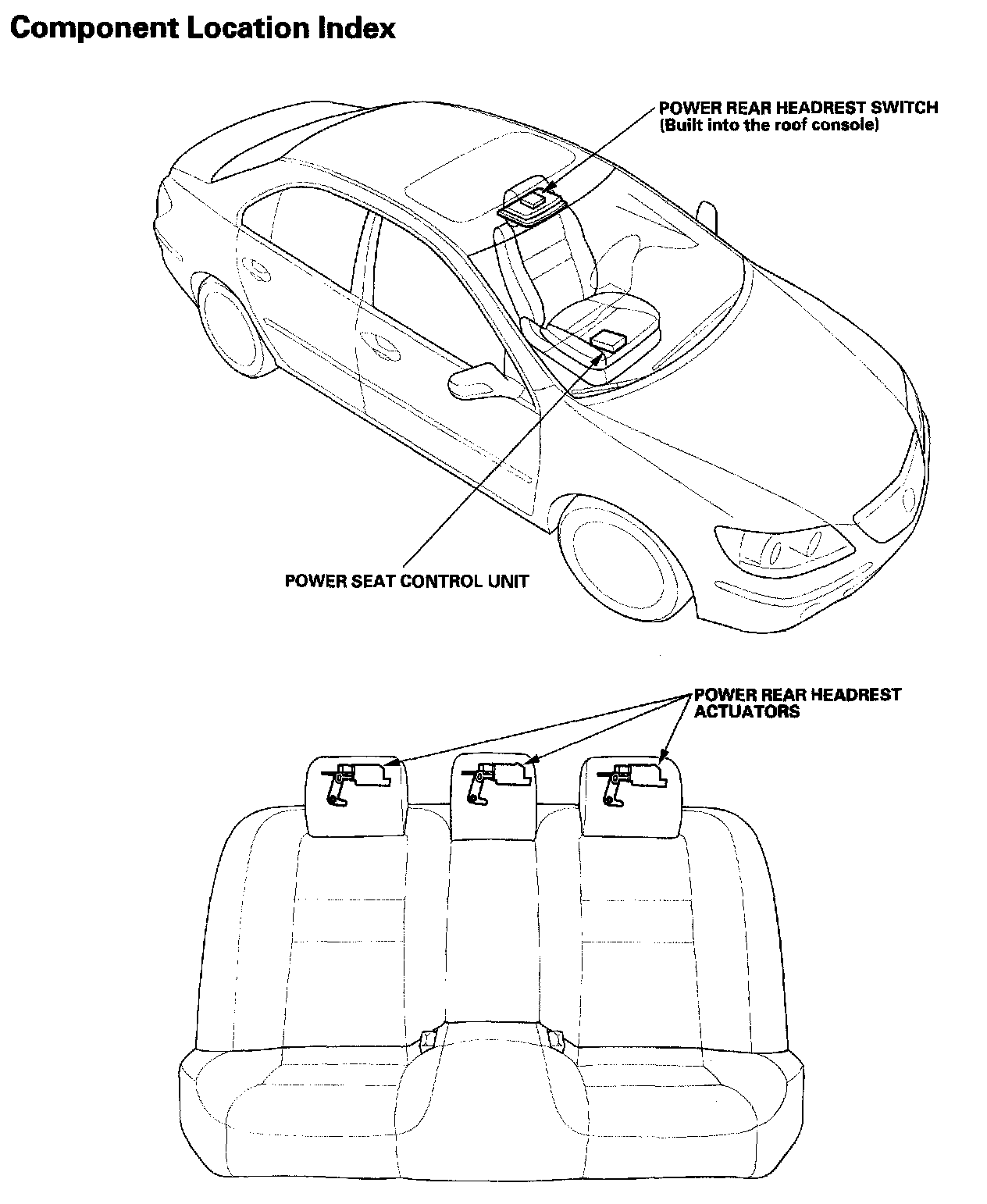

Power Rear Headrests - Component Location Index:
