Voice Control Switch Test/Replacement
- Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT
).

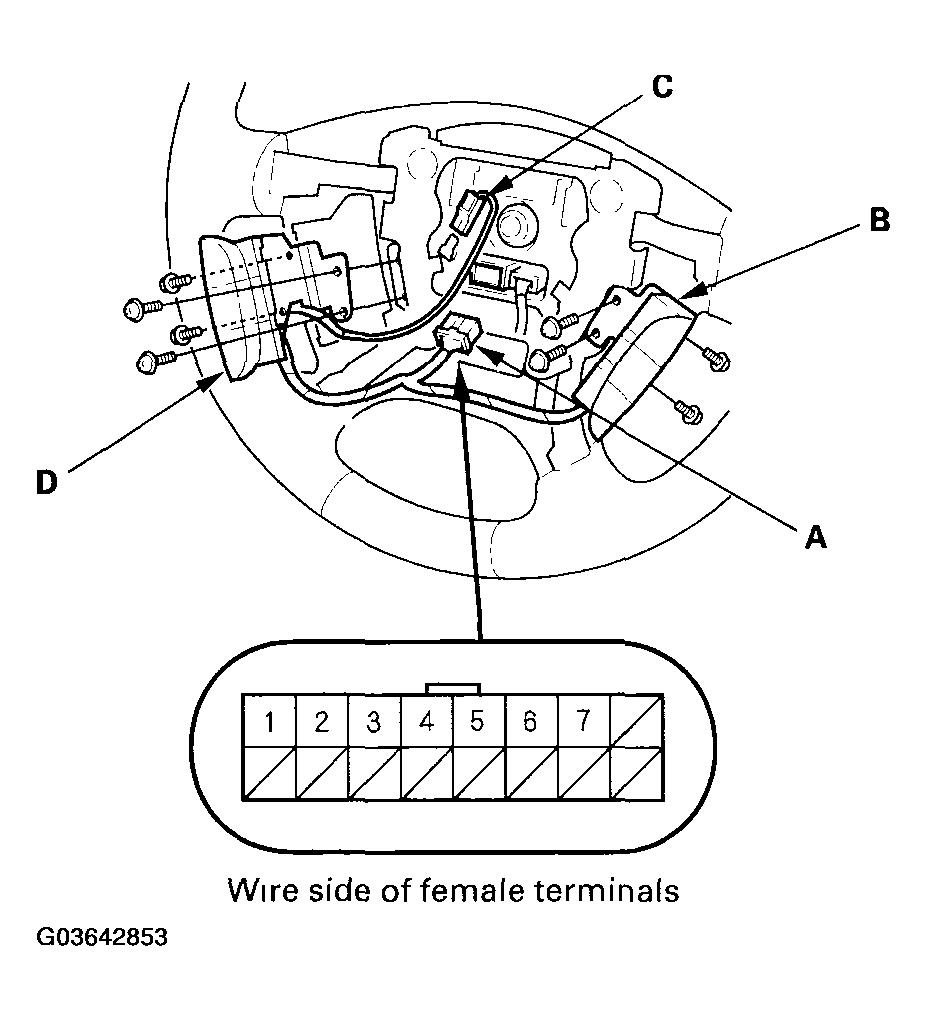

- Disconnect the 16P connector (A) from the cable reel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Measure the resistance between the 16P connector No. 4 and No. 7 terminals in each switch position according to 16P CONNECTOR NO. 4 AND NO. 7 TERMINALS
.
16P CONNECTOR NO. 4 AND NO. 7 TERMINALS
| Position |
Resistance |
| OFF |
about 10 k Ω |
| Talk |
about 3.2 k Ω |
| Back |
about 1.6 k Ω |
- If the resistance is not as specified, go to step 5.
- Remove the two screws and the cruise control set/ resume/switch (B) from the steering wheel.
- Remove the four screws, the 1P connector (C) and the radio remote switch (D), HFL-voice control switch and cruise set/resume/cancel switch as an assembly.
