Front Subframe Torque

After removing the subframe mounting special bolts, be sure to replace them with new ones.

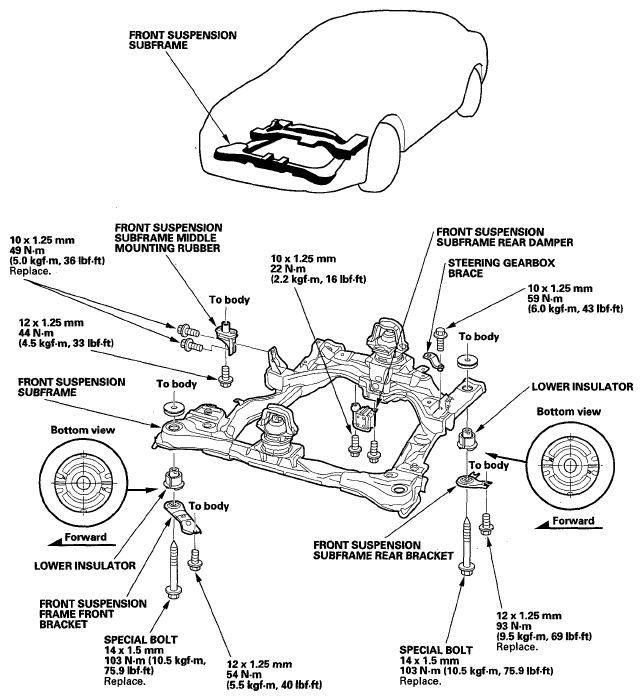

Fig 1: Subframe Replacement With Torque Specifications
G05492574
