Component Tests and General Diagnostics

Cruise Control Input Test

1. Connect the Honda Diagnostic system (HDS) to the Data Link Connector (DLC).
2. Go to B-CAN System Diagnosis Test Mode A and check for DTC's.
3. Go to PGM-FI and check for DTC's.
4. Turn the ignition switch ON (II).

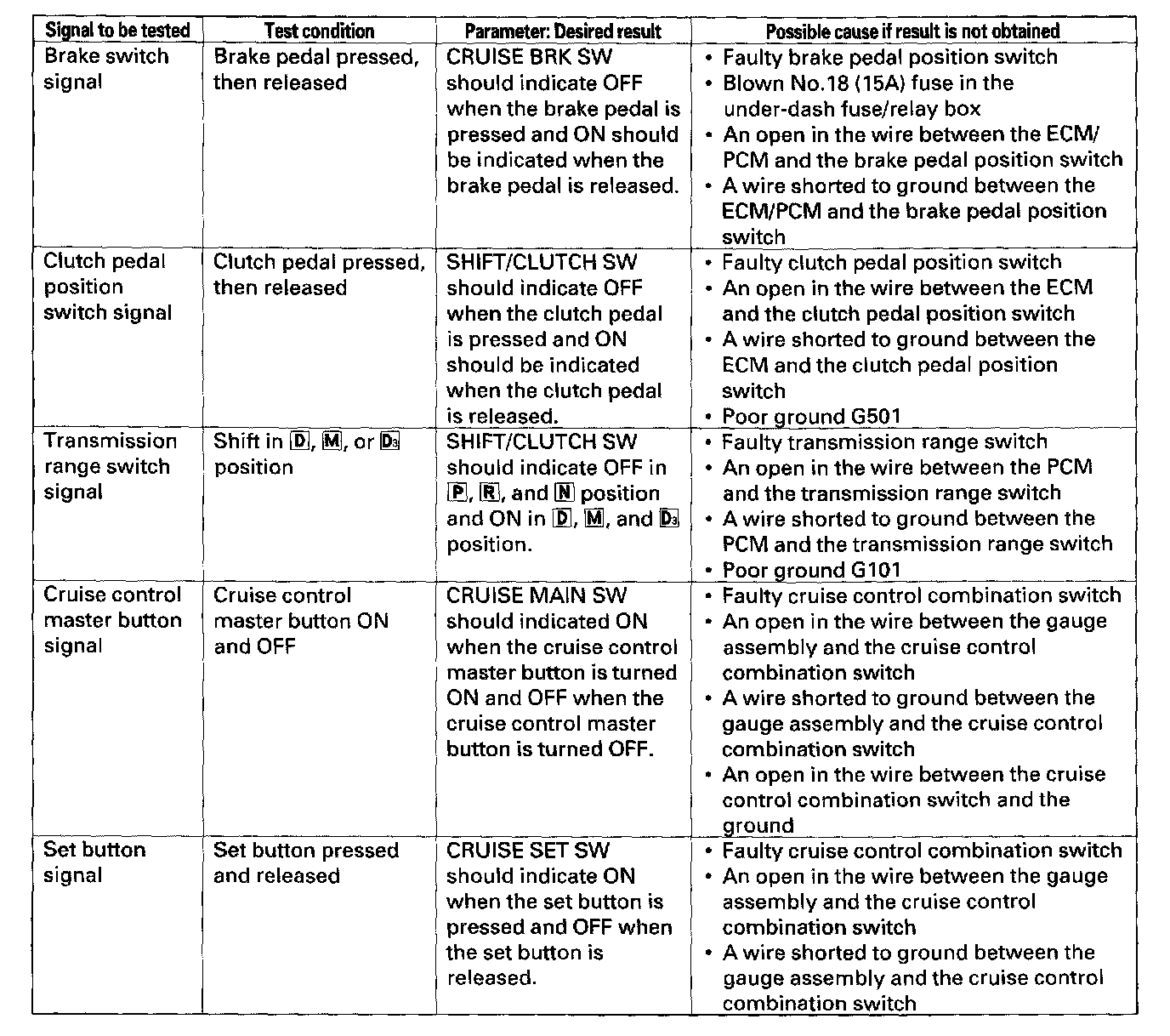

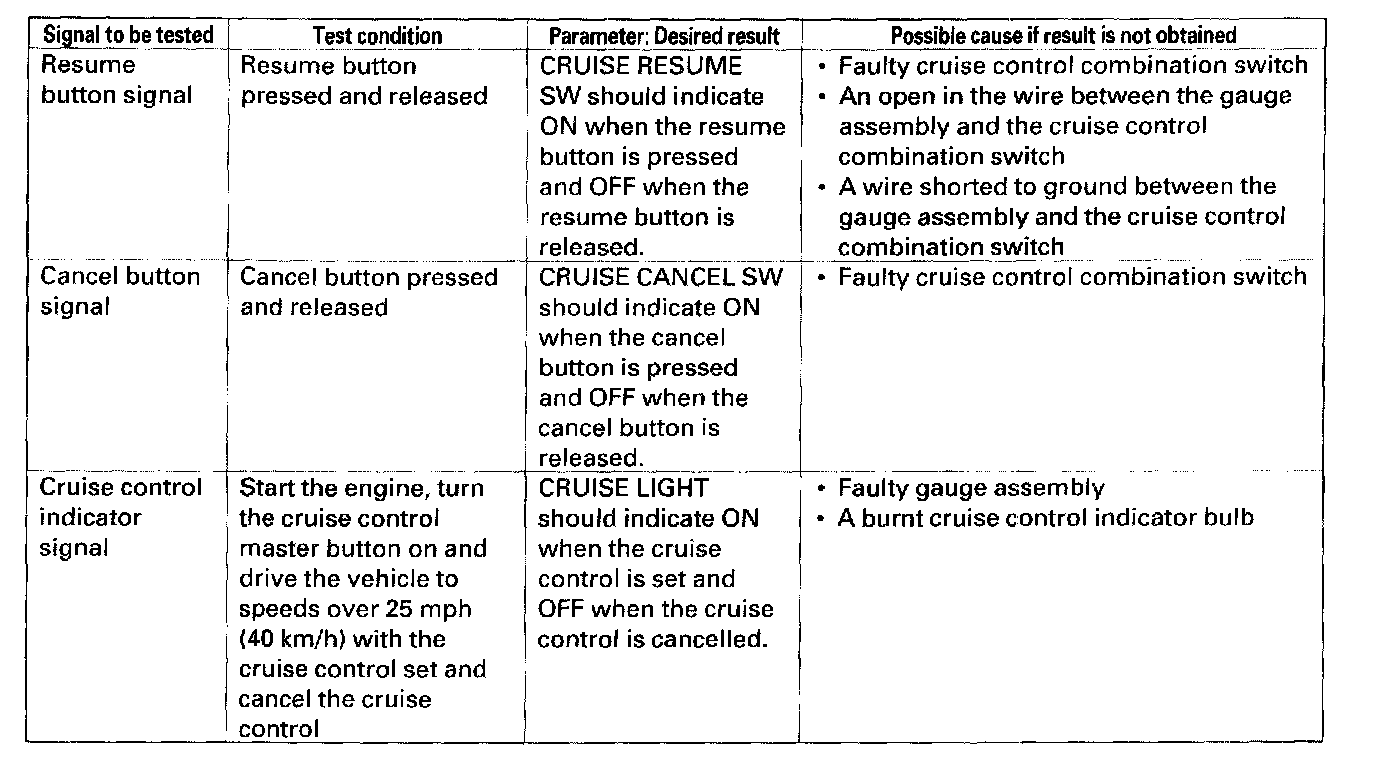

5. Perform the given tests while monitoring parameters in the PGM-FI DATA LIST.
