Navigation Display: Locations

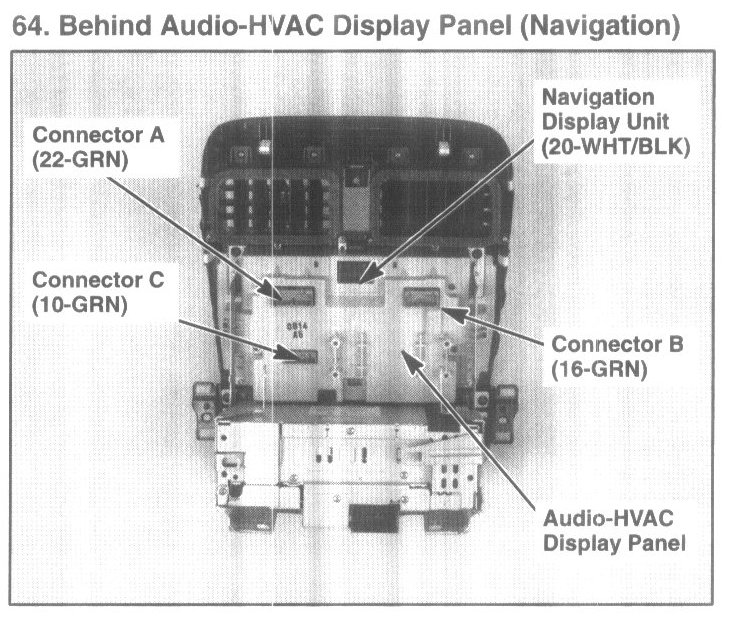

64. Behind Audio-HVAC Display Panel (Navigation):

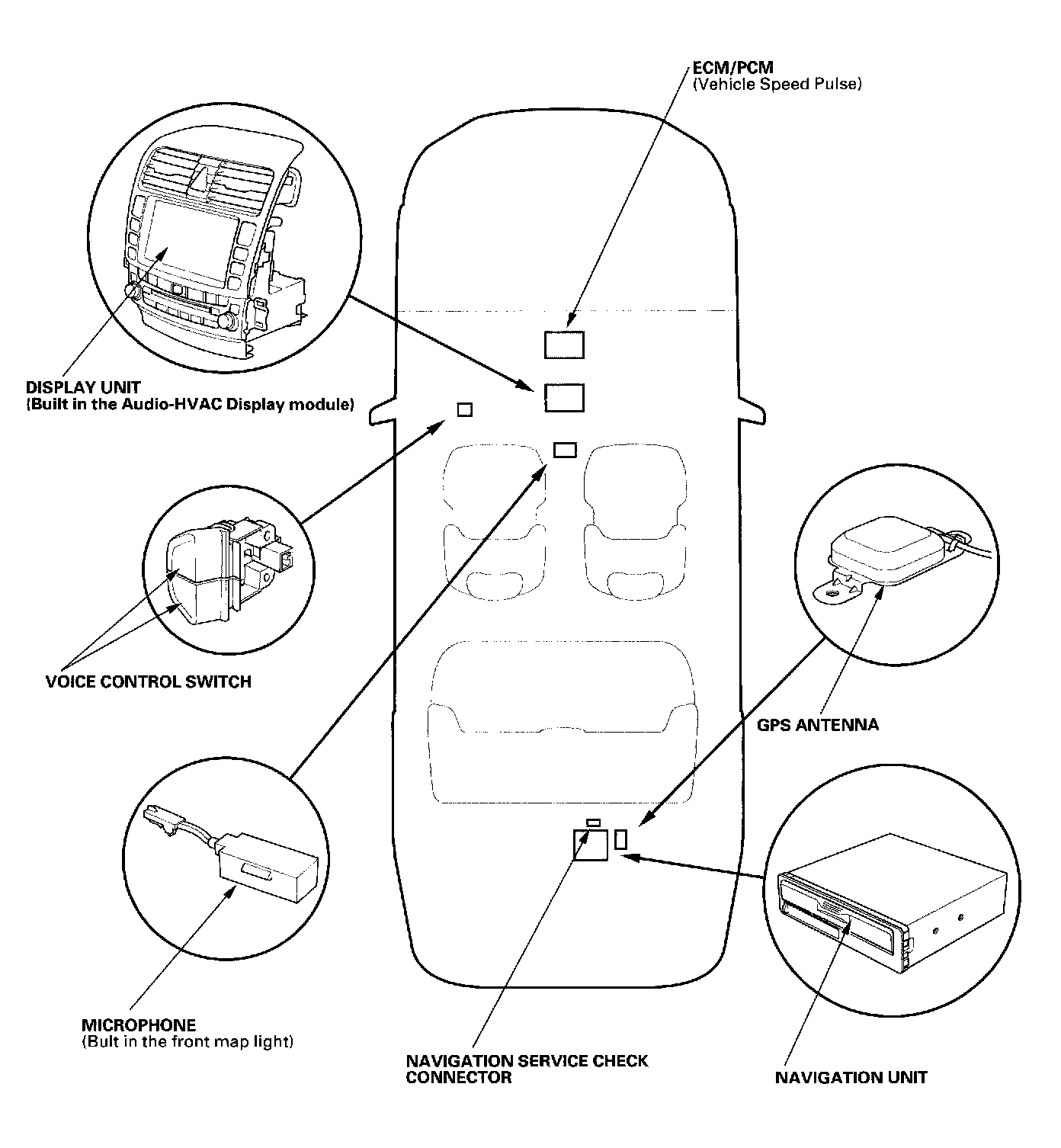

Navigation System - Component Location Index:
