Circuit Diagram - PCM A/T Control System '06 Model
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram - PCM A/T Control System '06 Model

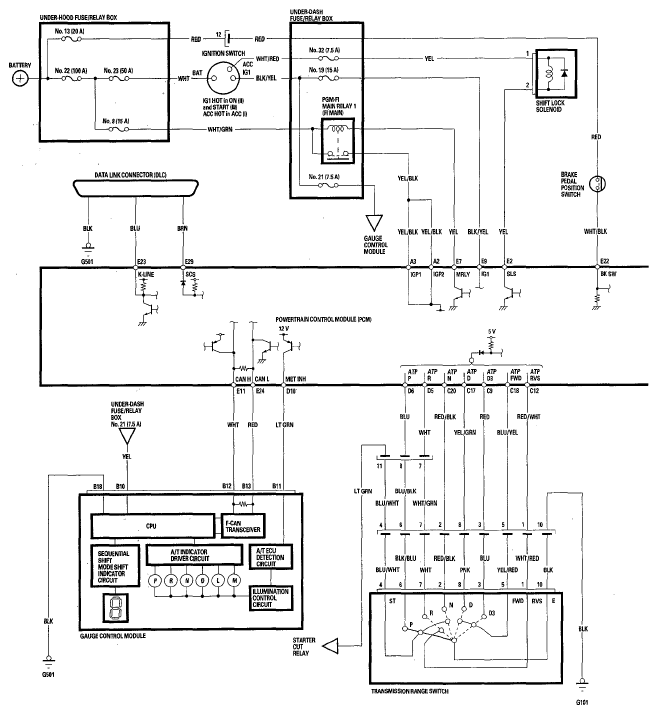

Fig 1: PCM A/T Control System Circuit Diagram '06 Model (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

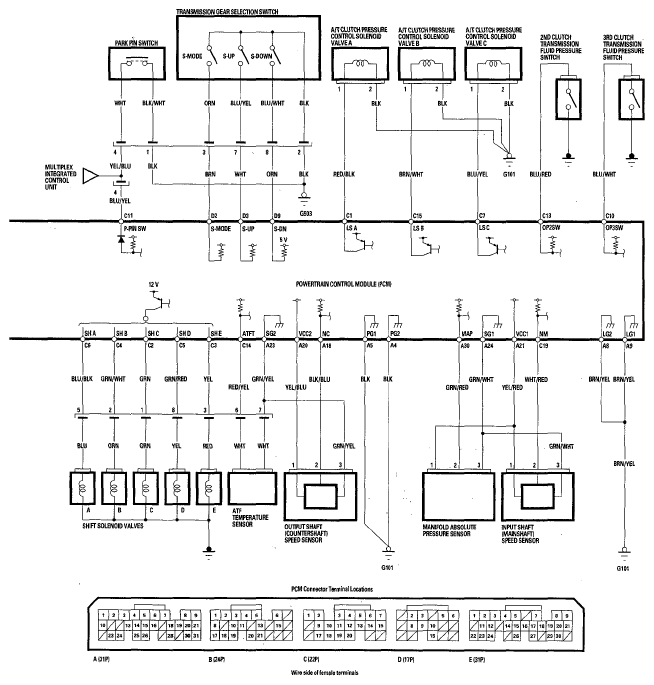

Fig 2: PCM A/T Control System Circuit Diagram '06 Model (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
