Under-Hood Fuse/Relay Box

Charging System - Component Location Index:




Climate Control - Component Location Index:




Relay And Control Unit Locations - Engine Compartment:




Relay And Control Unit Locations - Dashboard:

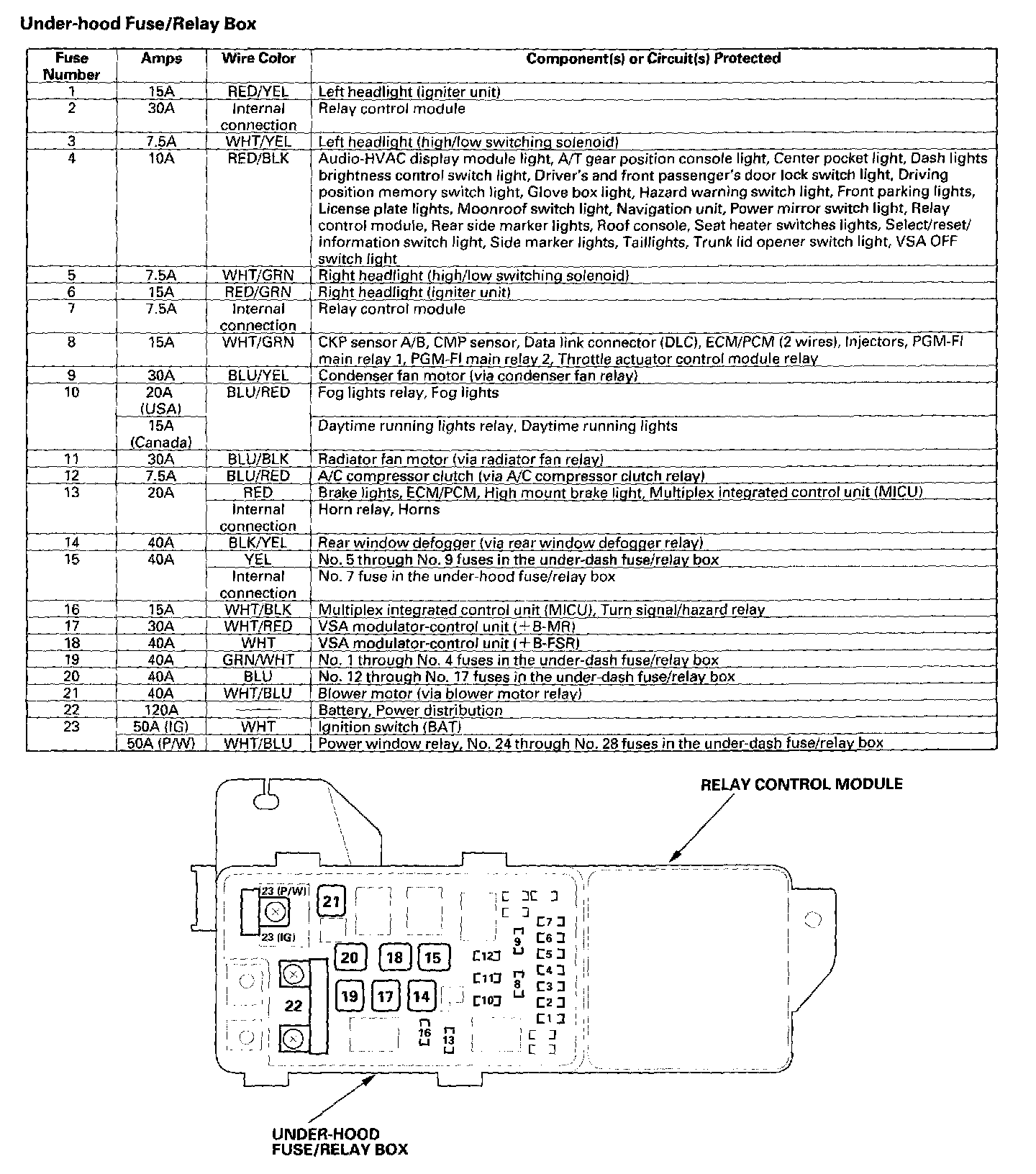

Under-hood Fuse/Relay Box:




Exterior Lights - Component Location Index:

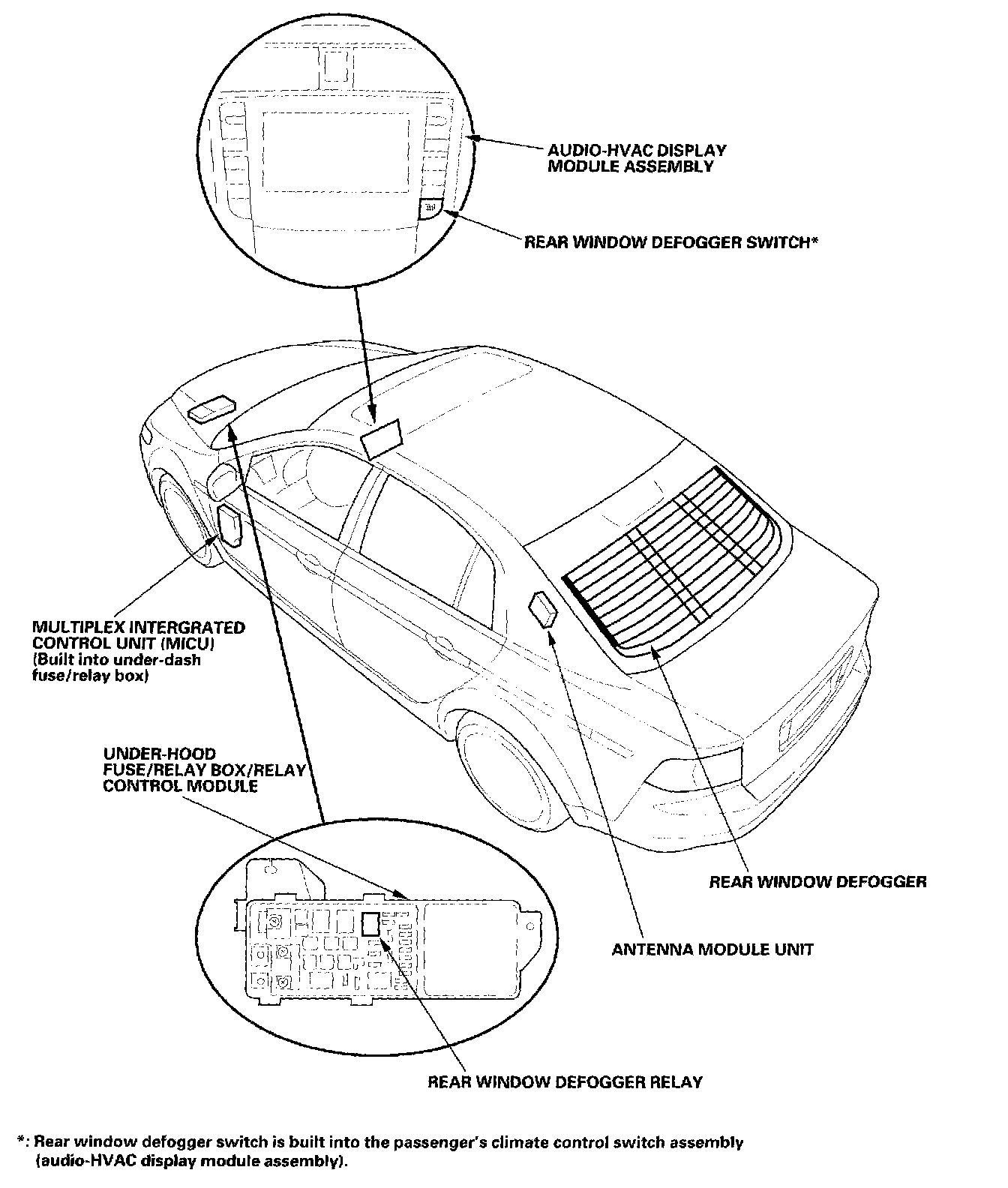

Rear Window Defogger - Component Location Index:
