Under-Dash Fuse/Relay Box
Starting System - Component Location Index:

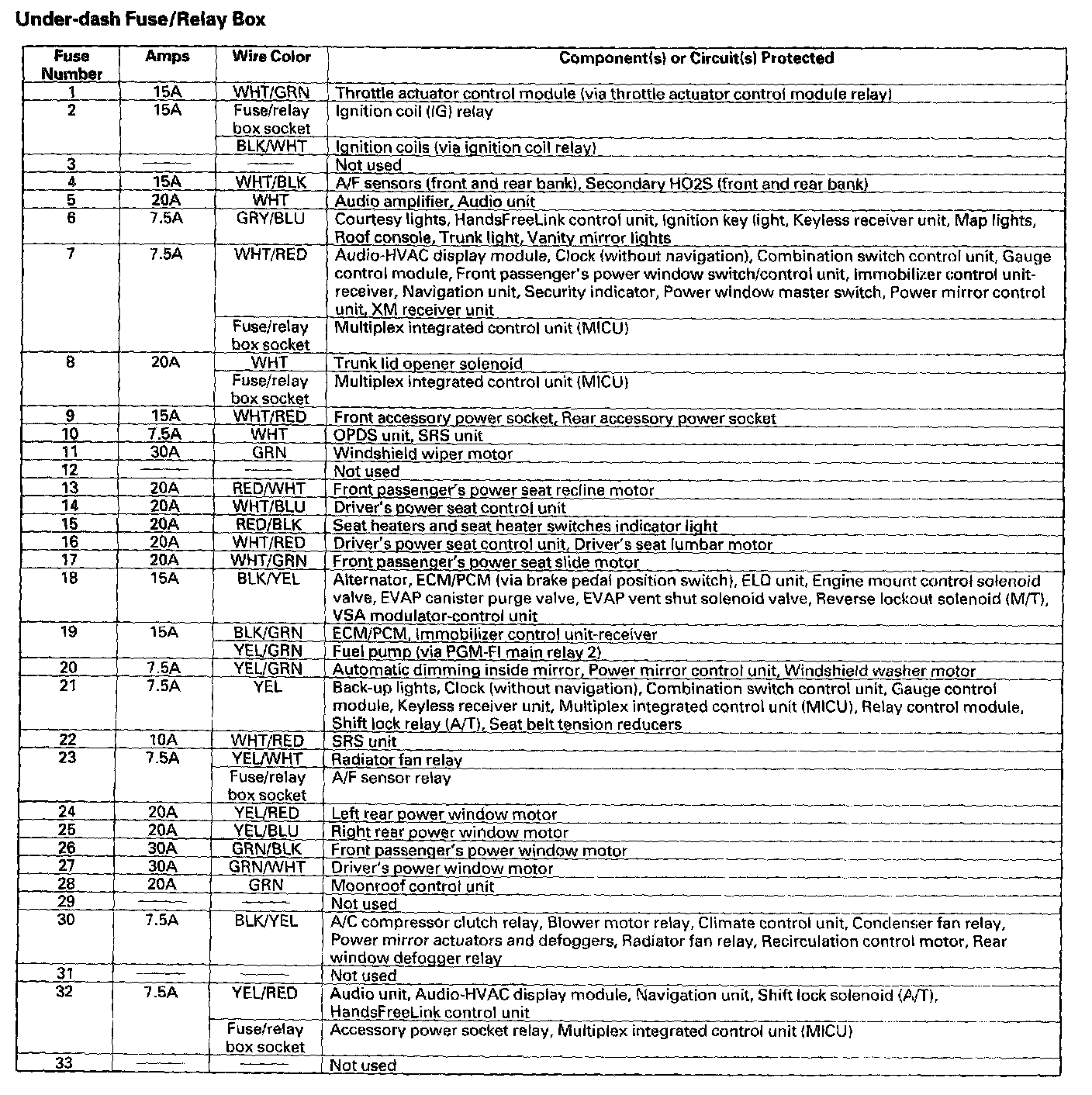

Under-dash Fuse/Relay Box:

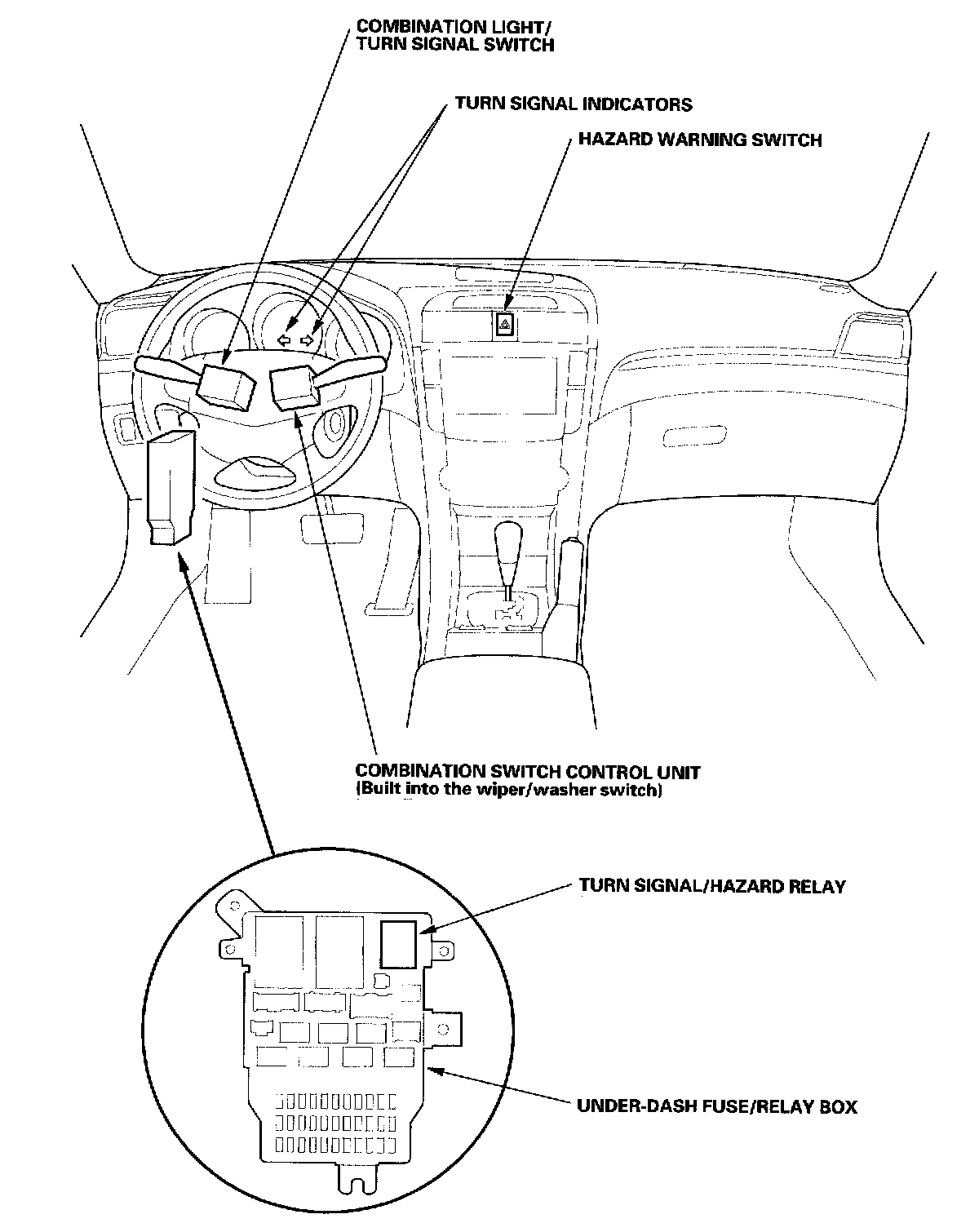

Turn Signal/Hazard Flasher - Component Location Index:
Power Windows - Component Location Index:

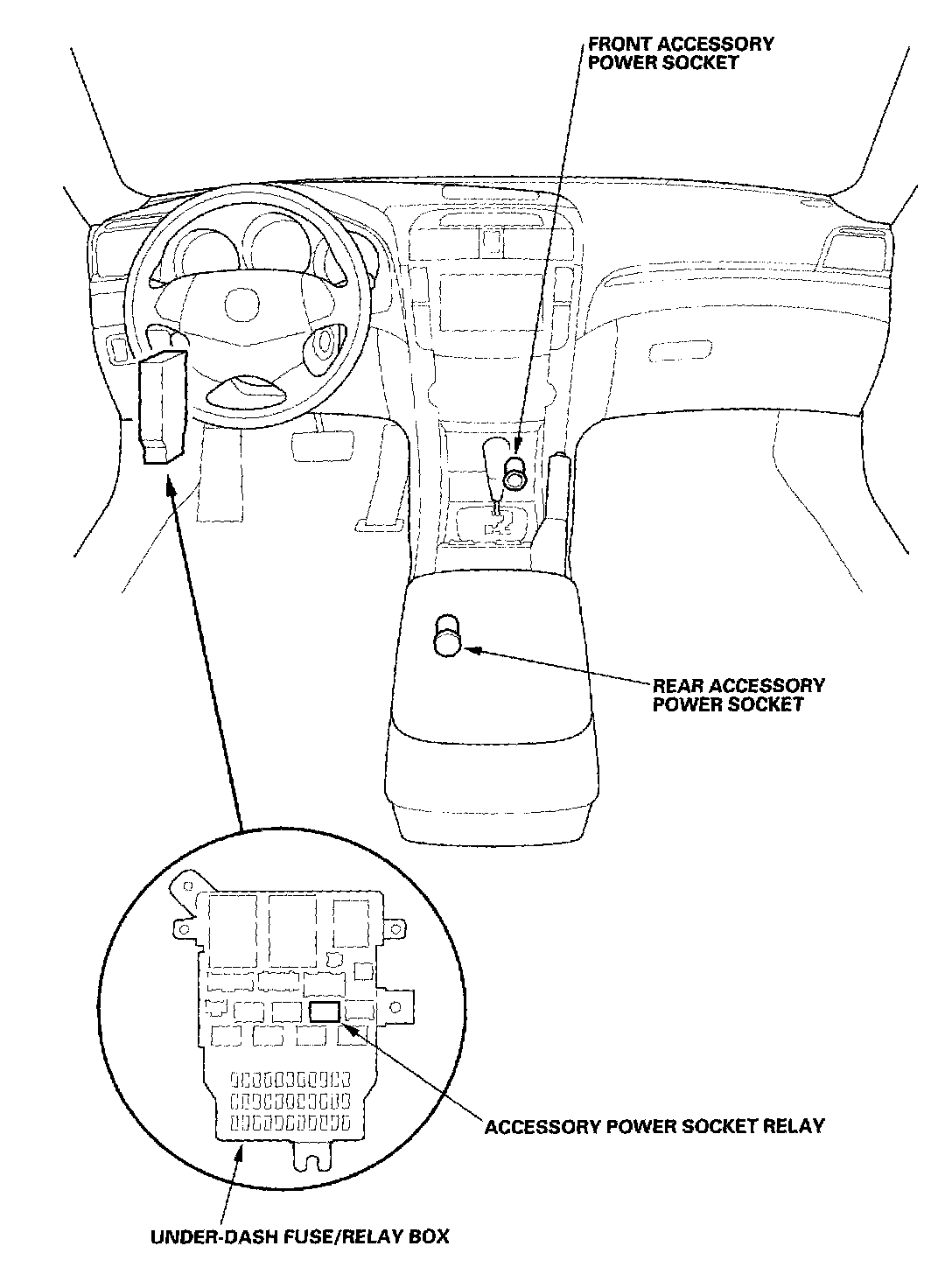

Accessory Power Sockets - Component Location Index:
