Circuit Diagram

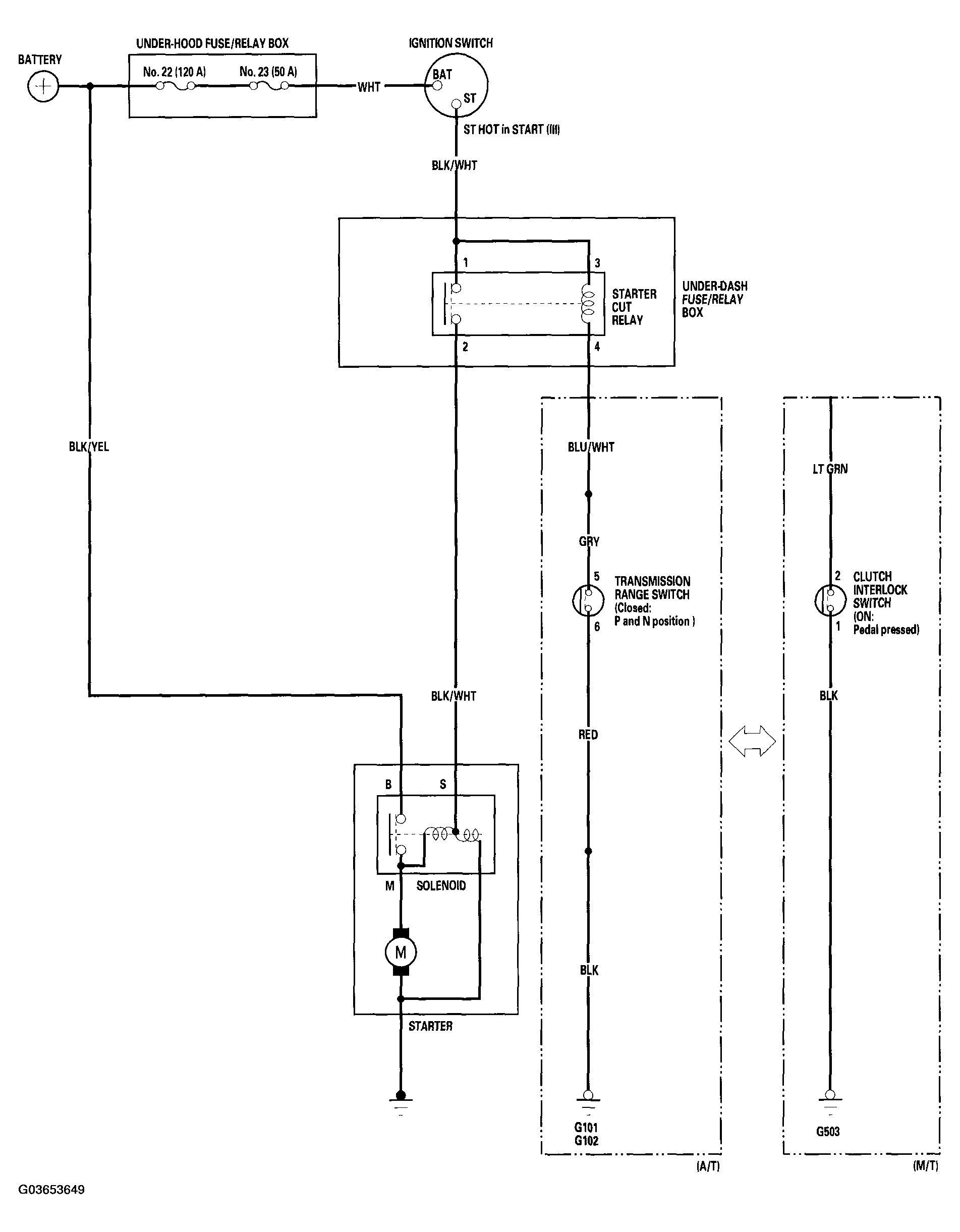

Fig 1: Starting System - Circuit Diagram

G03653649

Courtesy of AMERICAN HONDA MOTOR CO., INC.
