Front Passenger's Seat

  1. Remove the power seat adjustment switch knobs (A) and recline cover from the front passenger's seat (see FRONT SEAT DISASSEMBLY/REASSEMBLY - 4-WAY POWER ).

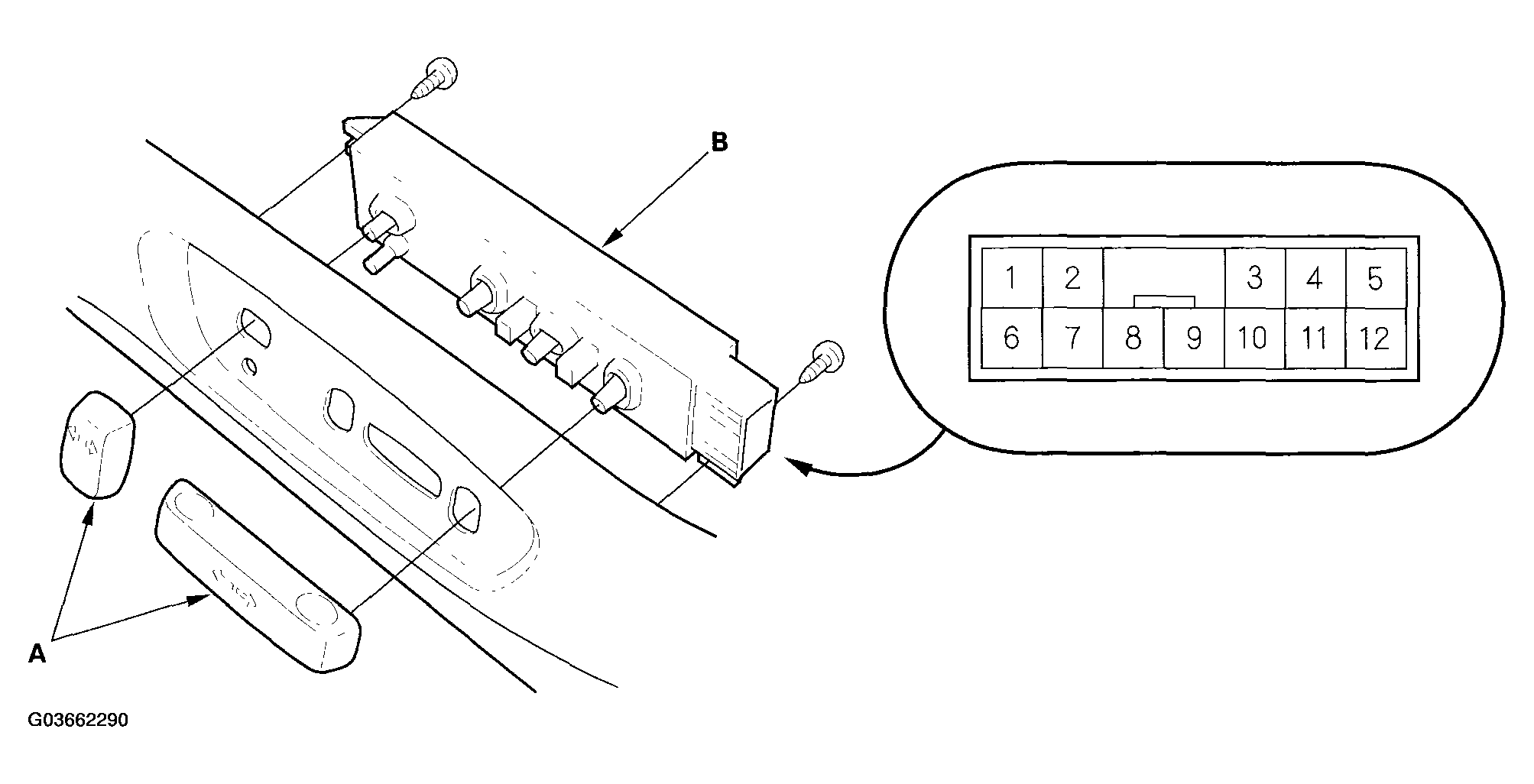

    Fig 1: Identifying Power Seat Adjustment Switch Knobs (A)
    G03662290Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the two screws and power seat adjustment switch (B).
  3. Disconnect the 12P connector from the power seat adjustment switch.
  4. Reinstall the switch knobs to the switch.
  5. Check for continuity between the terminals in each switch position according to the table.

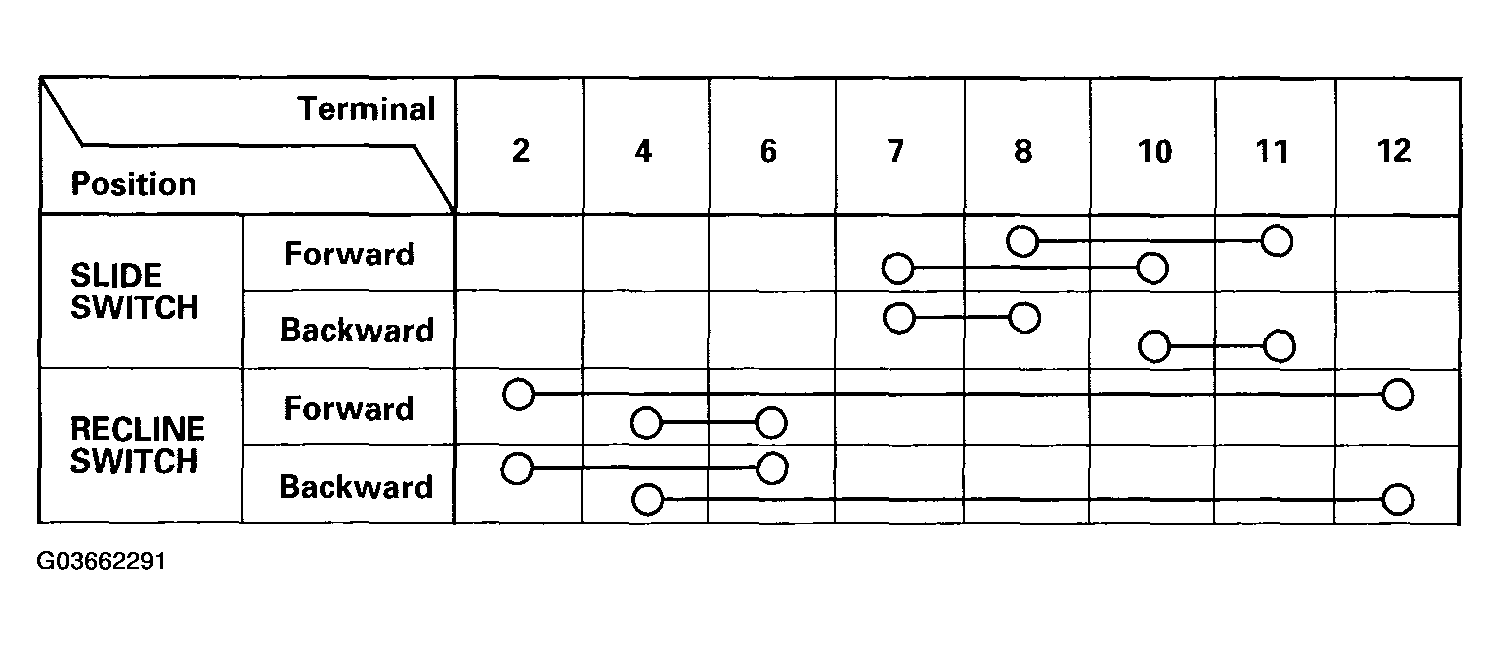

    Fig 2: Switch Position Terminal Continuity Table
    G03662291Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, replace the switch.
