ECM/PCM Circuit Diagrams

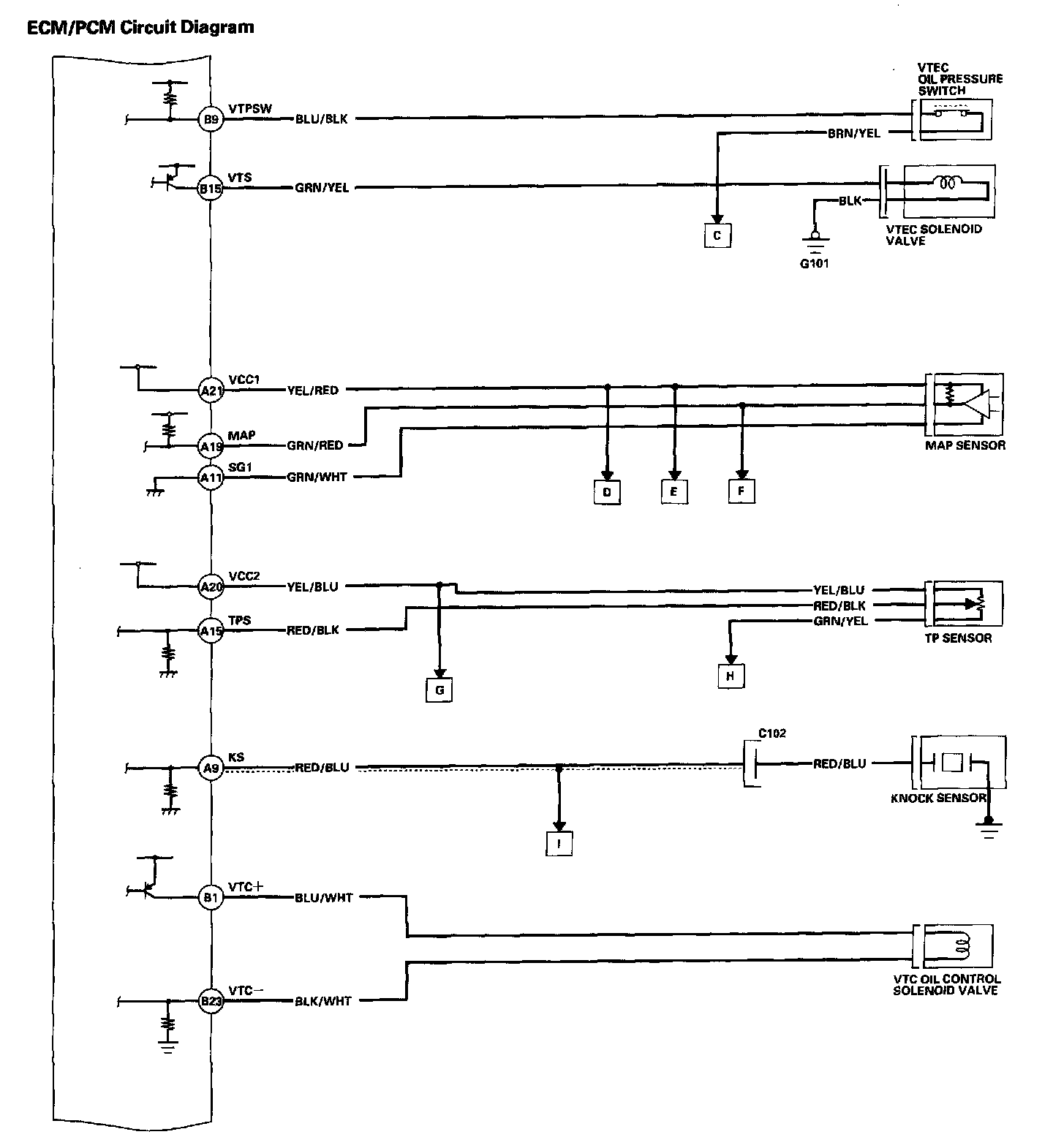

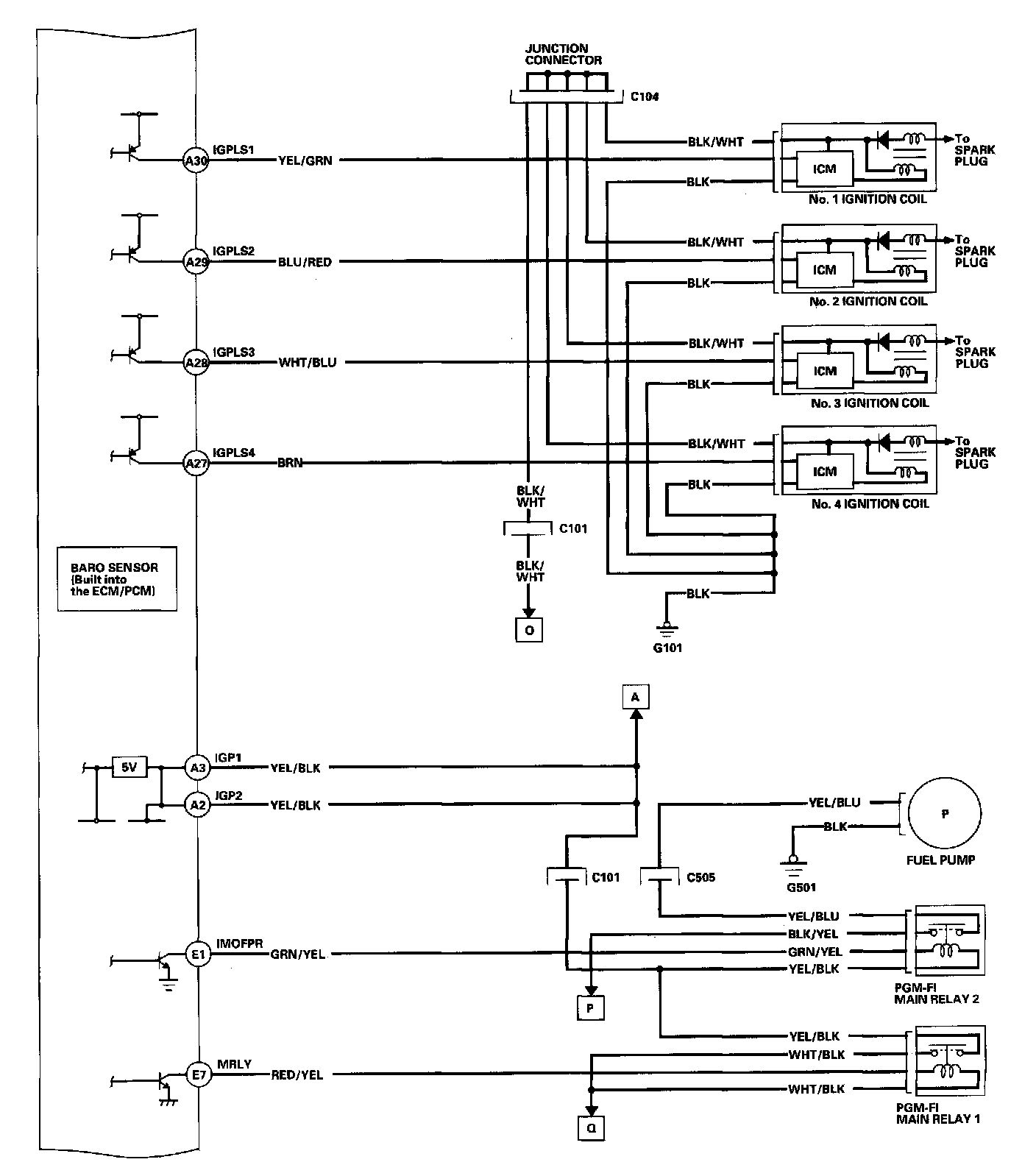

ECM/PCM Circuit Diagram Part 1:

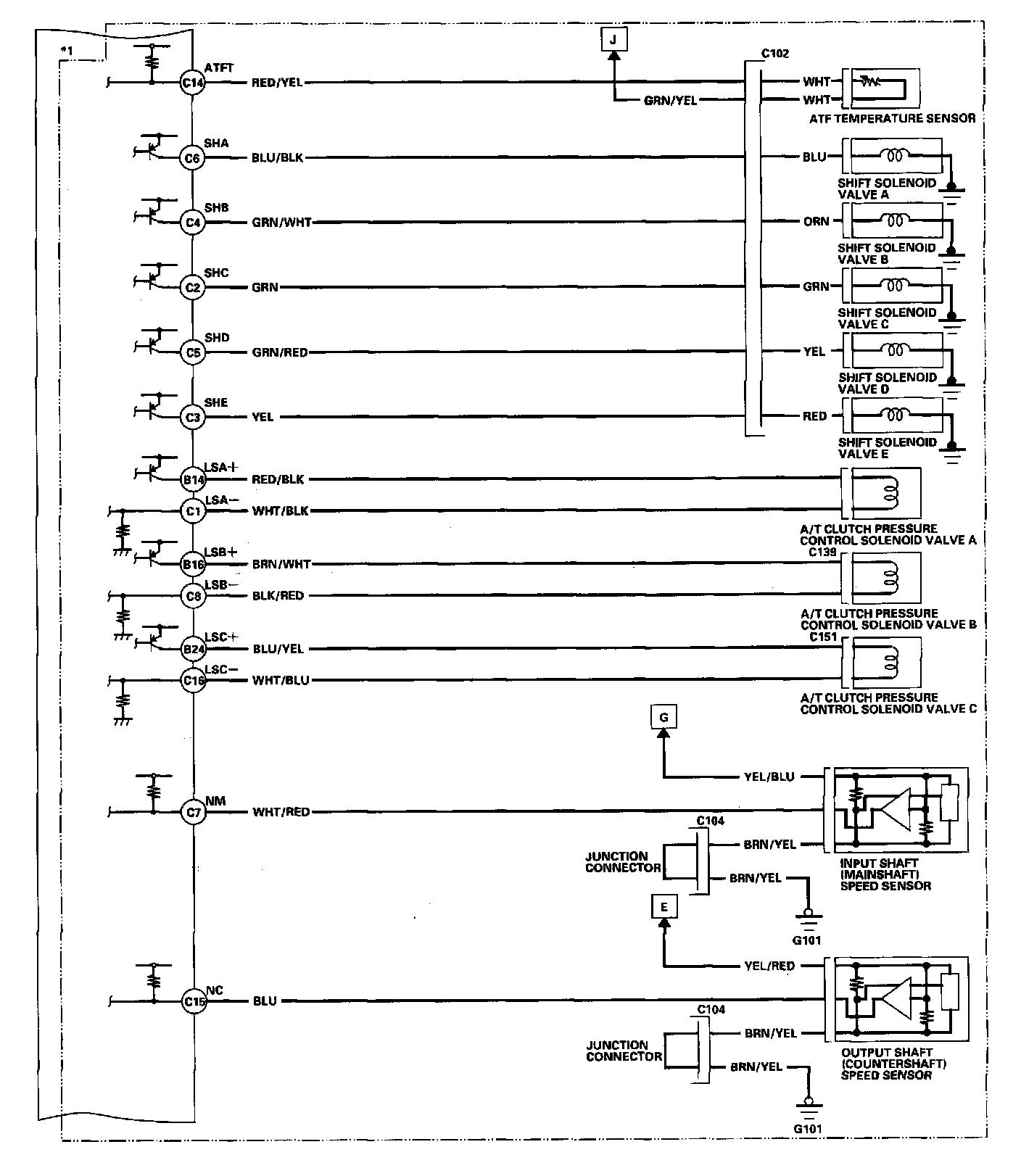

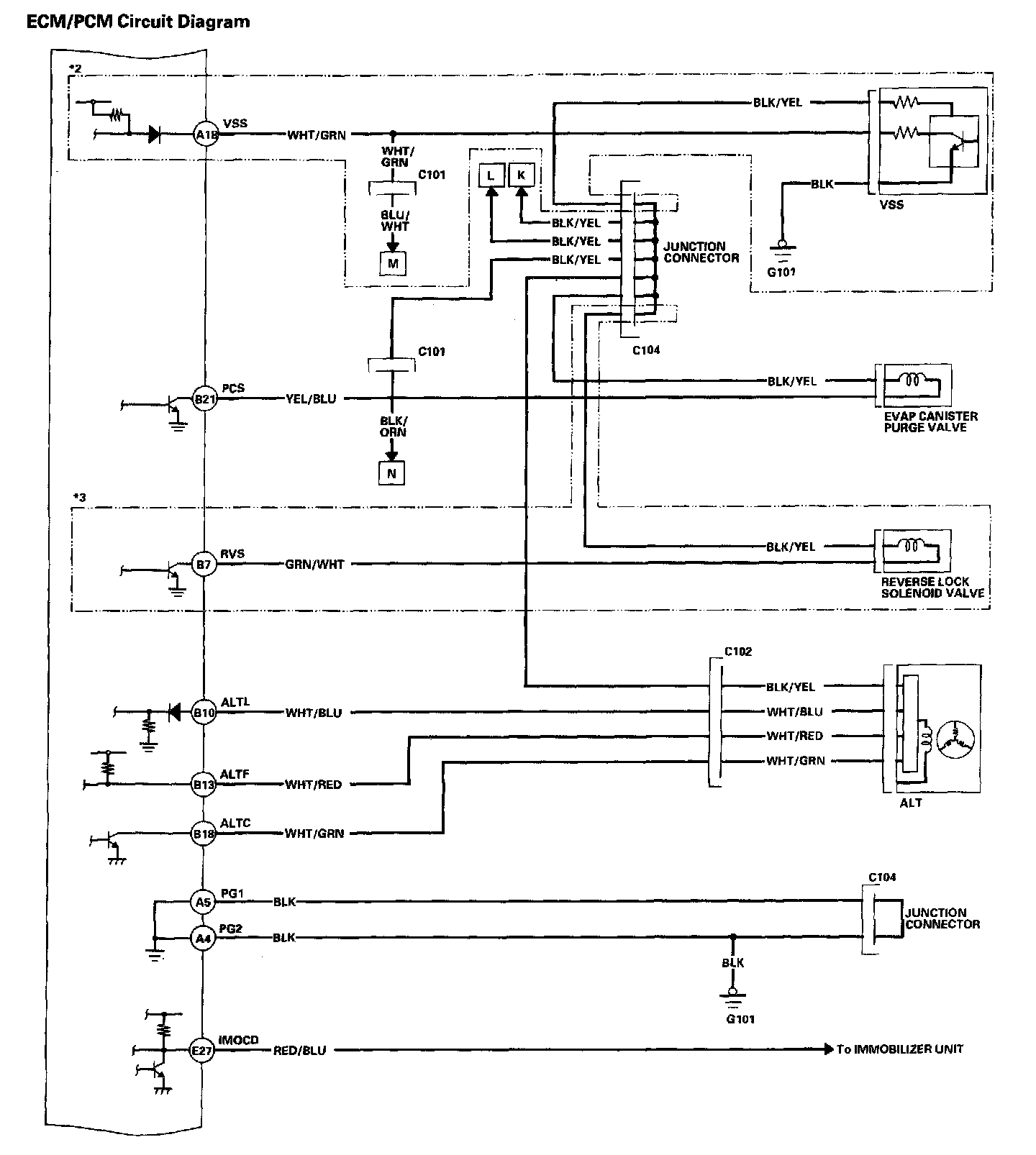

ECM/PCM Circuit Diagram Part 2:

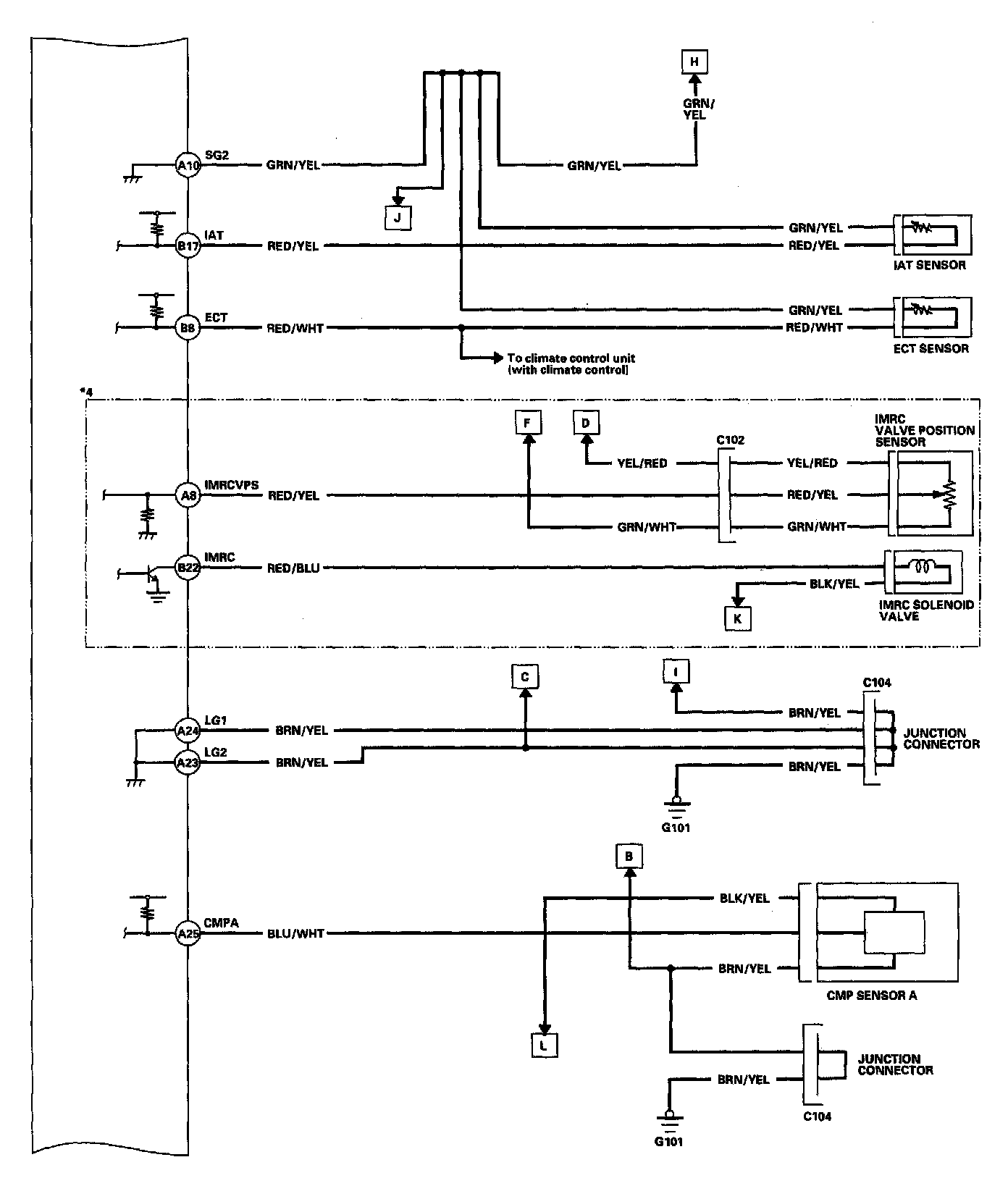

ECM/PCM Circuit Diagram Part 3:

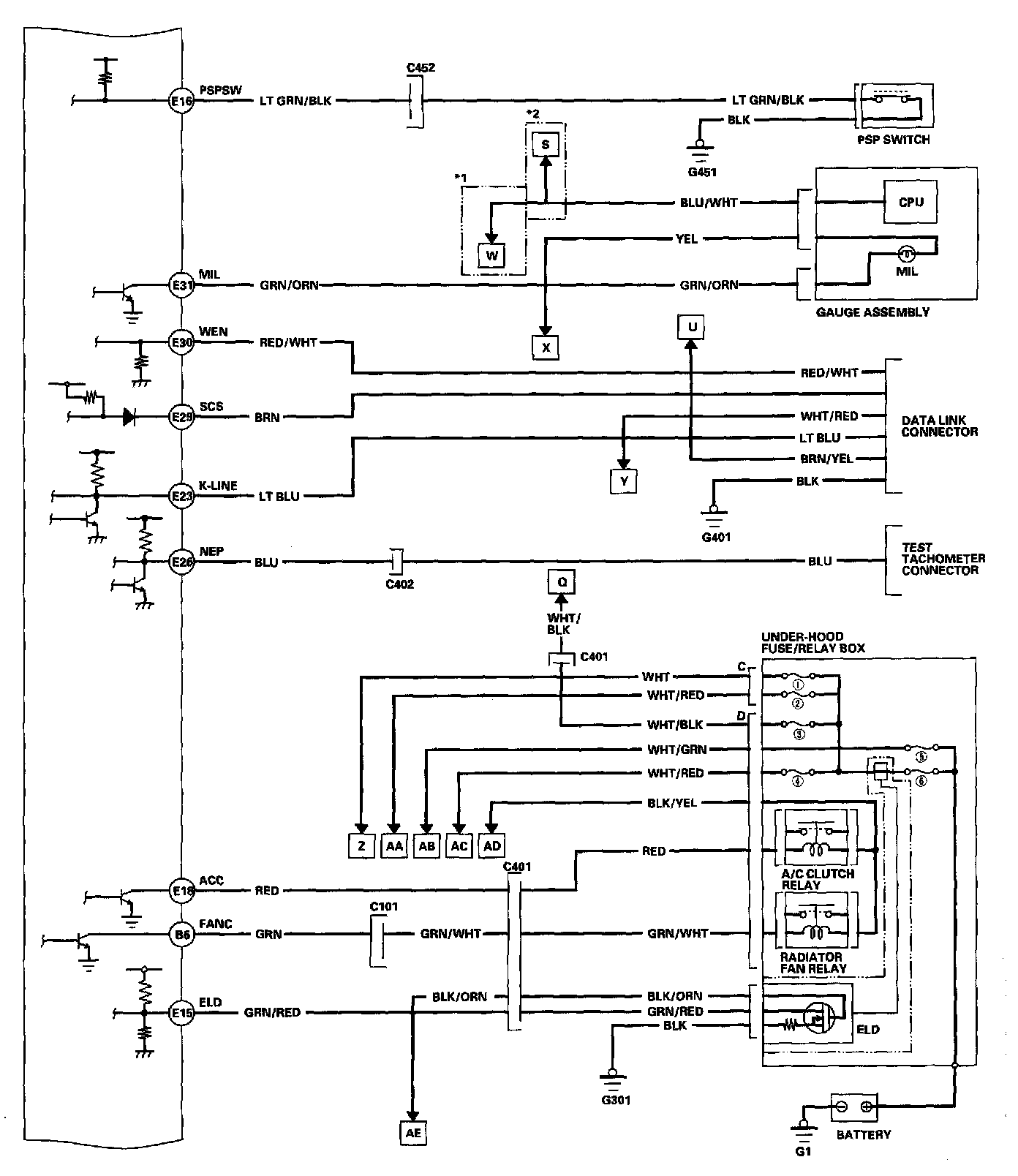

ECM/PCM Circuit Diagram Part 4:

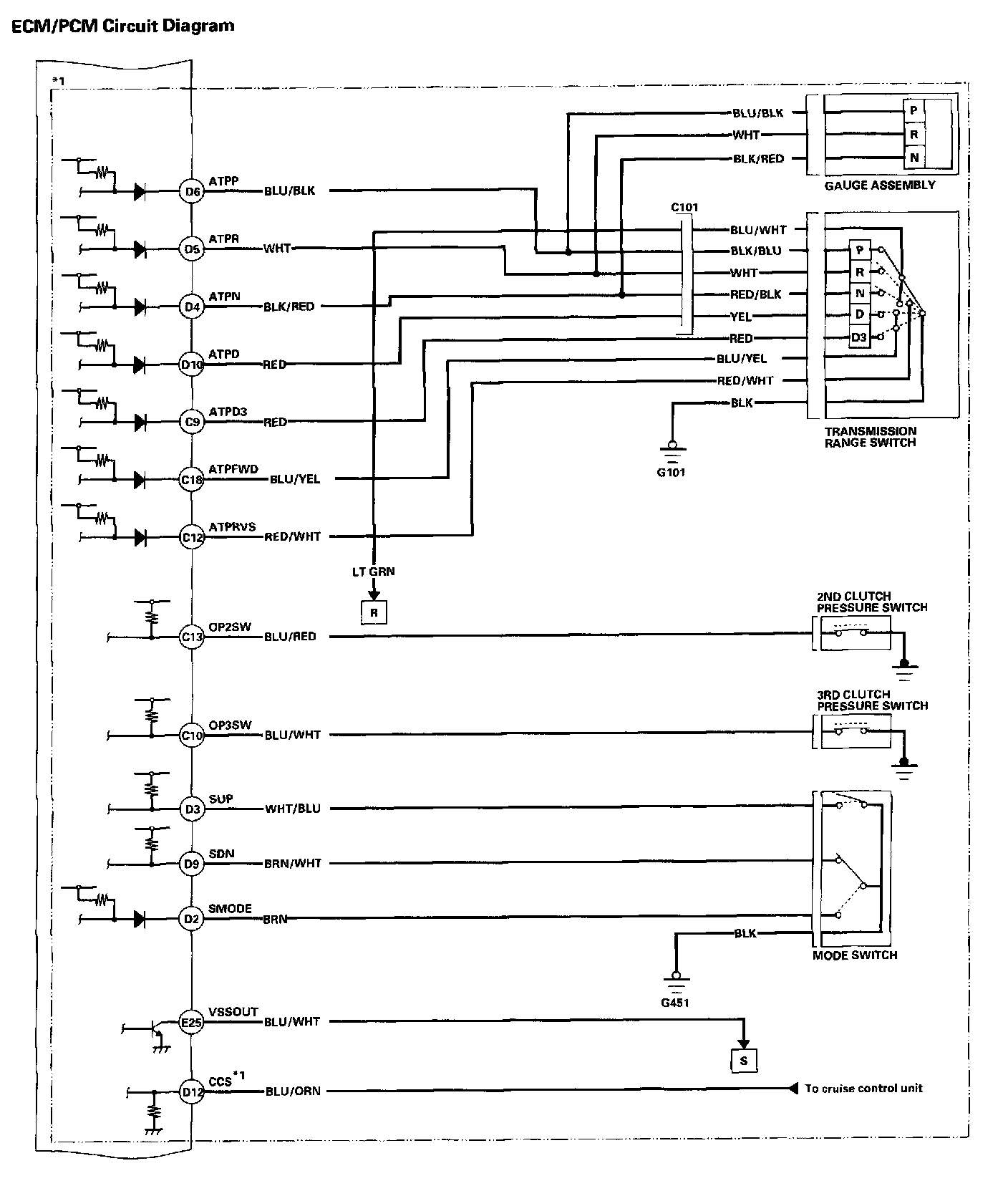

ECM/PCM Circuit Diagram Part 5:

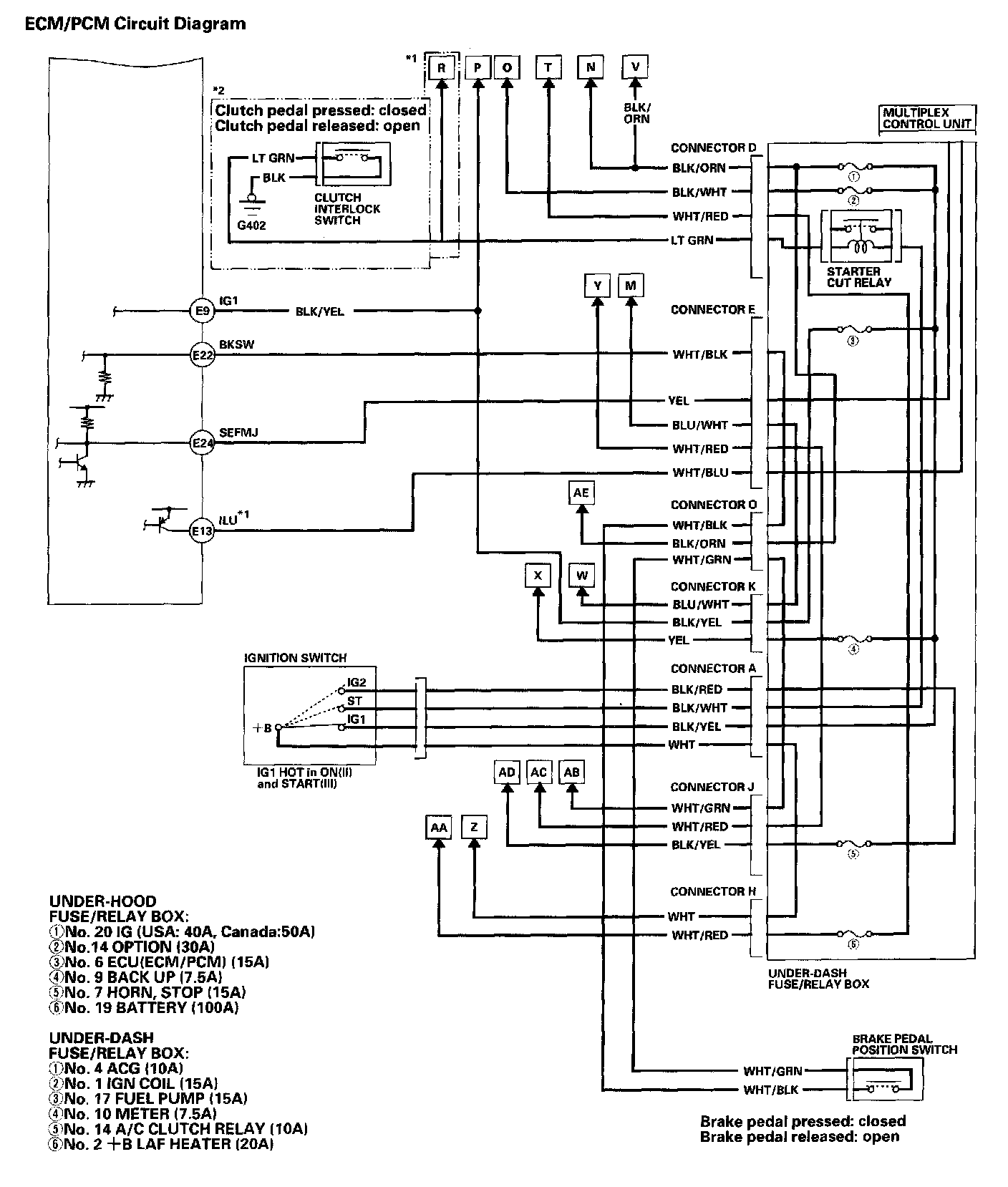

ECM/PCM Circuit Diagram Part 6:

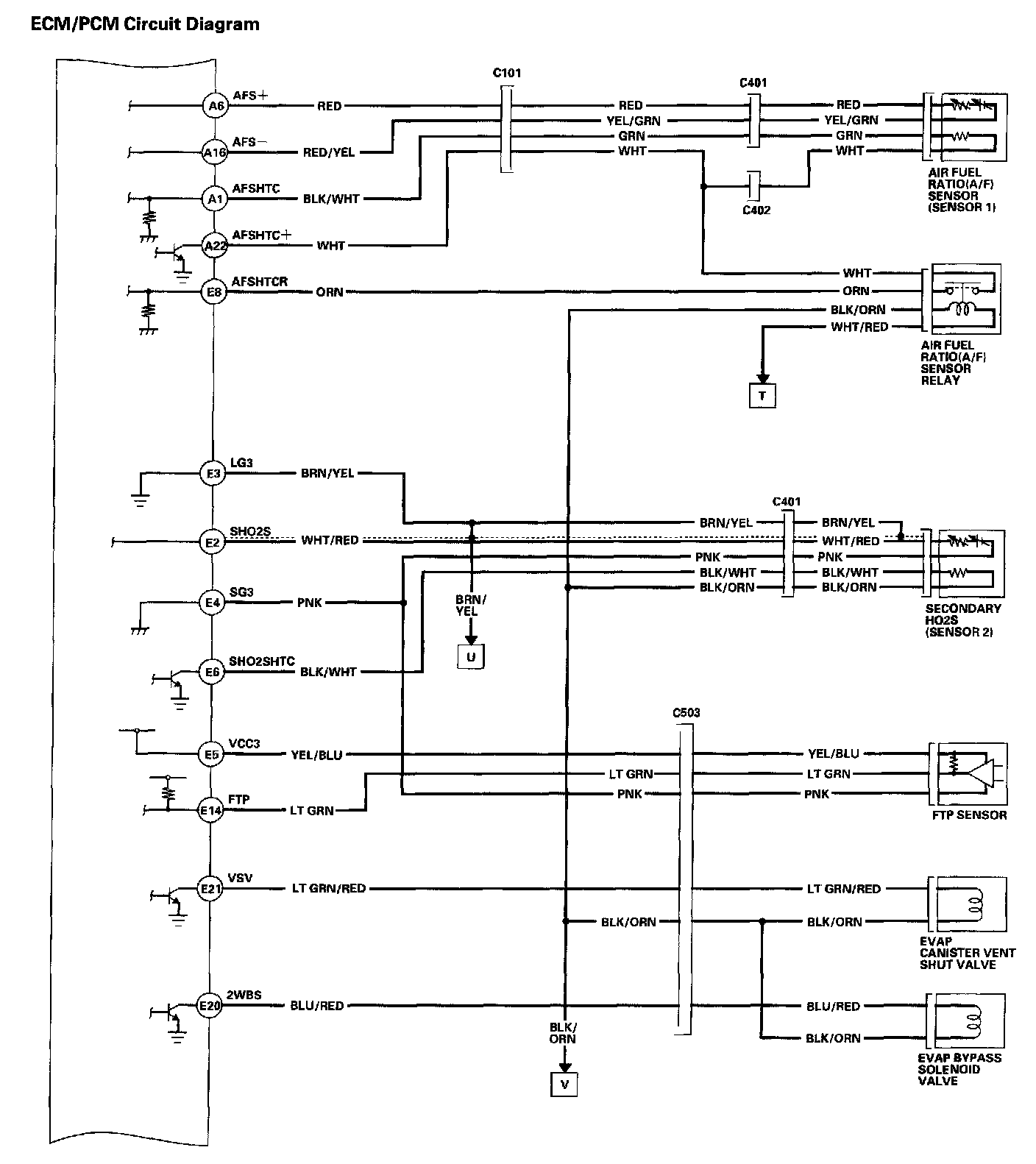

ECM/PCM Circuit Diagram Part 7:

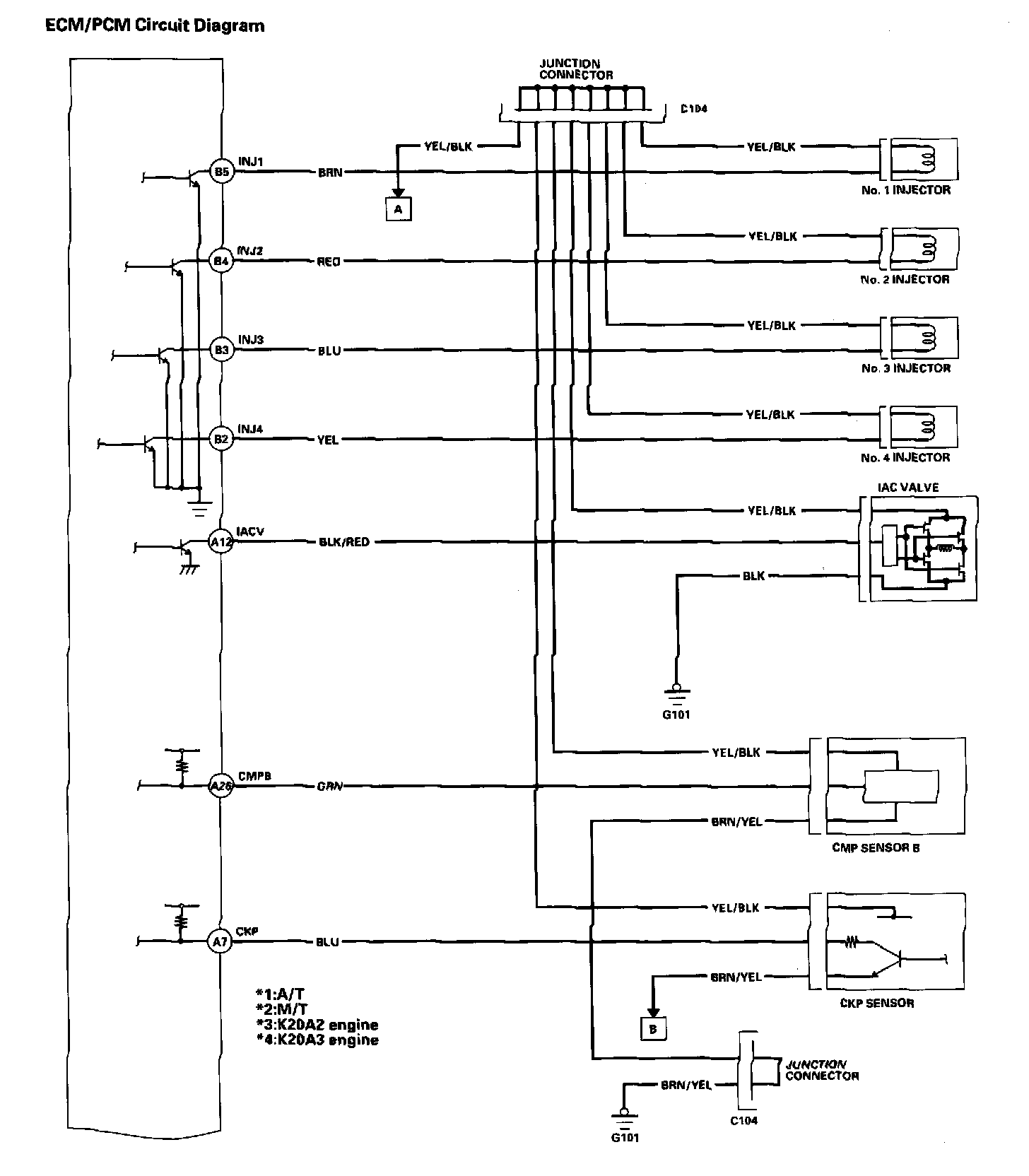

ECM/PCM Circuit Diagram Part 8:




ECM/PCM Circuit Diagram Part 9:




ECM/PCM Circuit Diagram Part 10:
