Air Mix Control Motor Replacement

  1. Disconnect the 5P connector (A) from the air mix control motor (B). Remove the self-tapping screws and the air mix control motor from the heater unit. Remove the rod (C) from the arm (D) of the air mix control motor.

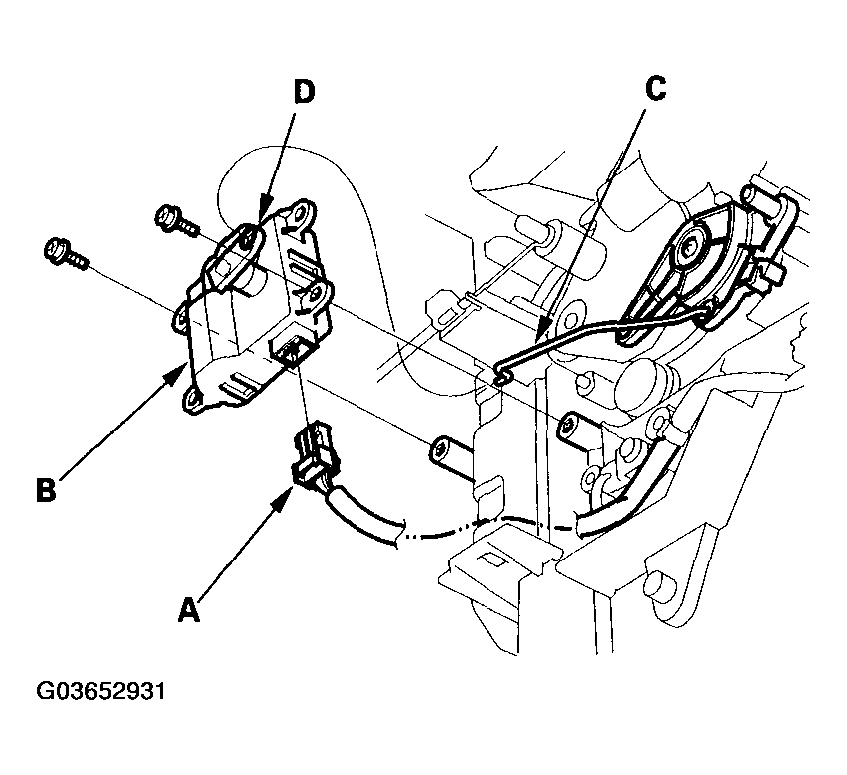

    Fig 1: Disconnecting 5P Connector From Air Mix Control Motor And Removing Self-Tapping Screws And Air Mix Motor From Heater Unit
    G03652931Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
