Alternator And Regulator Circuit Test

For alternator and regulator test see, Fig 1.

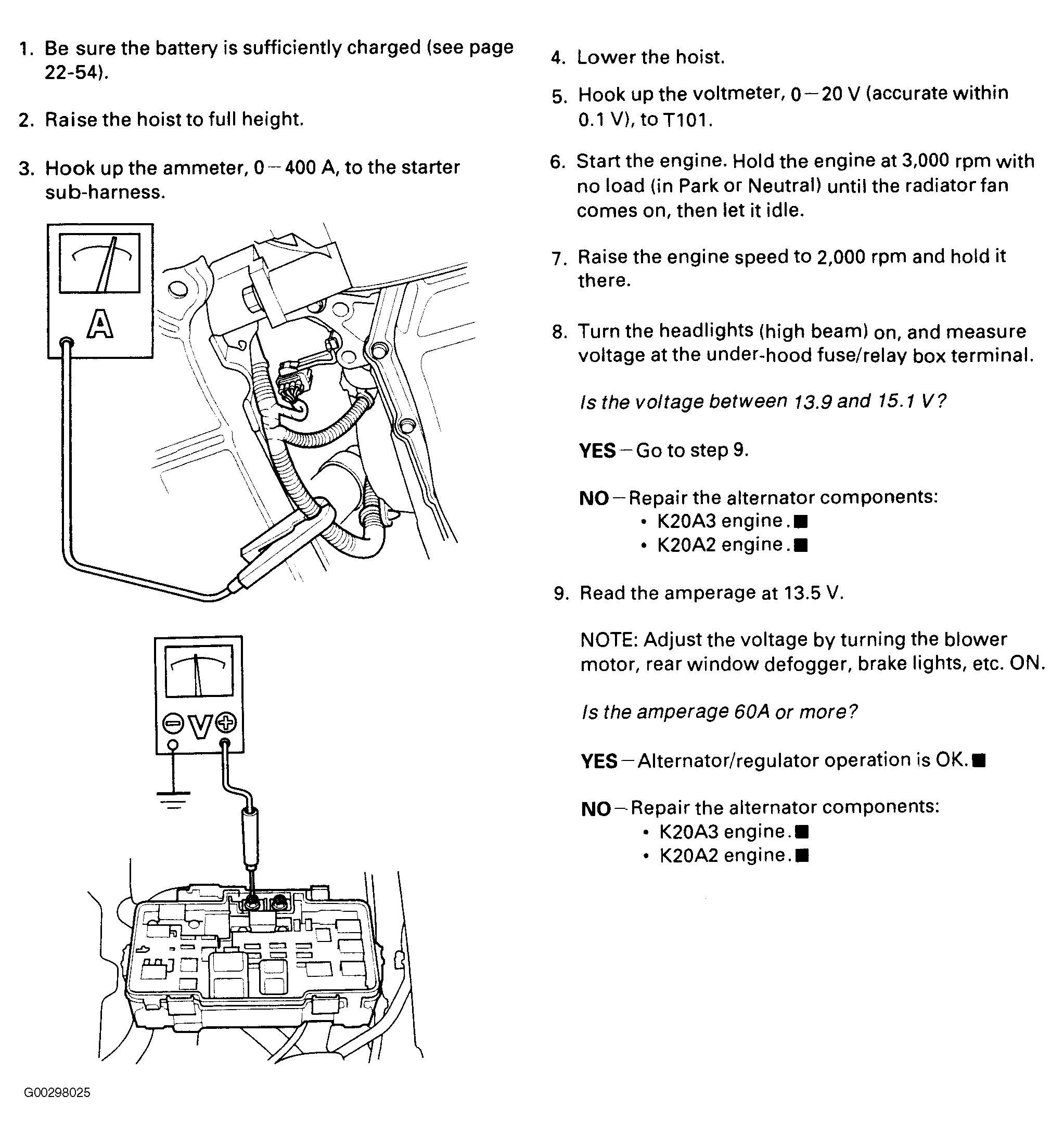

Fig 1: Alternator And Regulator Circuit Test
G00298025Courtesy of AMERICAN HONDA MOTOR CO., INC.
