System Indicator ('07 Model): Notes

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

The system has seven indicators.

The low tire pressure indicator (A)
The message indicator (B)
The TPMS indicator (C)
The right-front (RF) tire indicator (D)
The left-front (LF) tire indicator (E)
The right-rear (RR) tire indicator (F)
The left-rear (LR) tire indicator (G)

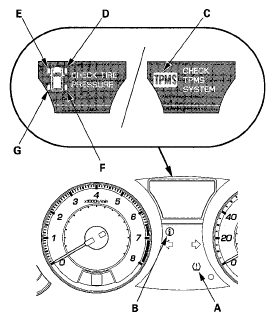

Fig 1: Identifying Low Tire Pressure Indicator, Massage Indicator, And TPMS Indicator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

The TPMS (tire pressure monitoring system) has seven indicators: four tire indicators (on the multi-information display), a low tire pressure indicator (LED indicator), a message indicator (LED indicator), and a TPMS indicator (on the multi-information display). When the TPMS control unit detects low pressure in a tire, or a problem in the system, it turns on the appropriate indicator(s), as well as the message indicator.
