Computers and Control Systems: Locations

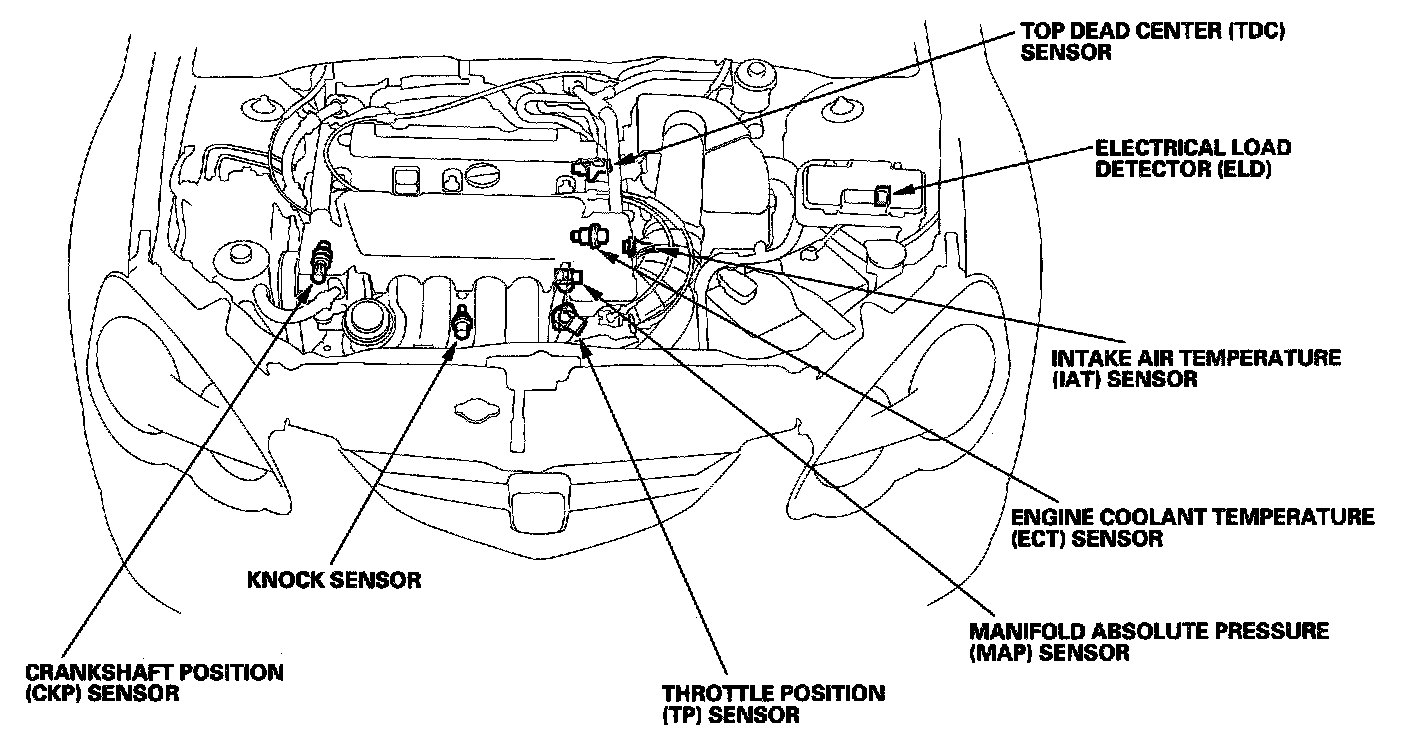

PGM-FI System - Component Location Index:

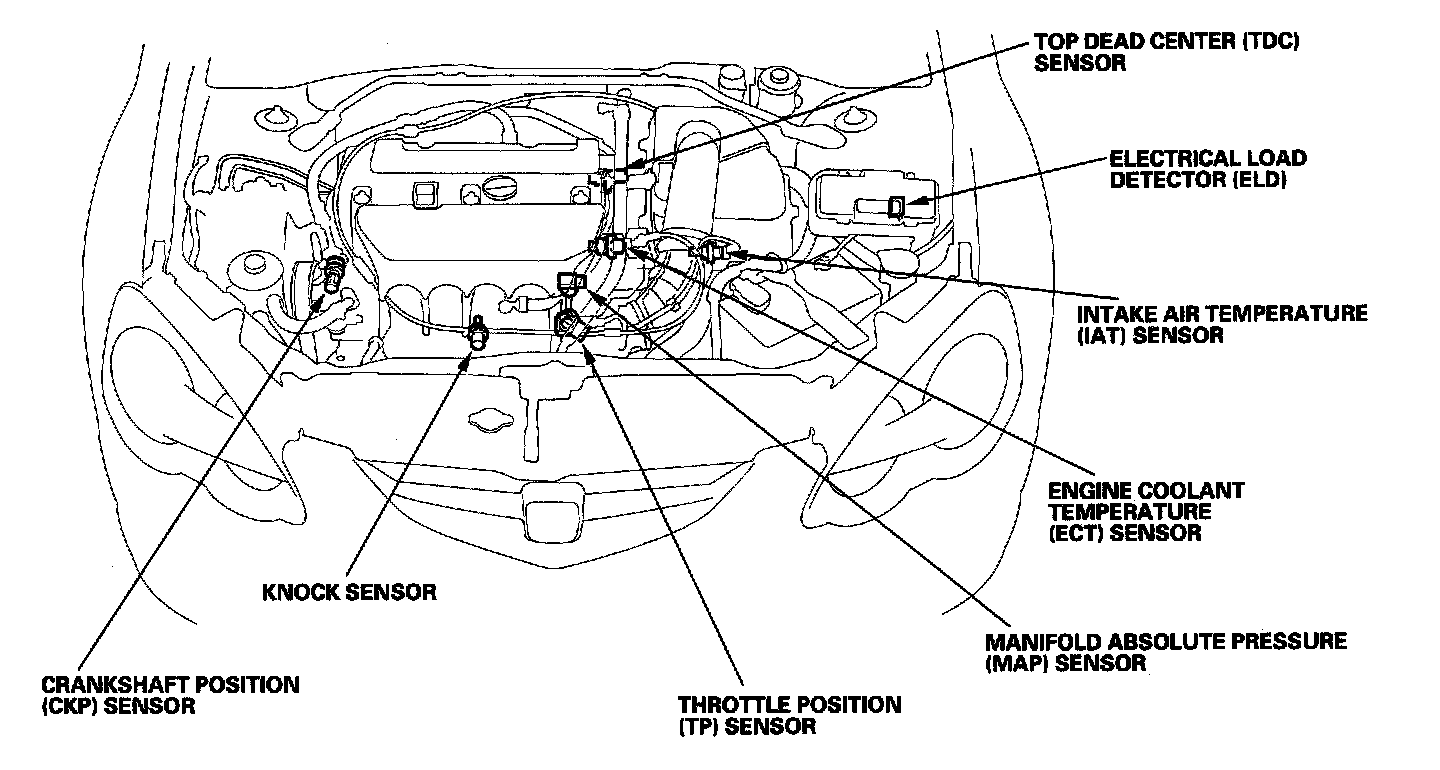

PGM-FI System - Component Location Index:

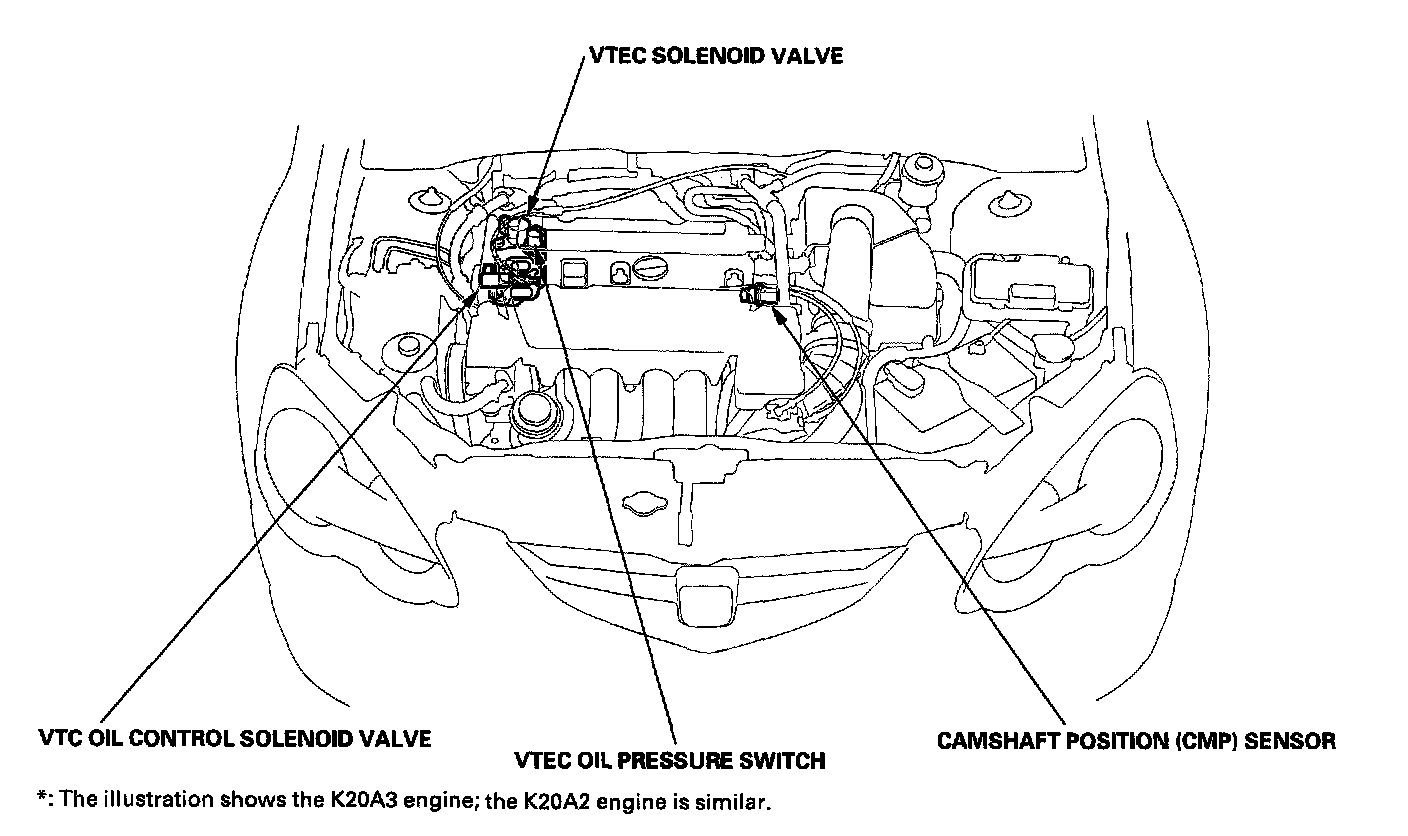

VTEC/VTC - Component Location Index:

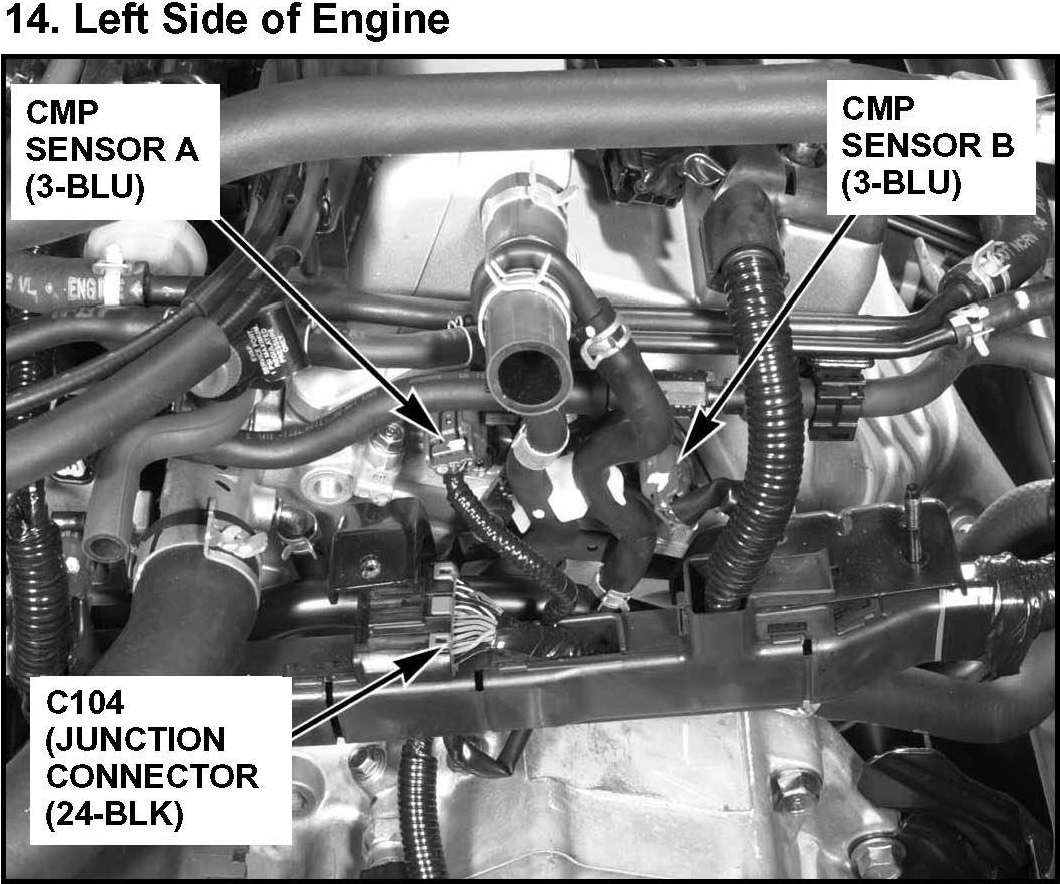

14. Left Side Of Engine:
