Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
>>
Under-dash Fuse/Relay Box
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

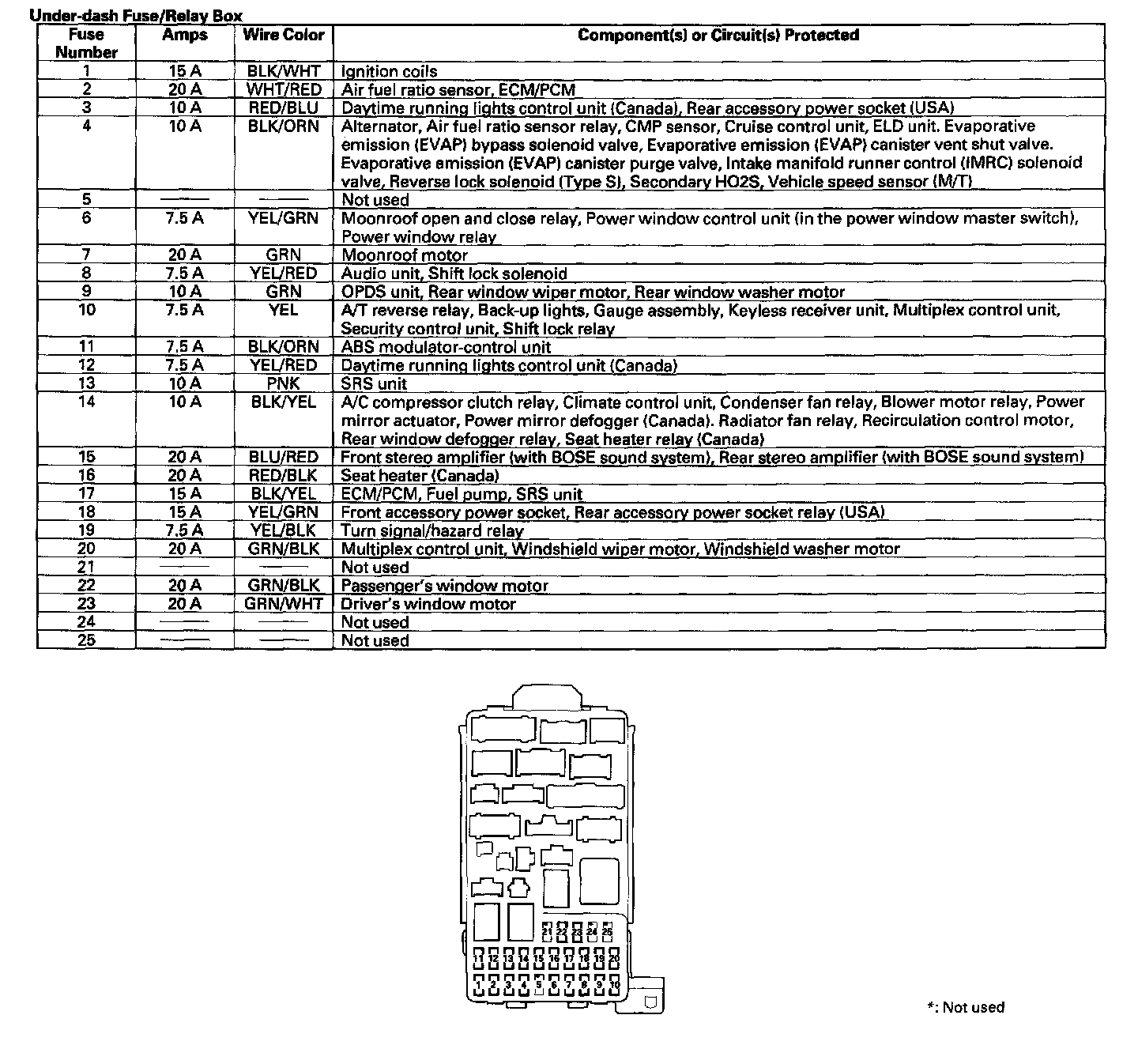

Under-dash Fuse/Relay Box
Connector To Fuse/Relay Box Index Image 49:
Fuse To Component Index Image 51:
