K20Z1 engine-2005-2006 models

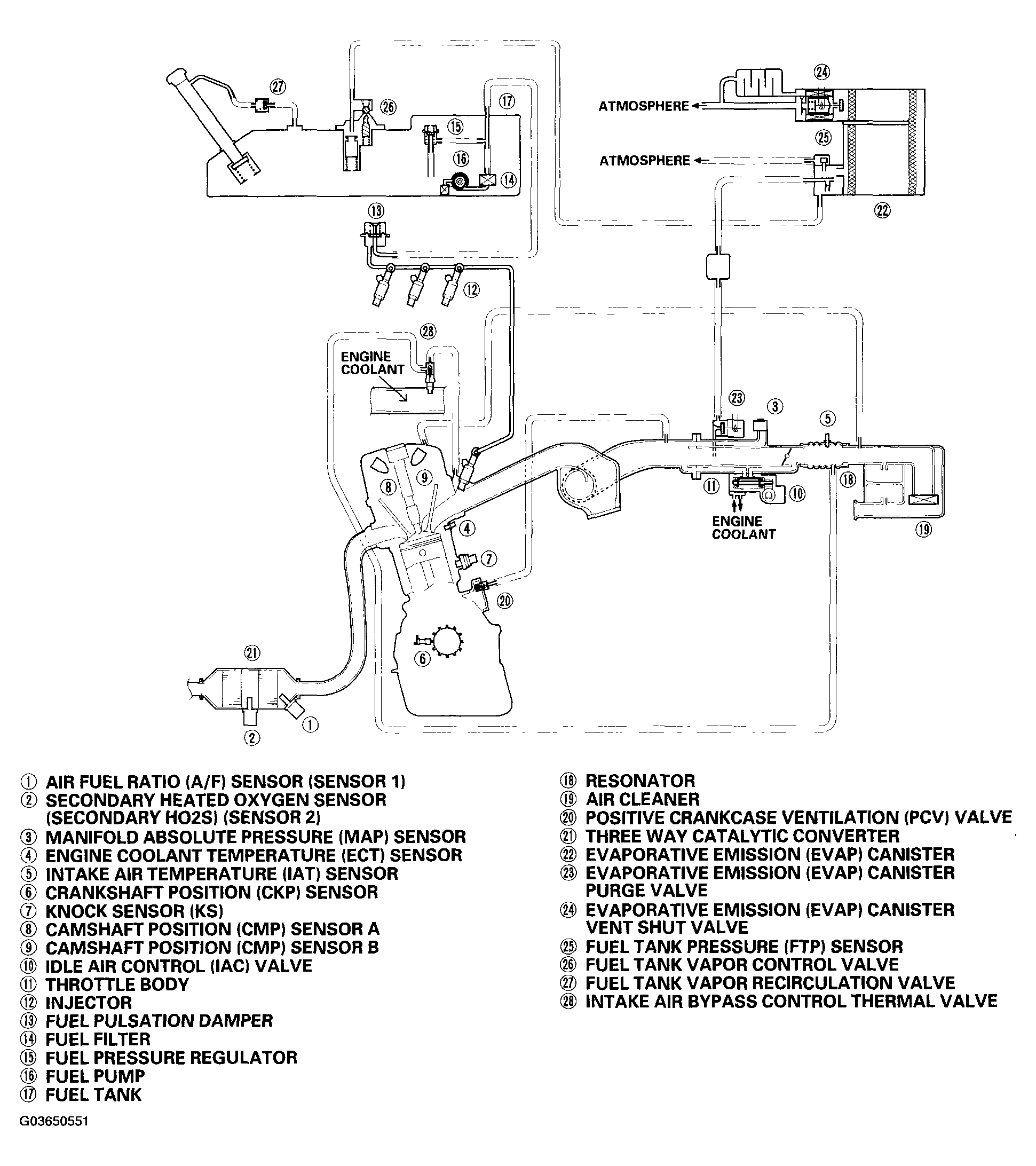

Fig 1: Identifying Vacuum Distribution (K20Z1 Engine)
G03650551Courtesy of AMERICAN HONDA MOTOR CO., INC.
